CNC Chip Fan / Chip Blower

Kortools

Availability:

Select a variant to see available quantity pcs.

€53.82

Shipping costs are not included in the price.

Quantity

pcs.

Shipping time: 24 hours

Ask about the product

Select a product variant:

Individual variants may differ in price

Type

Select

Complete CNC chip fan

Kit: blades, springs, pins and screws (-€20.02)

Click Available to show variants with 24h shipping

Product description

CNC chip removal fan

This fan removes chips from the working area of a CNC machine. It can be used in a programmed table-cleaning cycle. Folding blades make storage in the tool magazine easier.

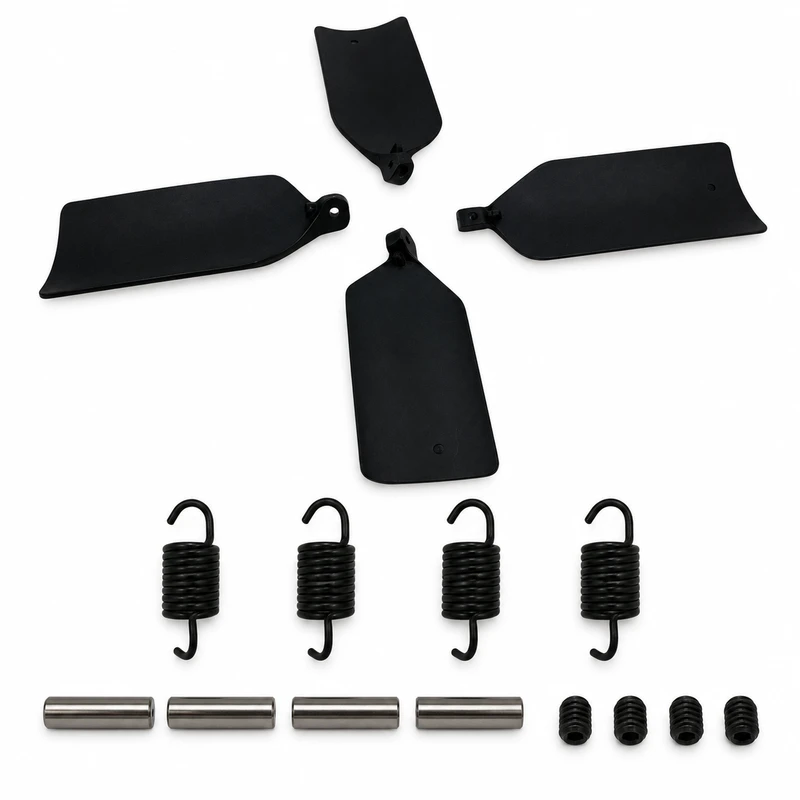

Contents of the selected type: “Complete CNC chip fan” is the complete fan with its body and fittings. “Kit: blades, springs, pins and screws” contains 4 blades, 4 springs, 4 pins and 4 screws, without the aluminum body. The parts kit is for repairing an existing fan.

1. Application

For cleaning the tables and working areas of CNC milling machines, precision engraving machines and drilling/tapping centres. Program a suitable path for the workpiece and table layout before use.

2. Fan dimensions

Parameter	Value
Shank diameter	16 mm
Shank length	40 mm
Overall length when folded	162 mm
Body width	64 mm
Blade length on the fan drawing	102 mm

3. Folding blades

After use, the blades fold alongside the body so the fan fits in the tool magazine. The video below shows the complete fan in operation.

4. Working parameters

Parameter	Recommendation
Recommended working speed range	3000–8000 rpm
Recommended working height	10–15 cm

Adjust the speed and travel height to the height of the workpiece. The fan must not touch the workpiece or table. This range is a working recommendation, not a declared absolute maximum speed.

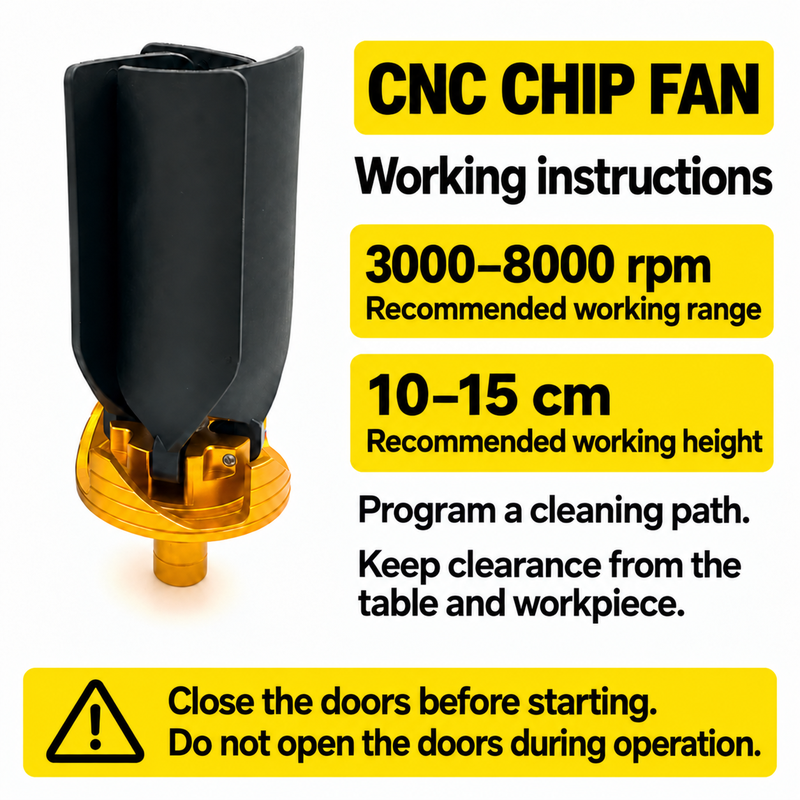

CNC fan working instructions:3000–8000 rpm,10–15 cm height and closed machine doors

5. Programming the cleaning cycle

Program a suitable travel path in the machine program. Maintain clearance from the table and workpiece throughout the path, adjusting the height to the workpiece.

6. Mounting

The fan has a 16 mm shank. Select a holder for this diameter. The existing setup can use an ER32 holder with a 16 mm collet.

7. Safe working conditions

Close the machine enclosure doors before starting.
Do not open the doors while the fan is operating.
Maintain a travel height that prevents contact with the table and workpiece.

These instructions apply to a complete, assembled fan. Purchasing a replacement part does not mean purchasing the complete tool; the supplied contents depend on the selected product type.

8. Frequently asked questions

Must the machine doors be closed?
Yes. Close them before starting and keep them closed during operation.

How should the working height be set?
The recommended height is 10–15 cm. Adjust it to the workpiece so the fan does not touch the workpiece or table.

Do the blades fold after use?
Yes. They fold alongside the body, making storage in the tool magazine easier.
