Indexable Milling Inserts APMT/APKT/APMX 1604/1135/1003 (10 pcs)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Weekly deals
5-axis vise with hard jaws
Self-centering machine vise. Hard jaws included.
excl. VAT
Regular price:
Lowest price in the 30 days before the reduction:
Time left
Offer ends 06.11.2026 23:59. Offer applies to the vise + hard jaws bundle only.
Ask about the product
The administrator of personal data is Kortools. We process it to respond to your inquiry. More information regarding the processing of personal data can be found in privacy policy.
Select a product variant:
Individual variants may differ in price
Product code: 4C13-78543
Product description
APMT and APKT milling inserts – pack of 10
A choice of geometries and grades for machining steel, stainless steel, cast iron, aluminium and difficult-to-machine materials, including finishing. Select the exact insert code from the variant list.
Selection note: APMT, APKT and APMX identify different insert families and geometries. Do not assume that they are automatically interchangeable. Before ordering, compare the complete insert designation, size 1003/1135/1604, shape, corner radius and the insert pocket specified for the cutter.
Insert families
- APMT 1135 and APMT 1604 – SEAGER SG, BB5002A, PCD and specified-corner-radius variants.

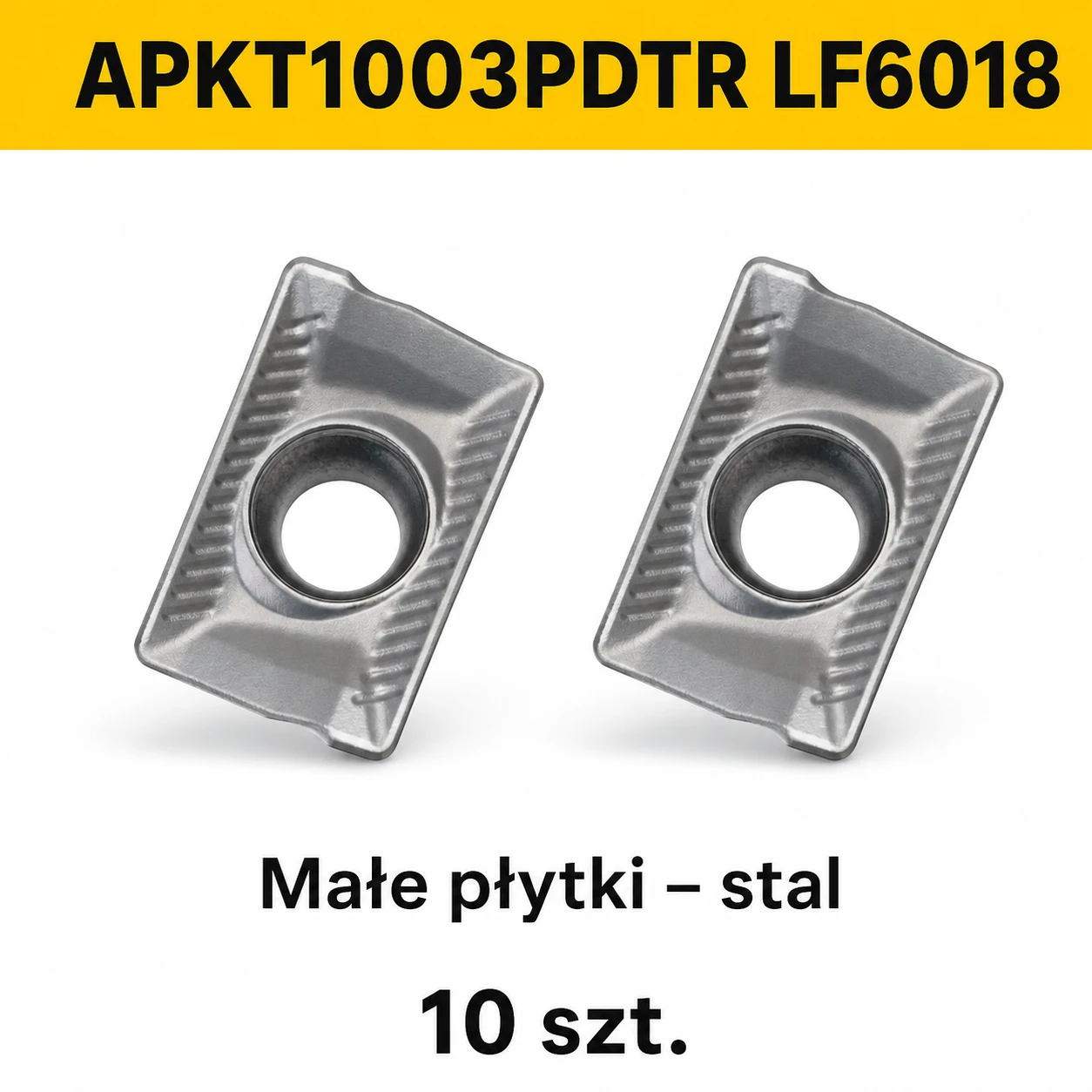

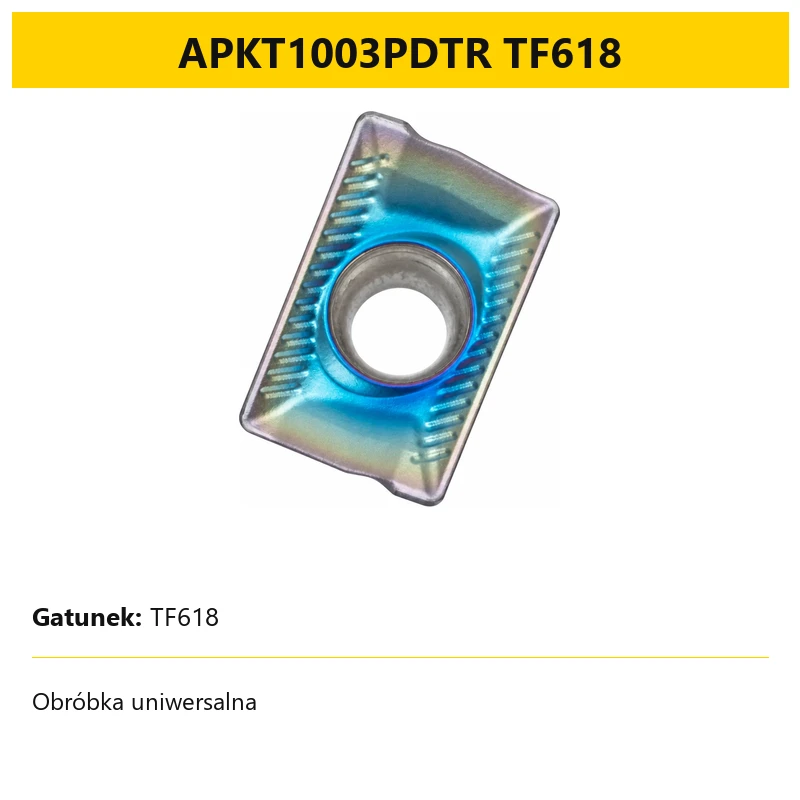

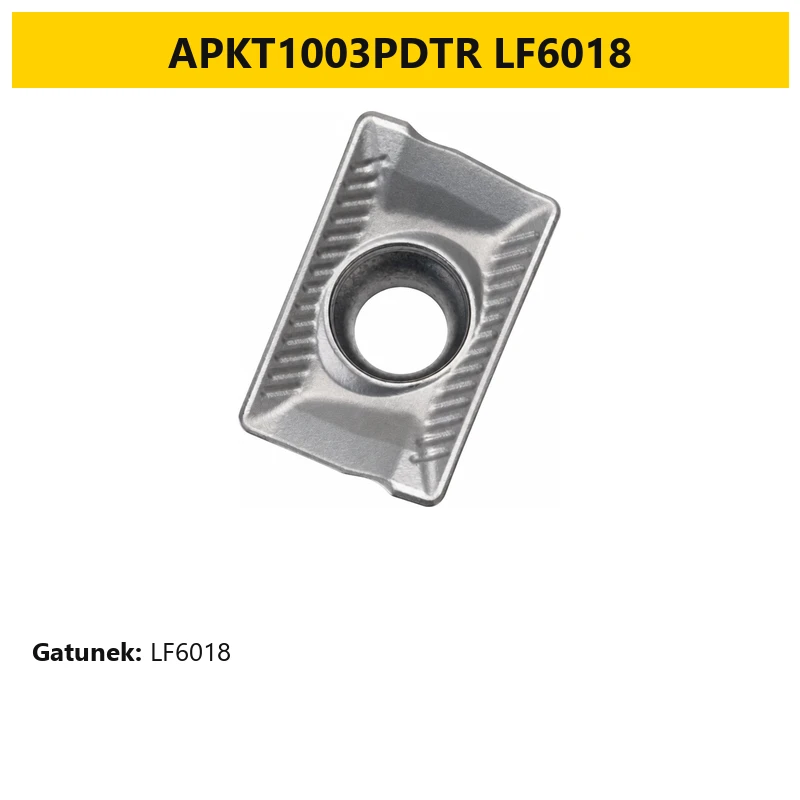

- APKT 1003 – small inserts in grades LF6018 and TF618.

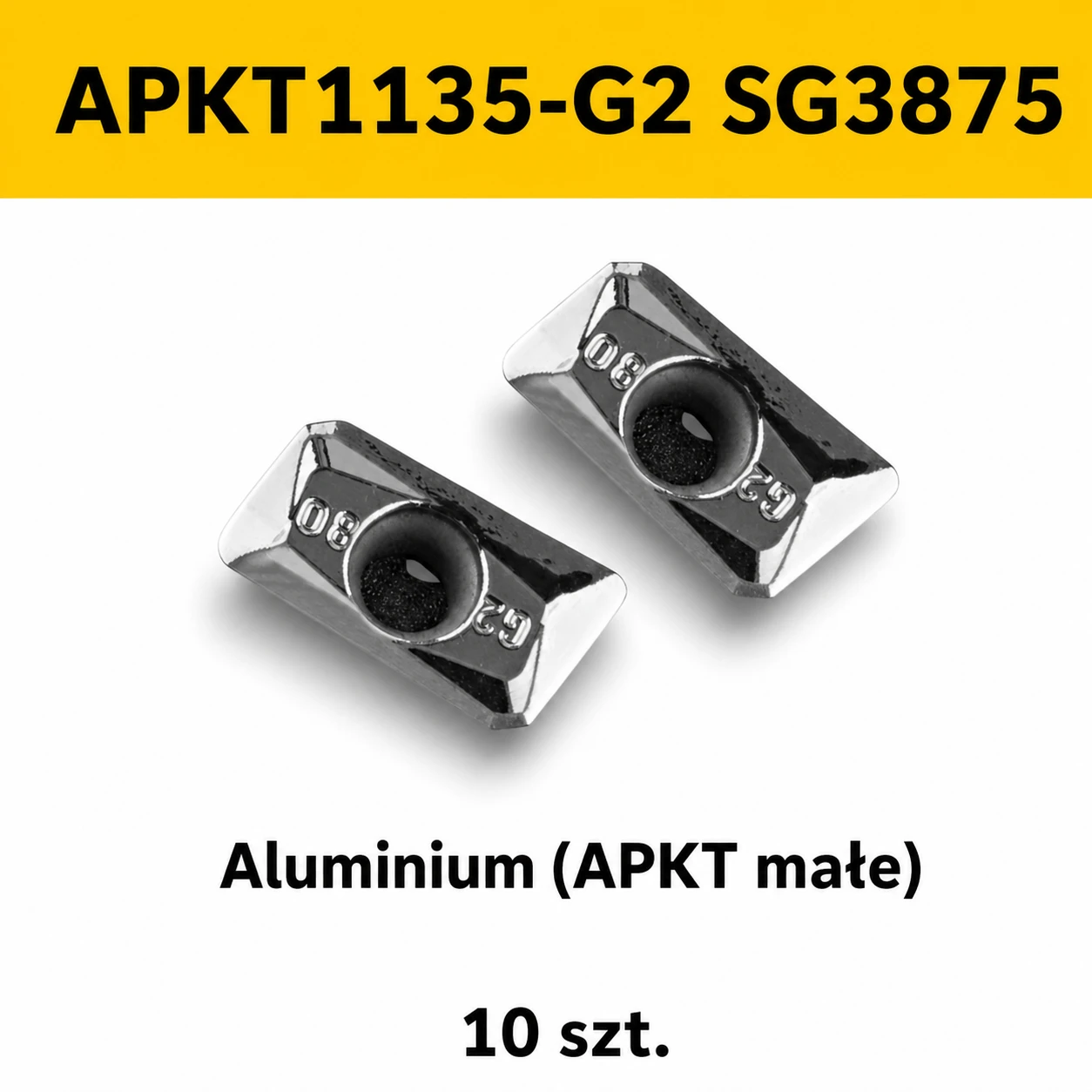

- APKT 1135-G2 SG3875 – an aluminium-machining variant.

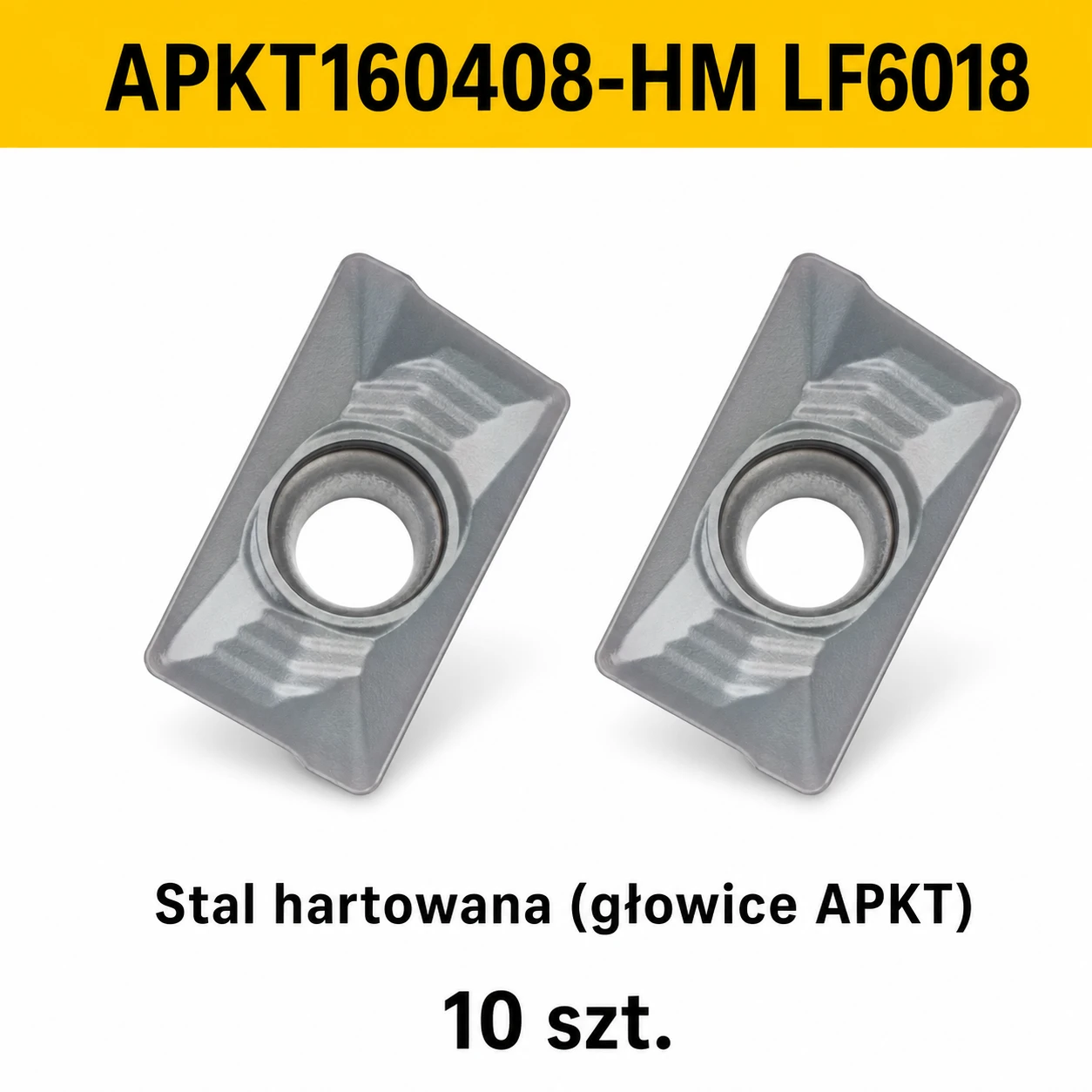

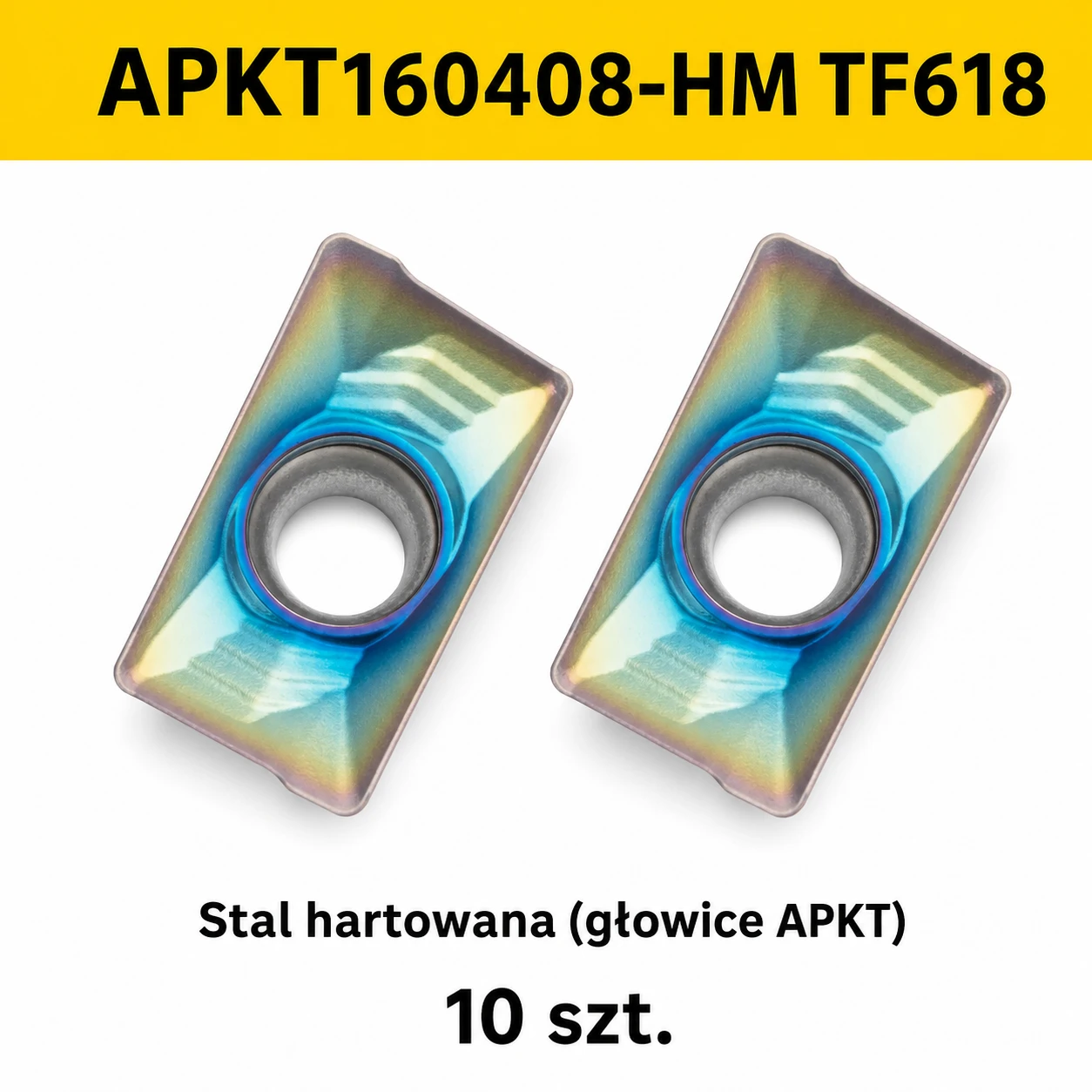

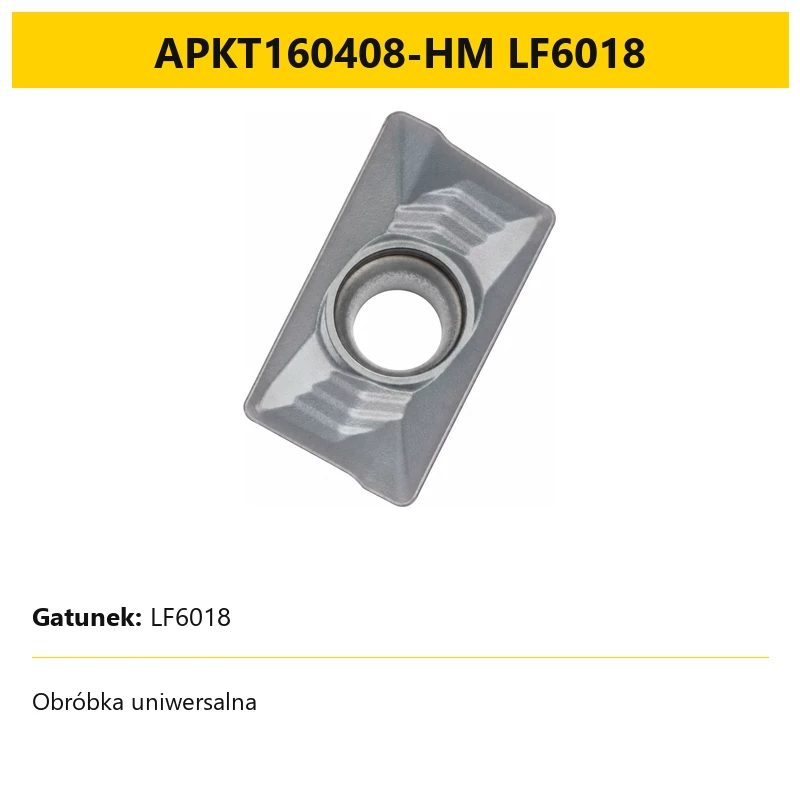

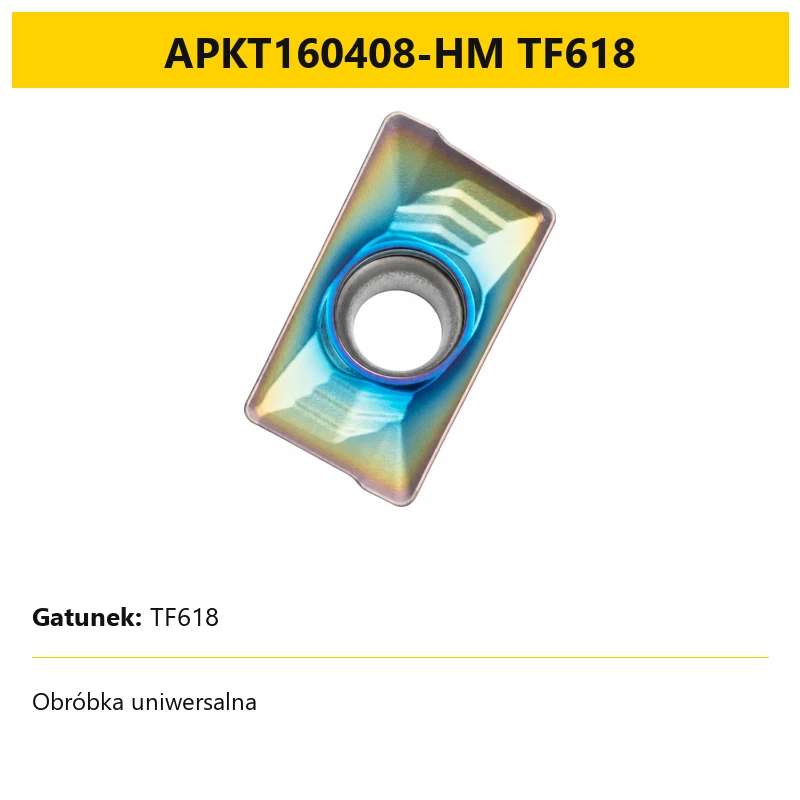

- APKT 160408-HM – larger geometry in LF6018 and TF618 versions.

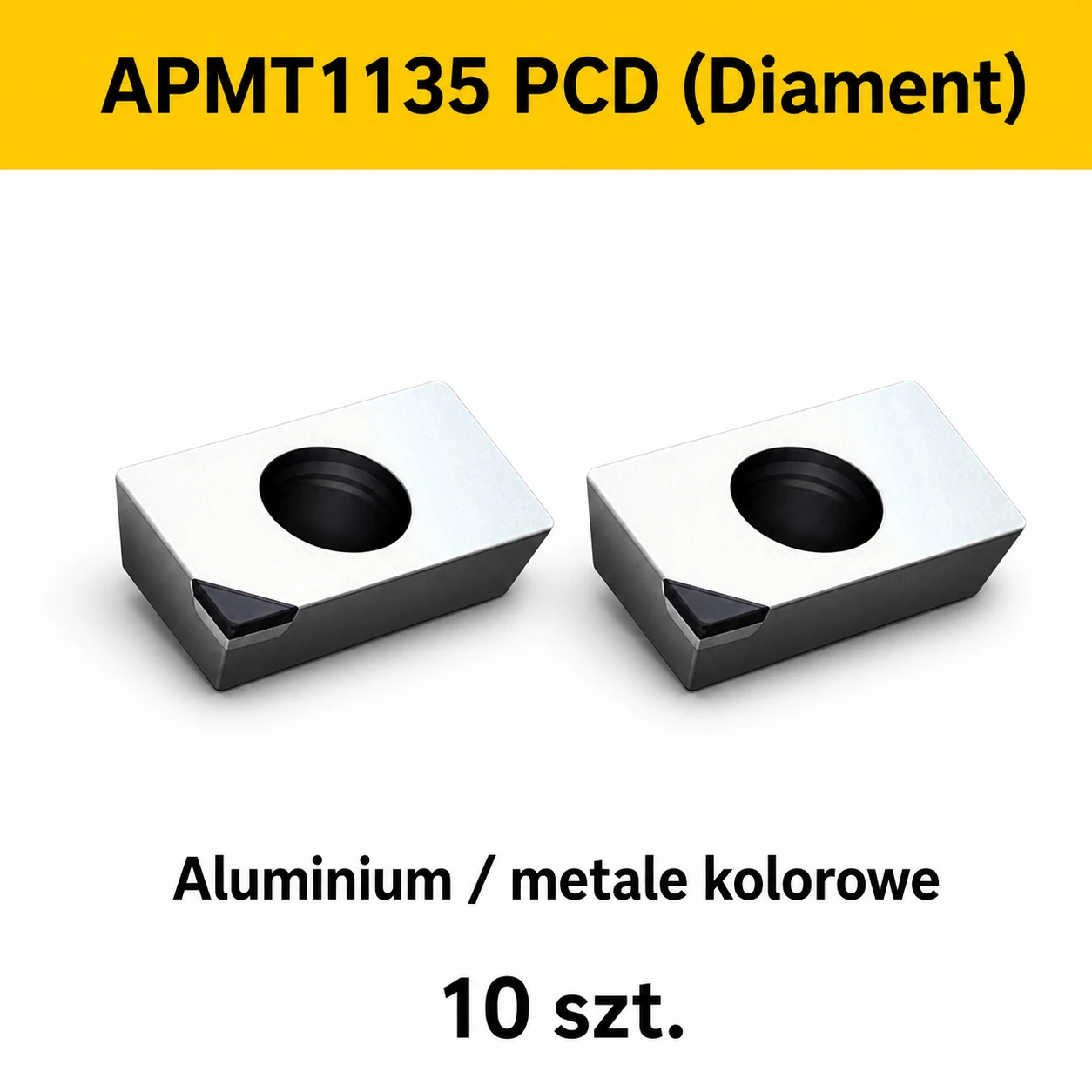

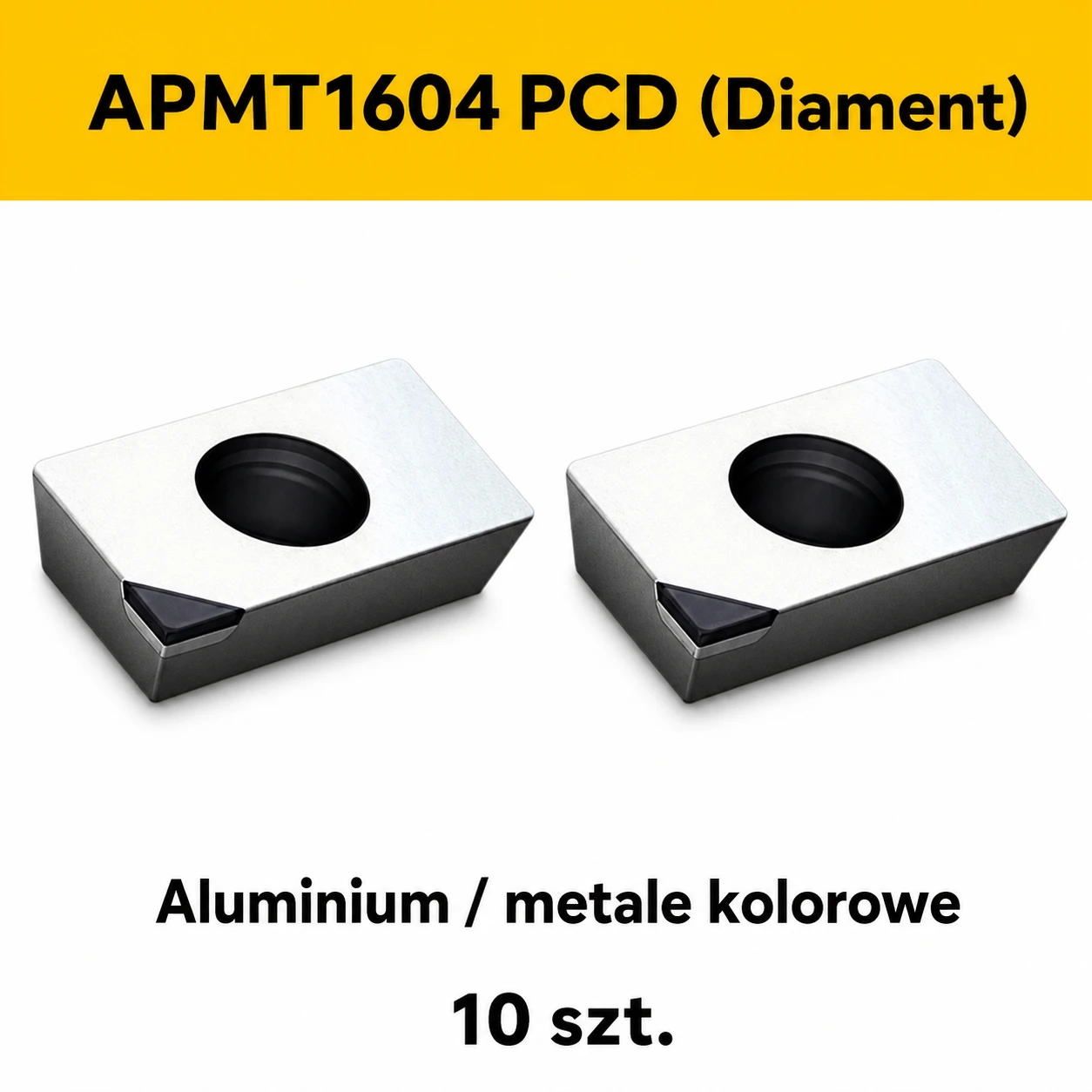

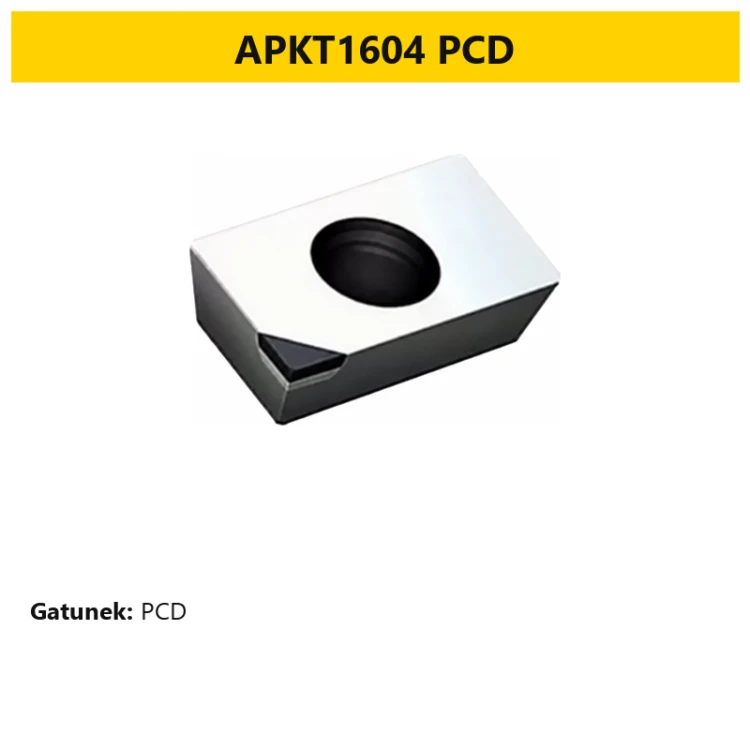

- PCD 1135 and 1604 – diamond-tipped inserts for aluminium and non-ferrous metals.
SEAGER SG grades – quick selection
| Grade | Typical application of the variant | Sizes offered |
|---|---|---|

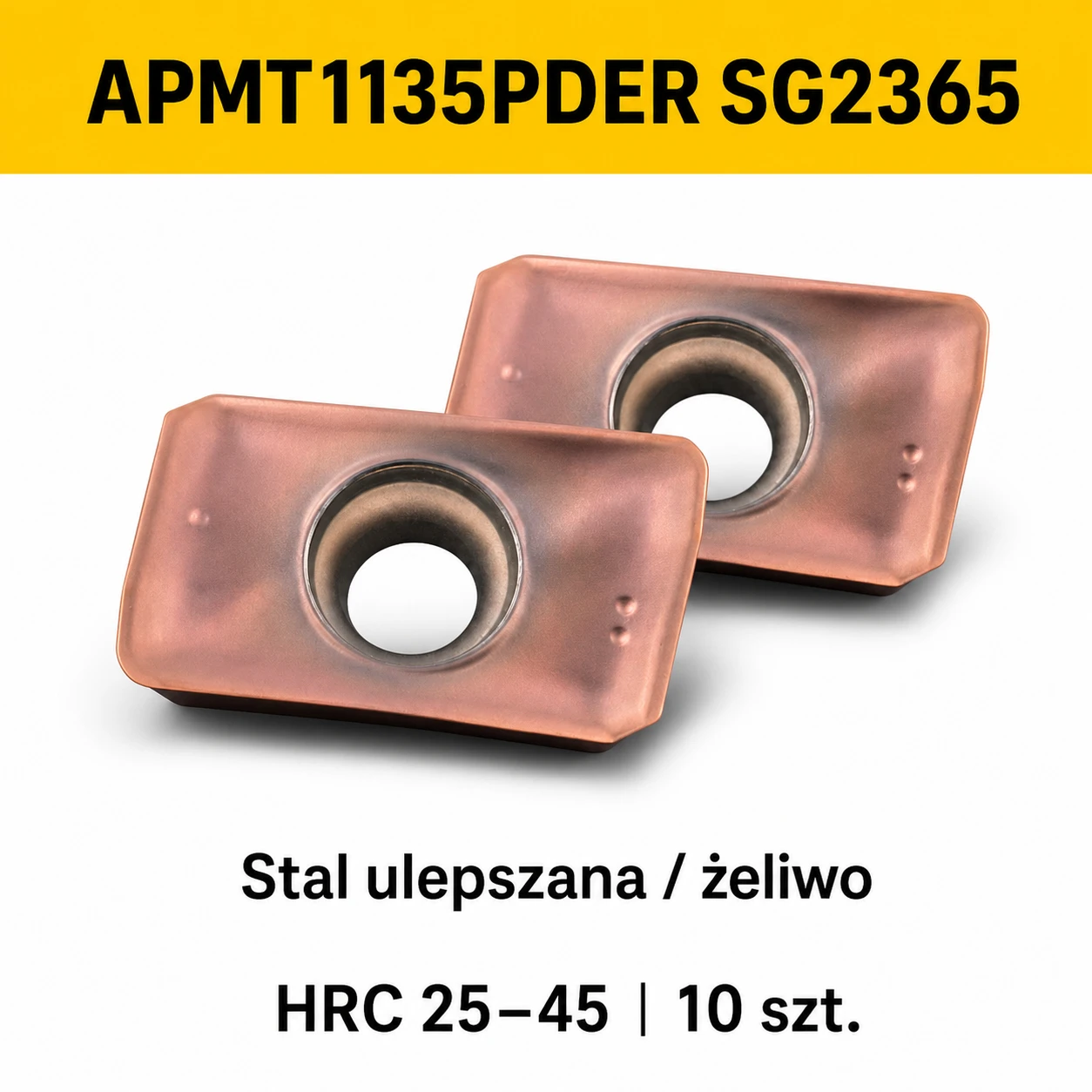

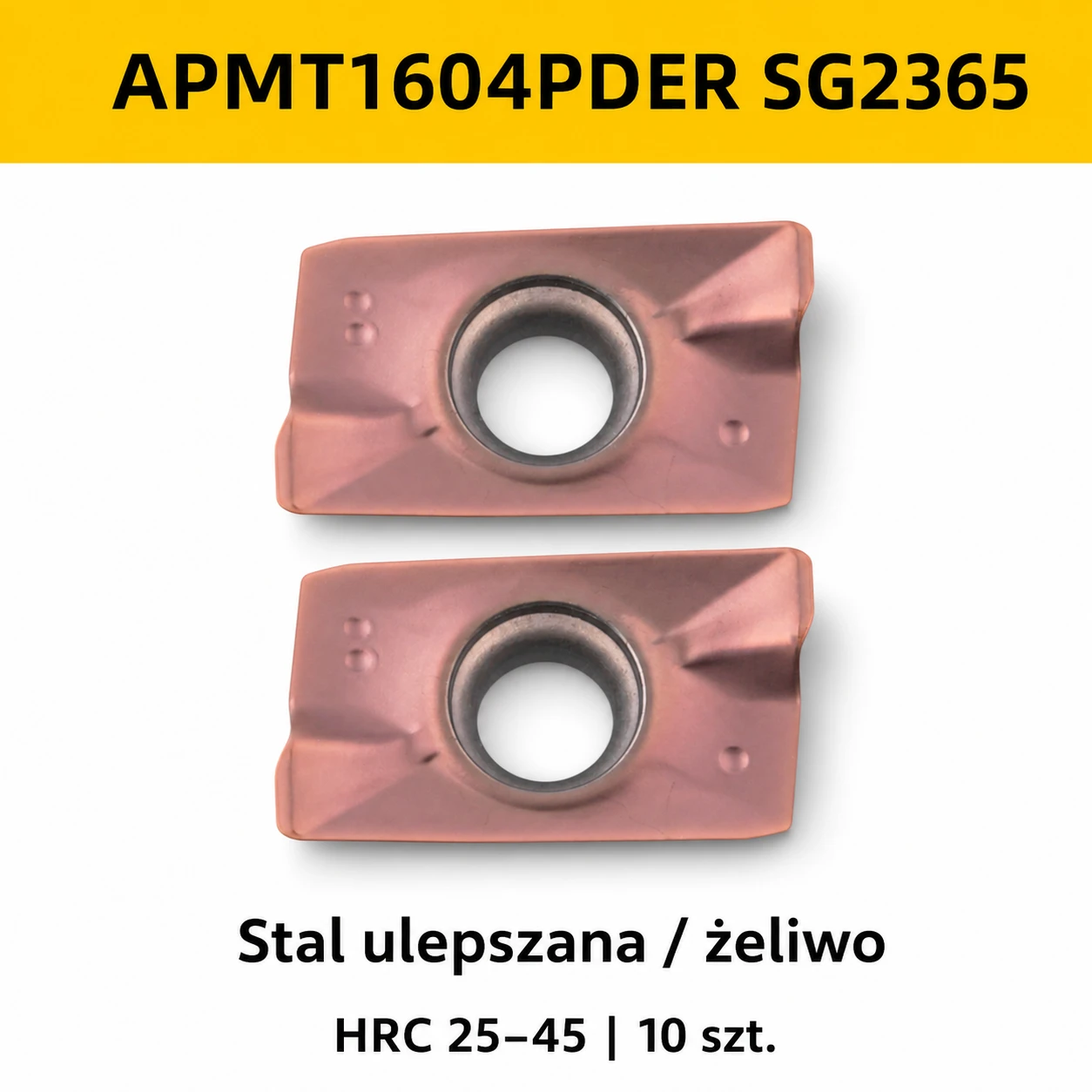

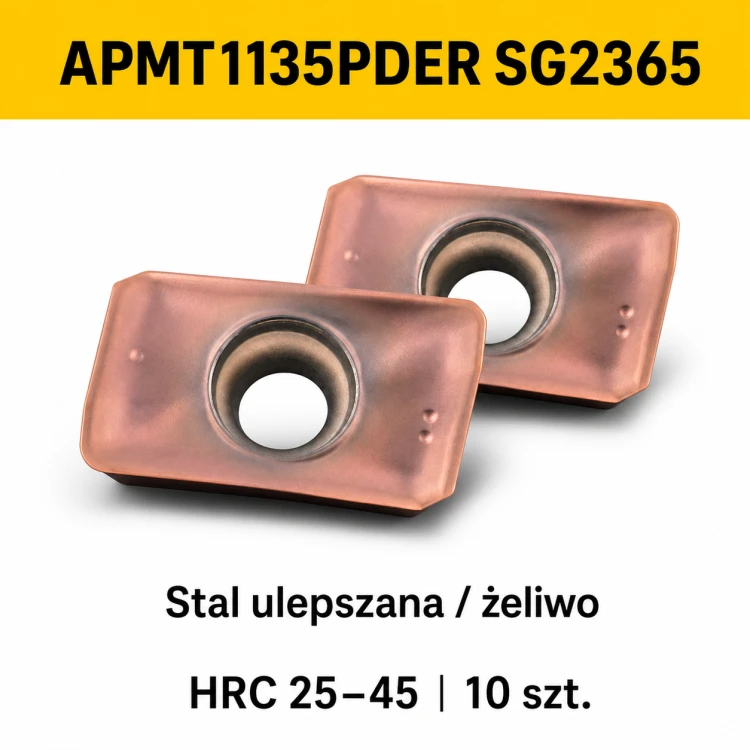

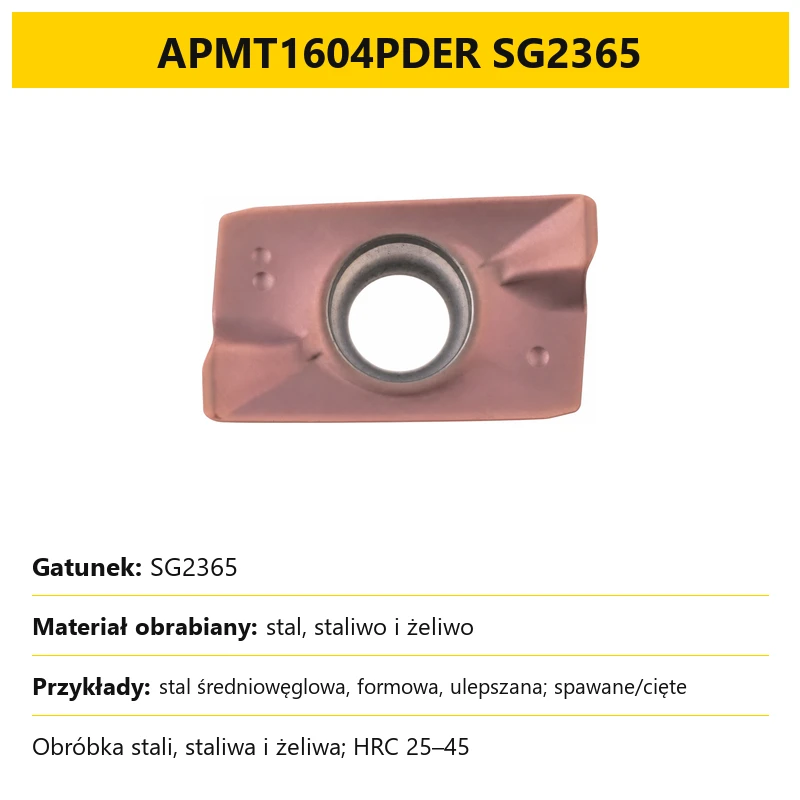

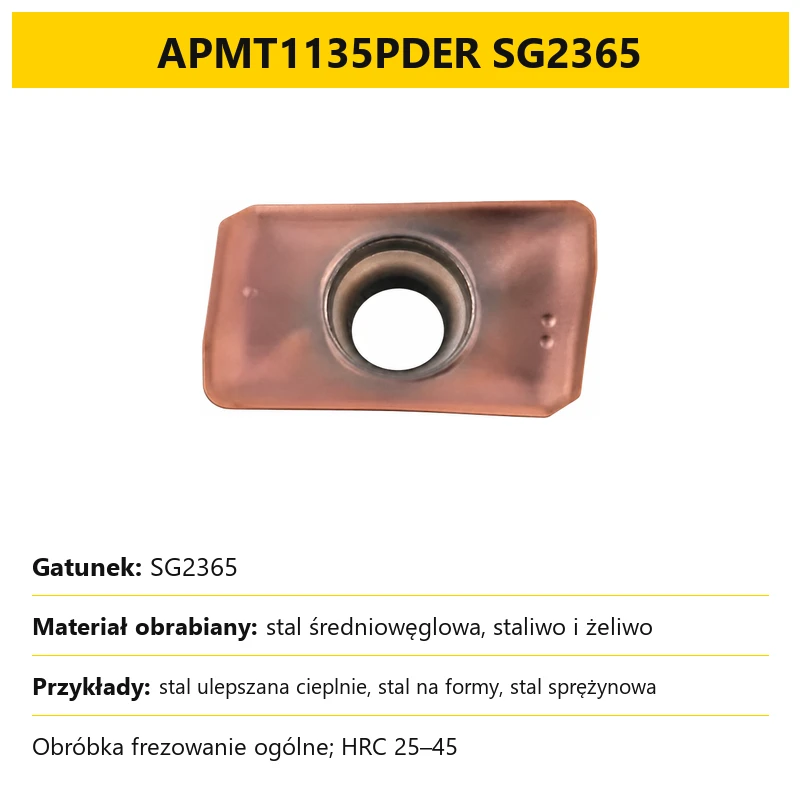

| SG2365 | Heat-treated steel, cast iron | 1135 / 1604 |

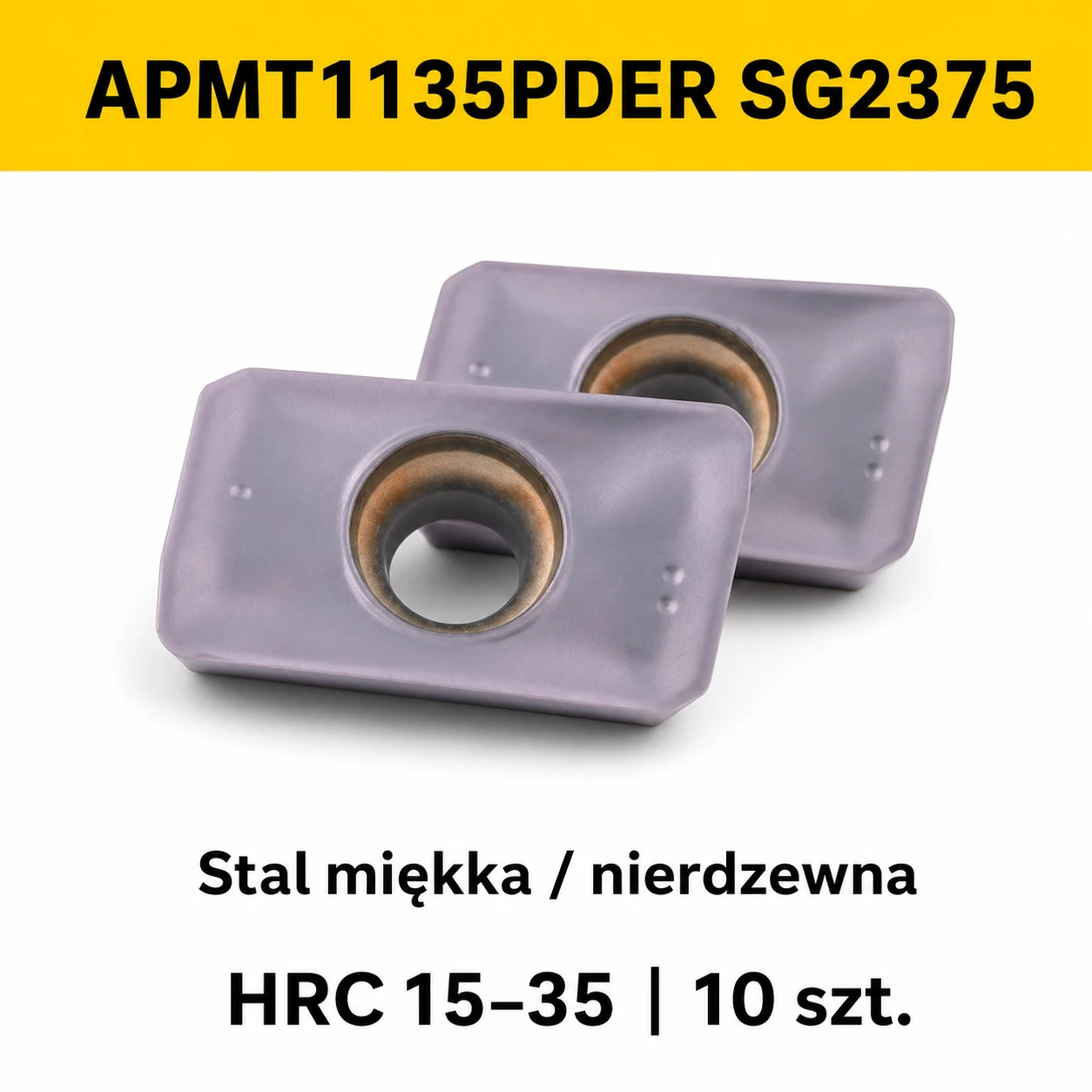

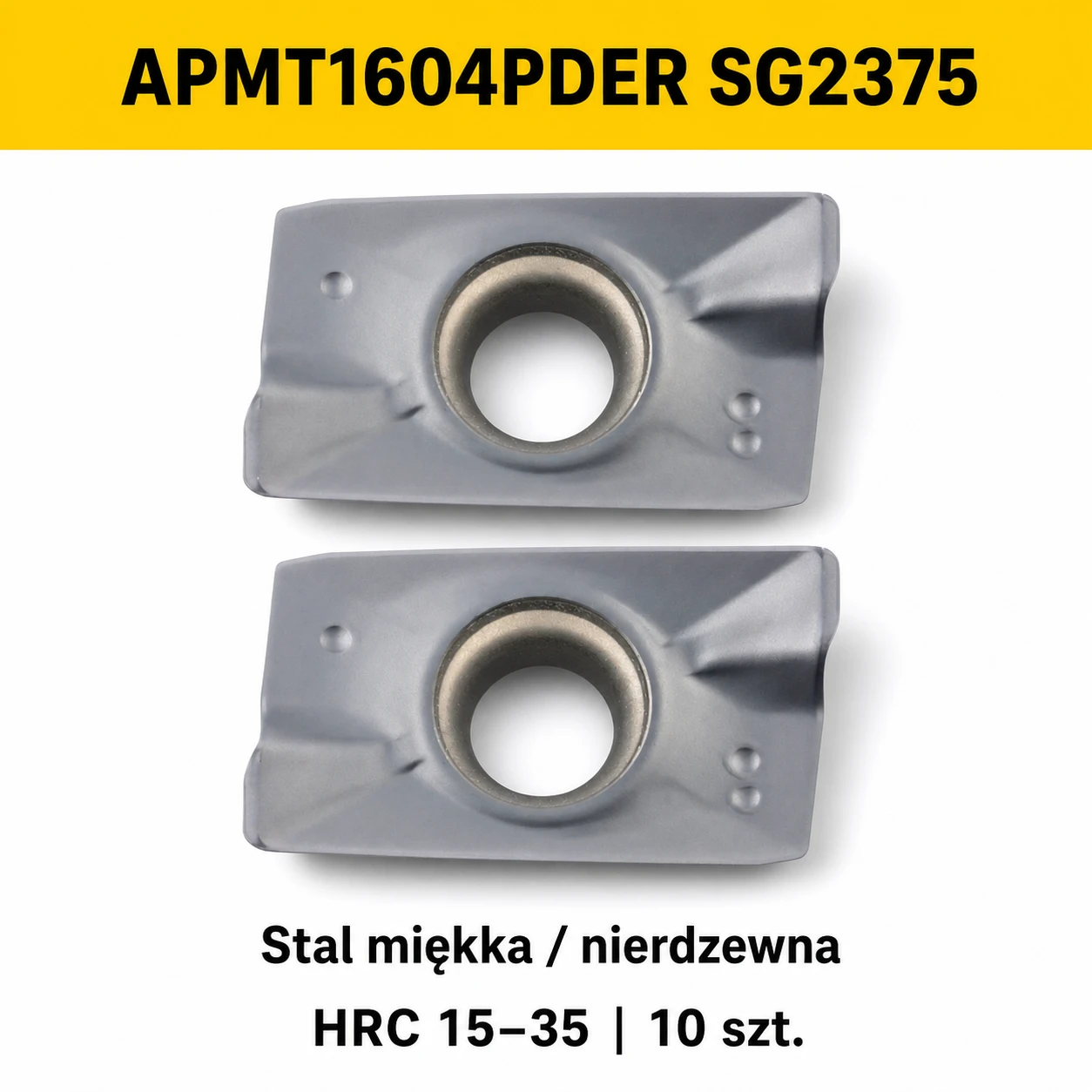

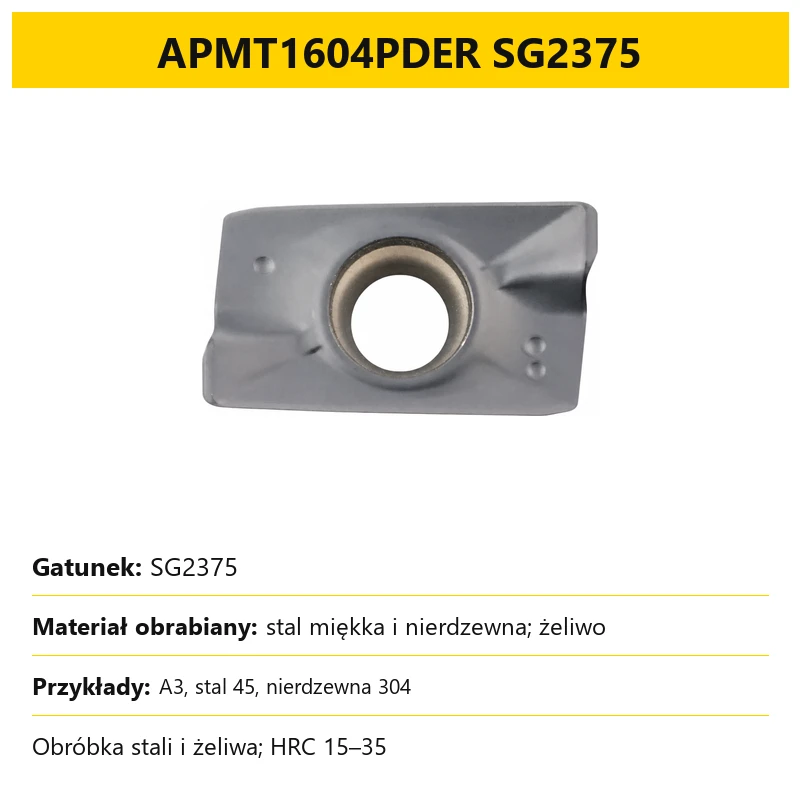

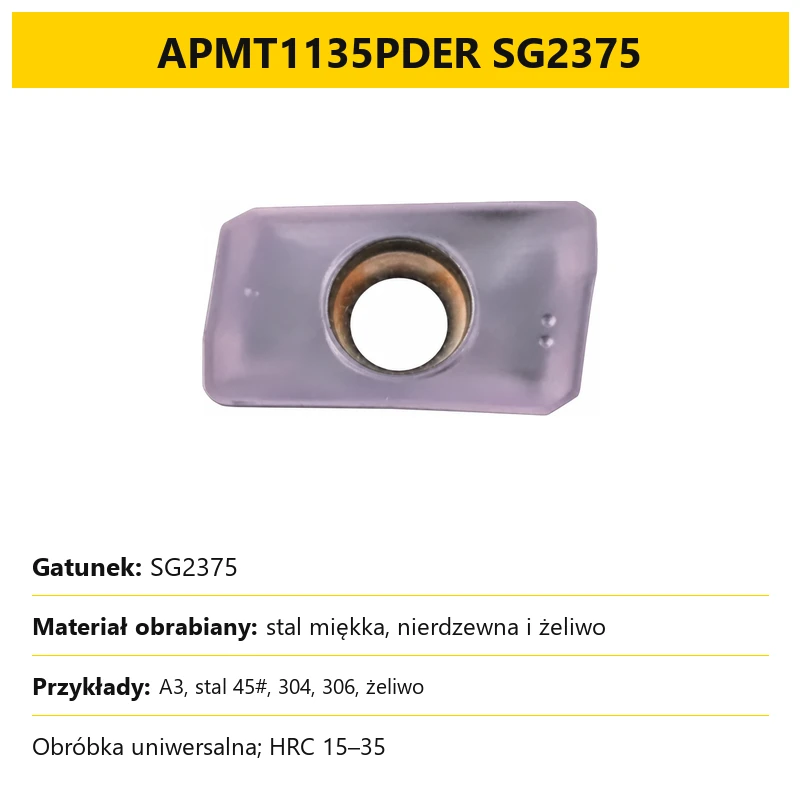

| SG2375 | Mild steel, stainless steel | 1135 / 1604 |

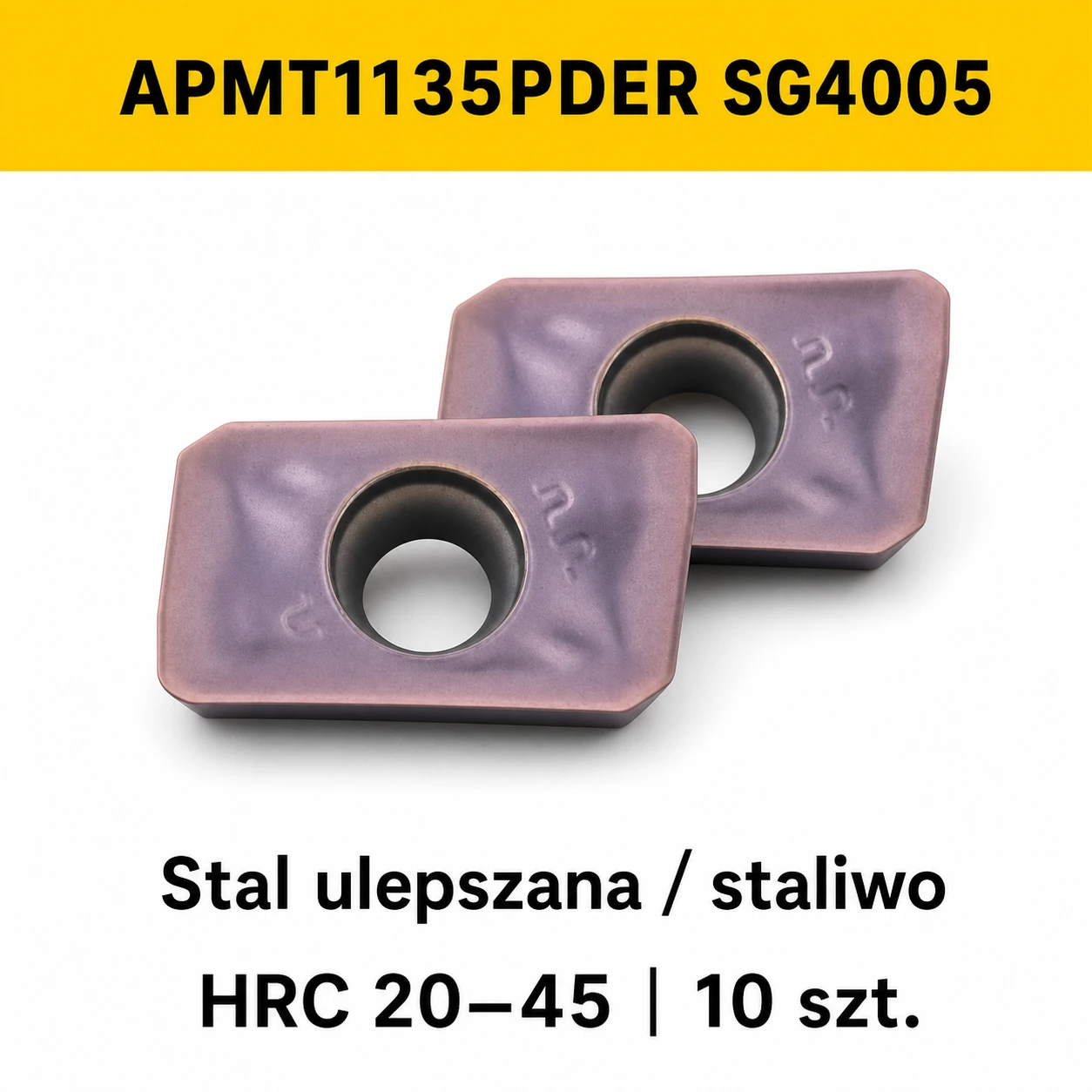

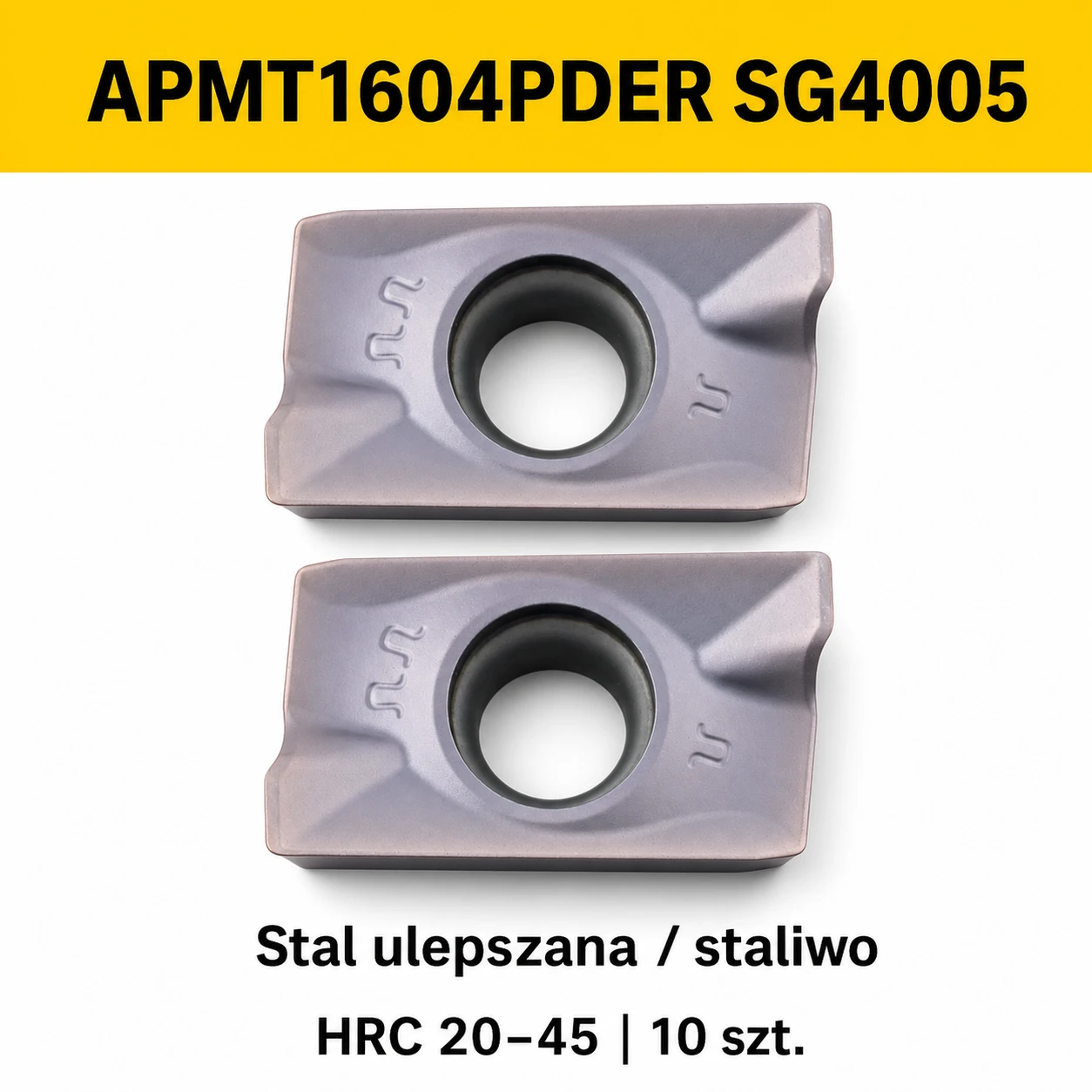

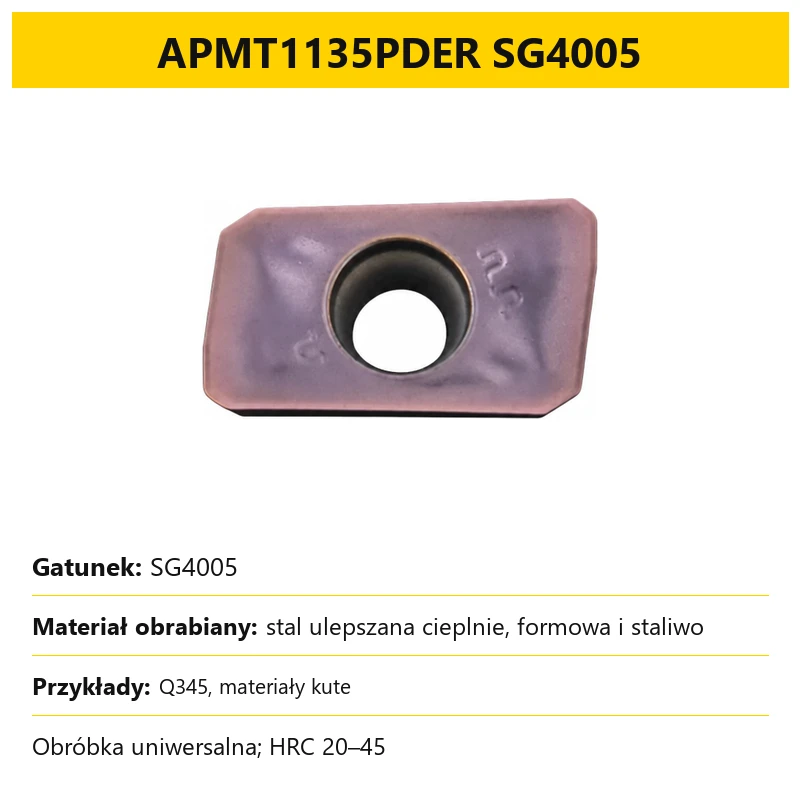

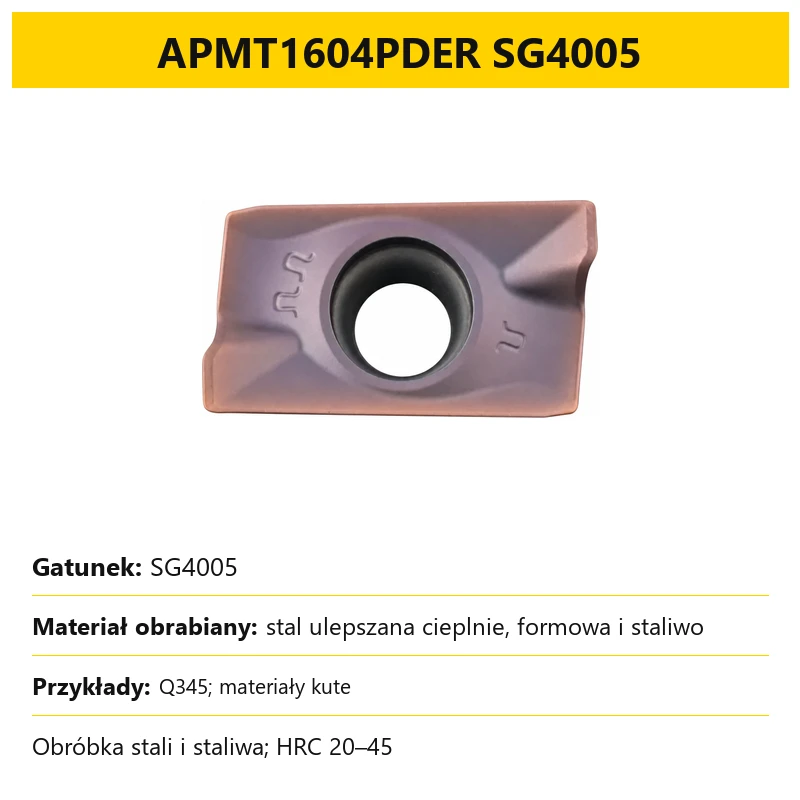

| SG4005 | Heat-treated steel, cast steel | 1135 / 1604 |

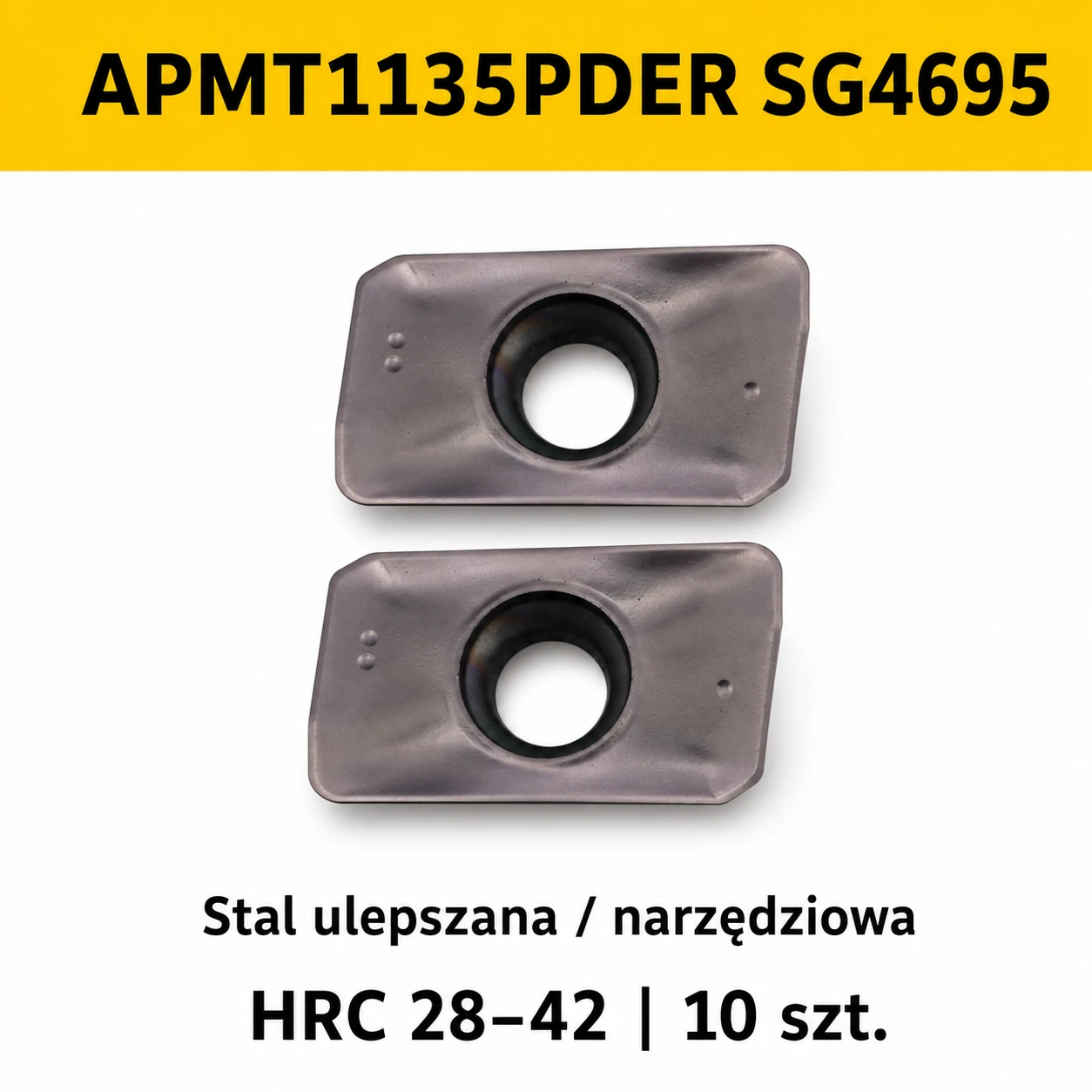

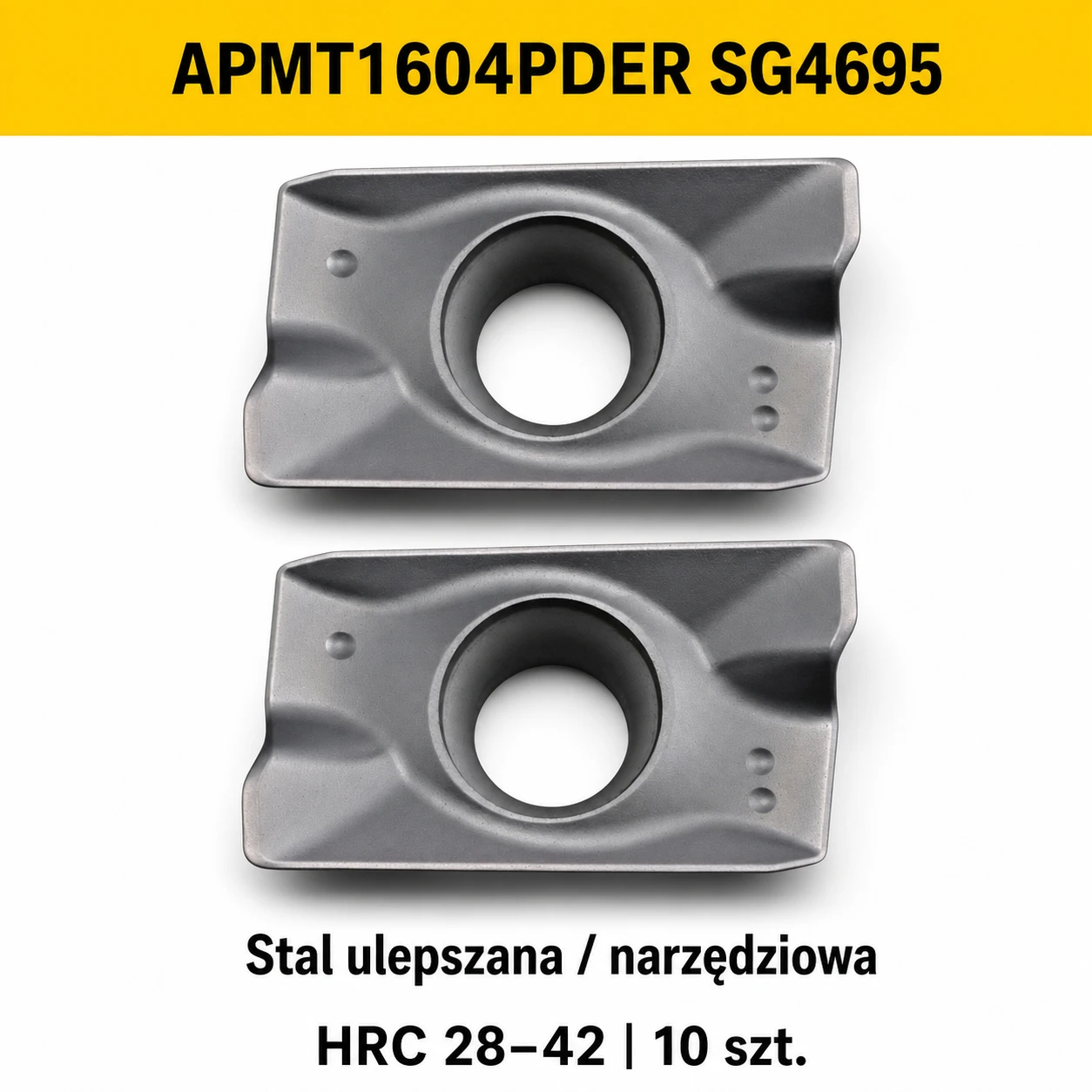

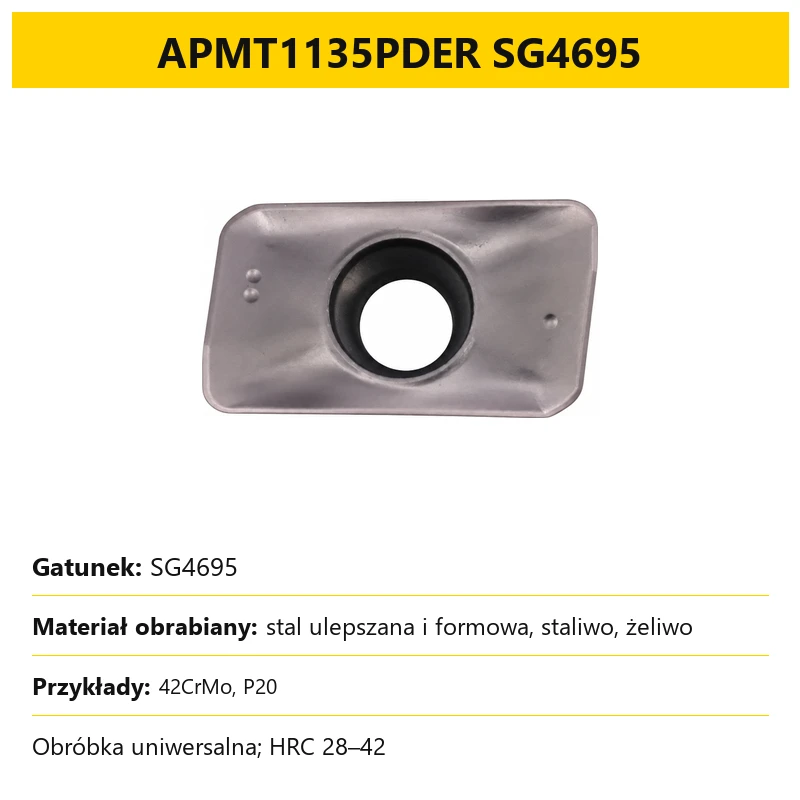

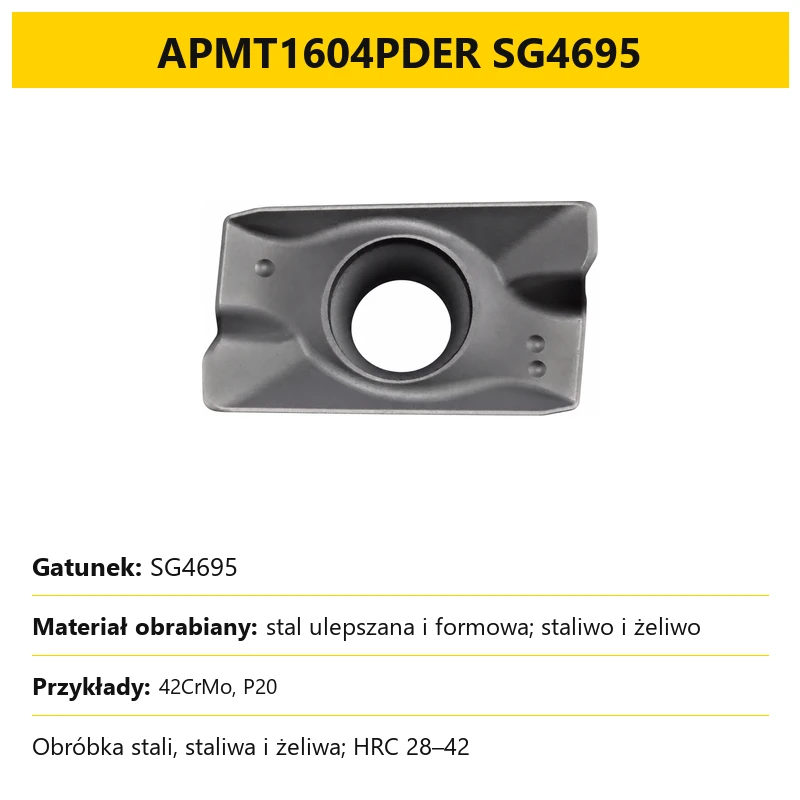

| SG4695 | Heat-treated steel, tool steel | 1135 / 1604 |

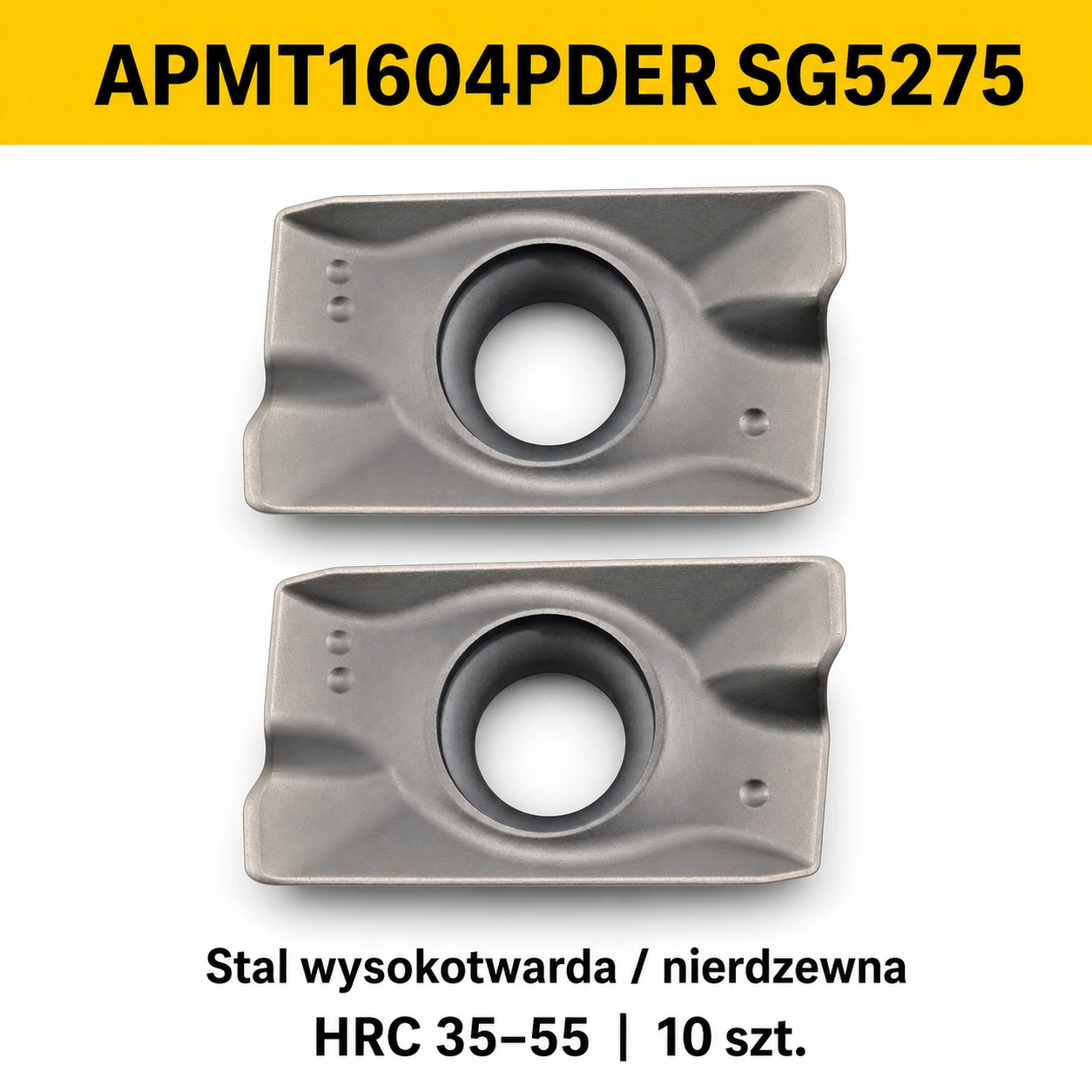

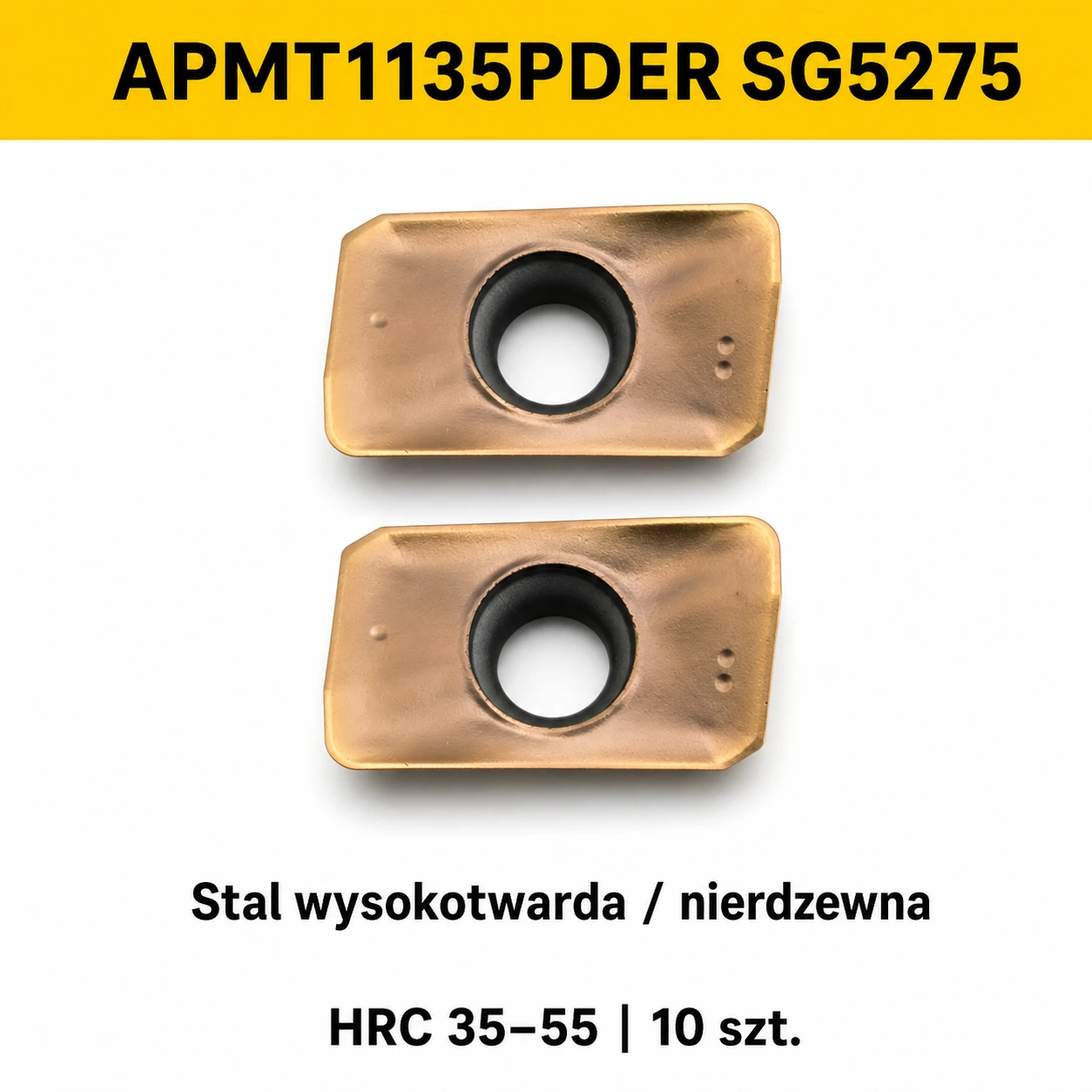

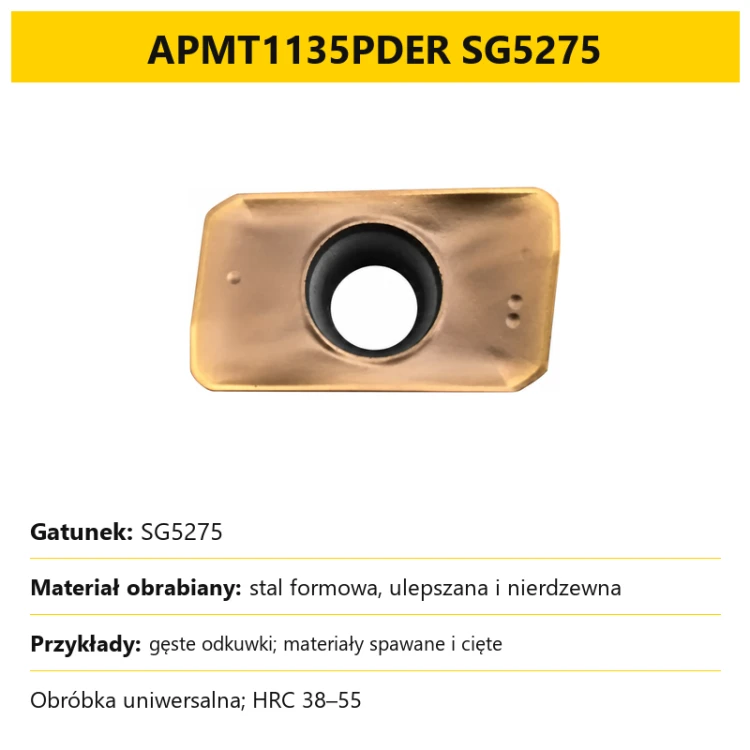

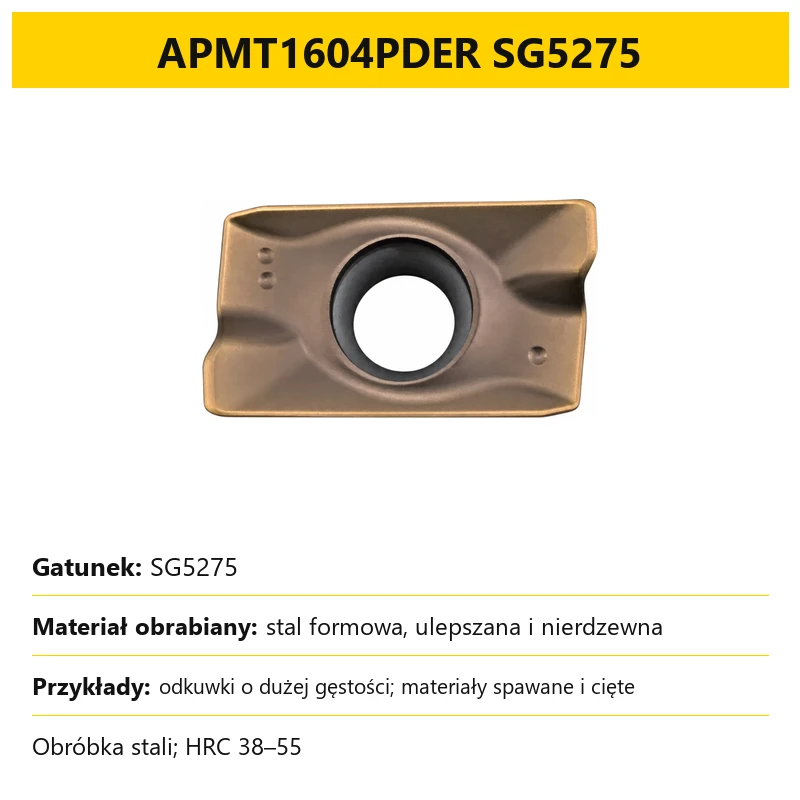

| SG5275 | Higher-hardness steel, stainless steel | 1135 / 1604 |

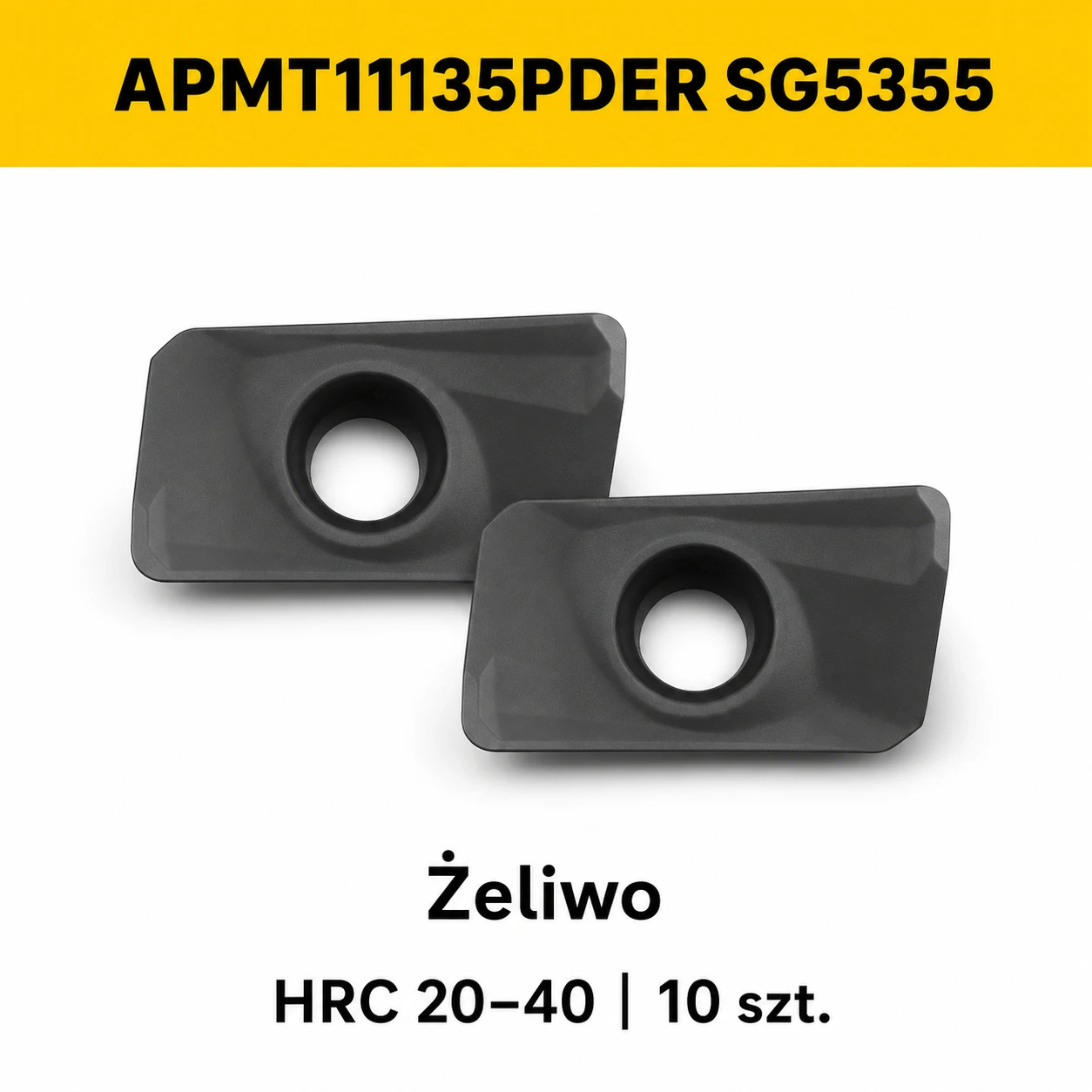

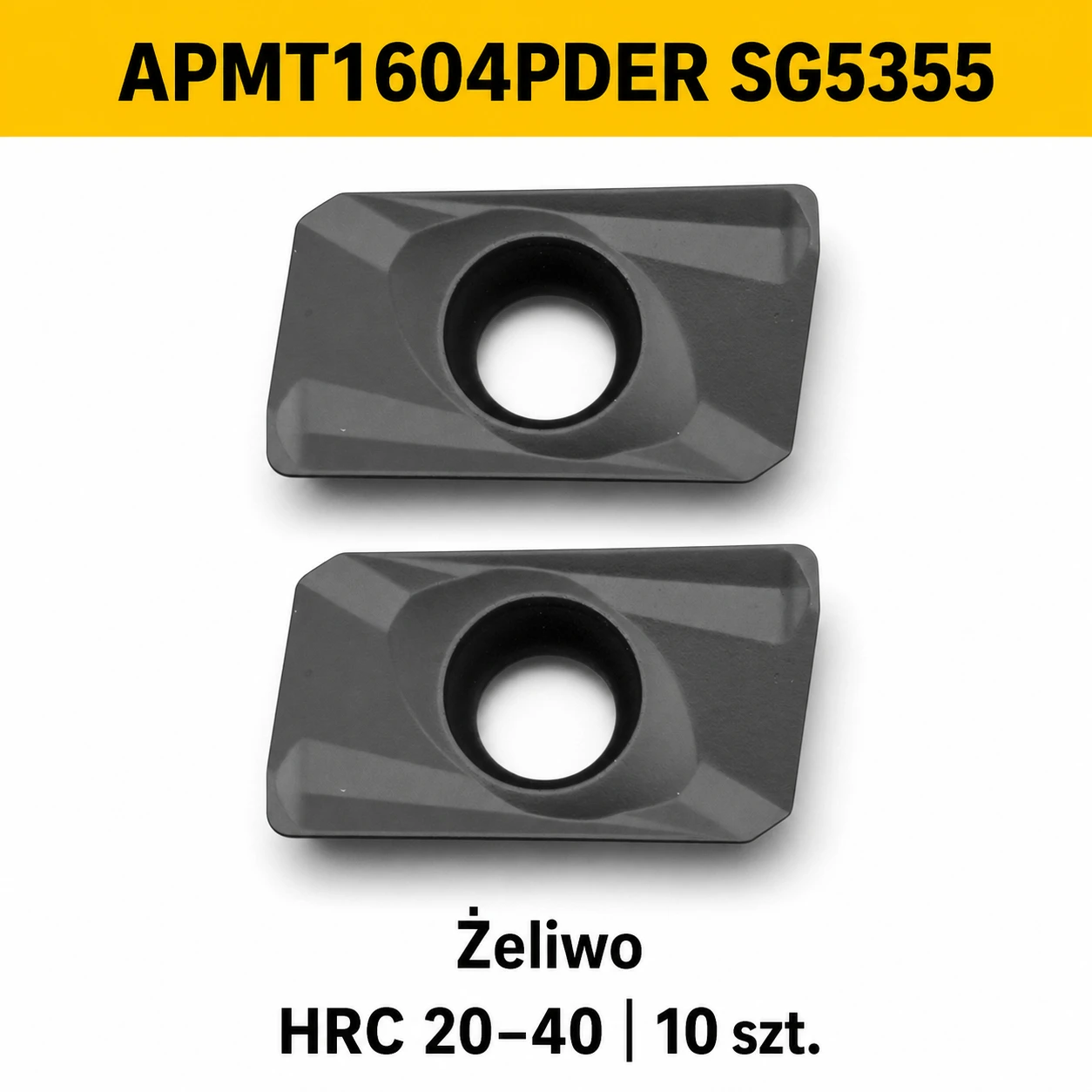

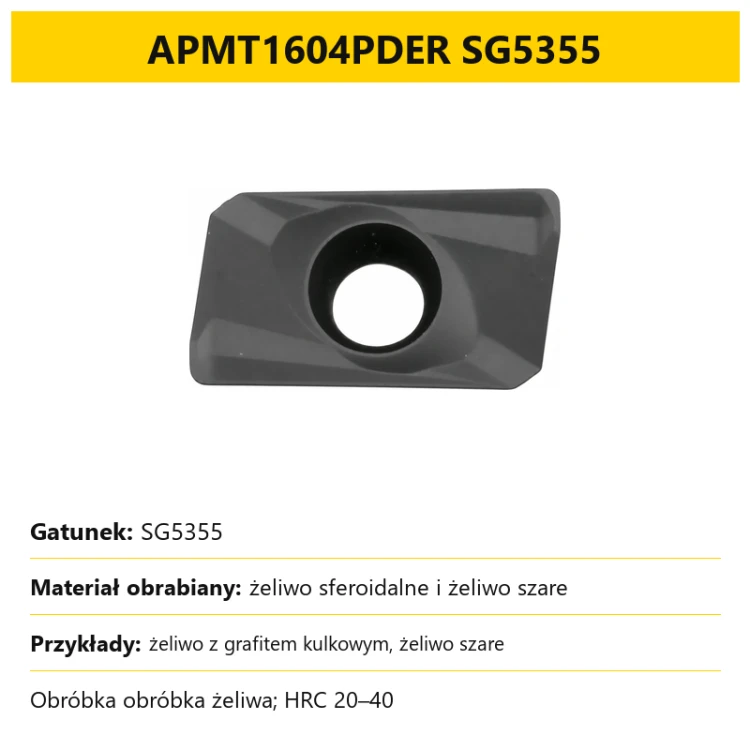

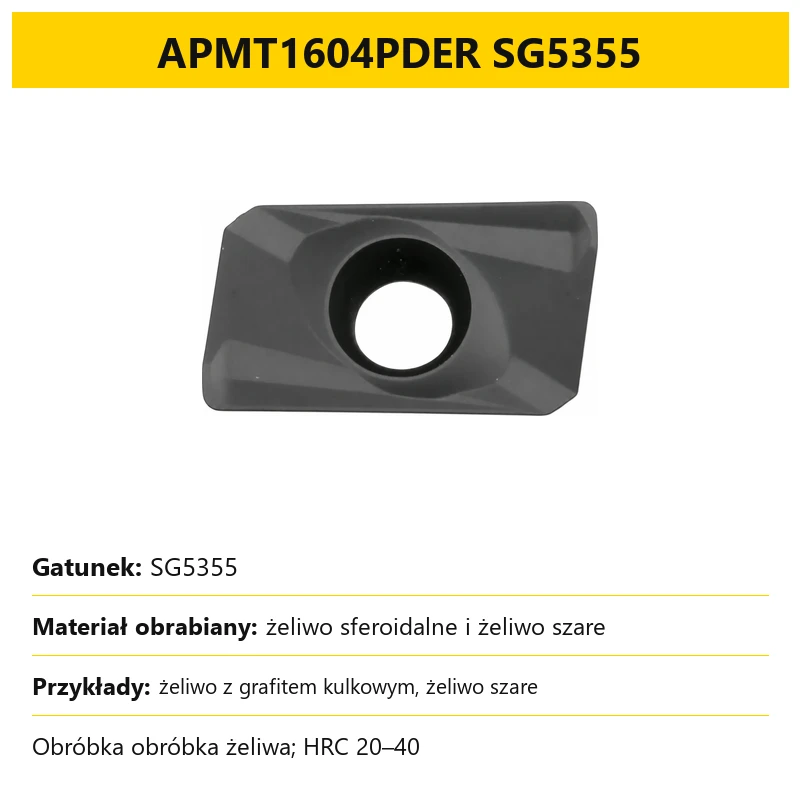

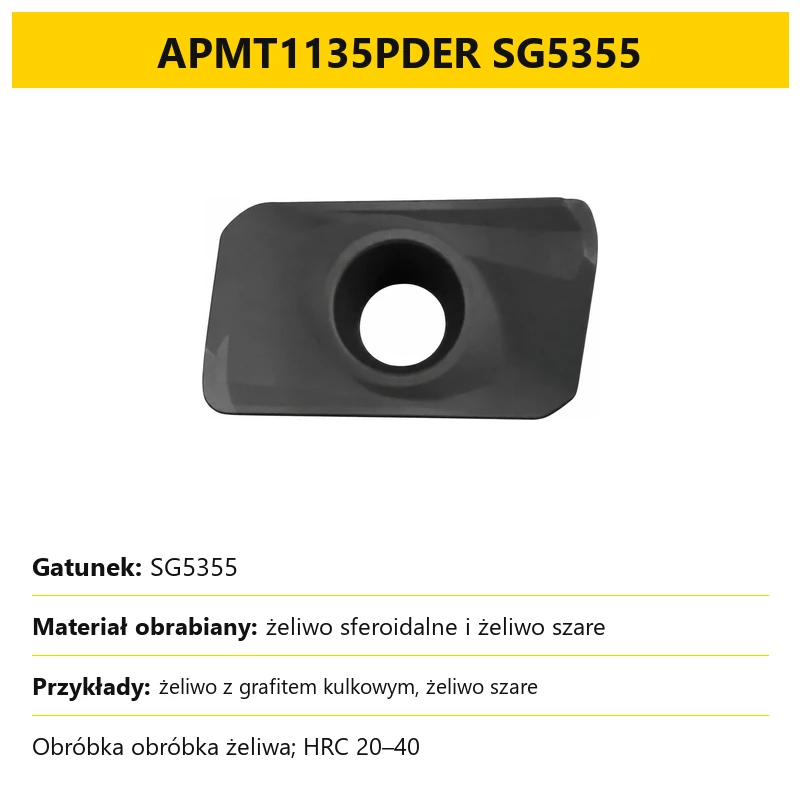

| SG5355 | Cast iron | 1135 / 1604 |

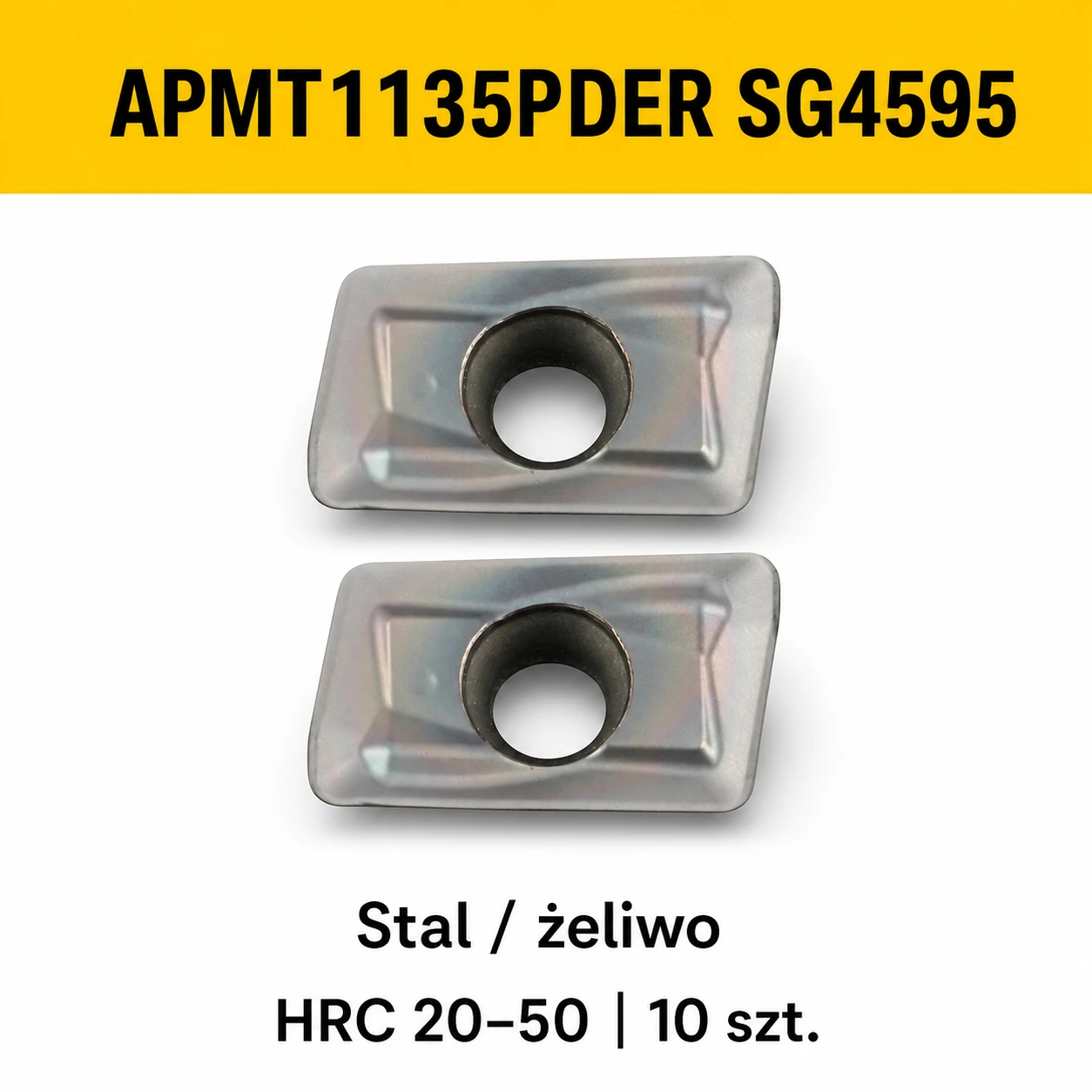

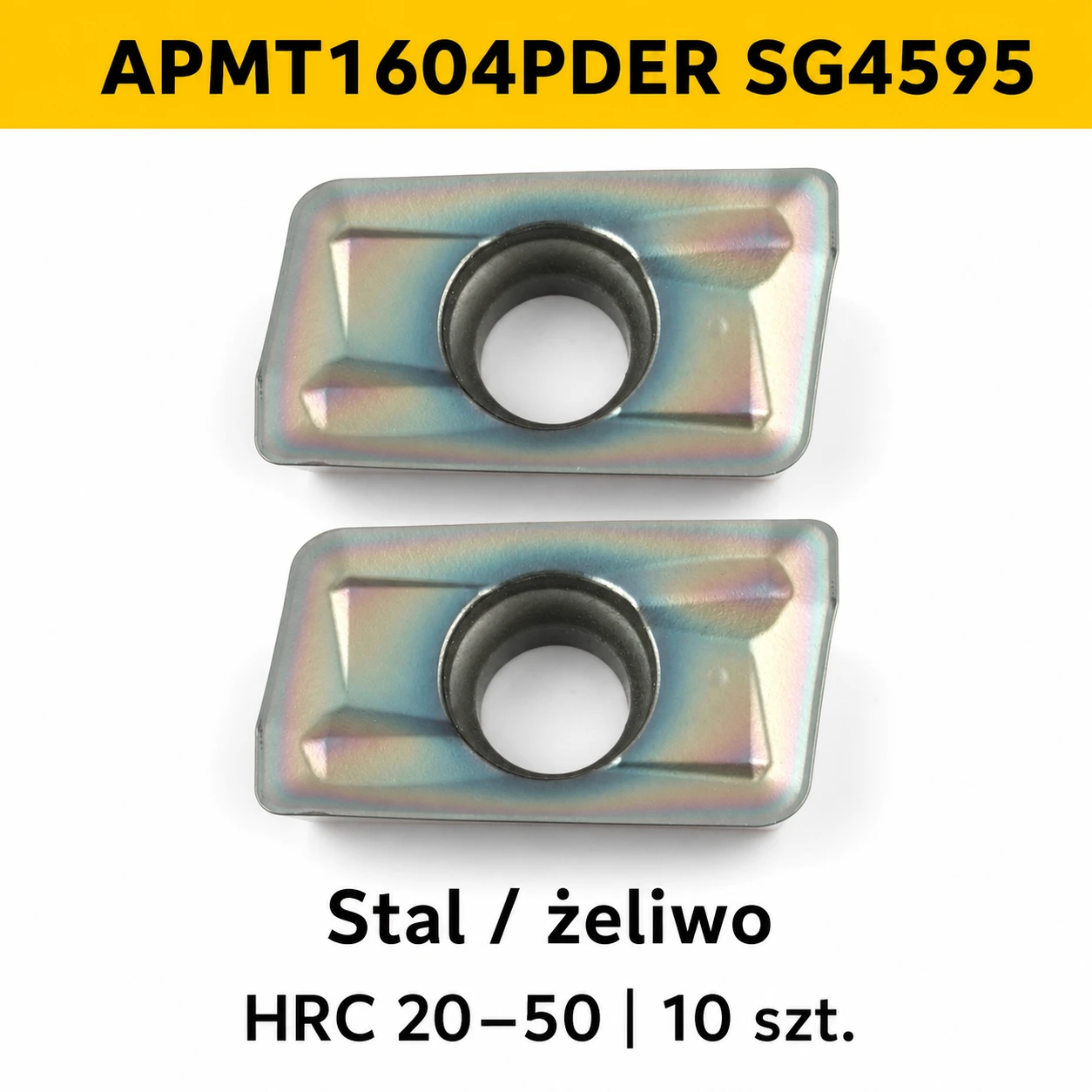

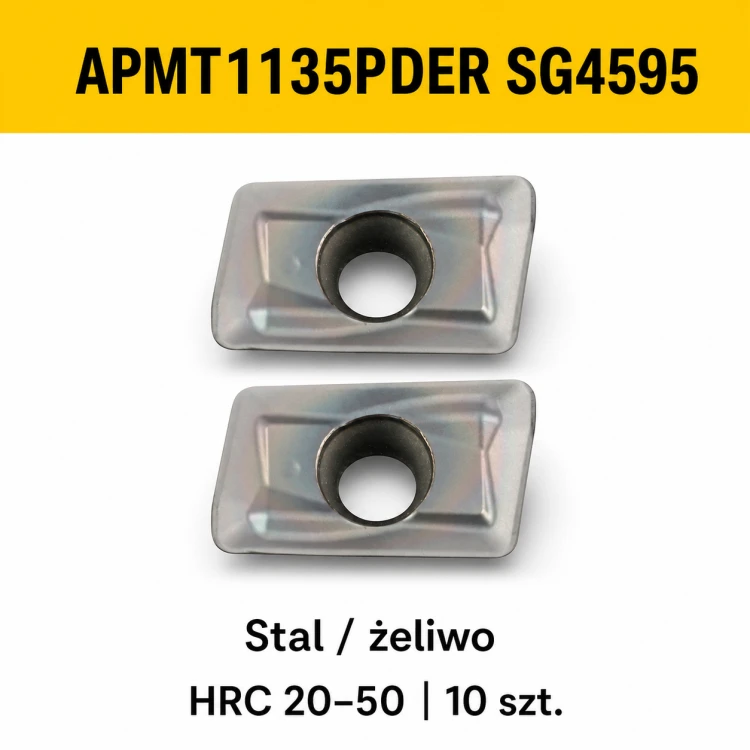

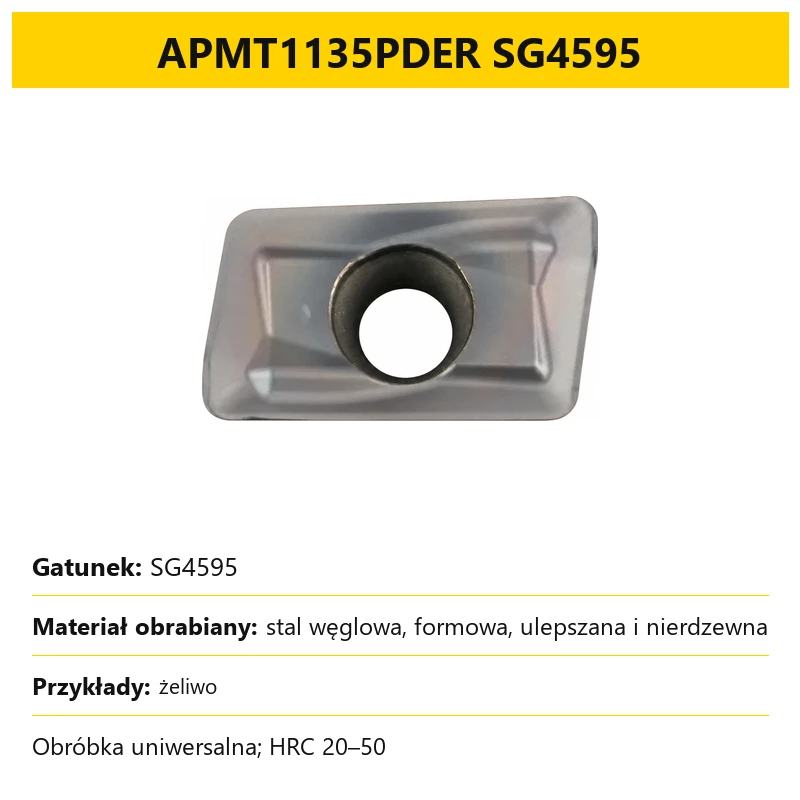

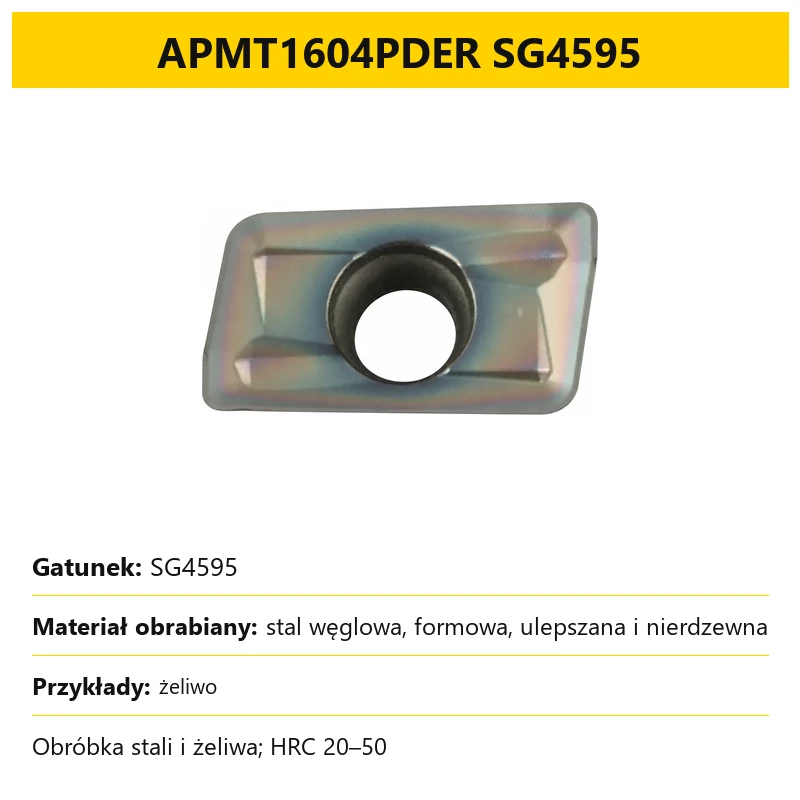

| SG4595 | Steel, cast iron | 1135 / 1604 |

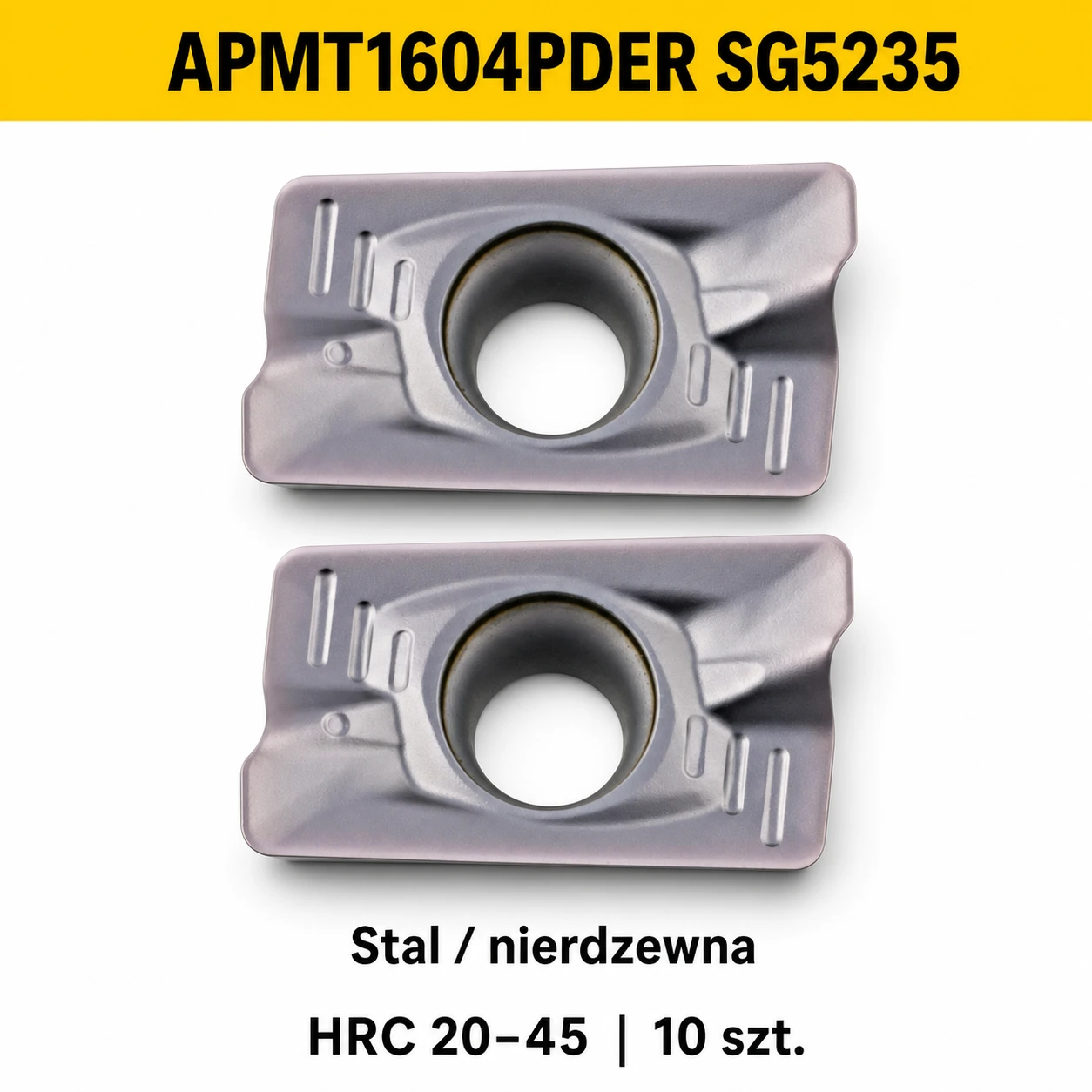

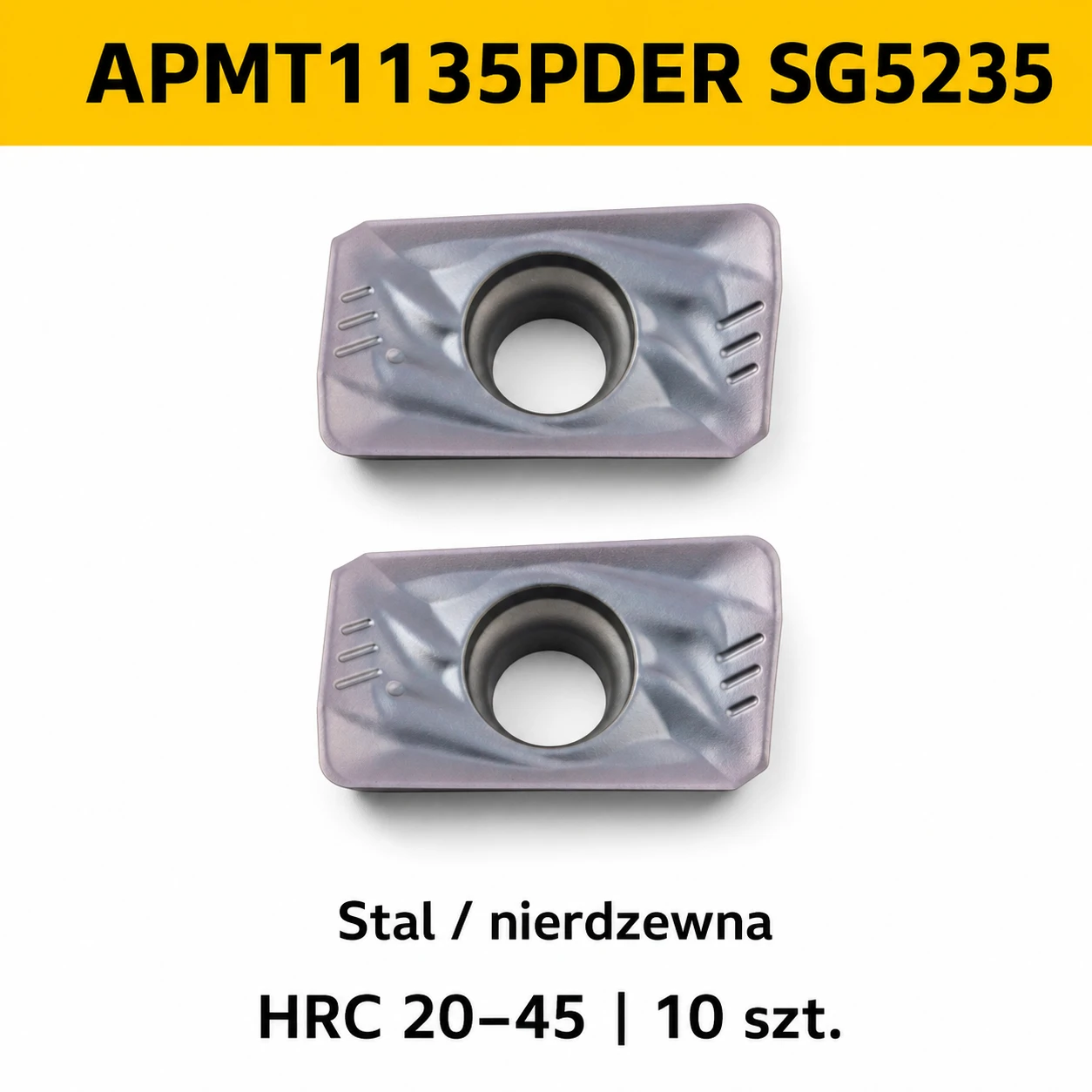

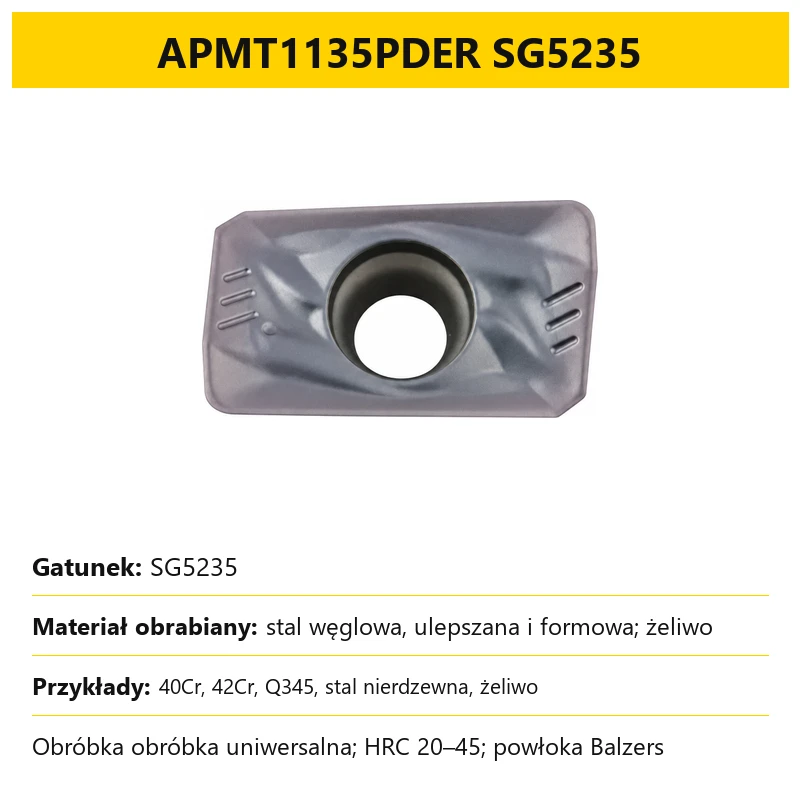

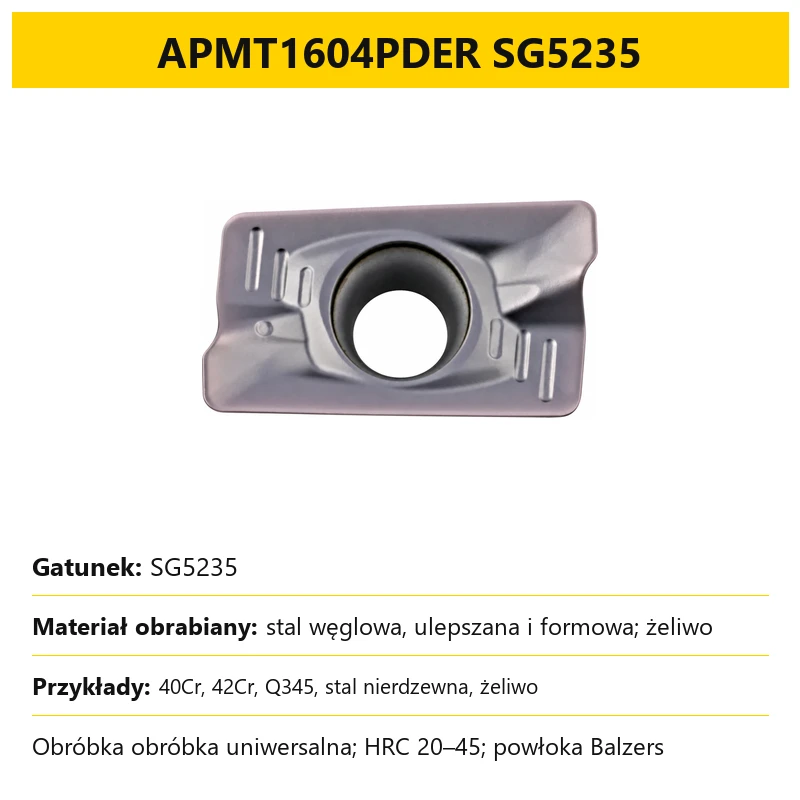

| SG5235 | Steel, stainless steel | 1135 / 1604 |

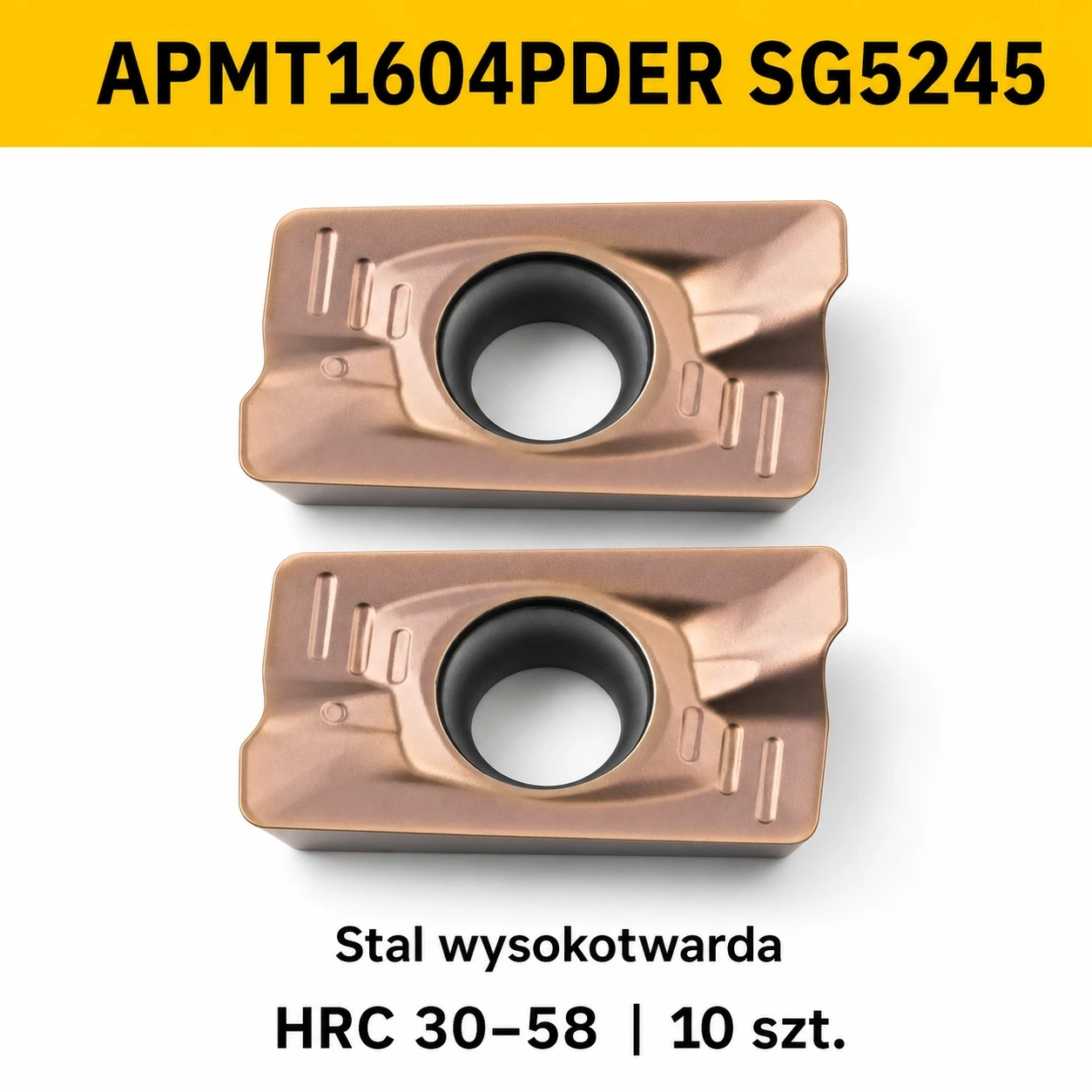

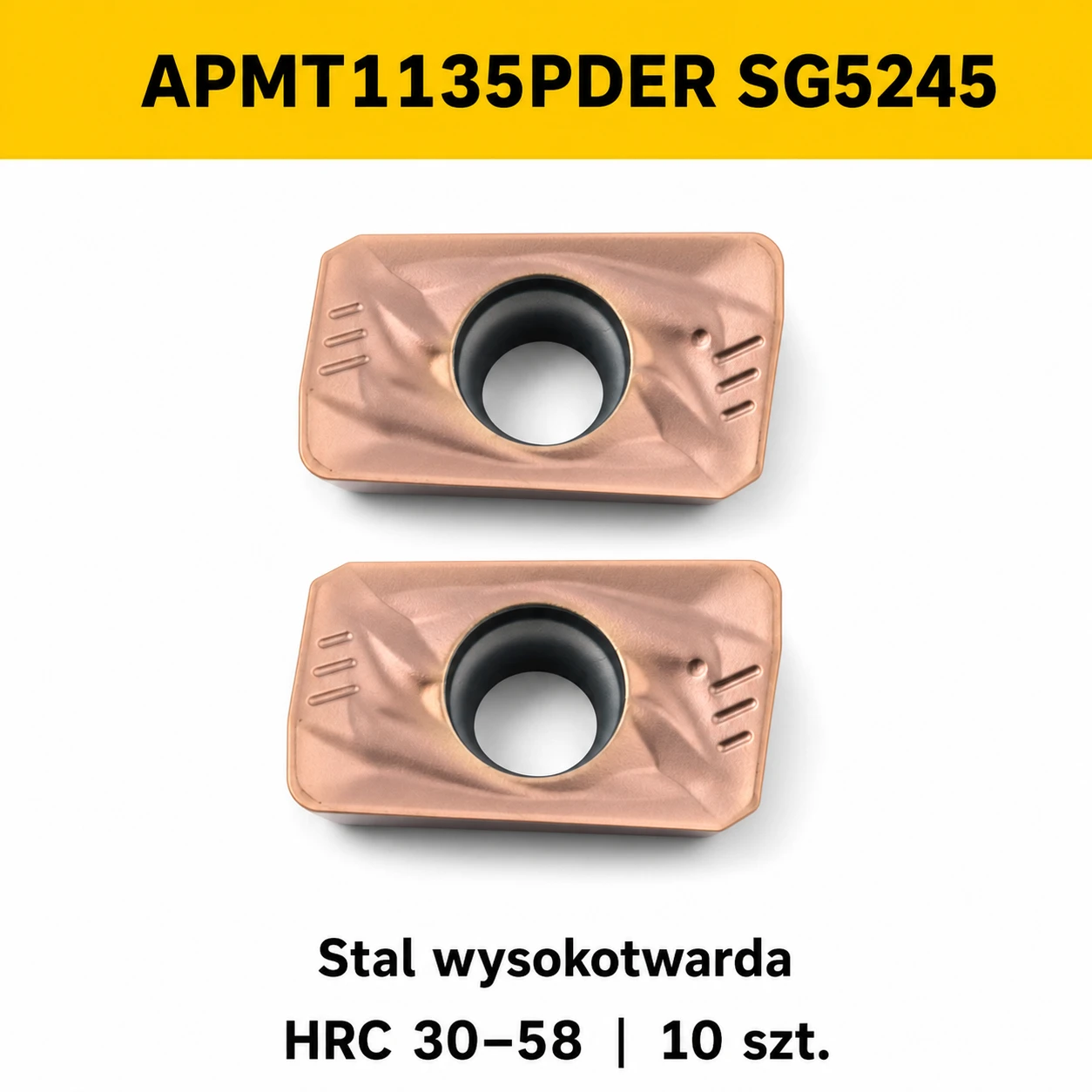

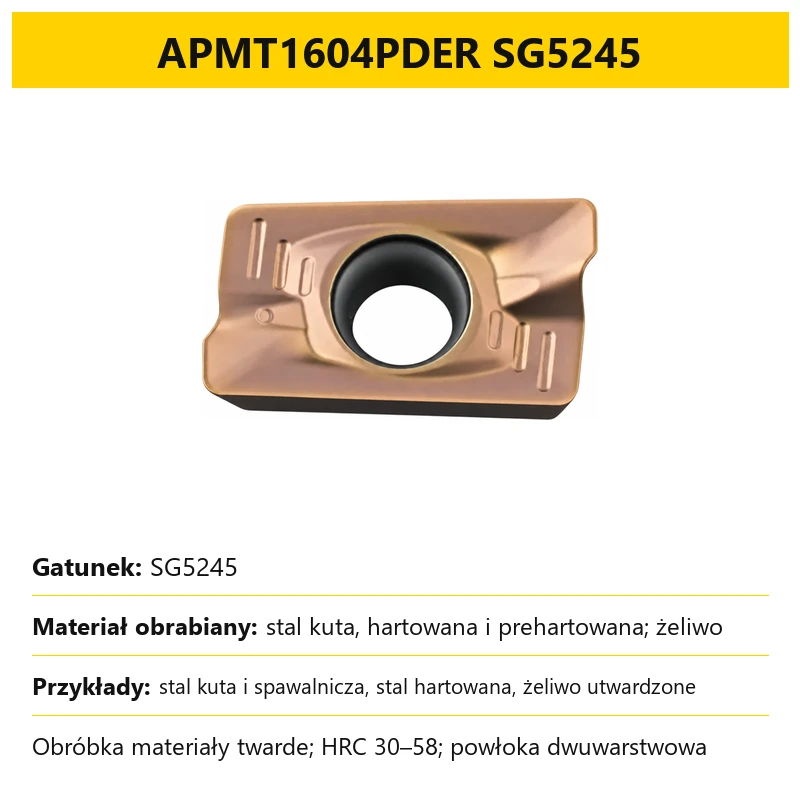

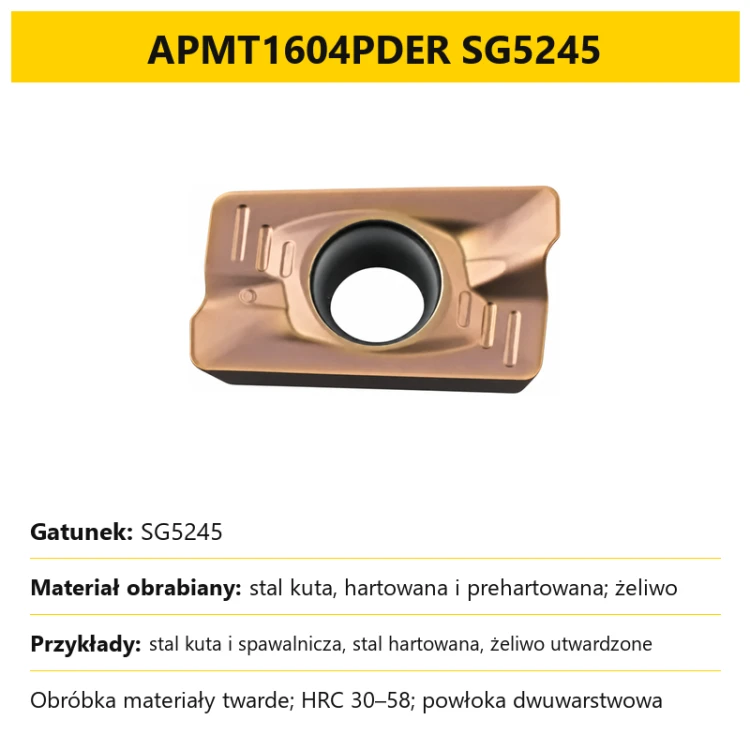

| SG5245 | Higher-hardness steel | 1135 / 1604 |

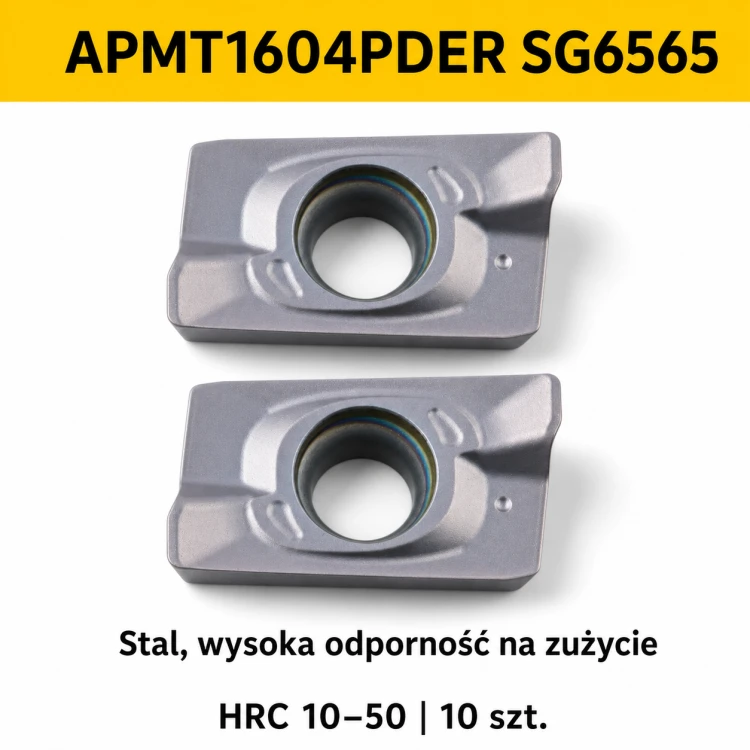

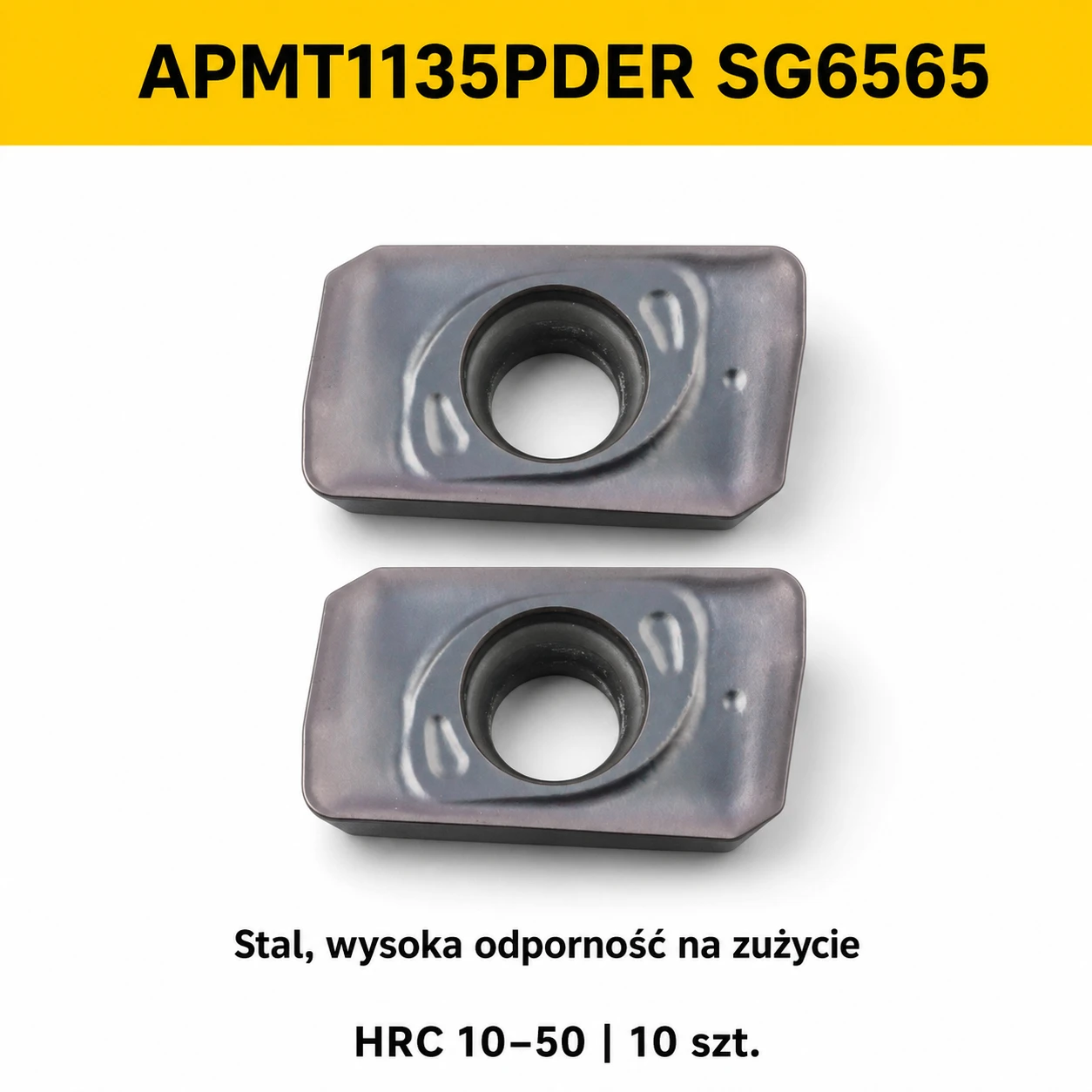

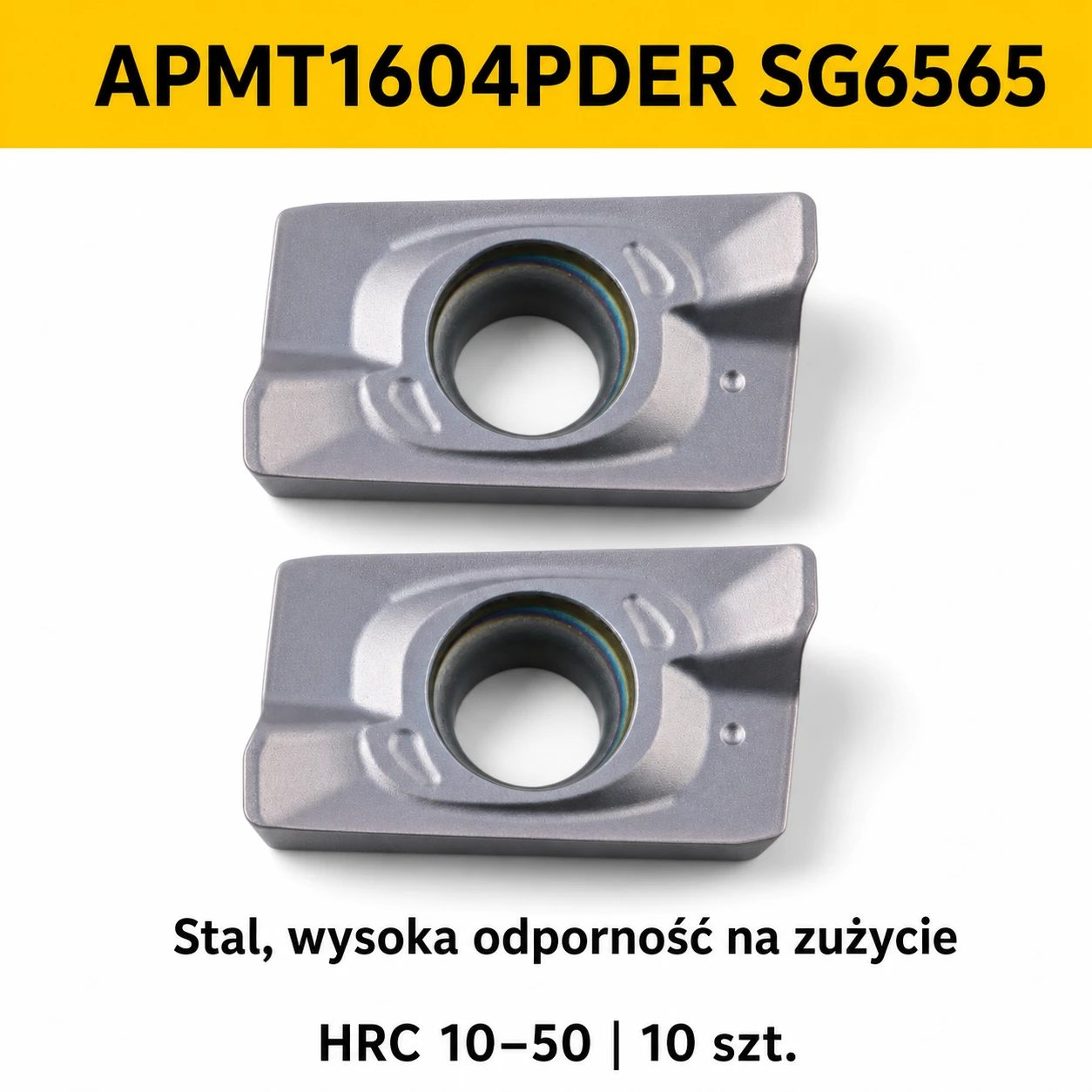

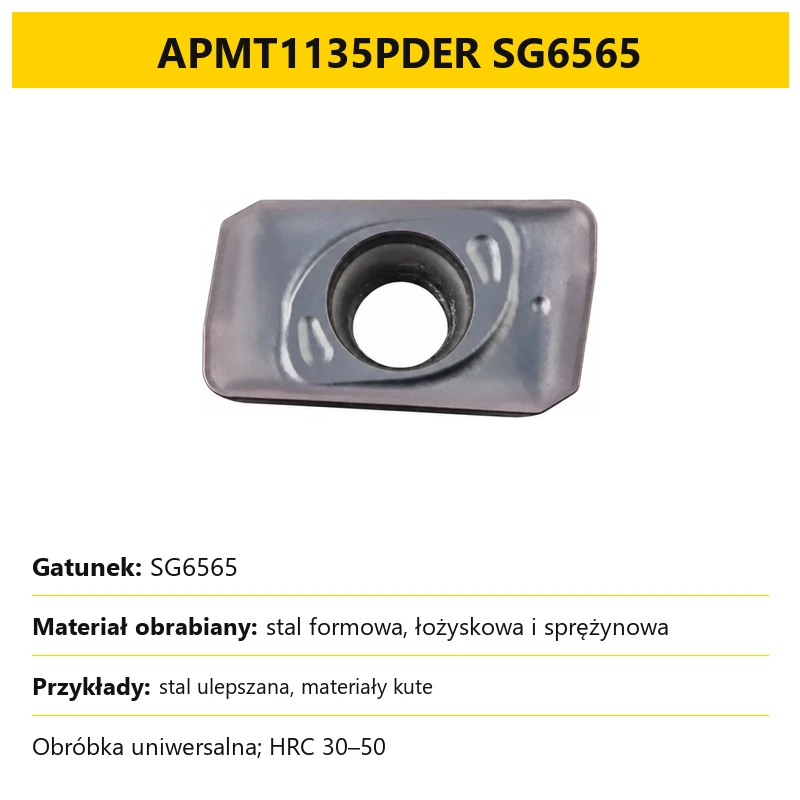

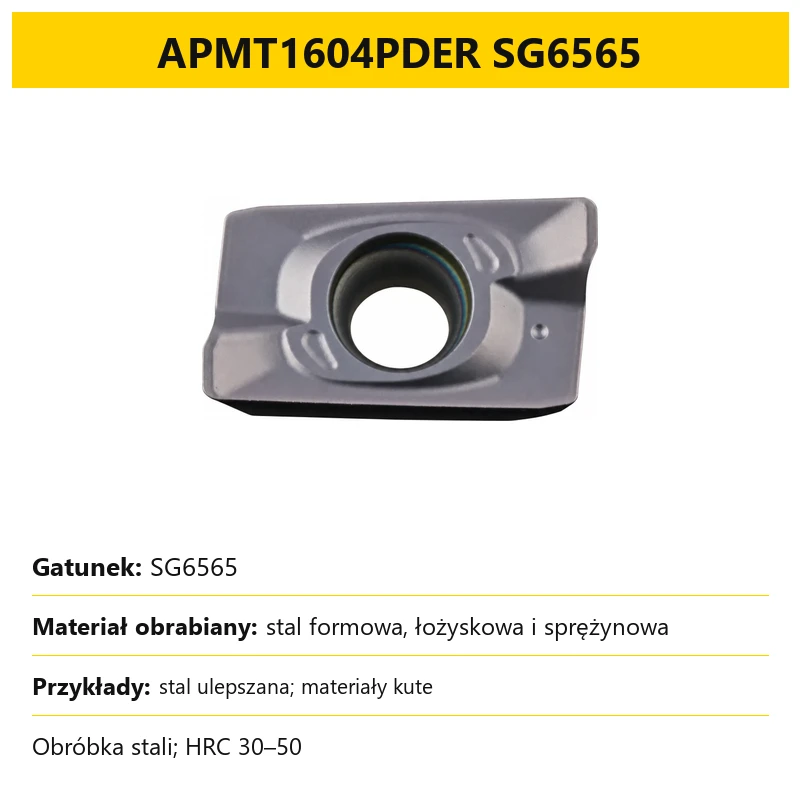

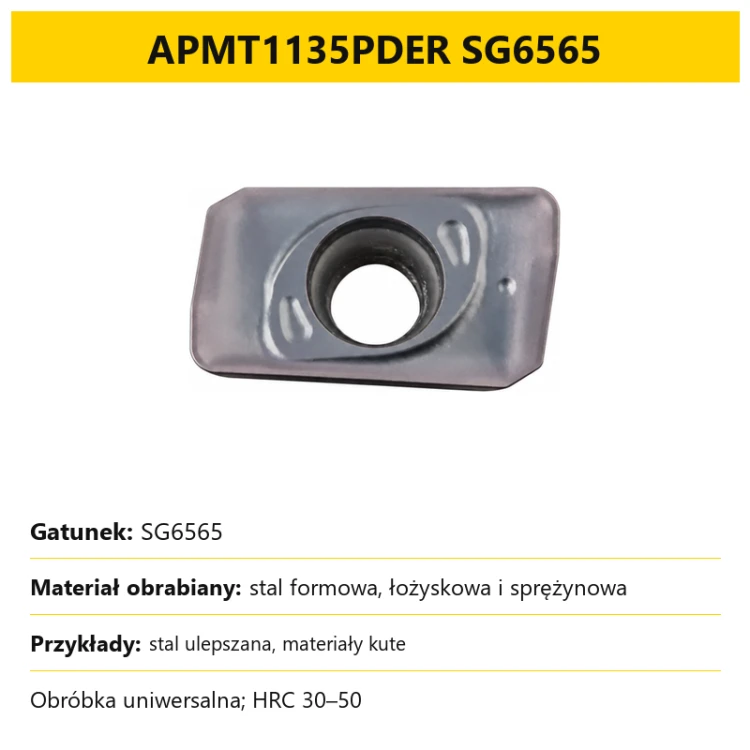

| SG6565 | Steel – increased wear resistance | 1135 / 1604 |

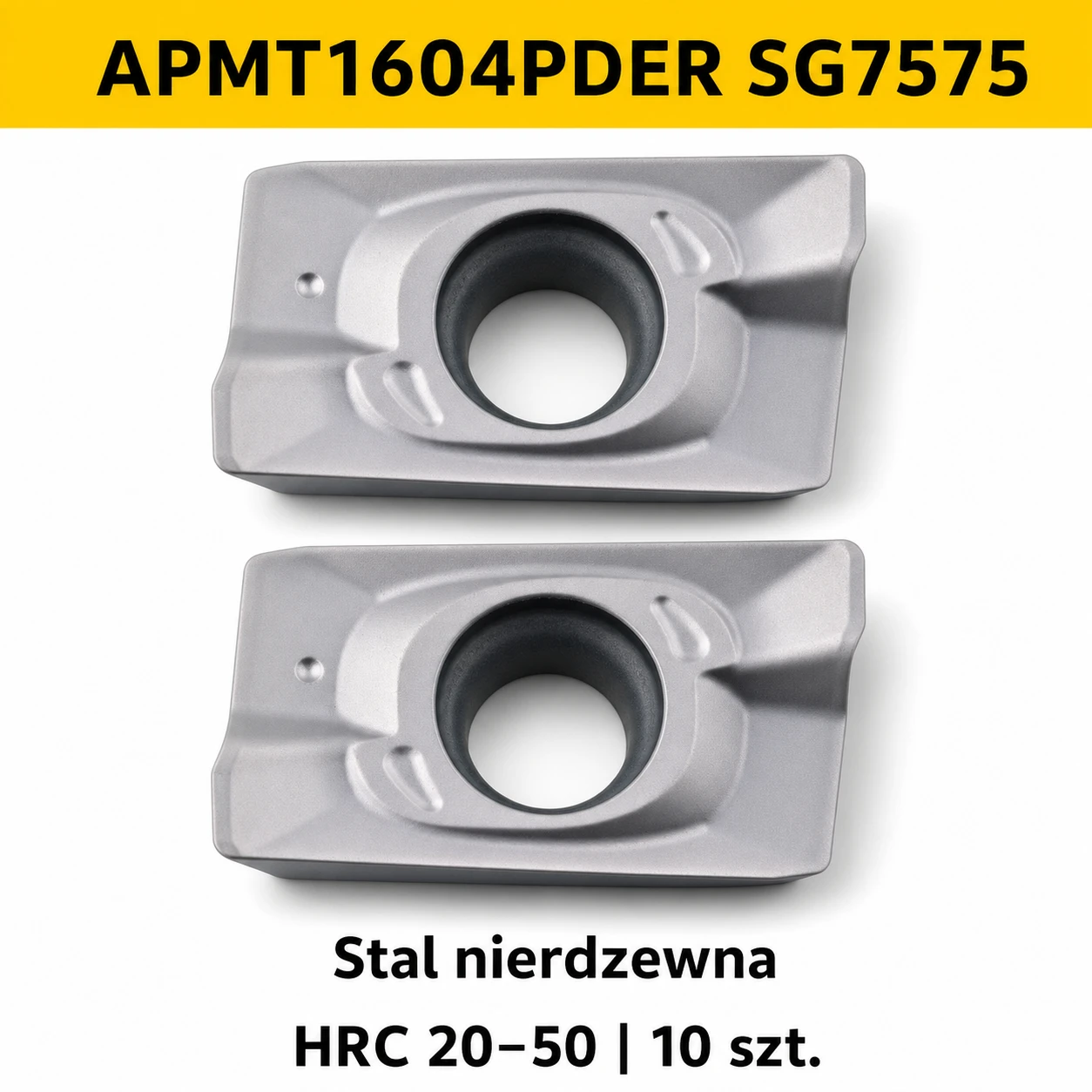

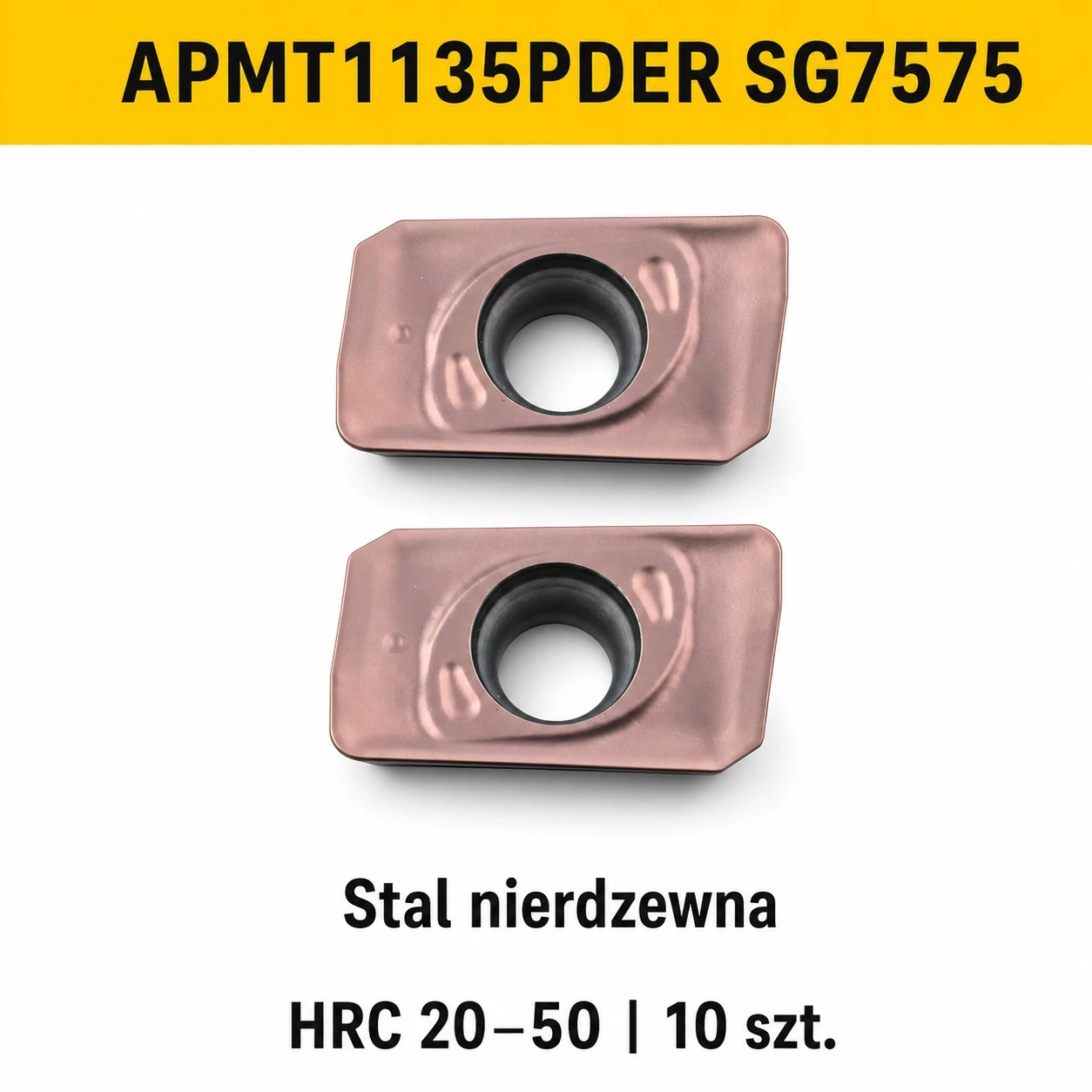

| SG7575 | Stainless steel | 1135 / 1604 |

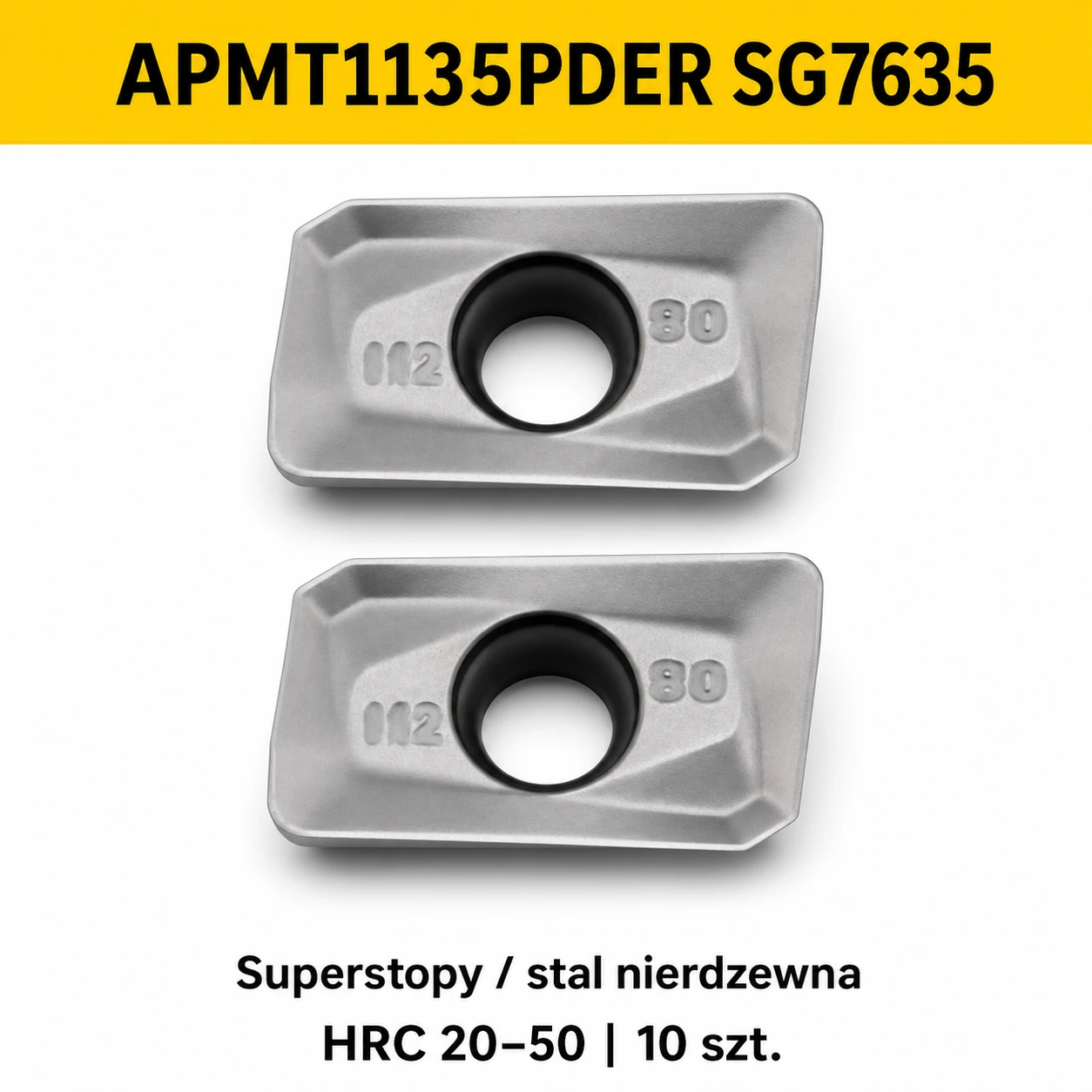

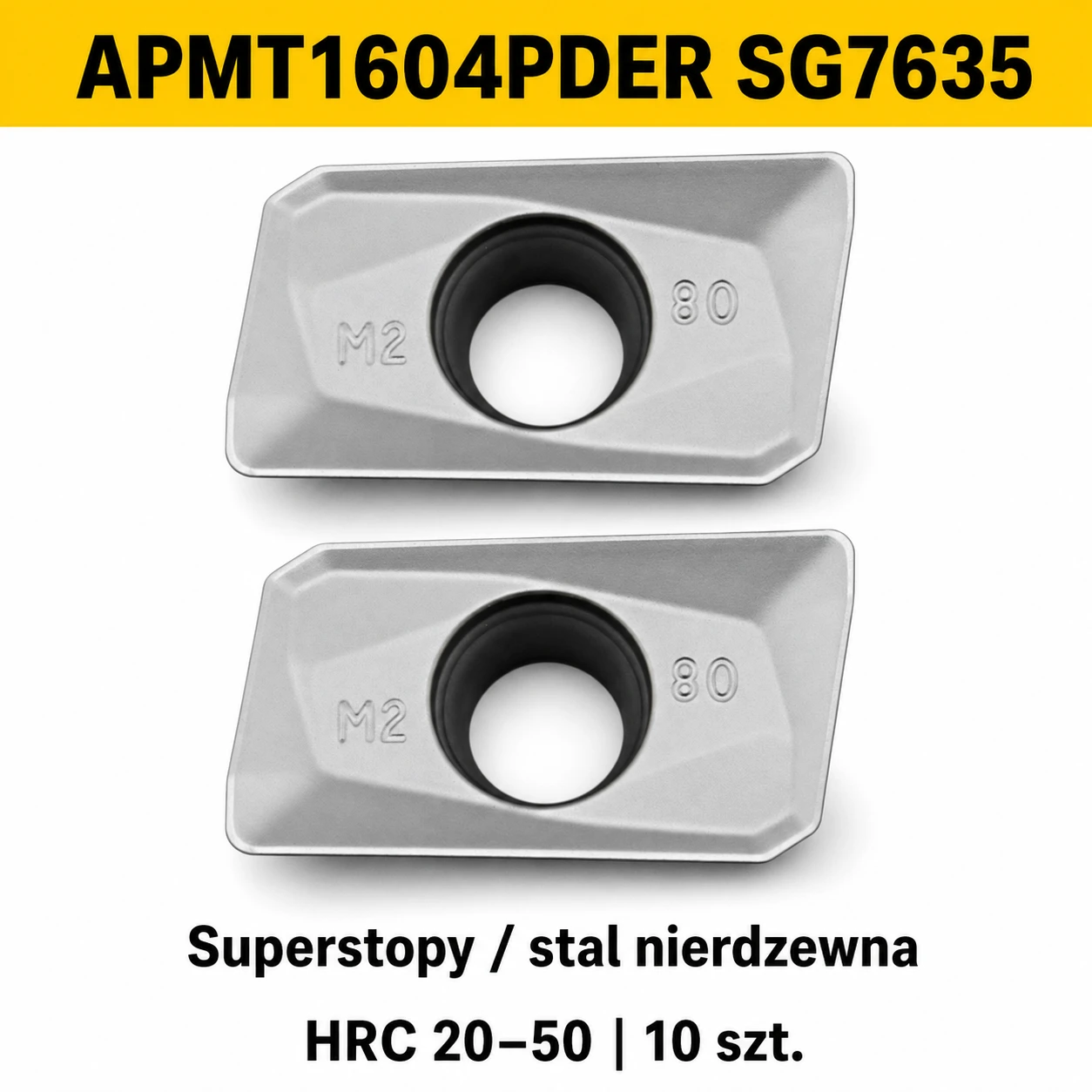

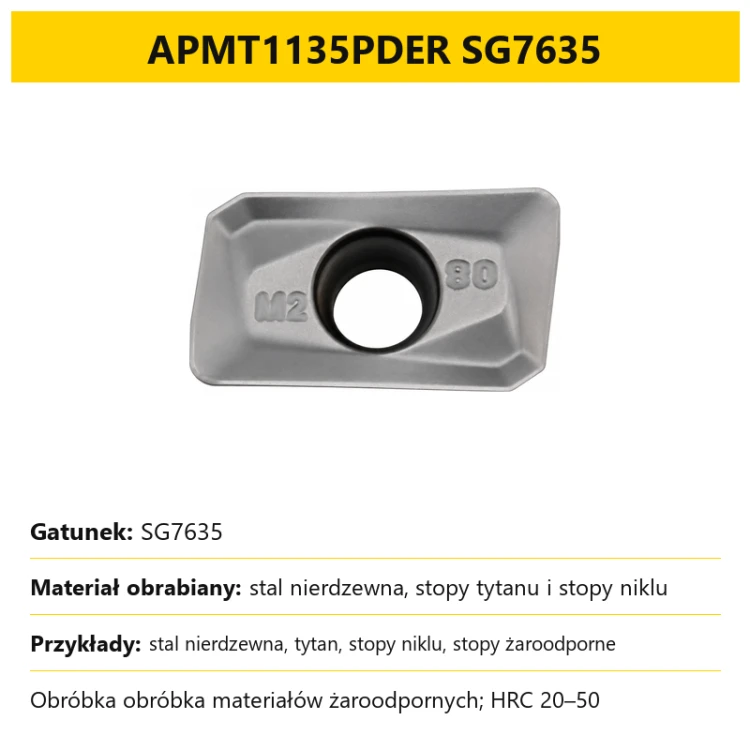

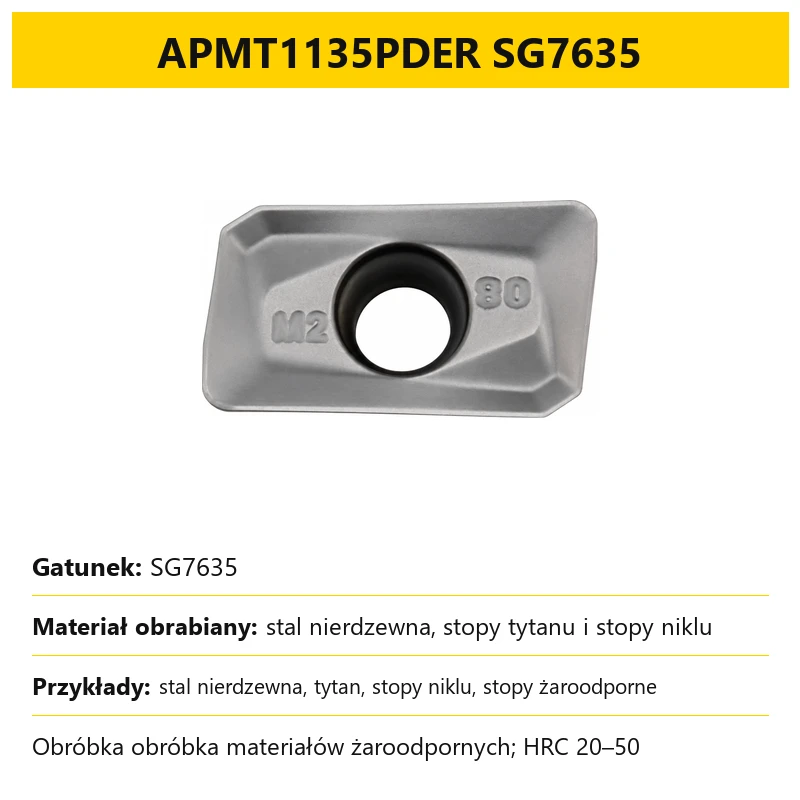

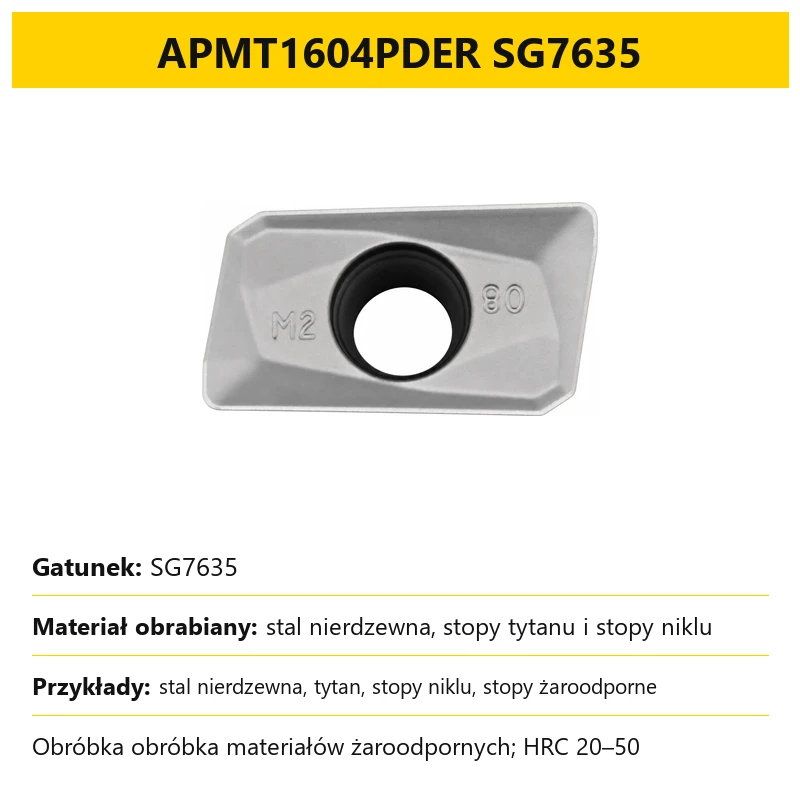

| SG7635 | Superalloys, stainless steel | 1135 / 1604 |

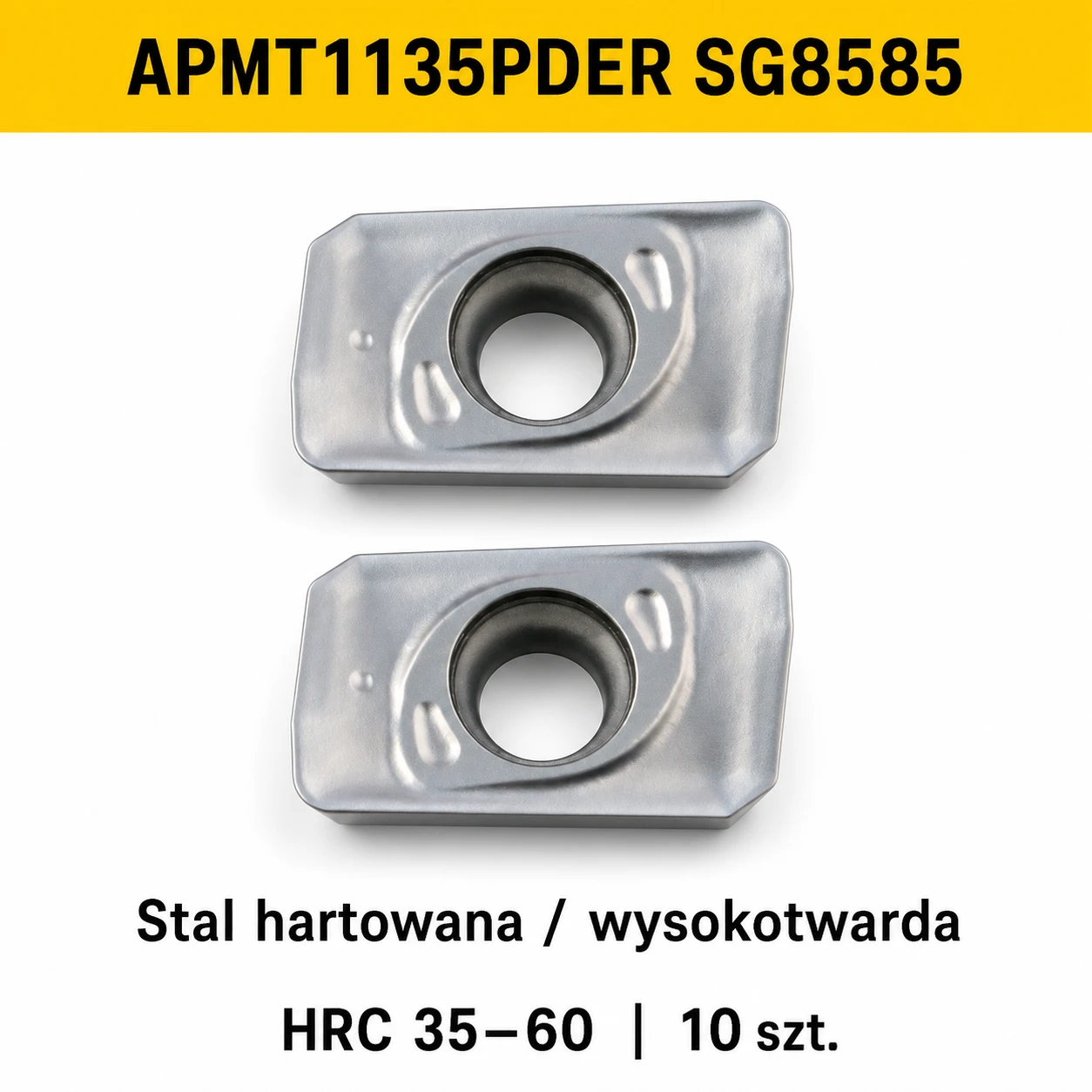

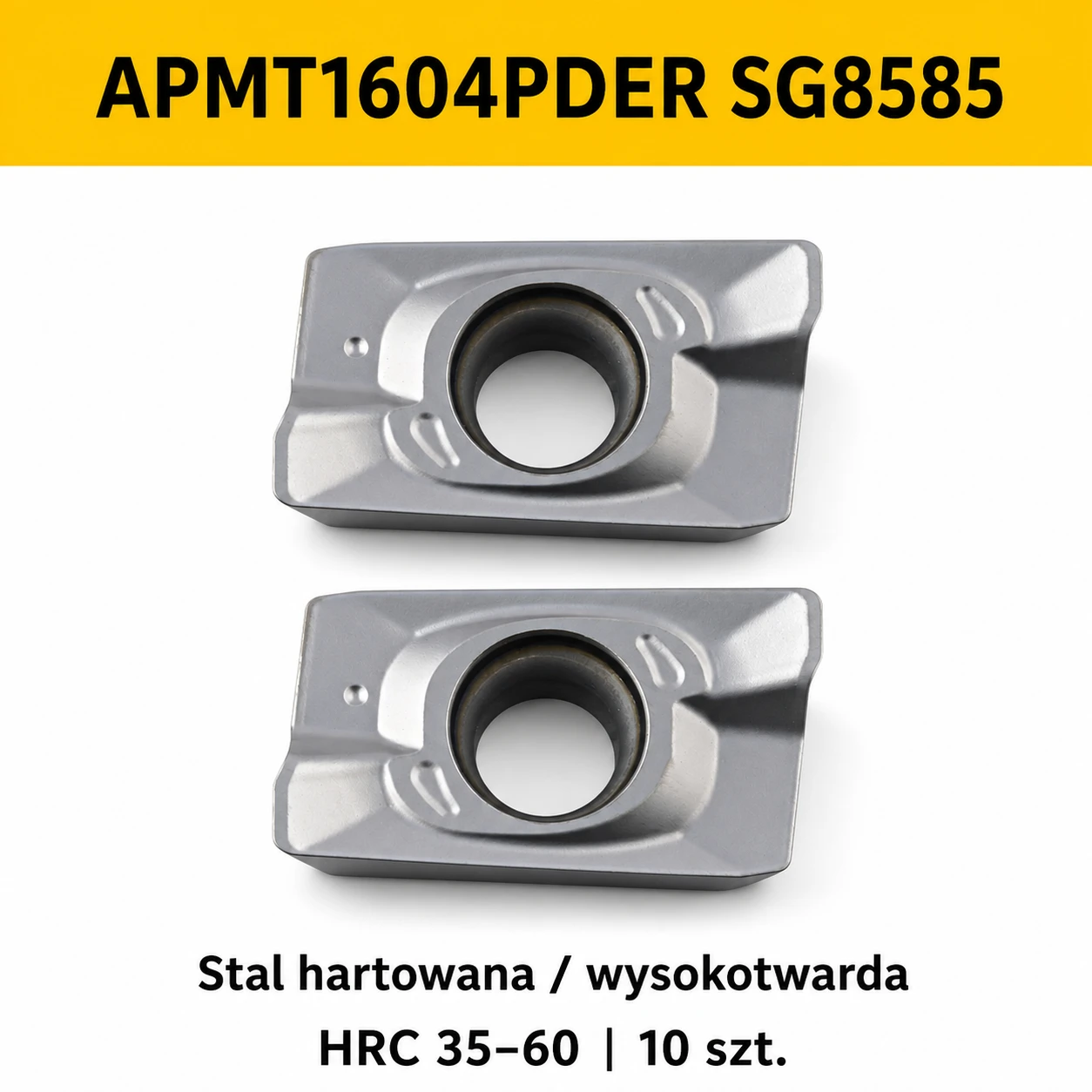

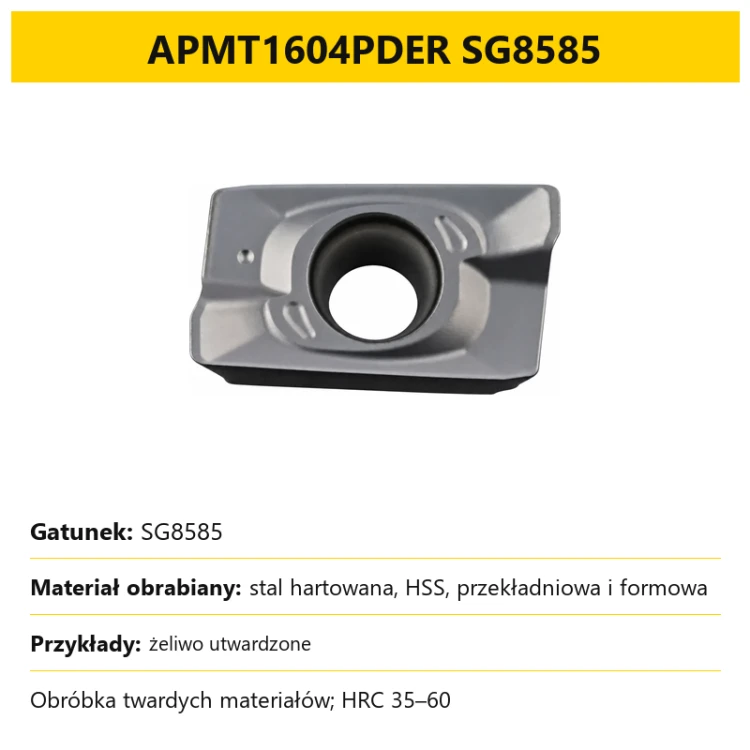

| SG8585 | Hardened and high-hardness steel | 1135 / 1604 |

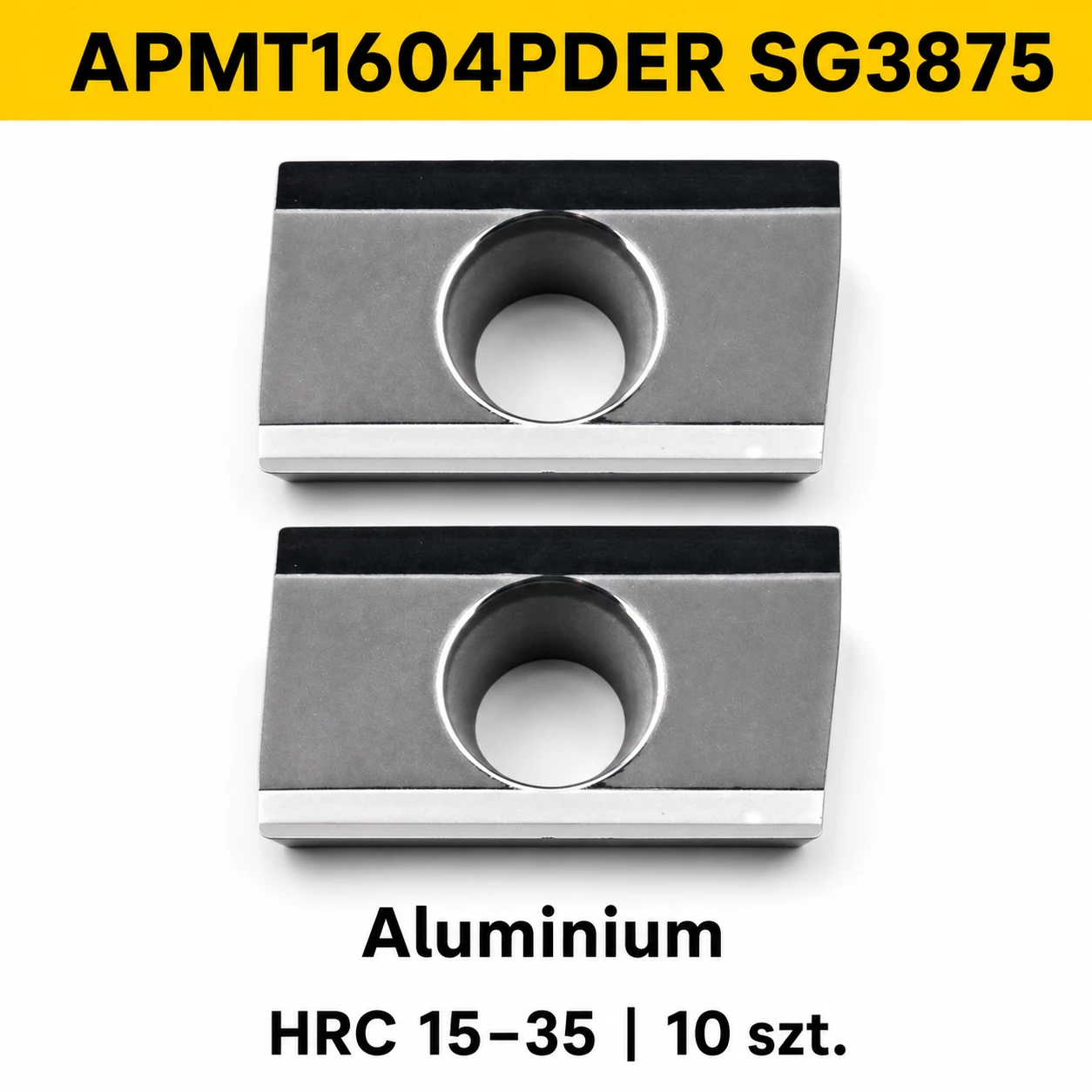

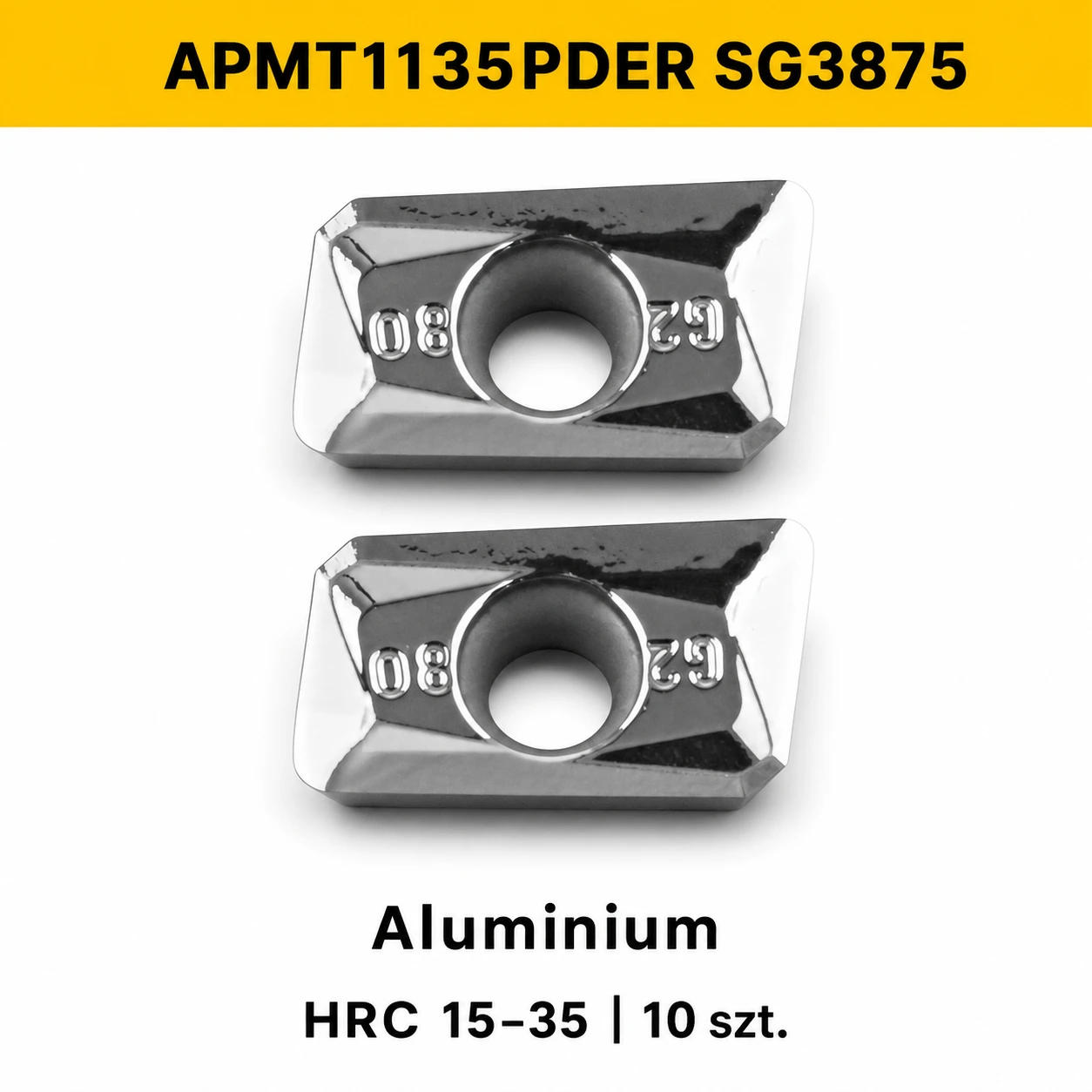

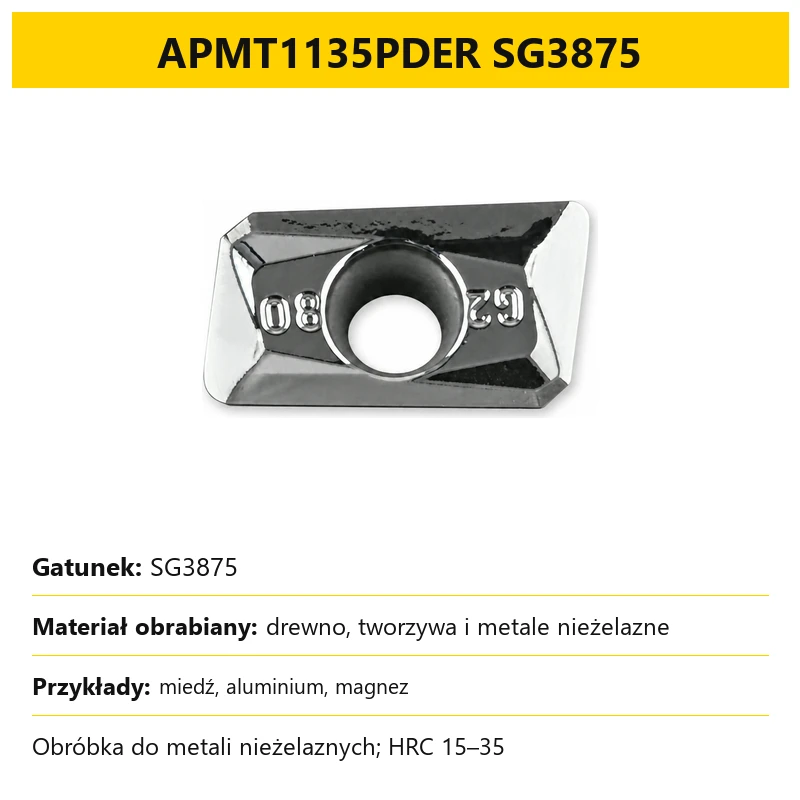

| SG3875 | Aluminium | 1135 / 1604 |

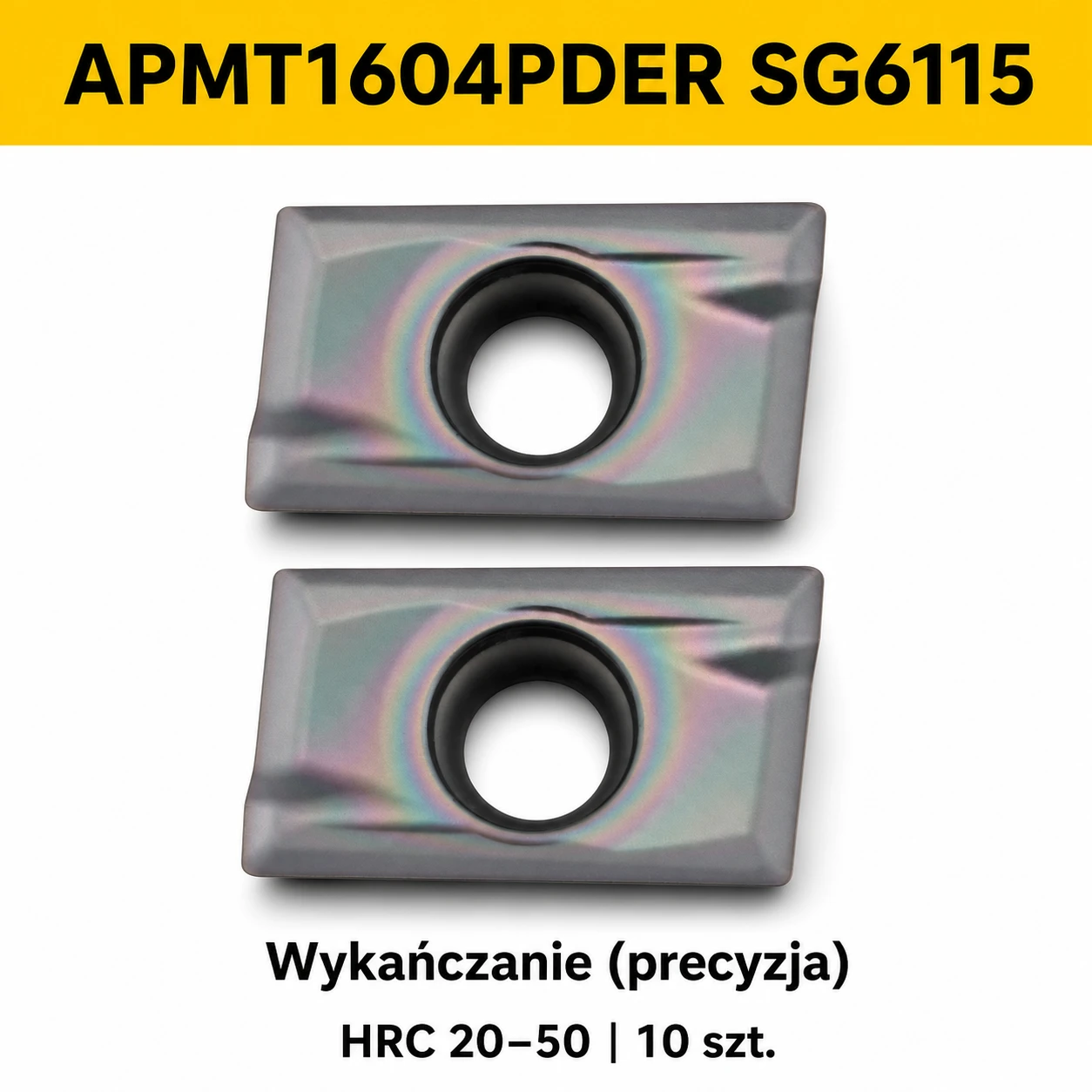

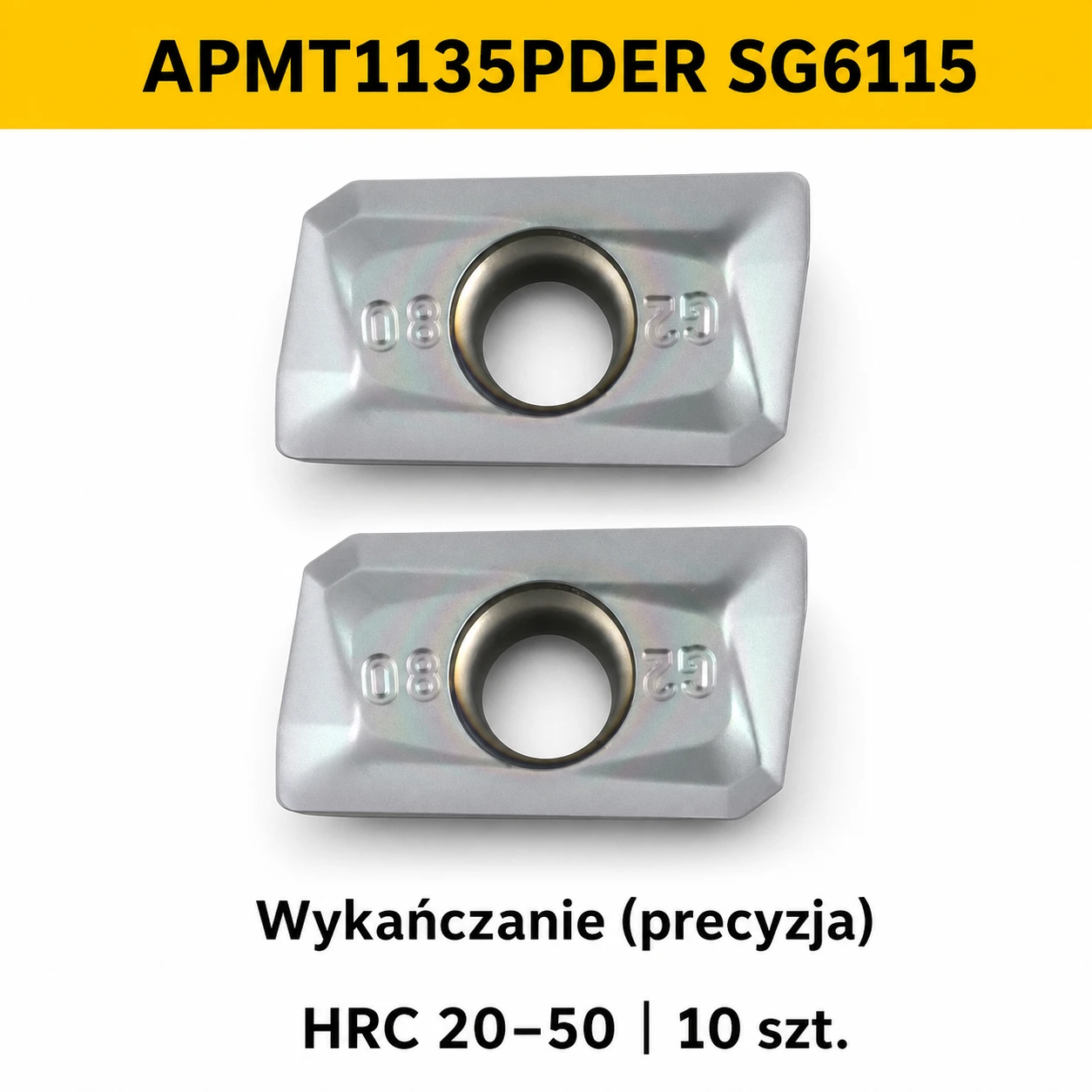

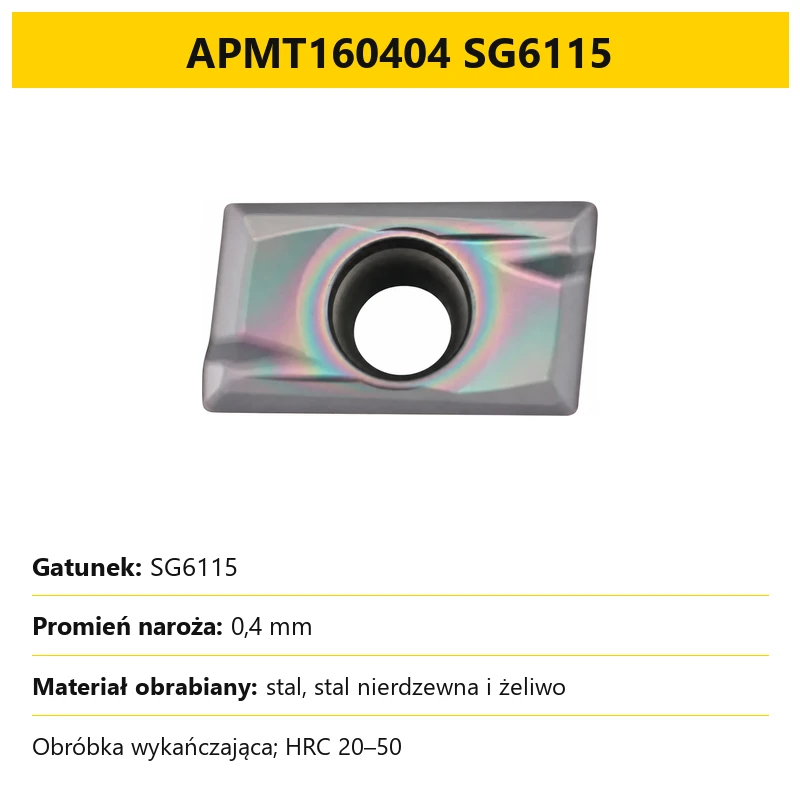

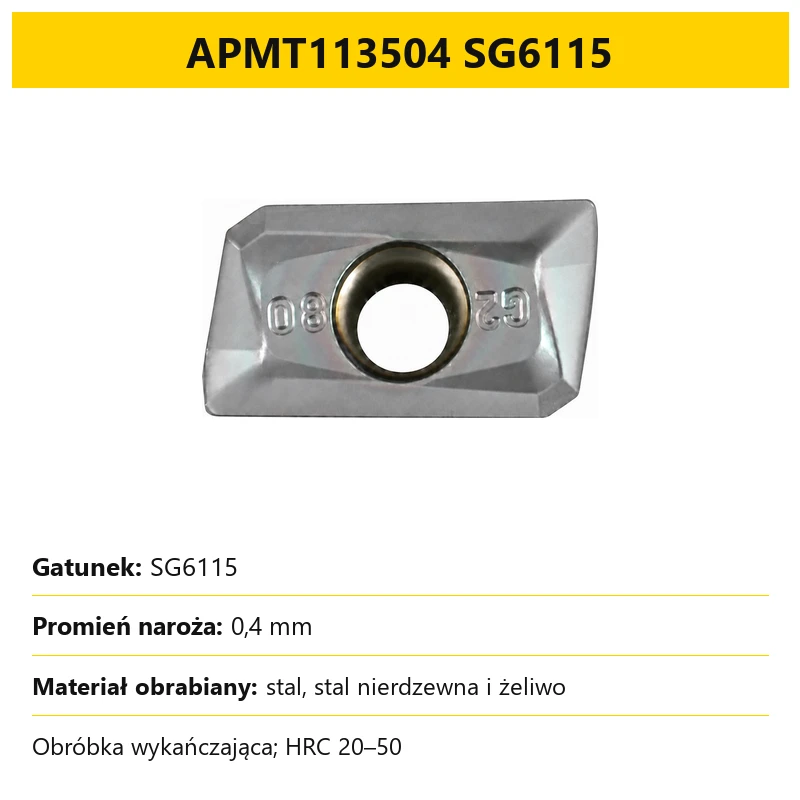

| SG6115 | Finishing | 1135 / 1604 |
Other grades and versions

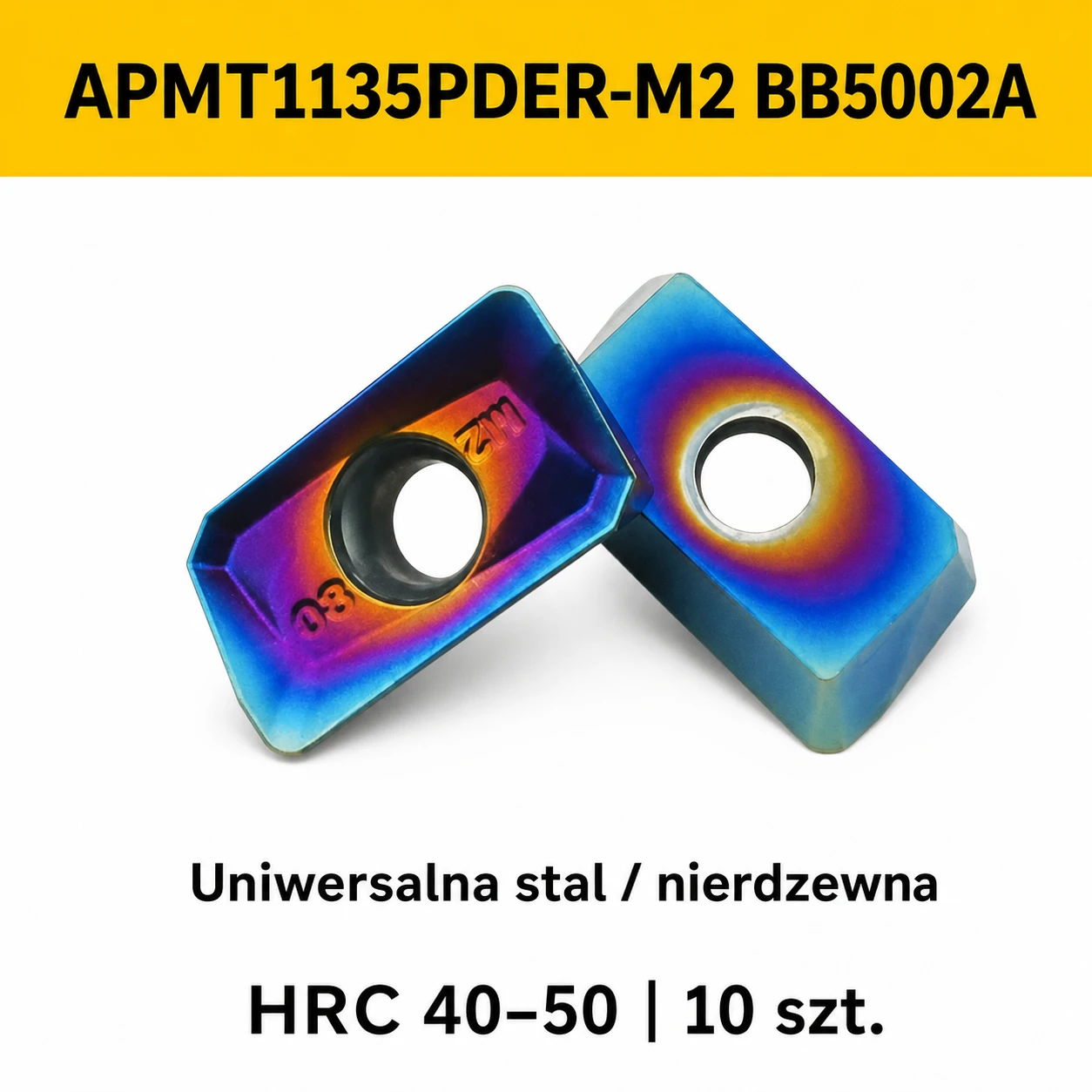

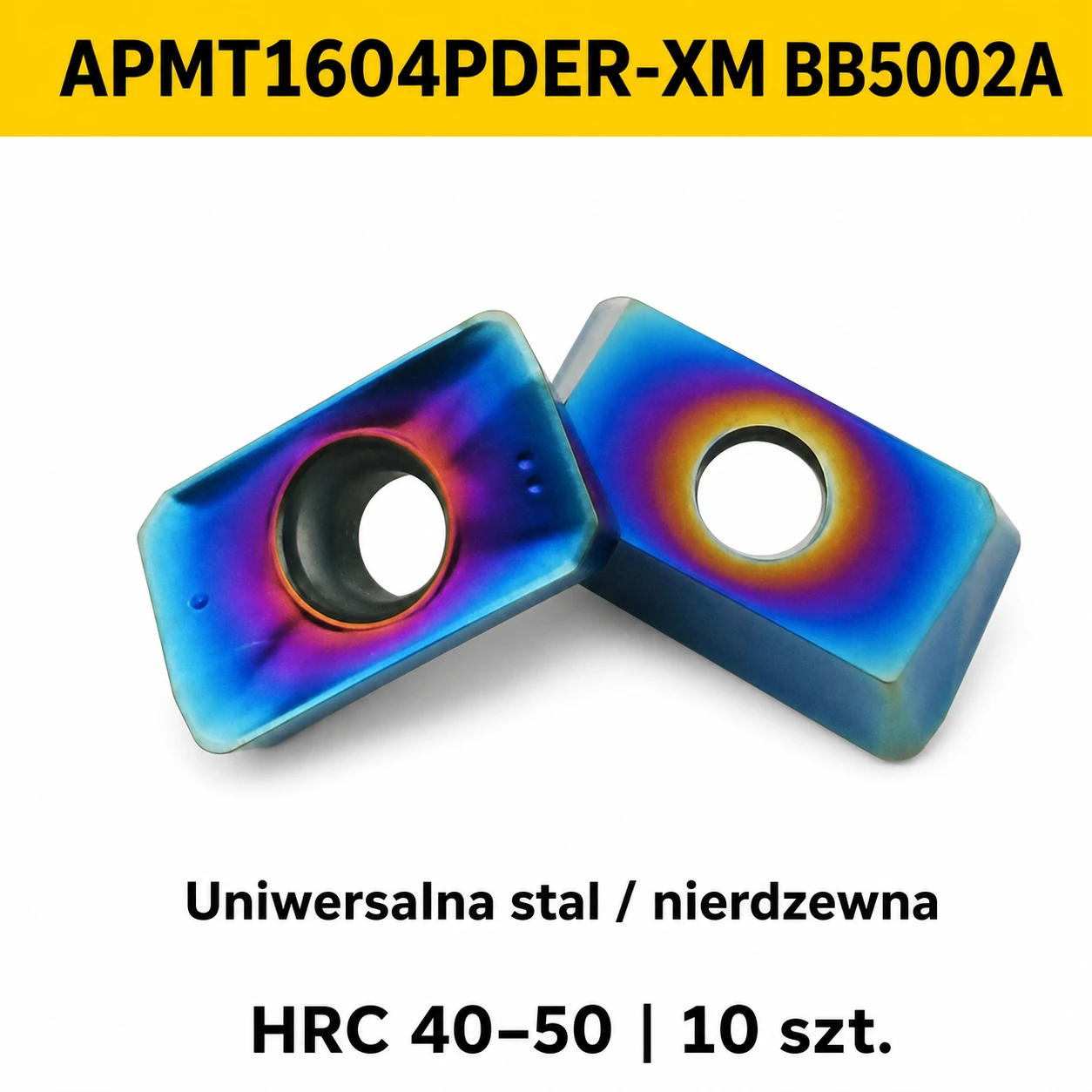

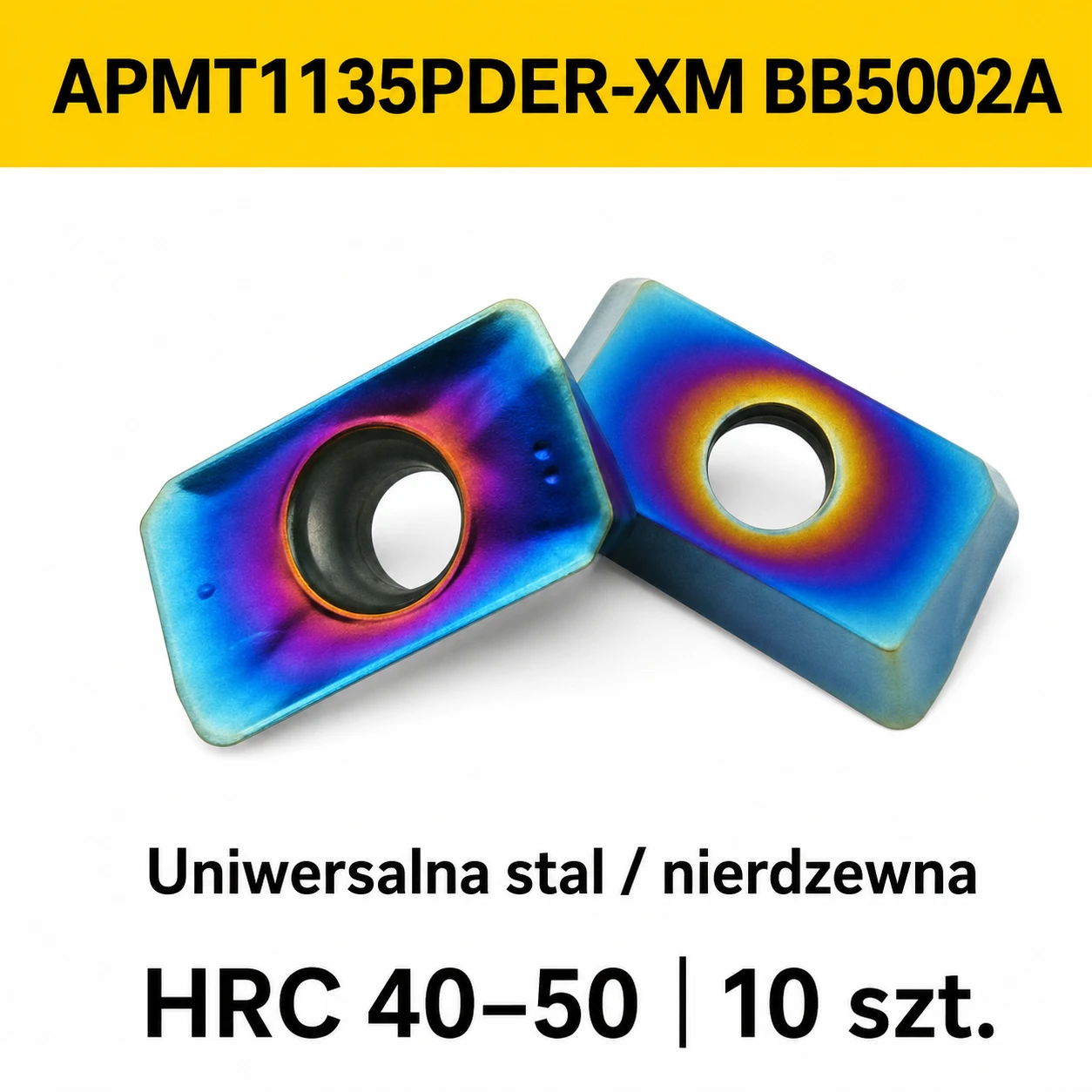

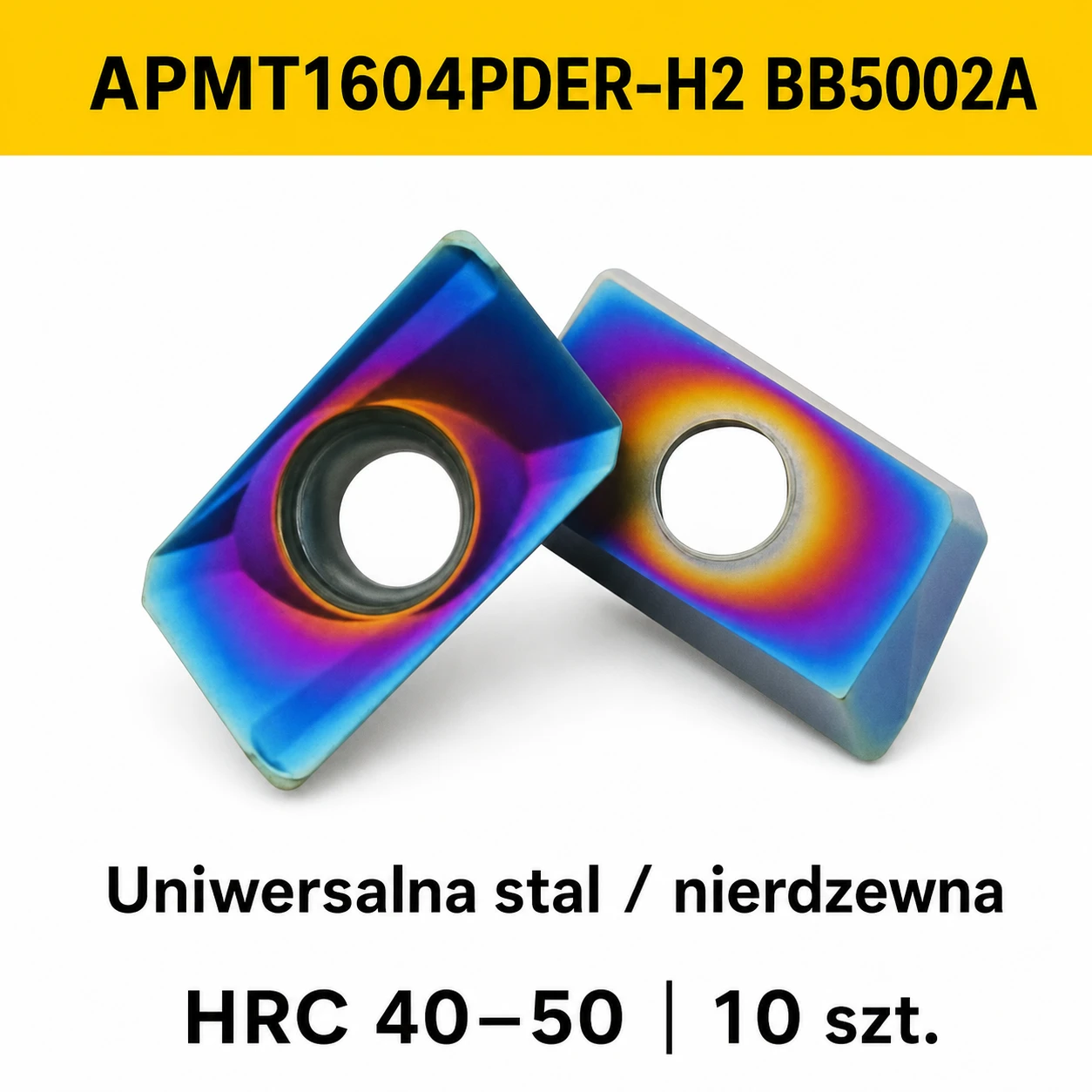

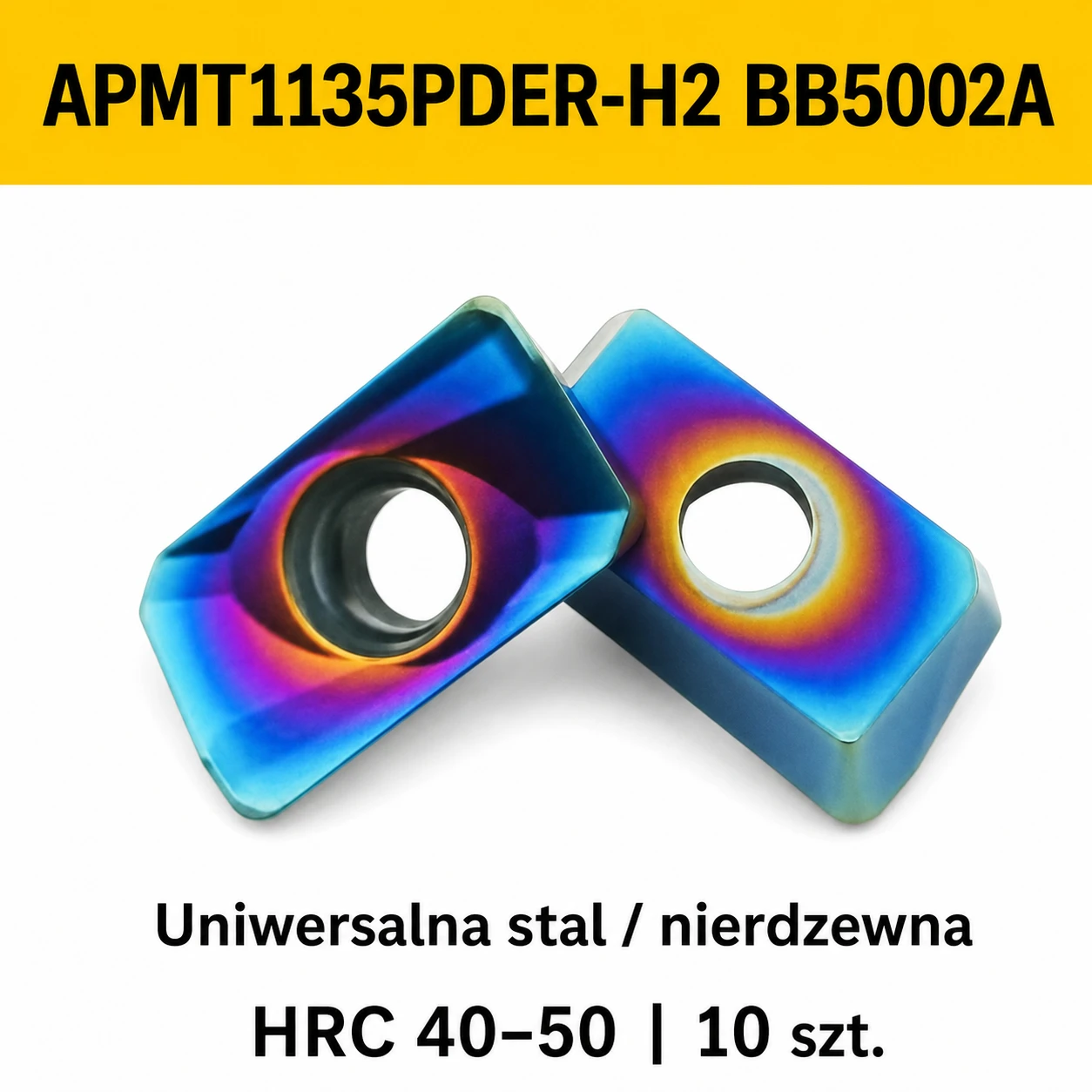

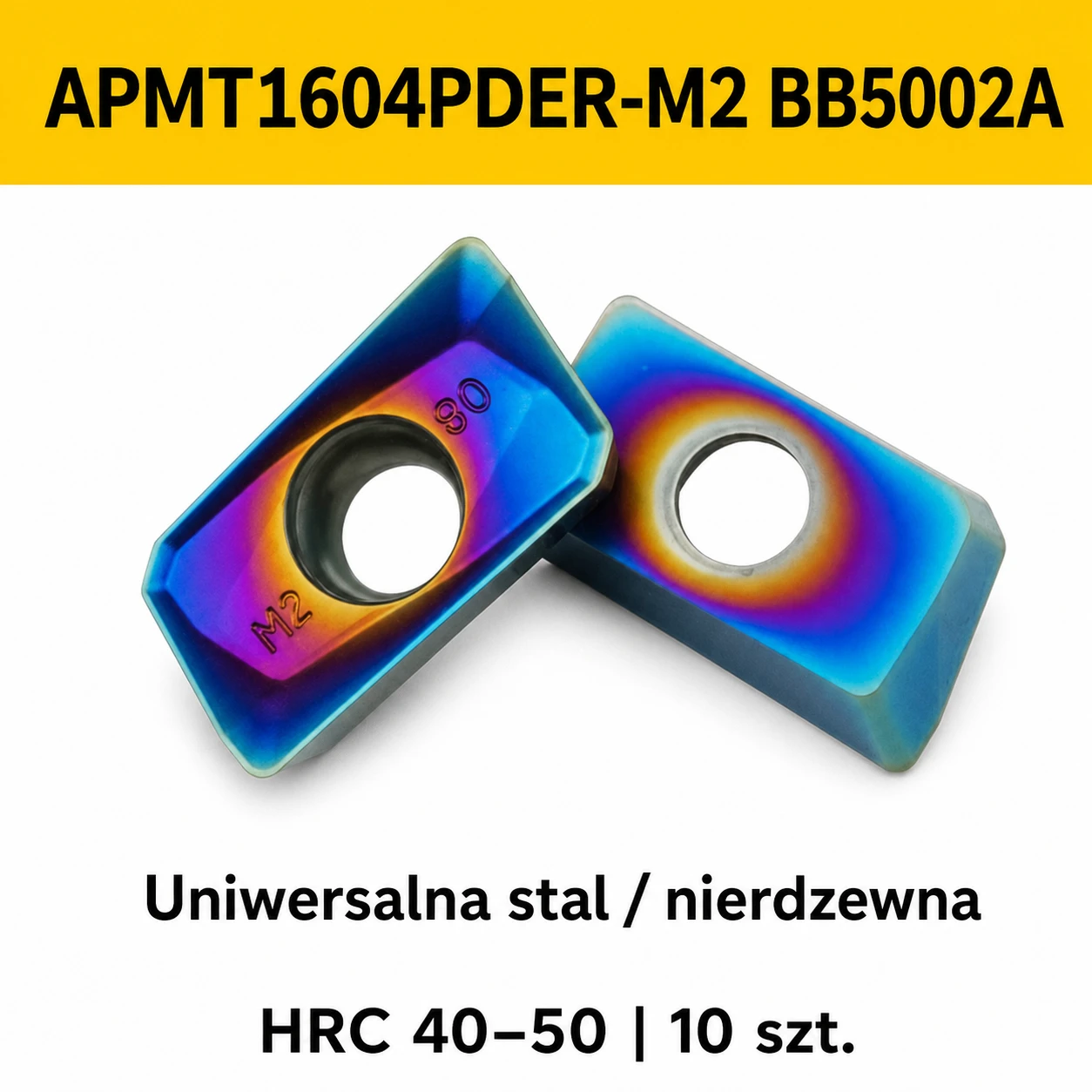

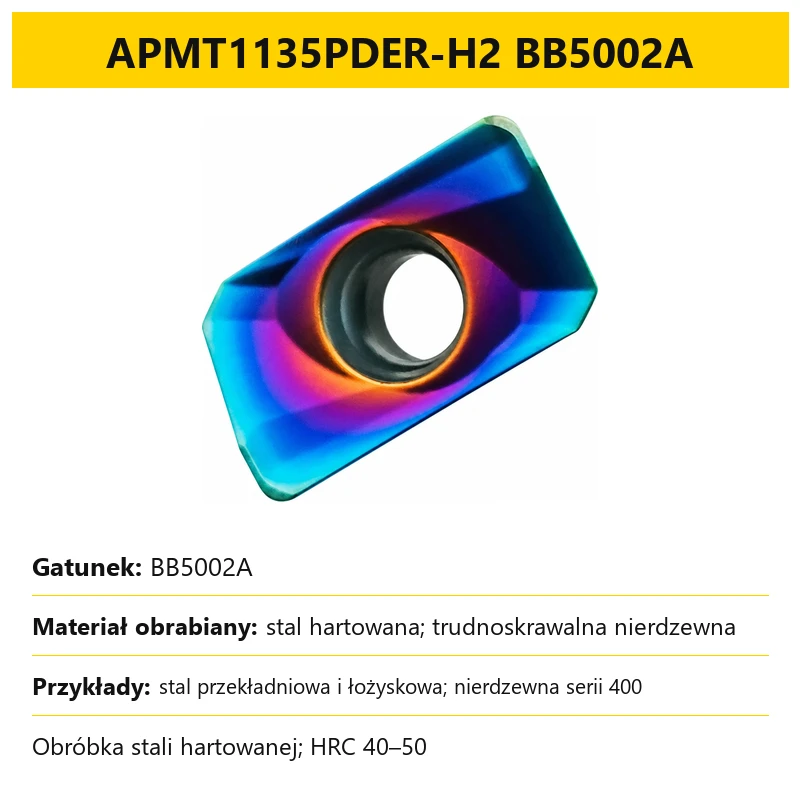

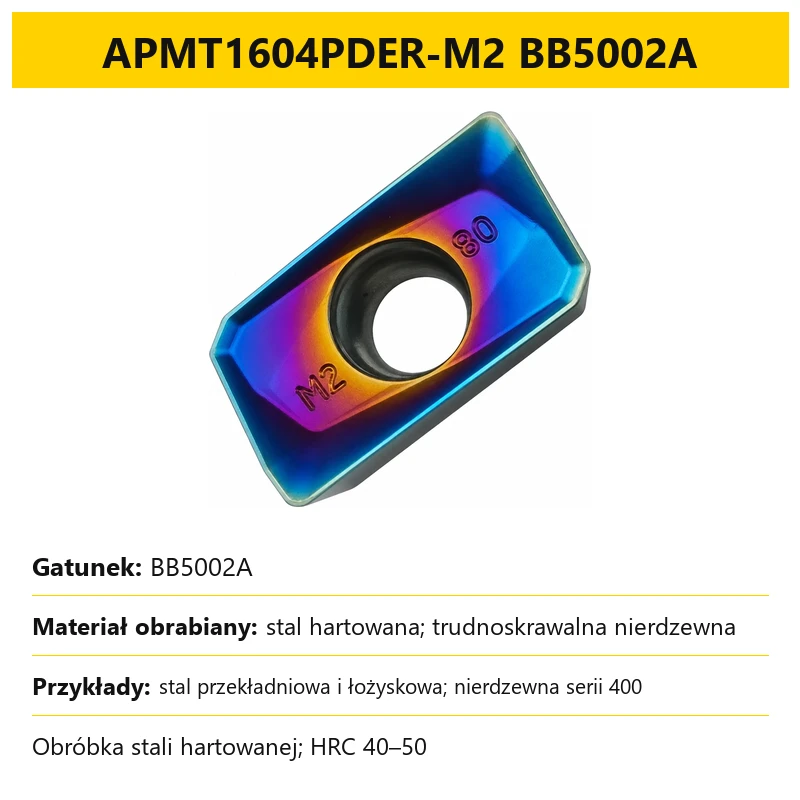

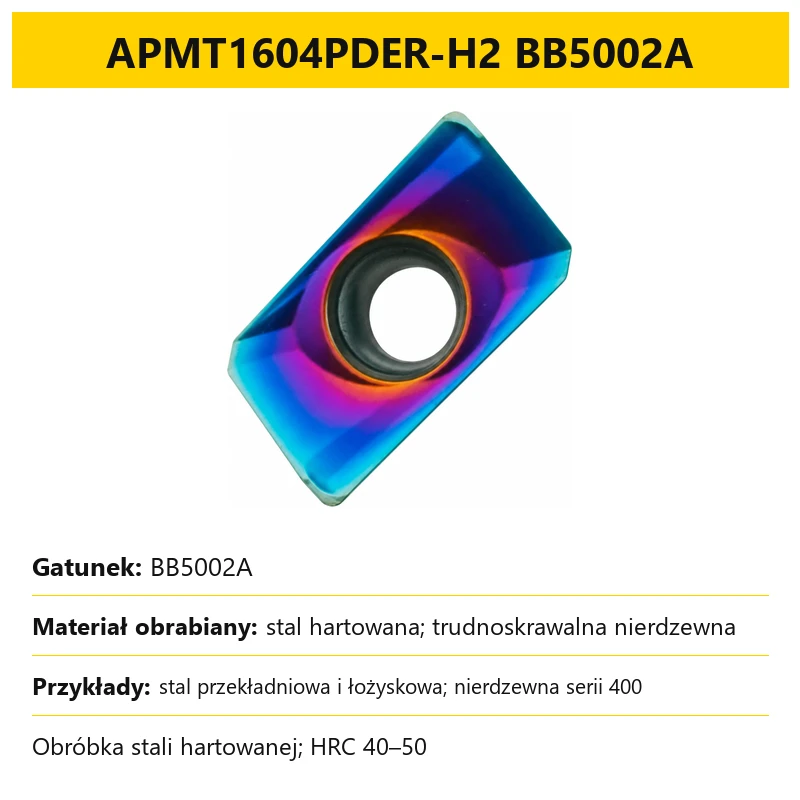

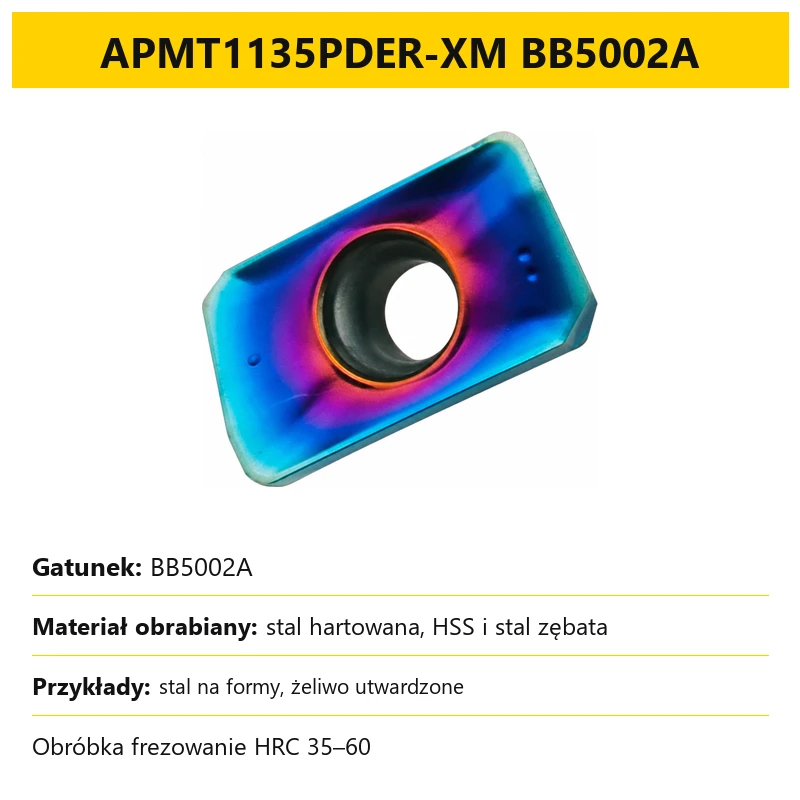

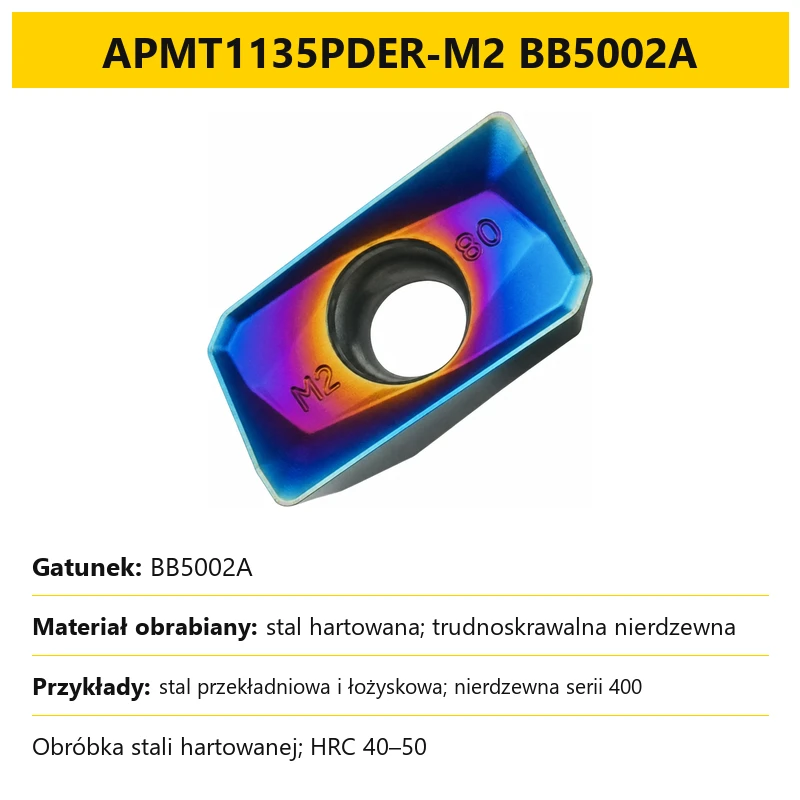

| BB5002A – H2 / M2 / XM | General-purpose steel and stainless-steel variants; sizes 1135 and 1604 |
| PCD | Aluminium and non-ferrous metals; sizes 1135 and 1604 |
| LF6018 | APKT versions for steel |

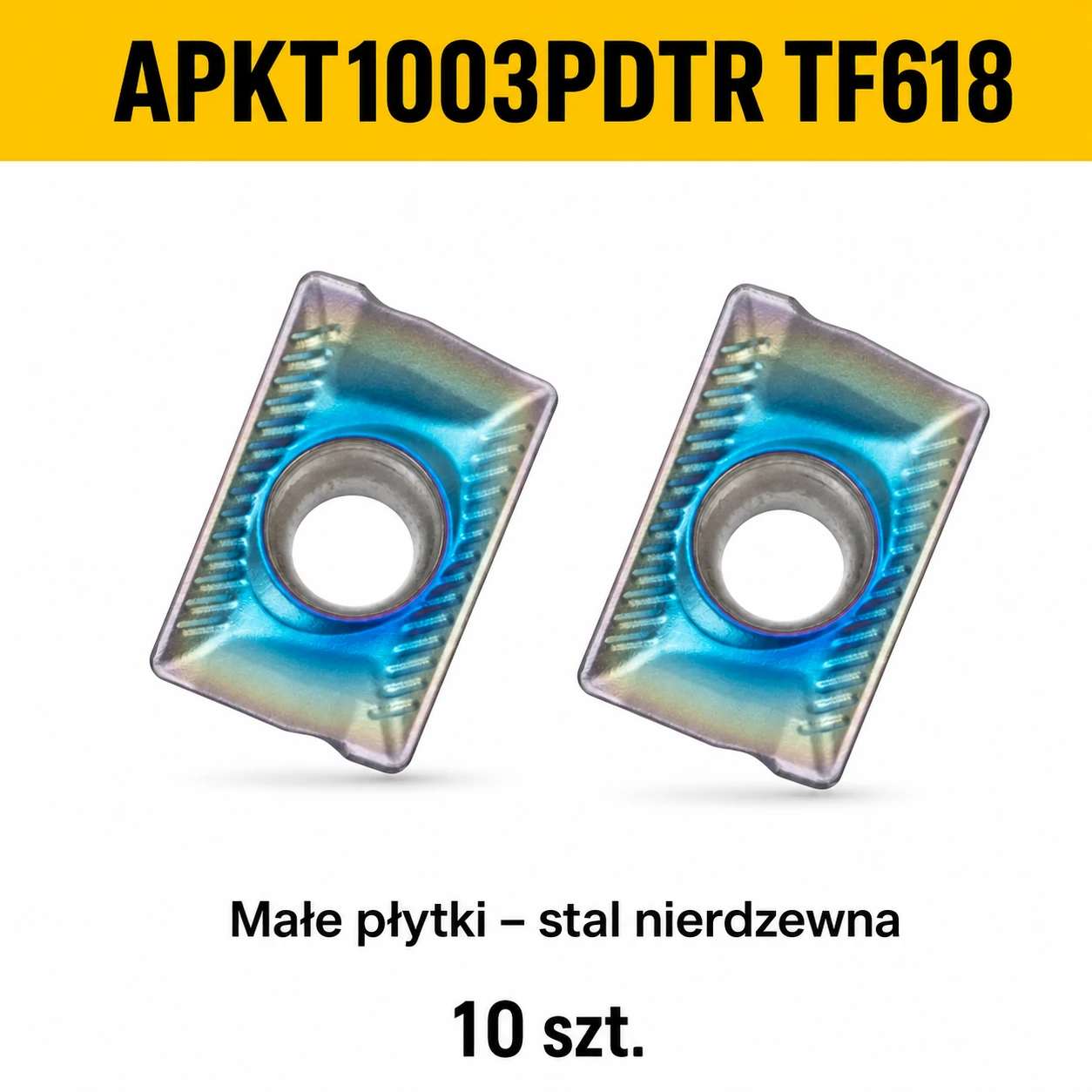

| TF618 | APKT versions for stainless steel |
| APKT1135-G2 SG3875 | Small insert for aluminium |

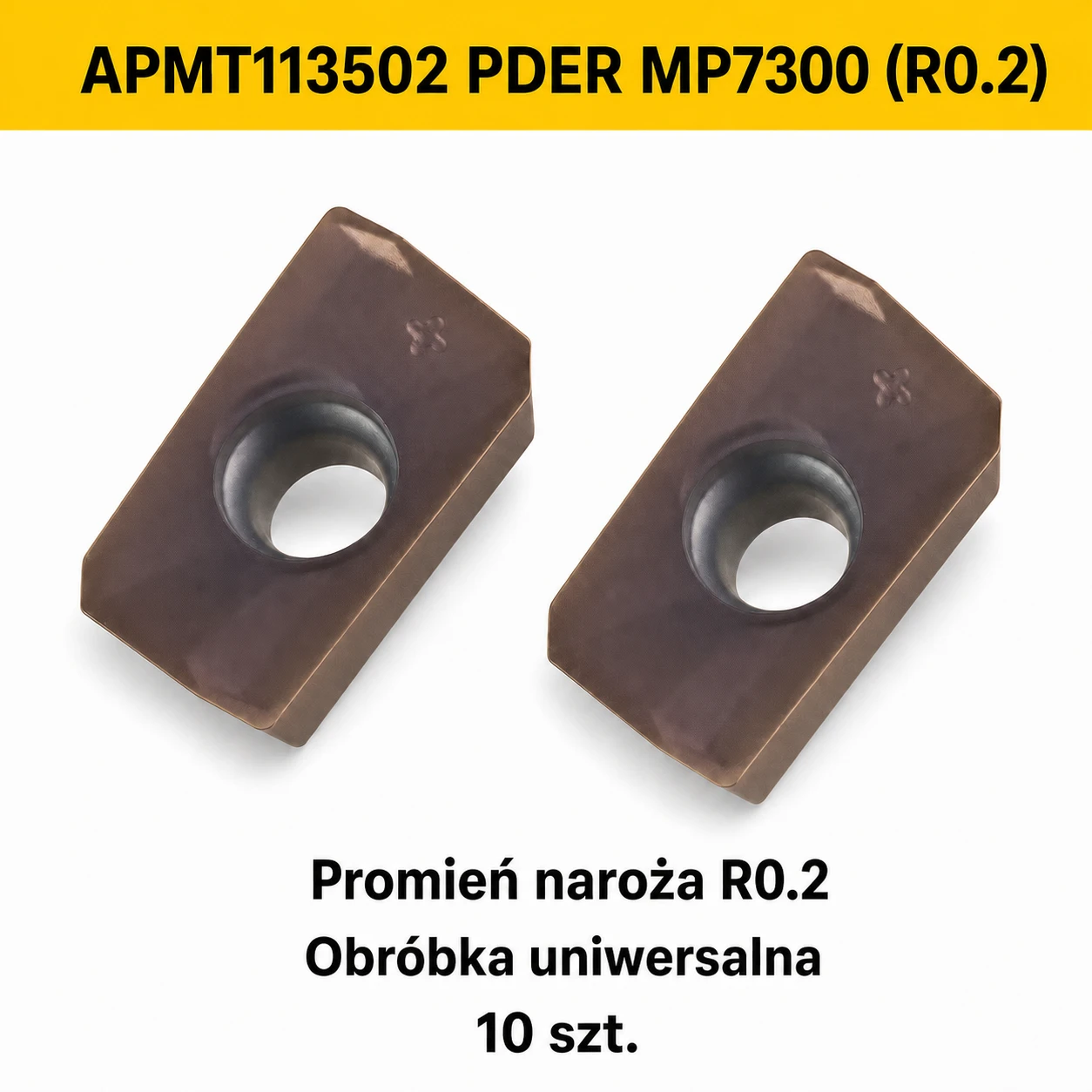

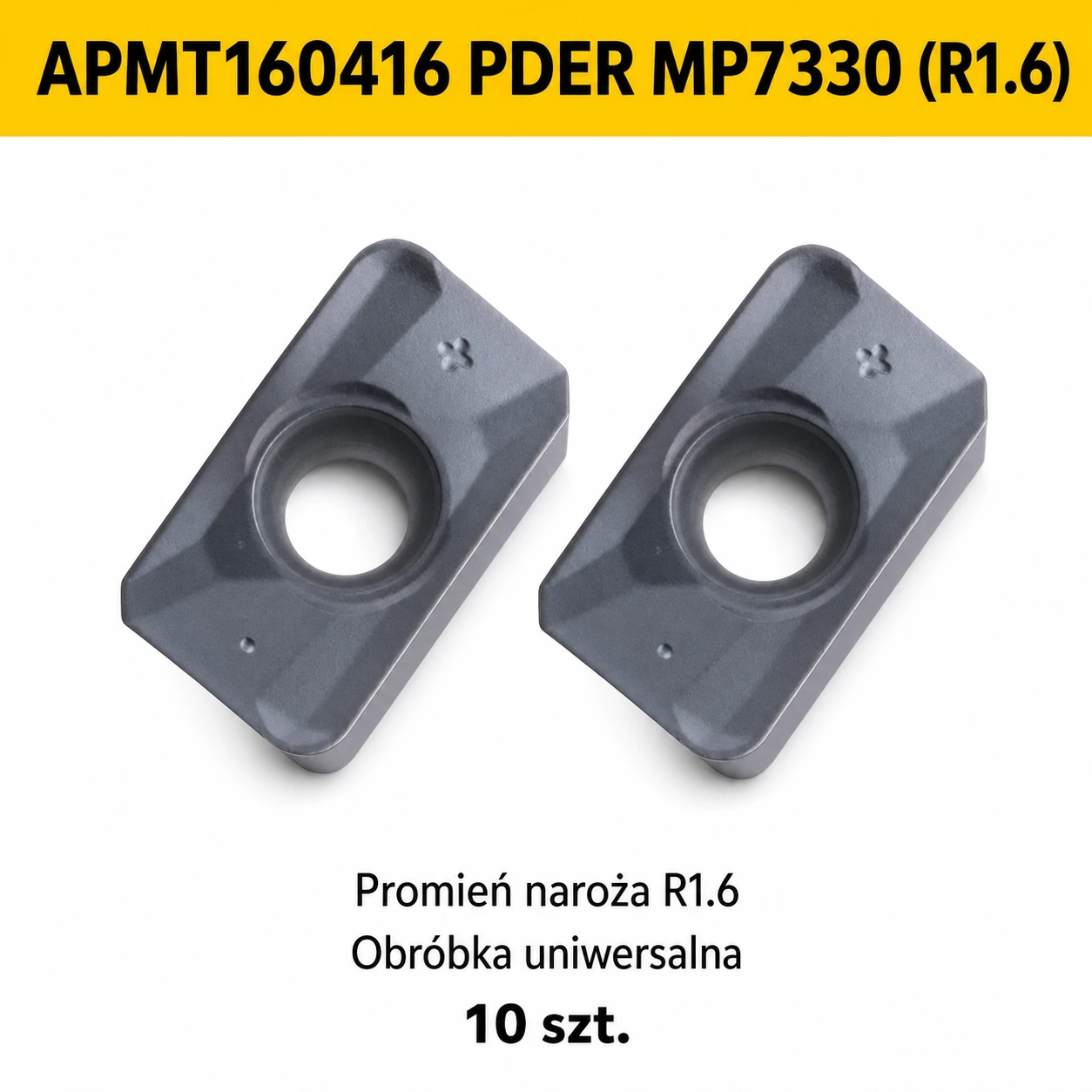

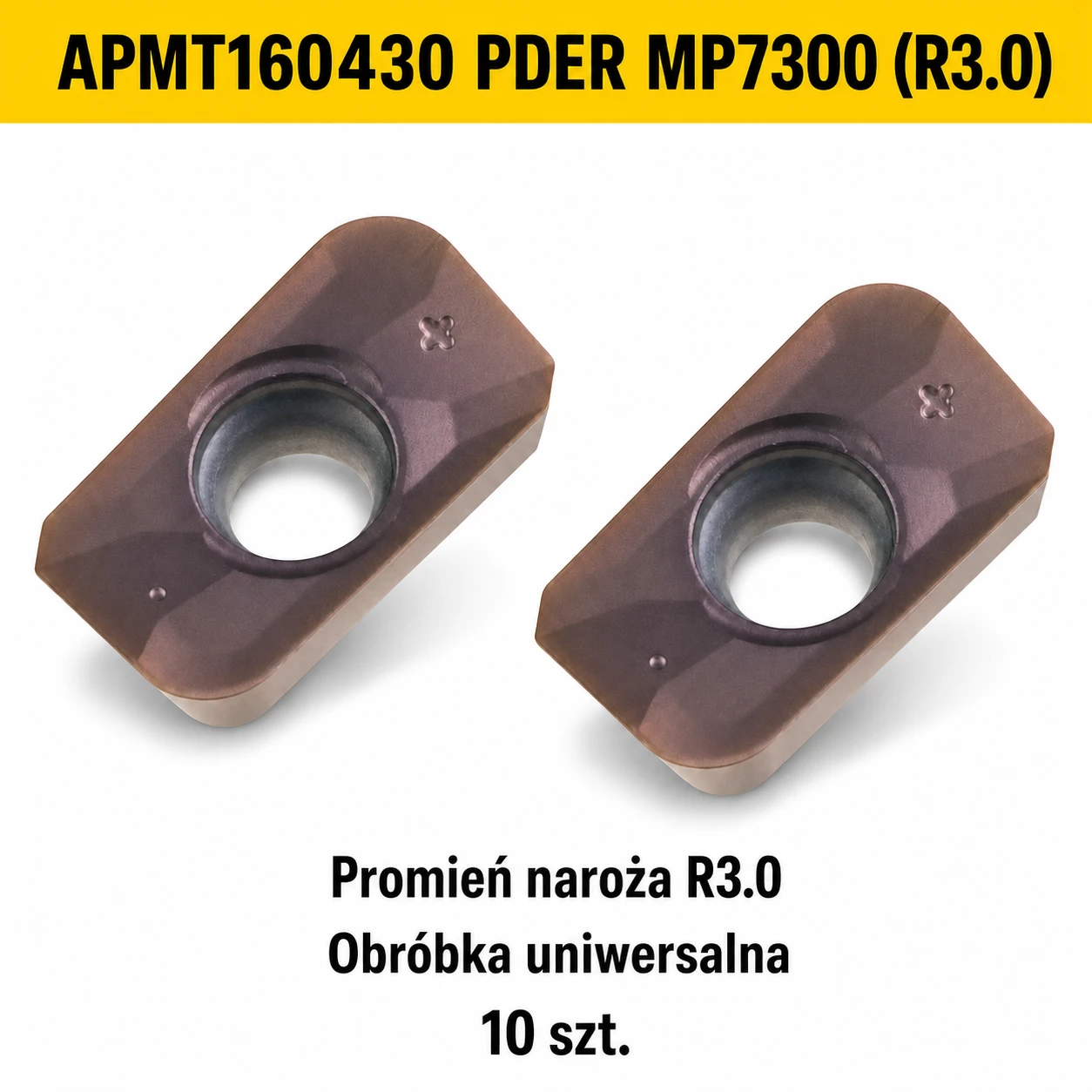

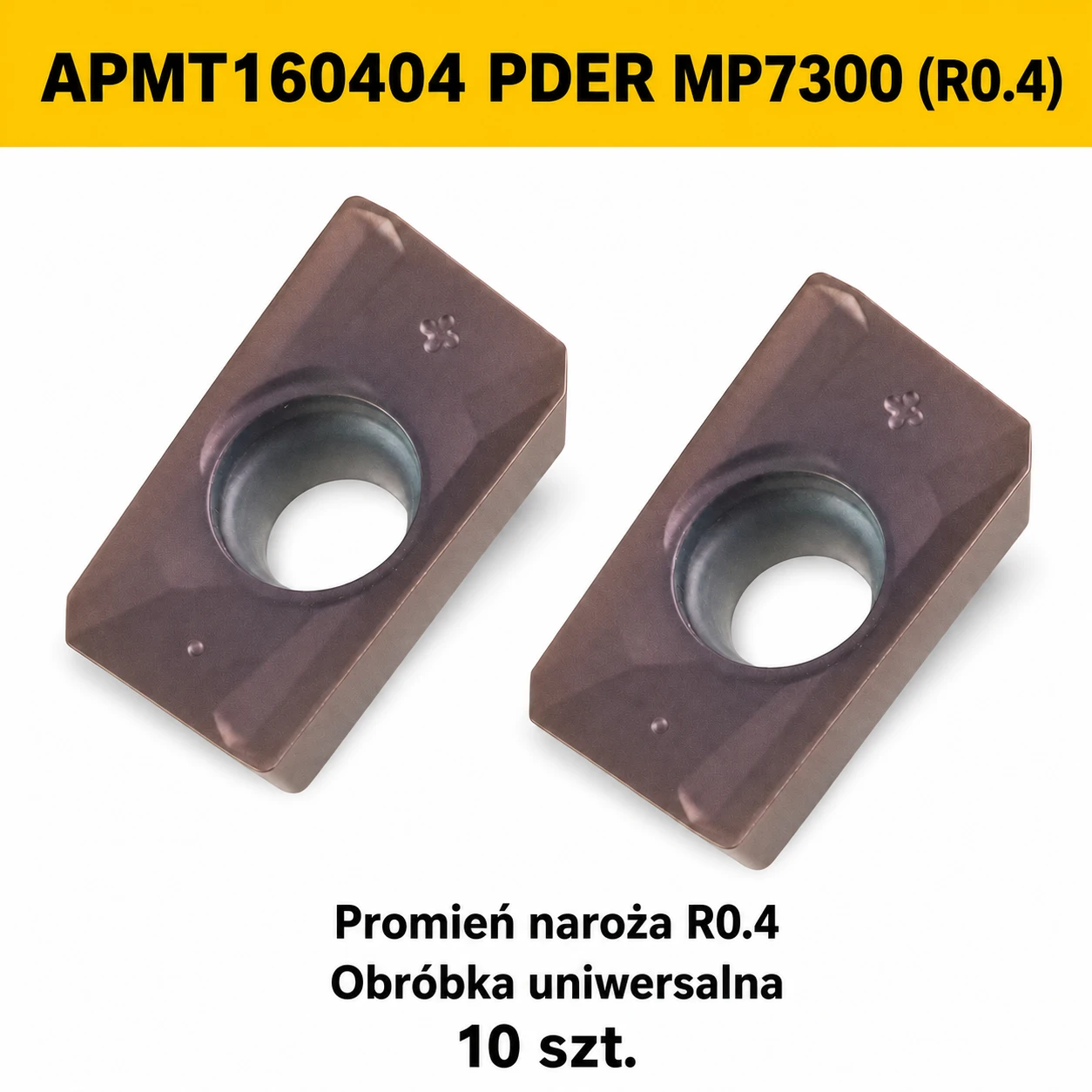

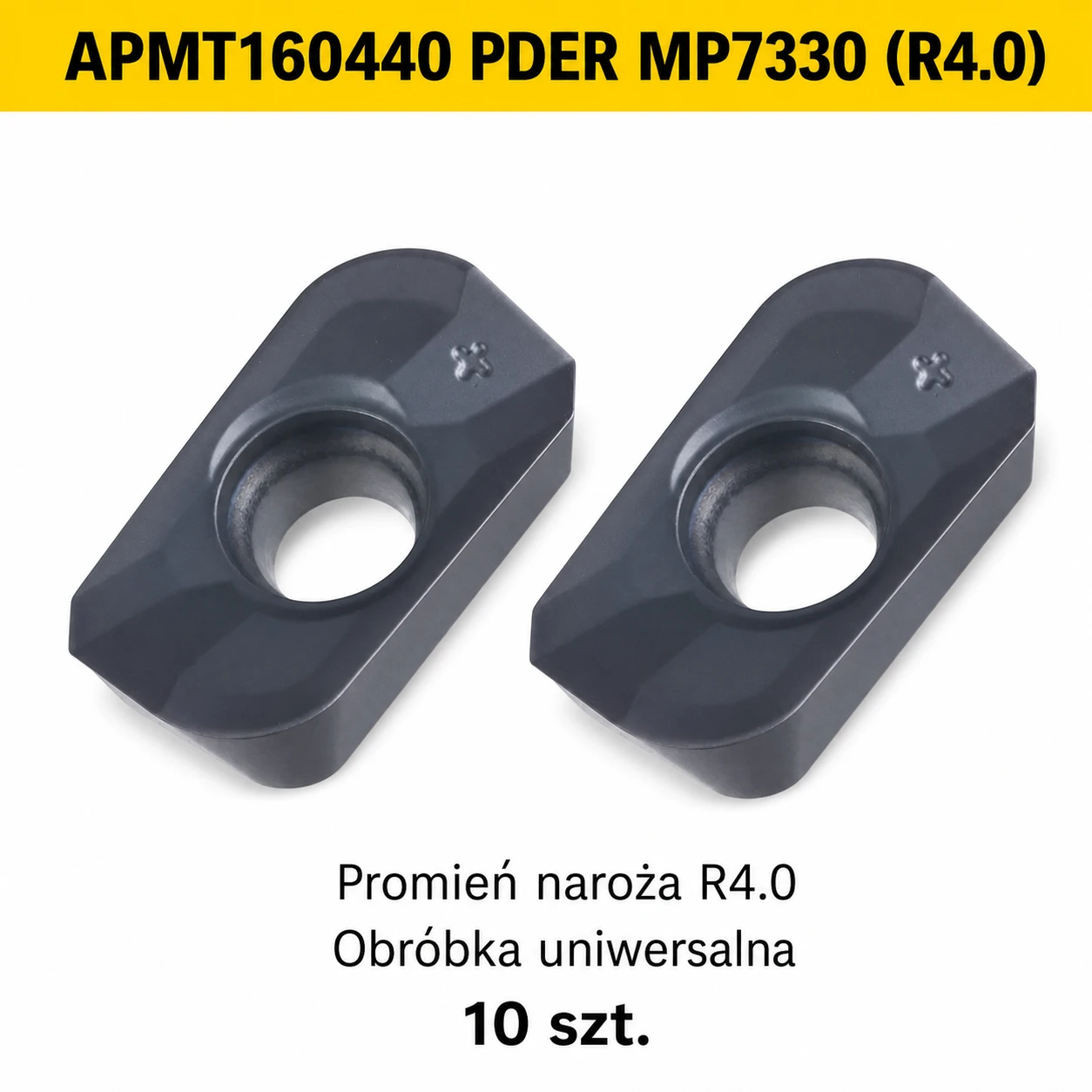

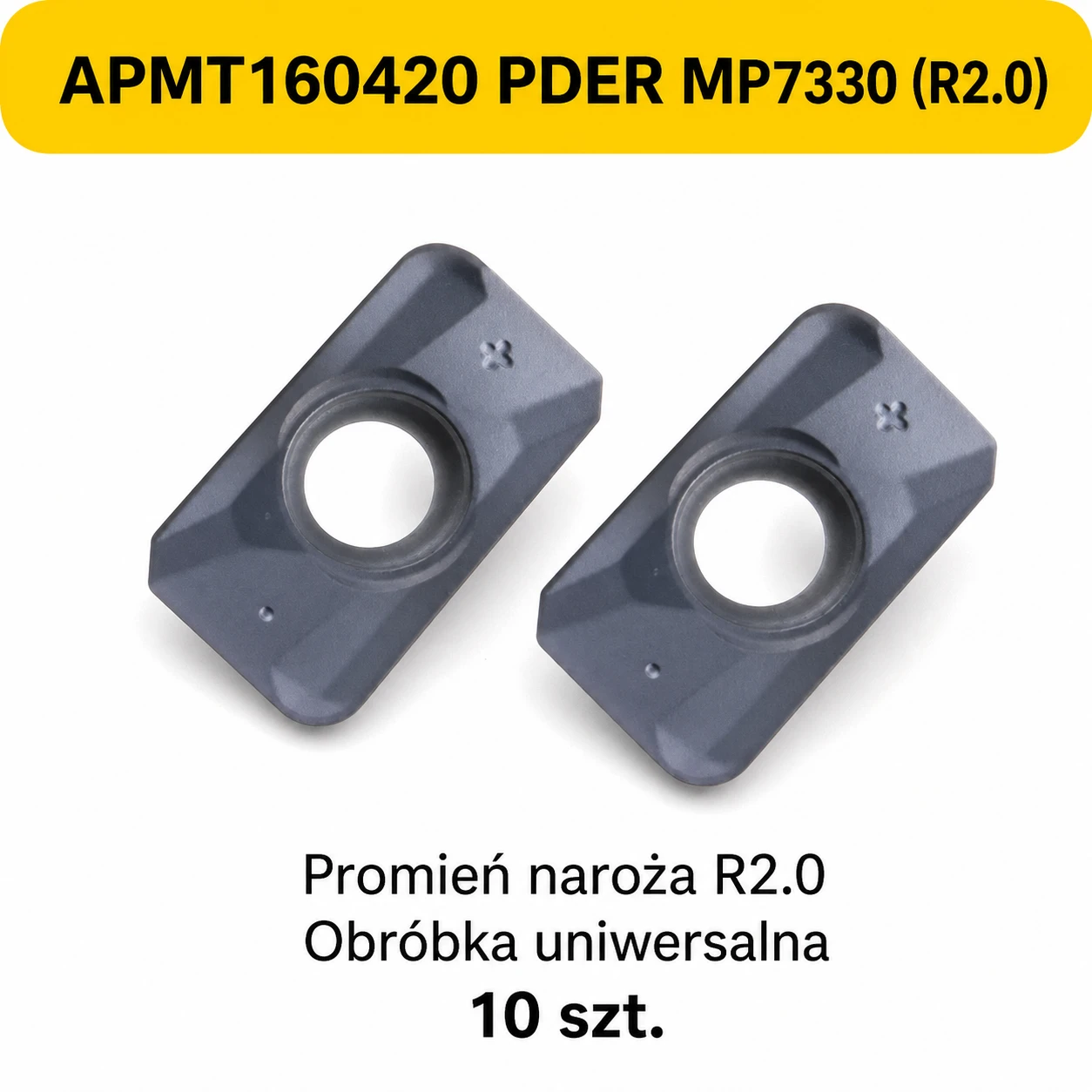

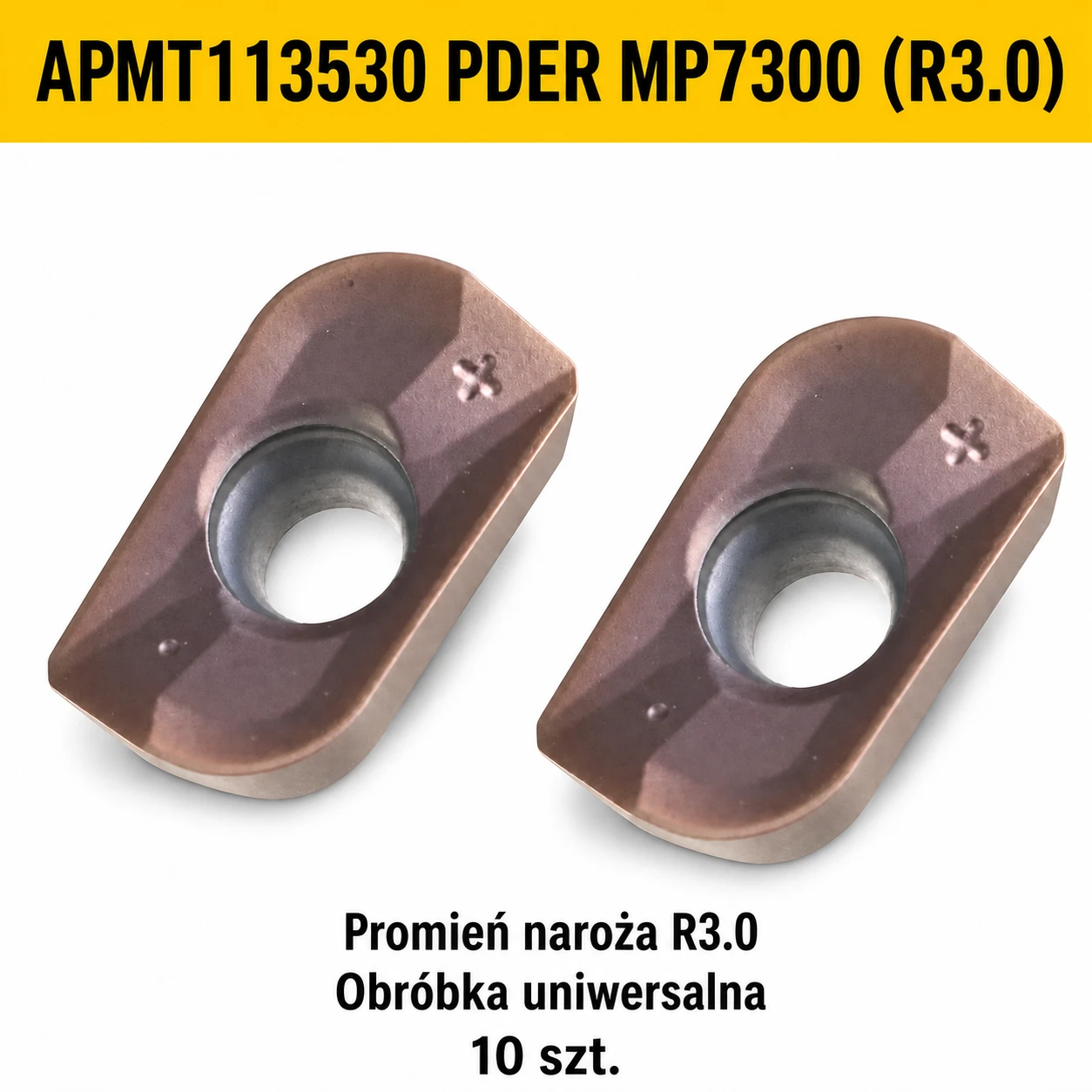

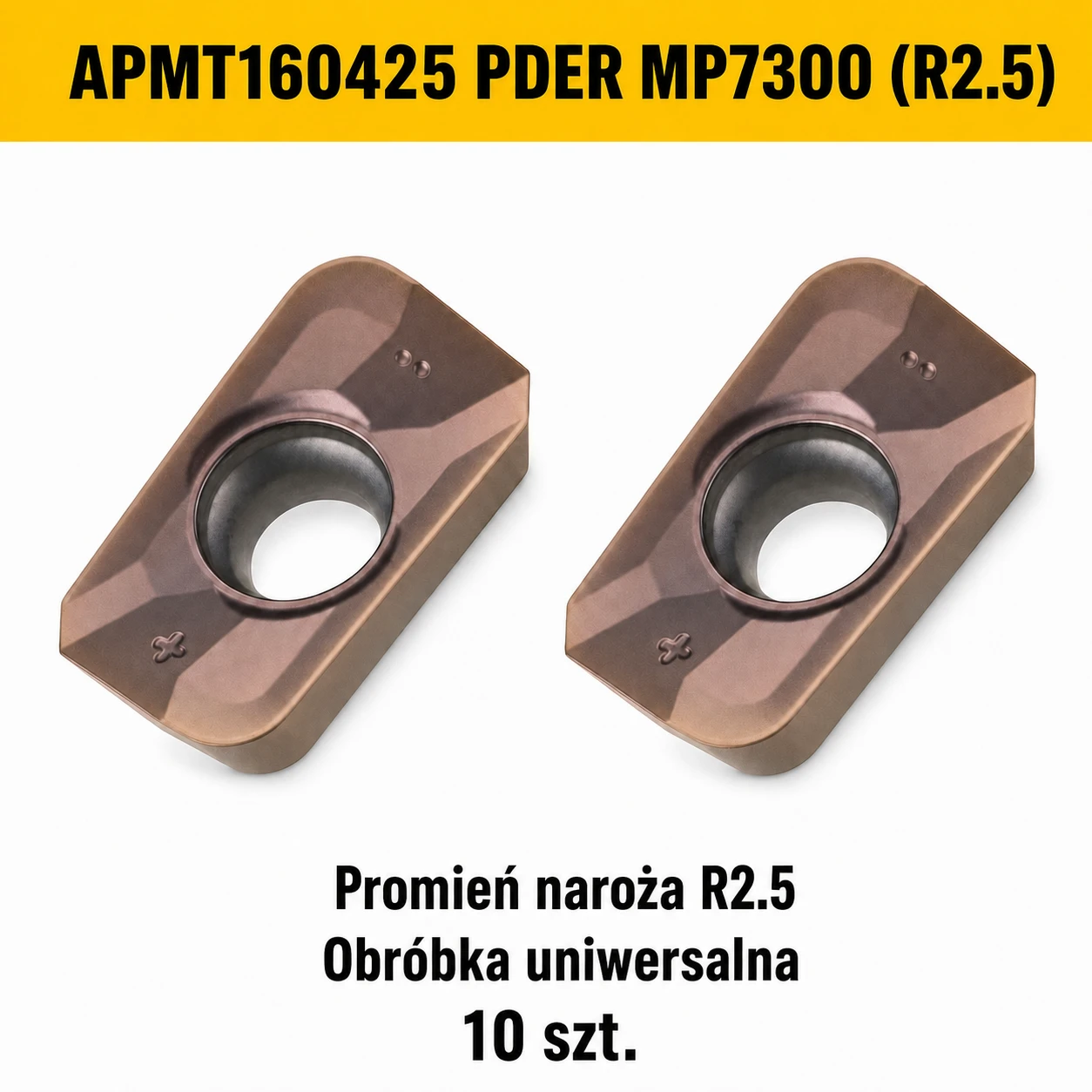

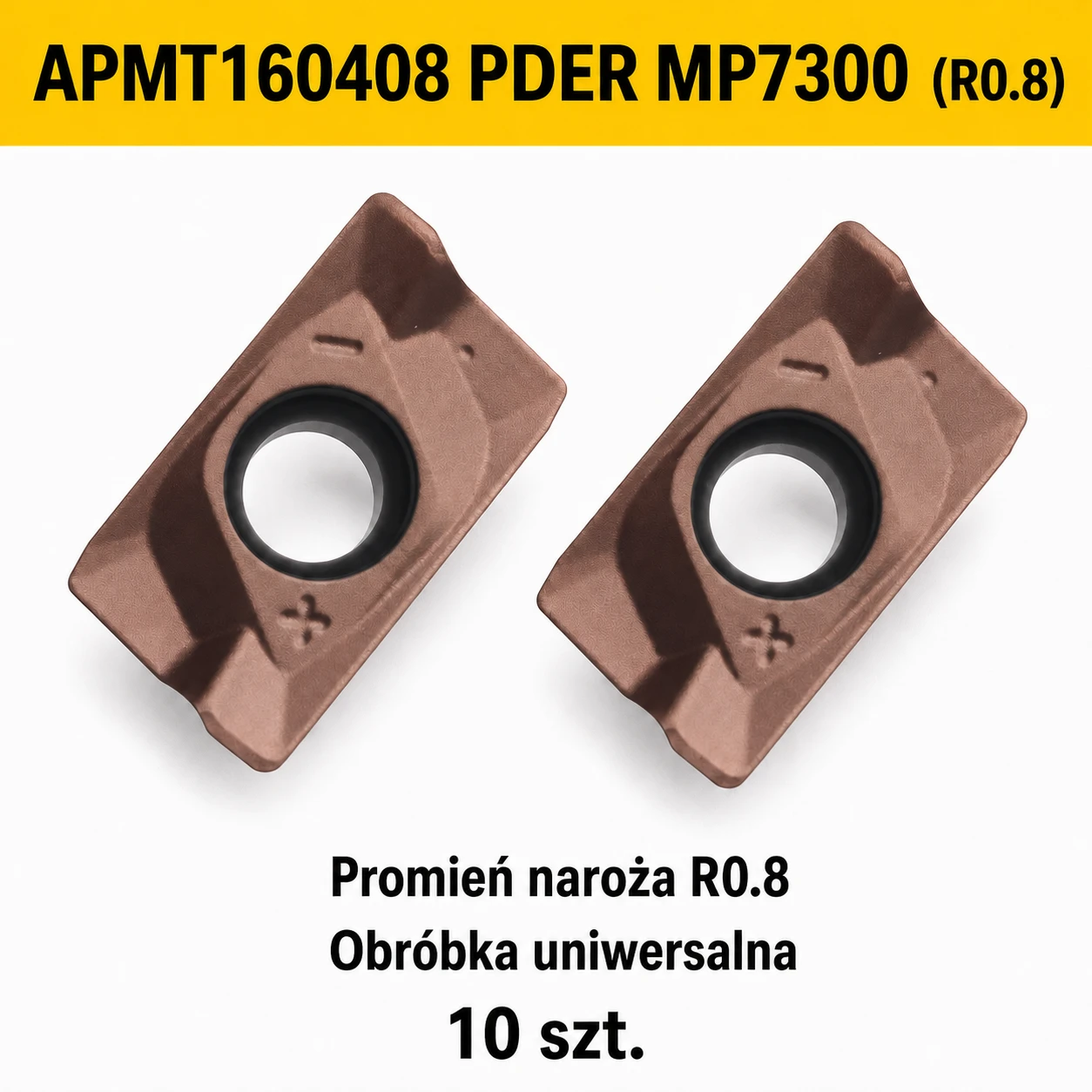

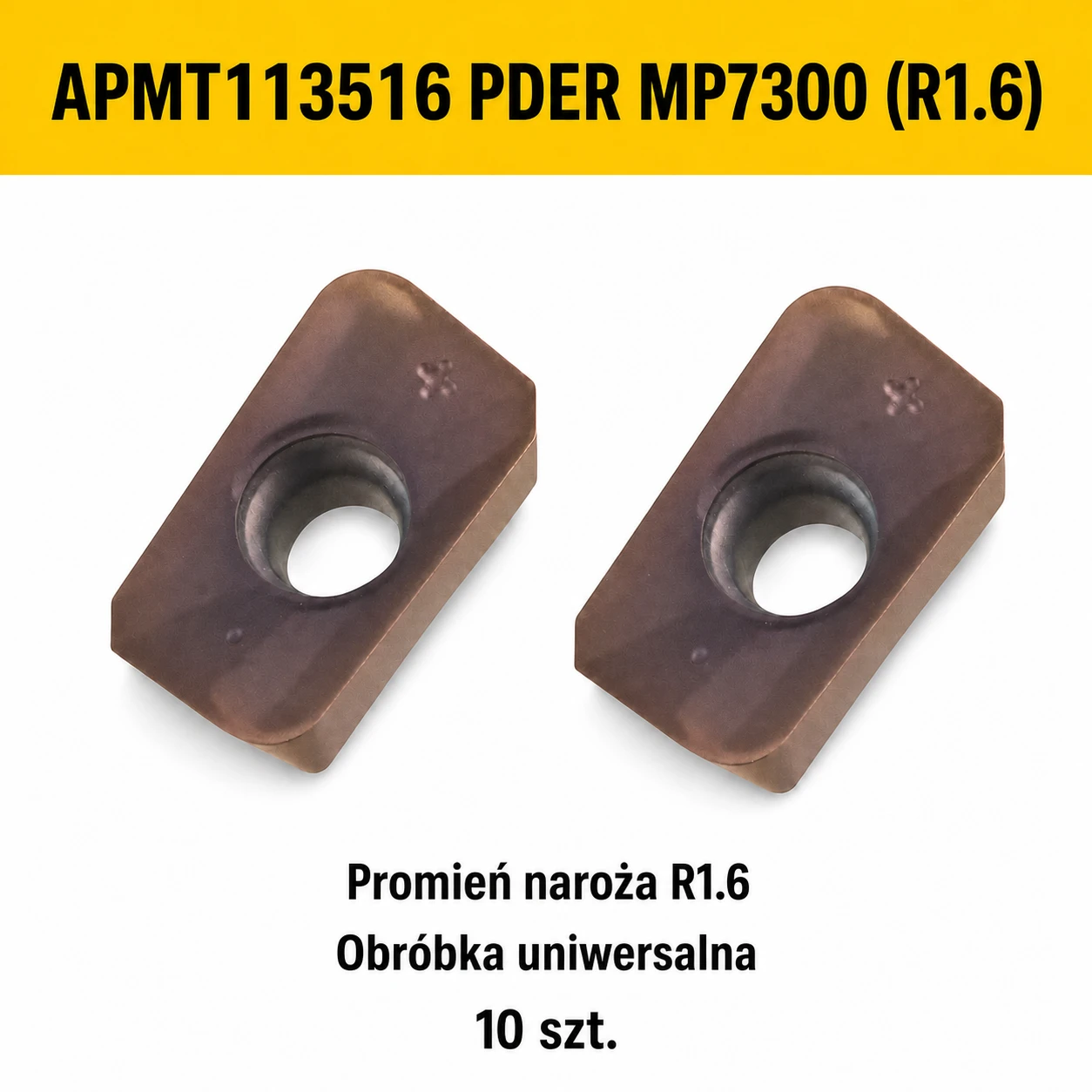

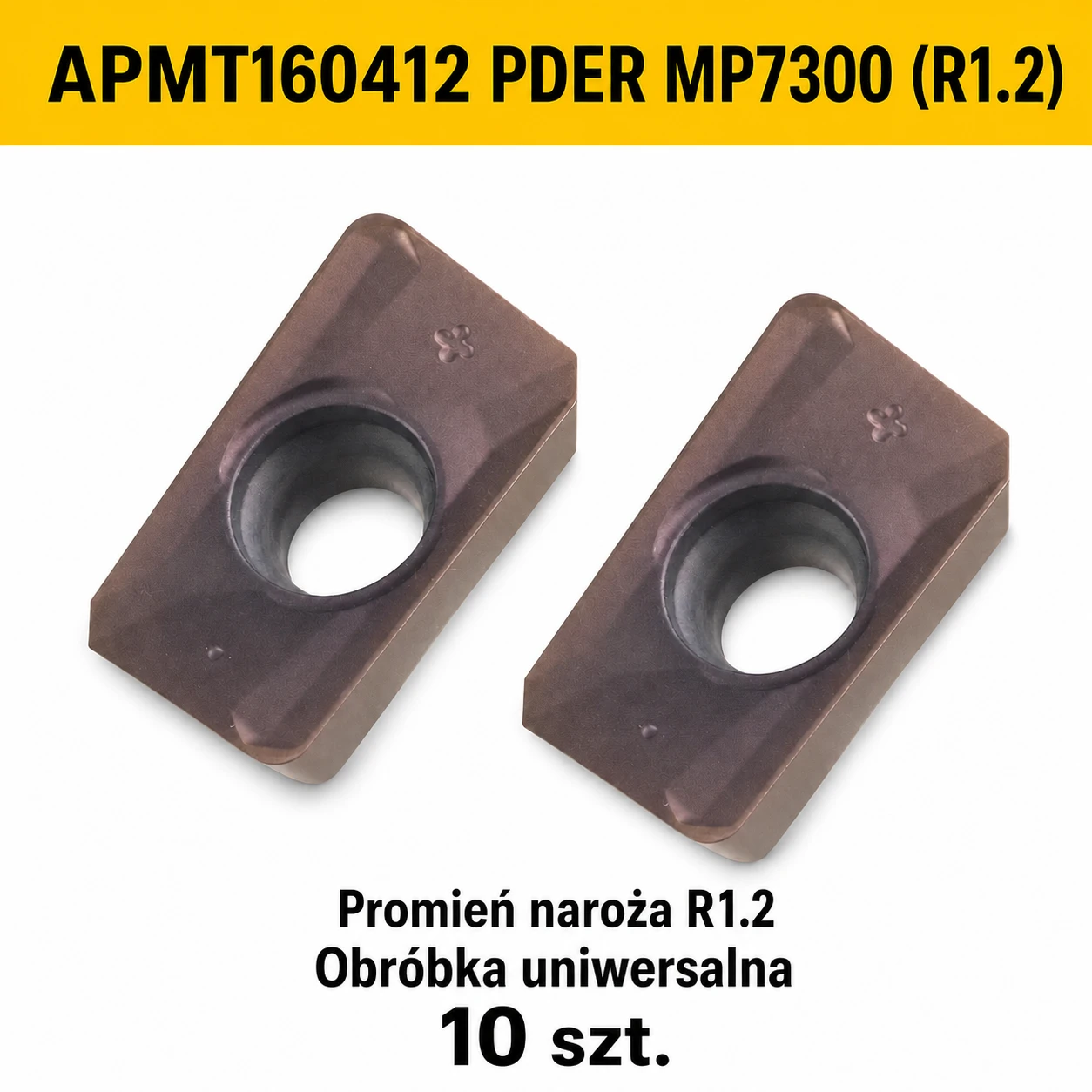

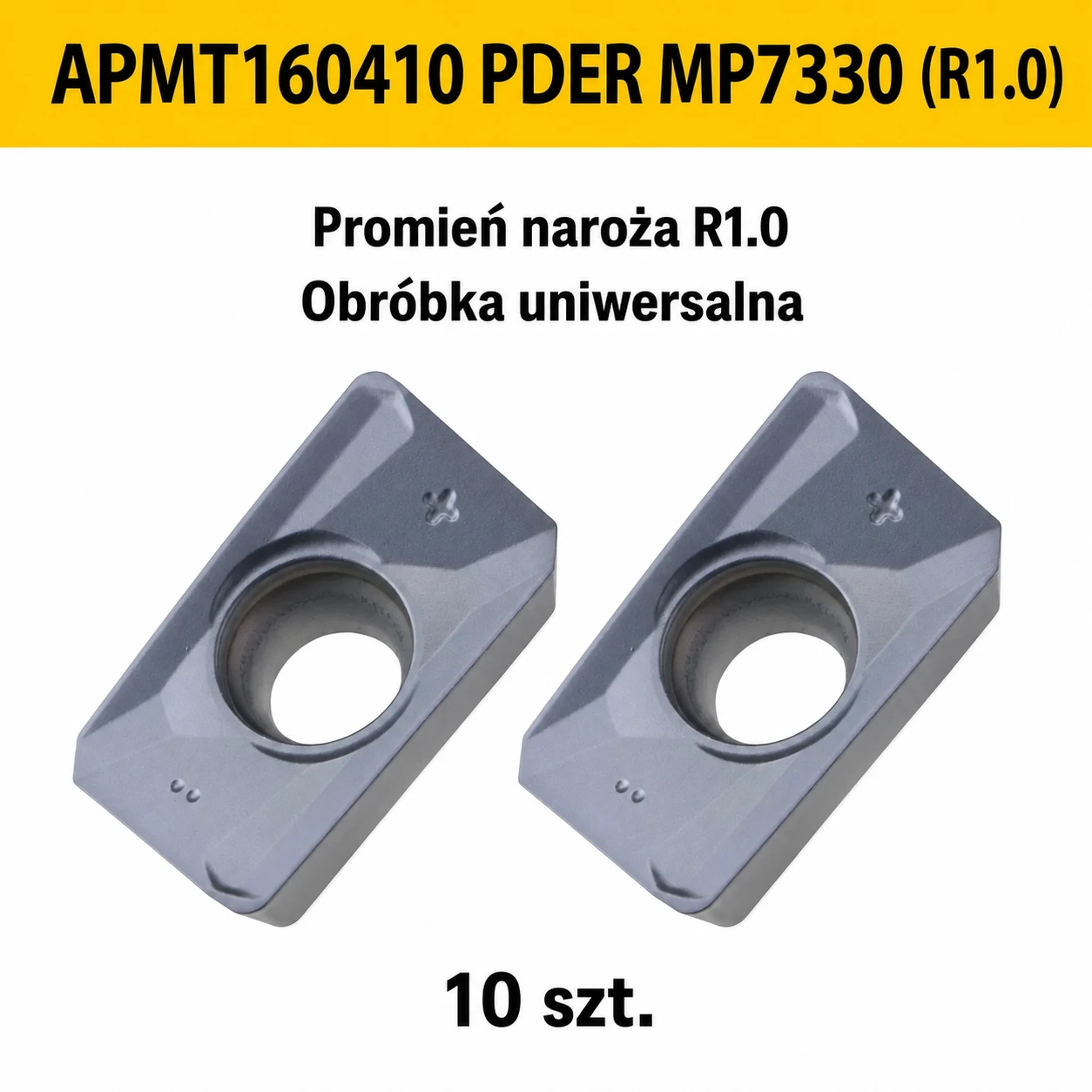

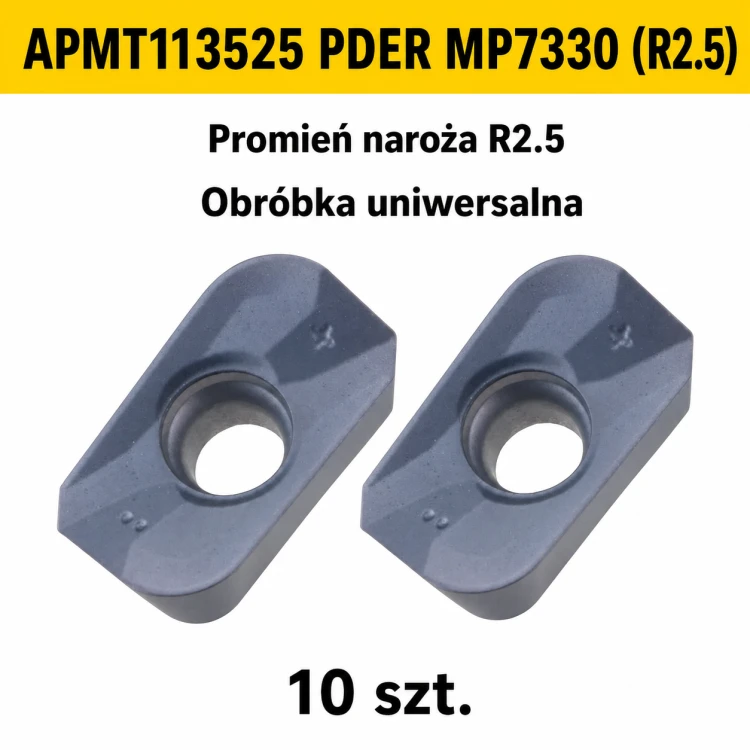

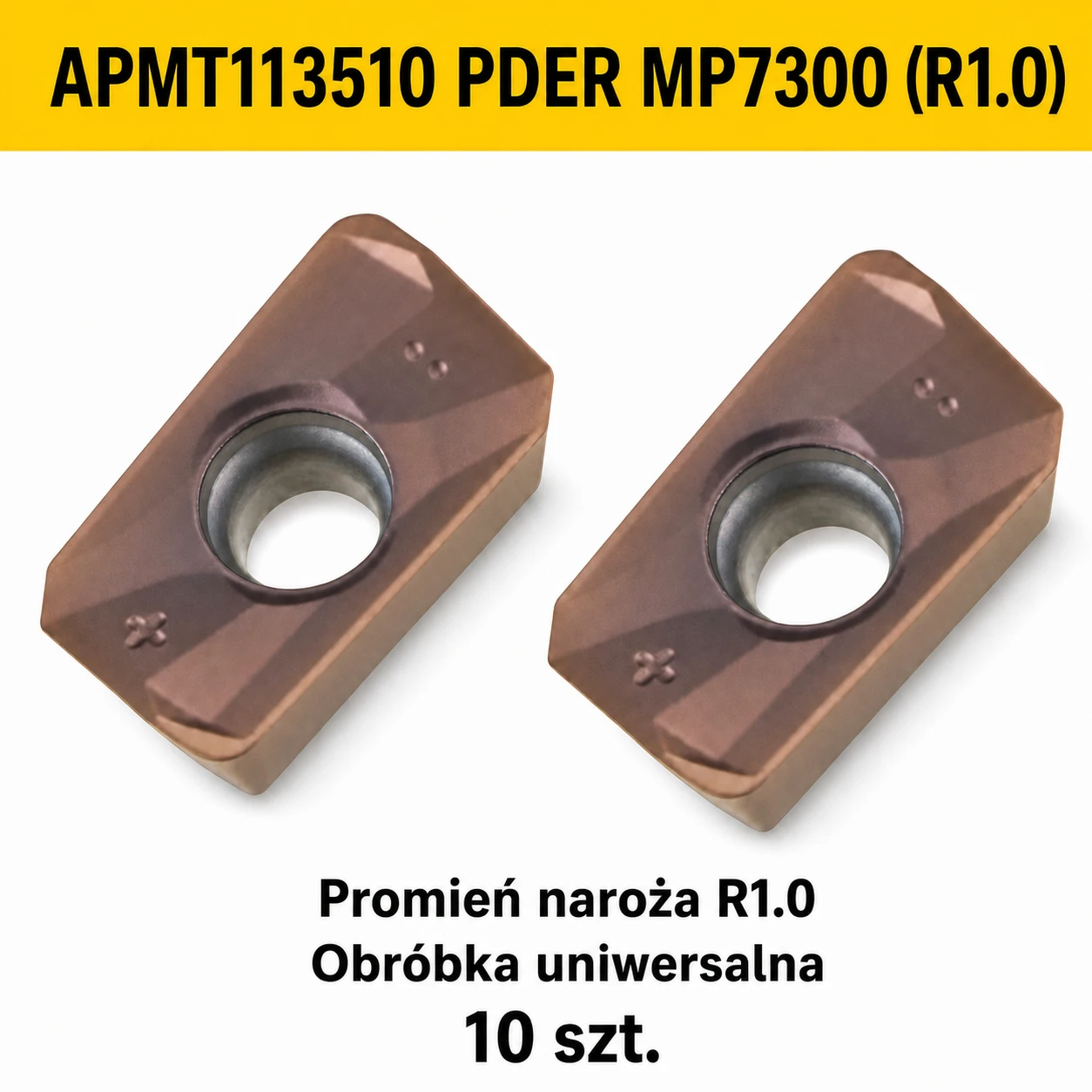

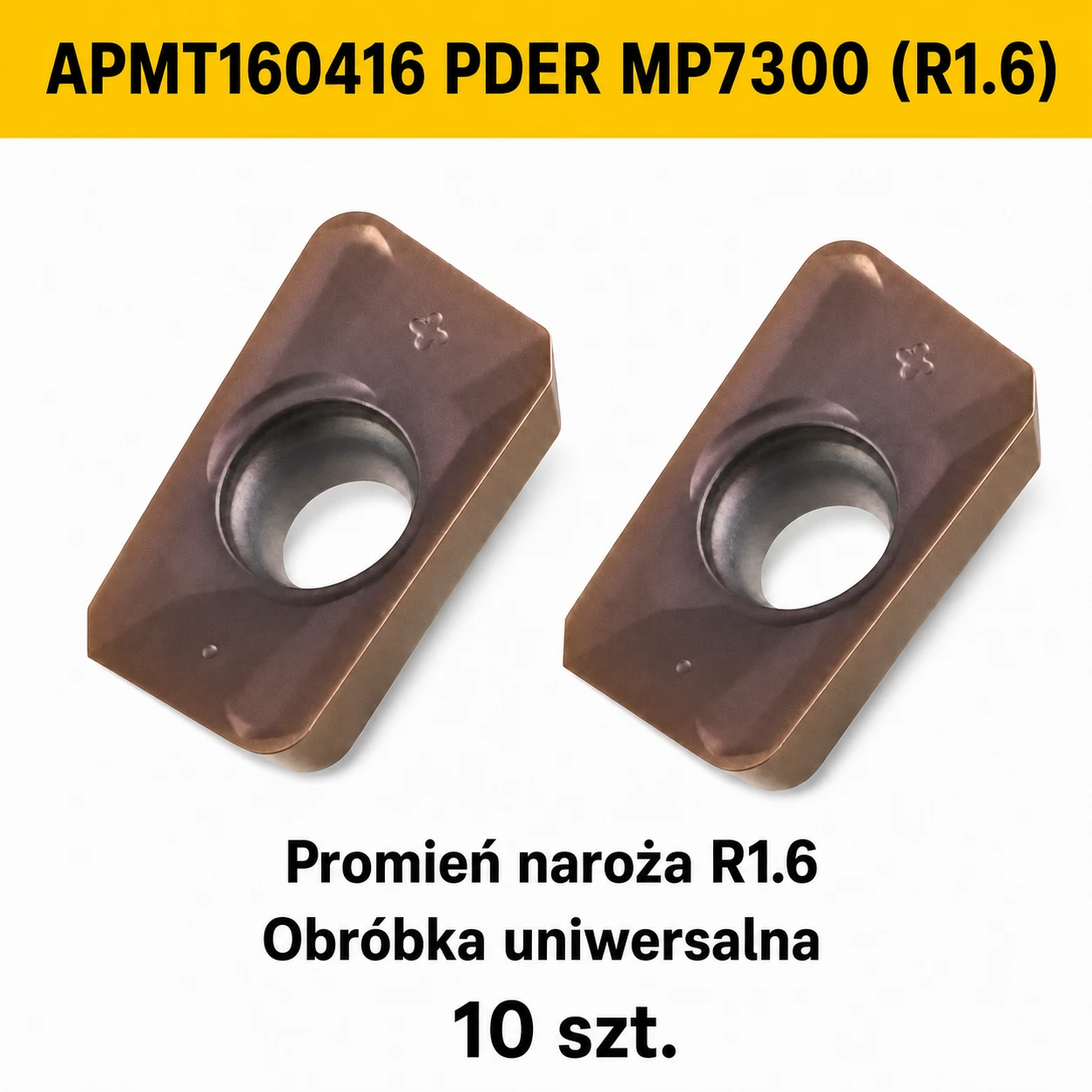

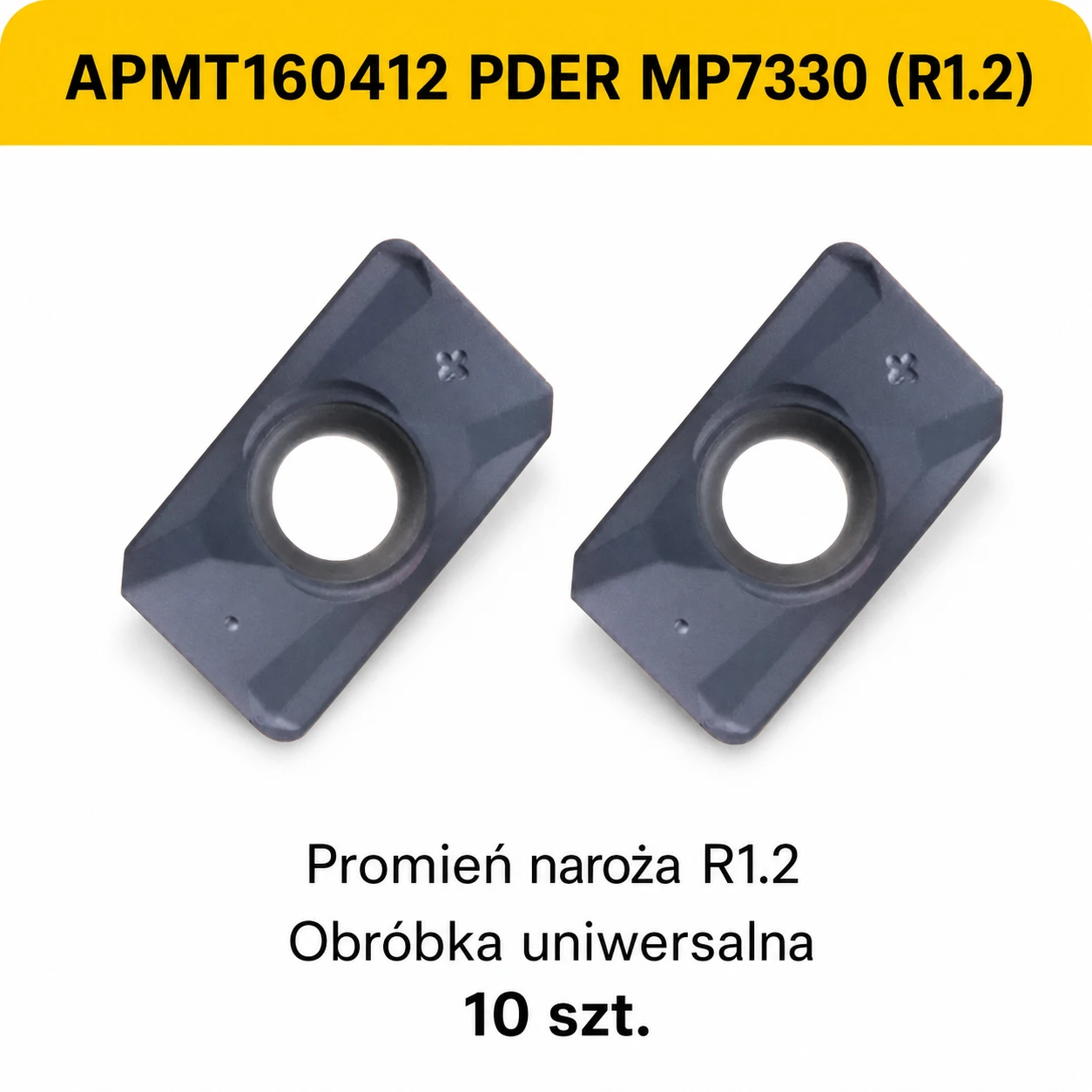

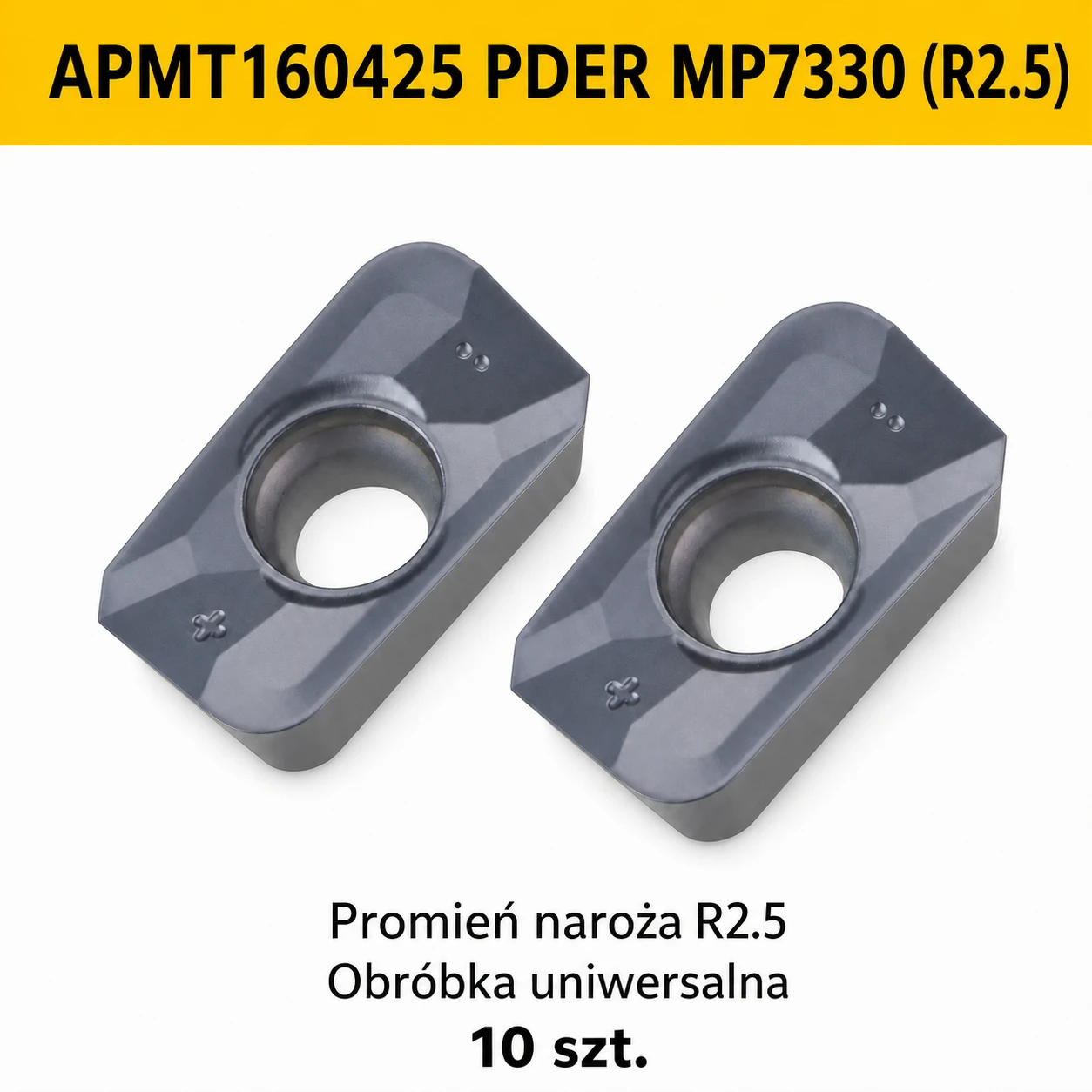

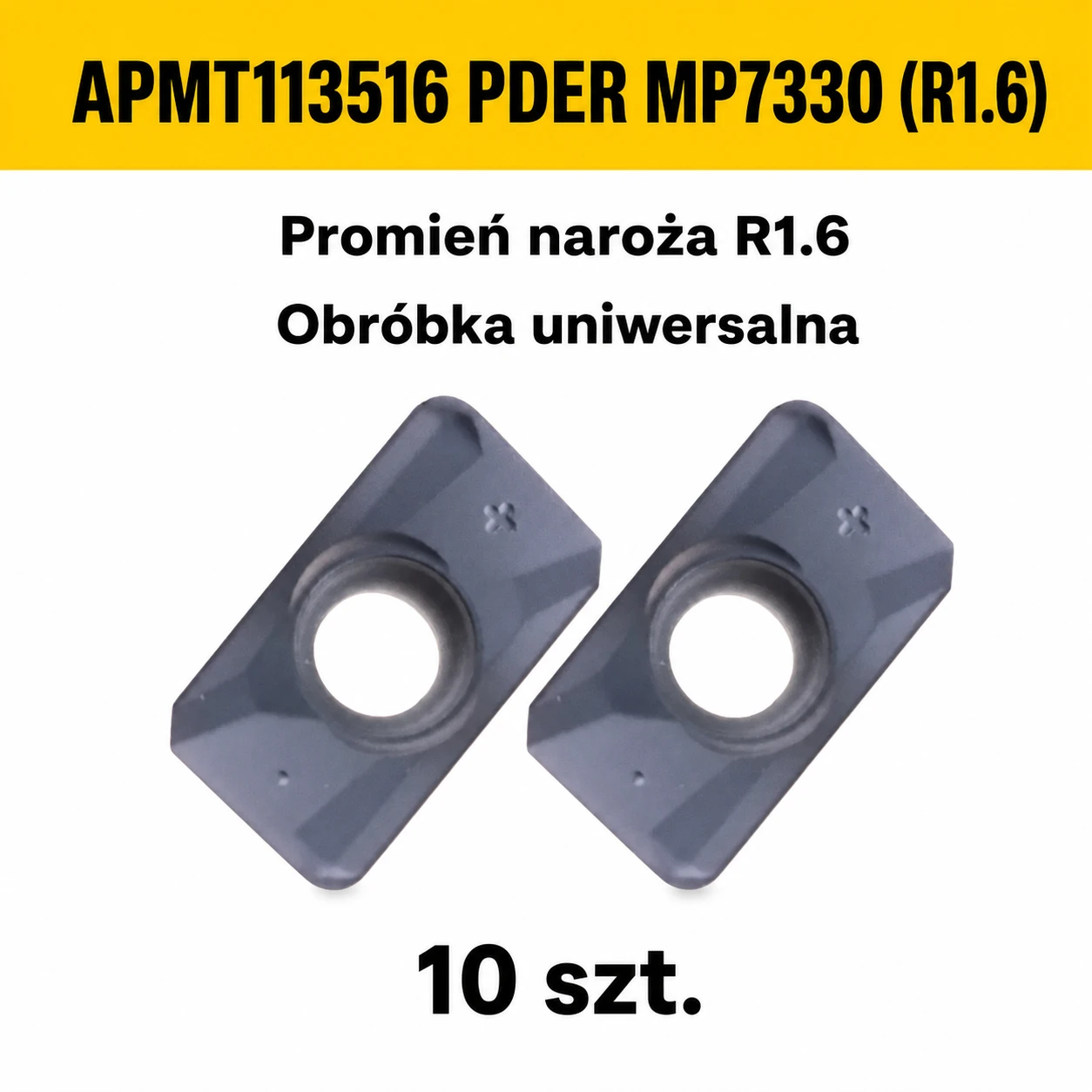

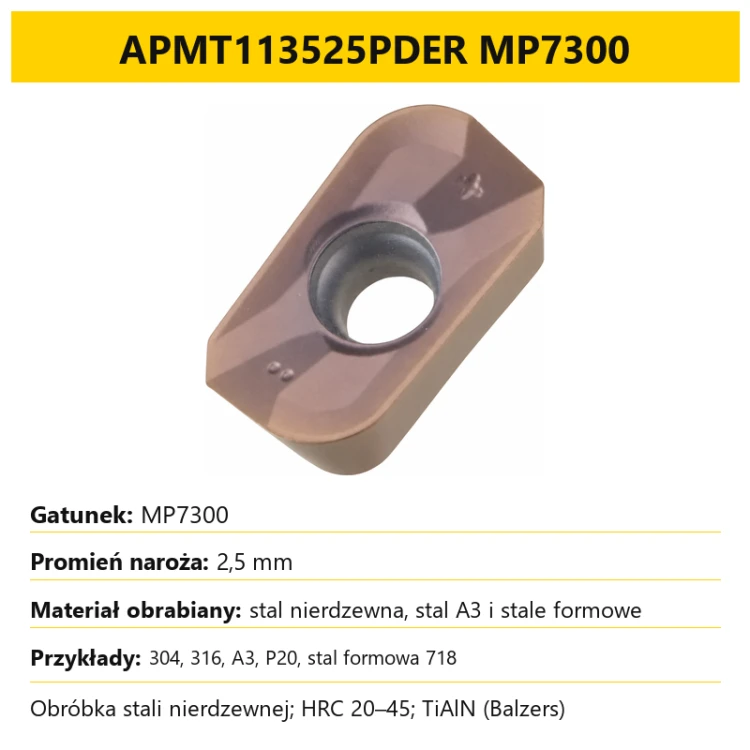

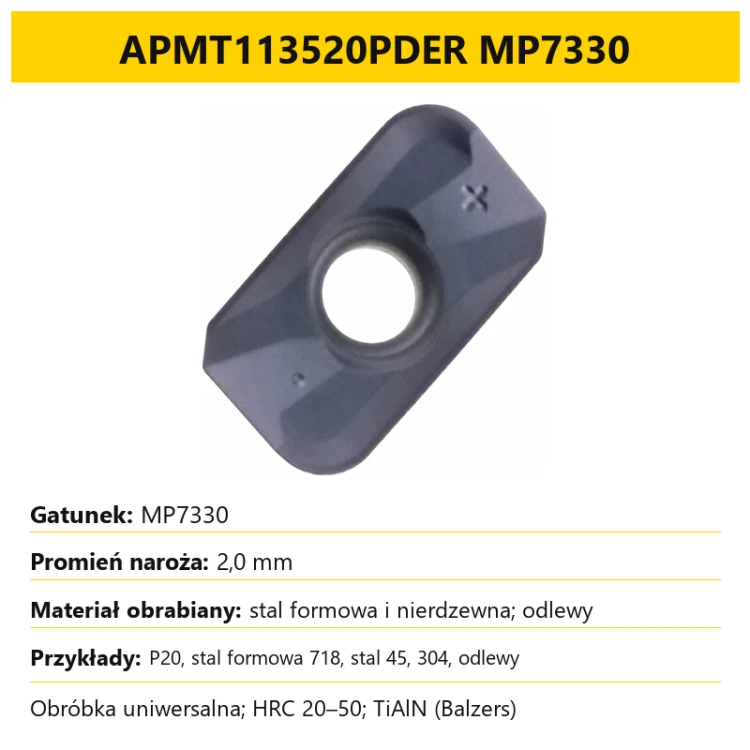

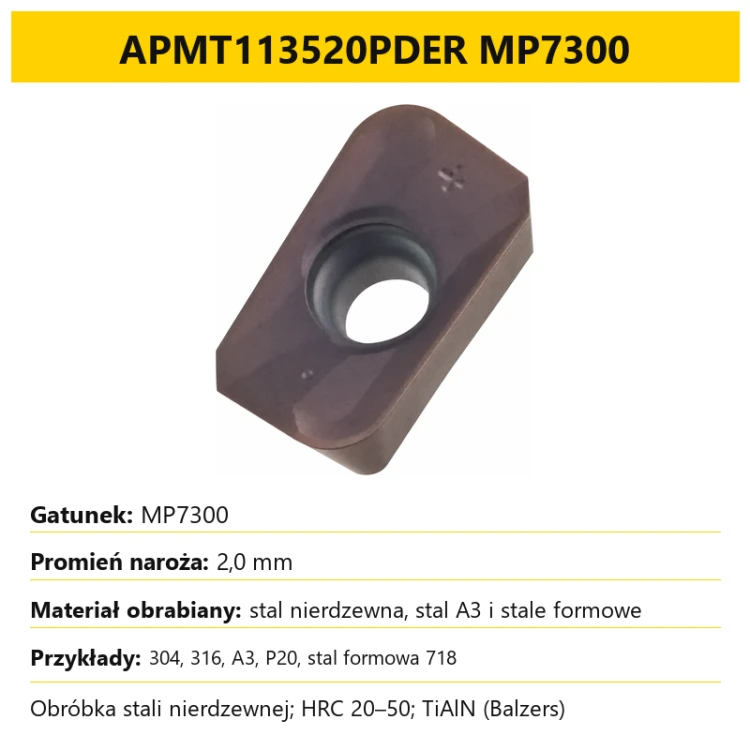

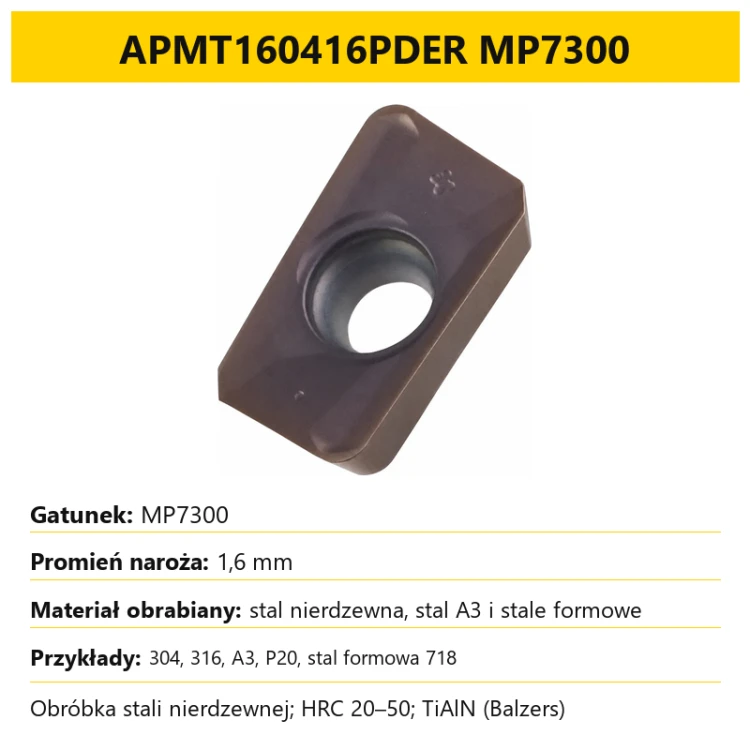

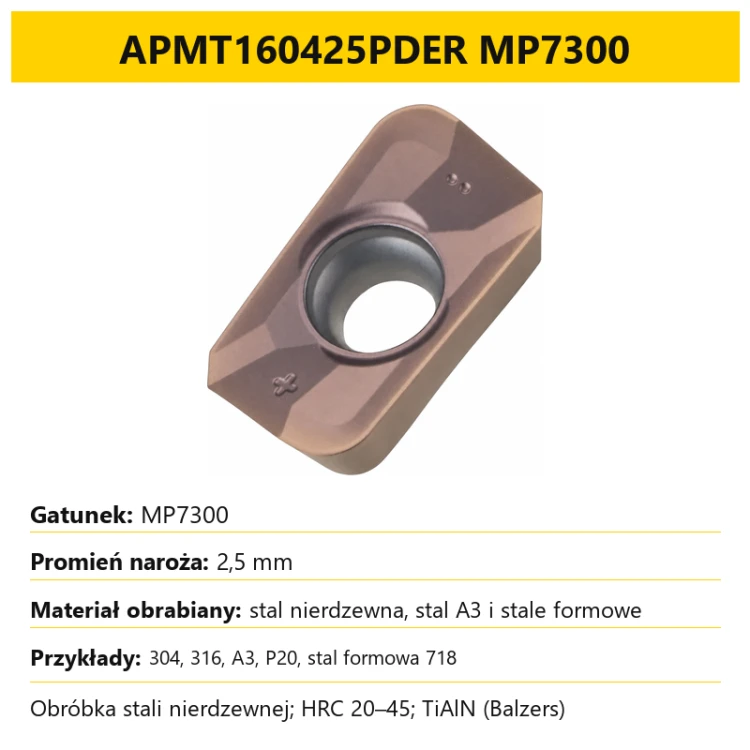

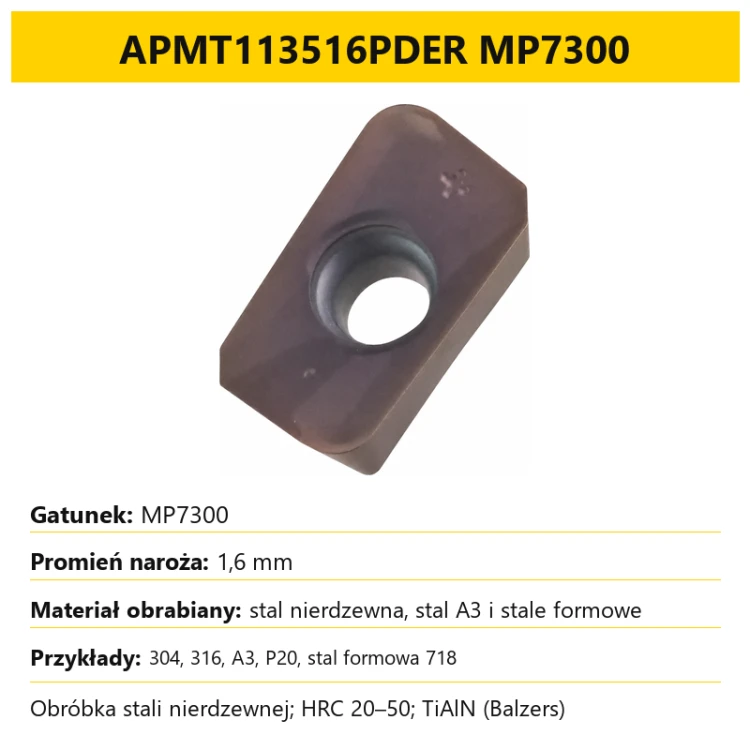

Corner-radius inserts

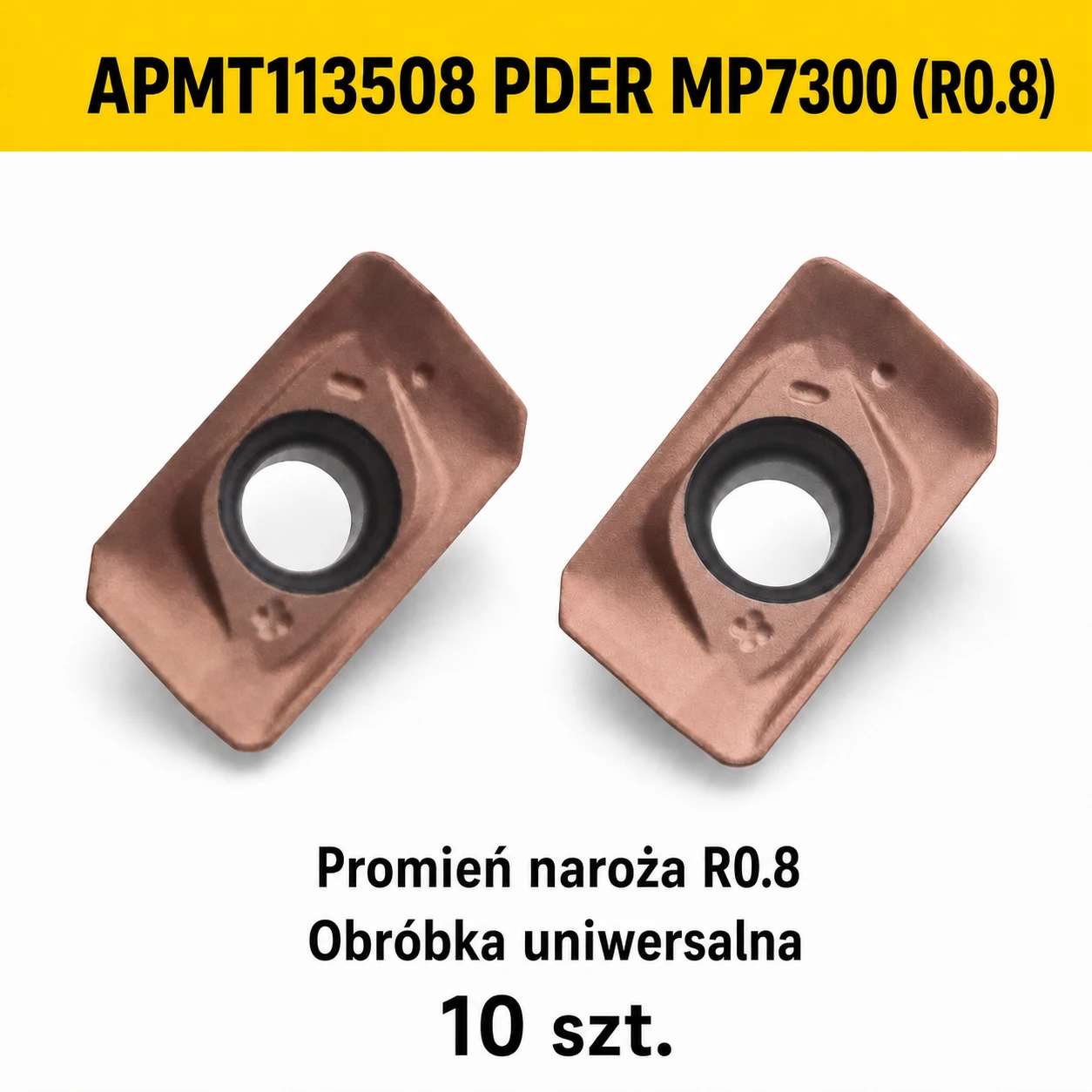

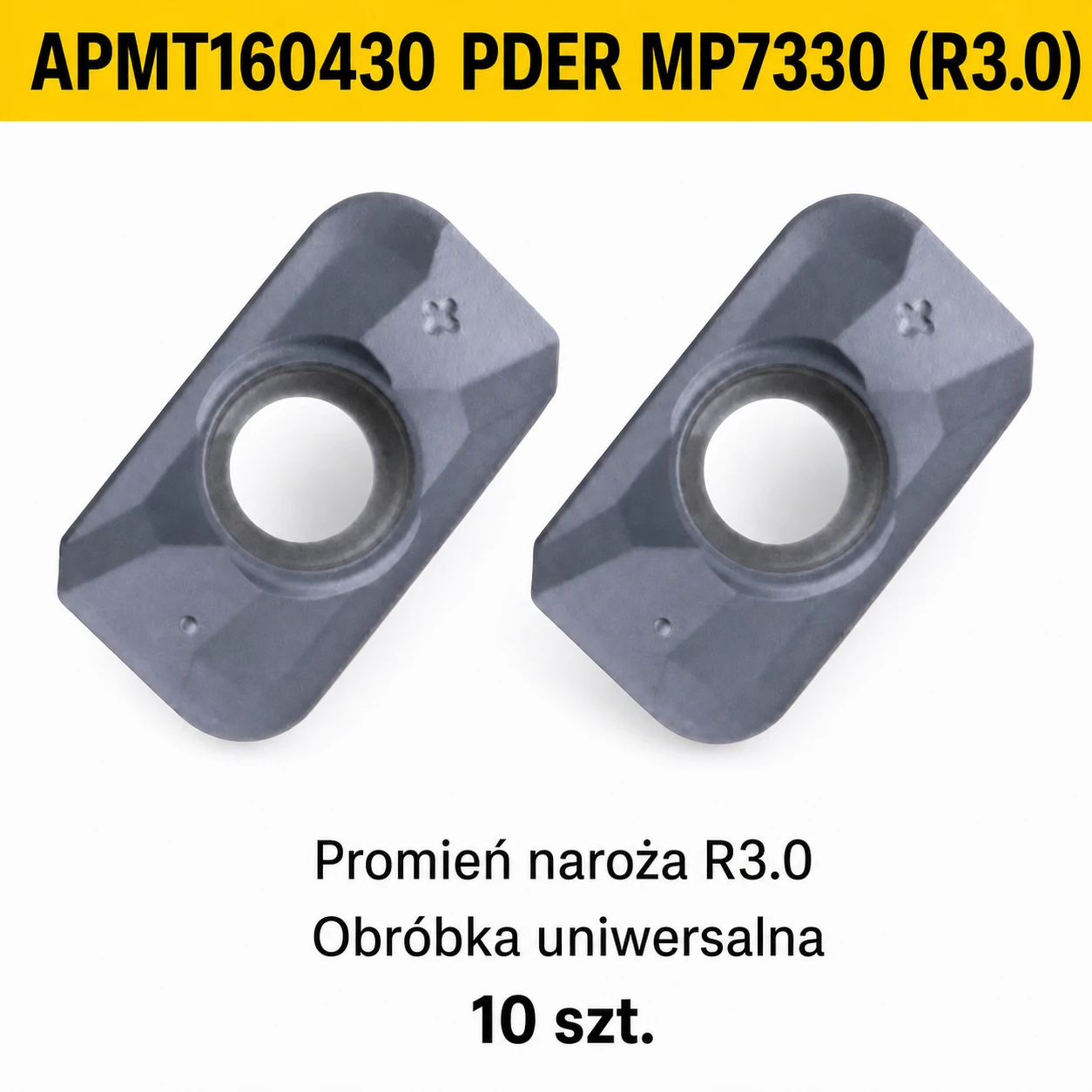

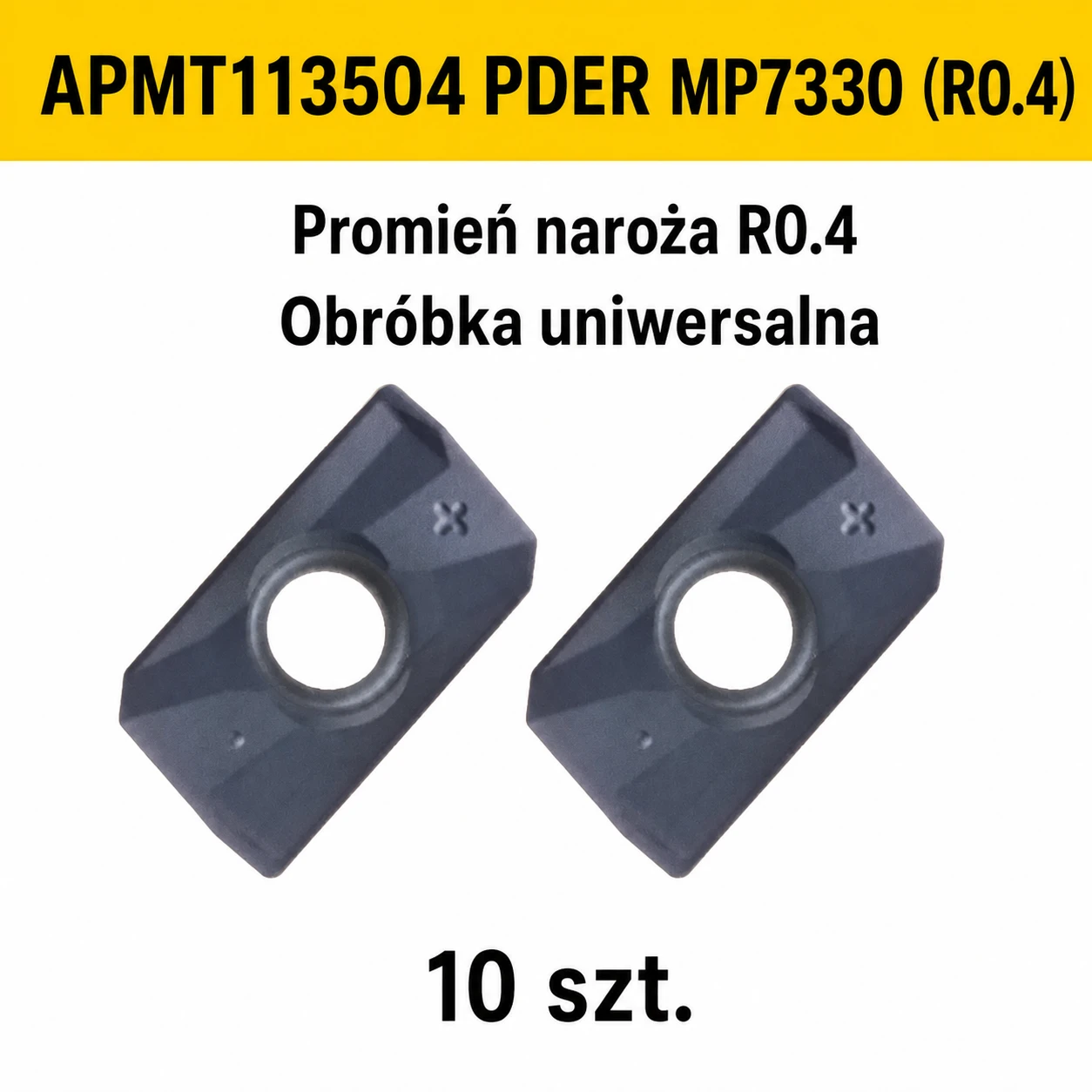

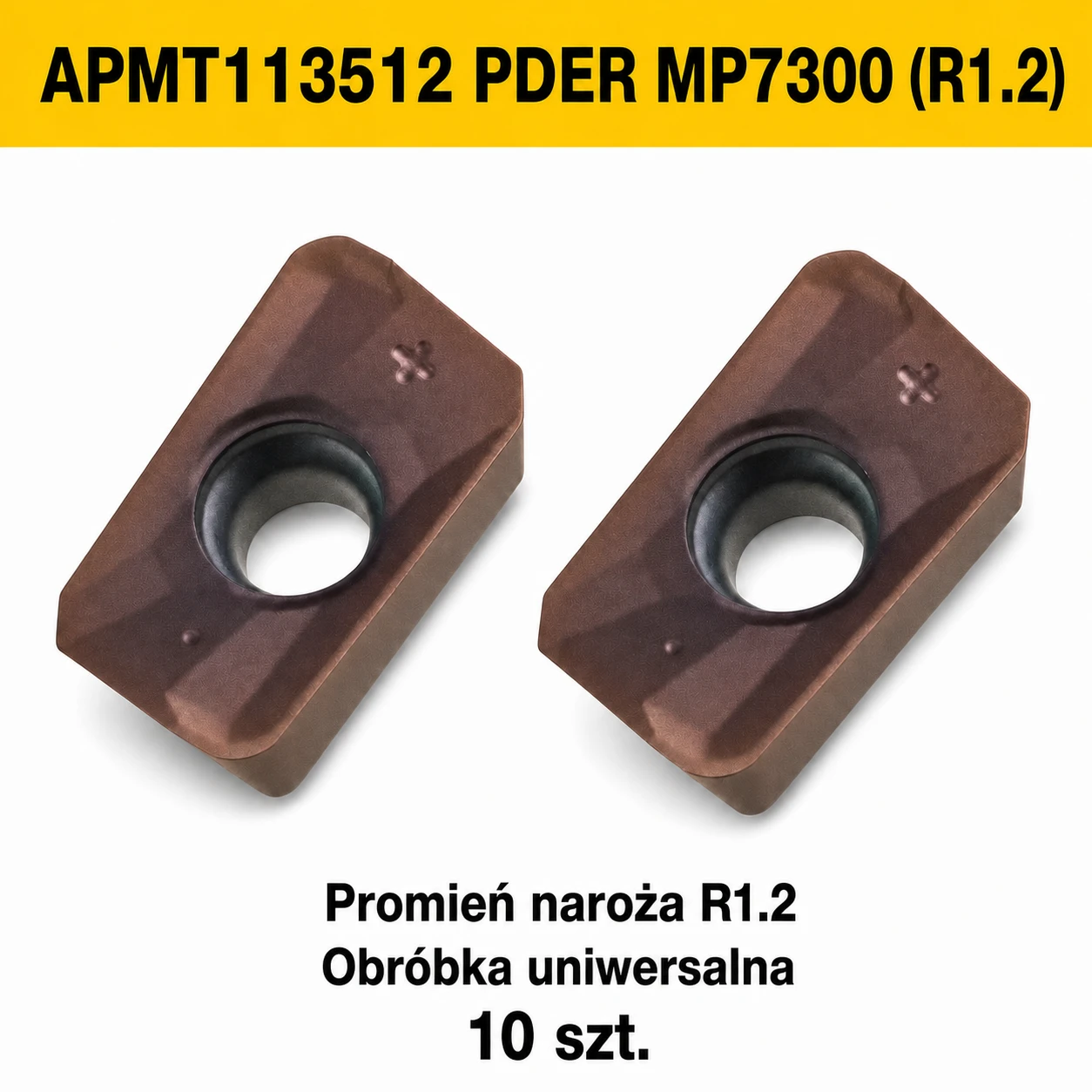

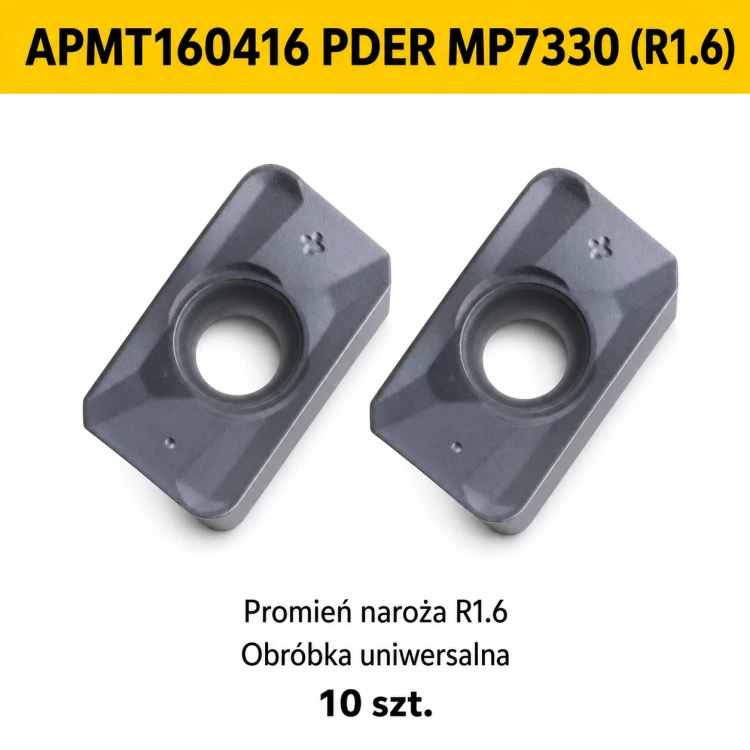

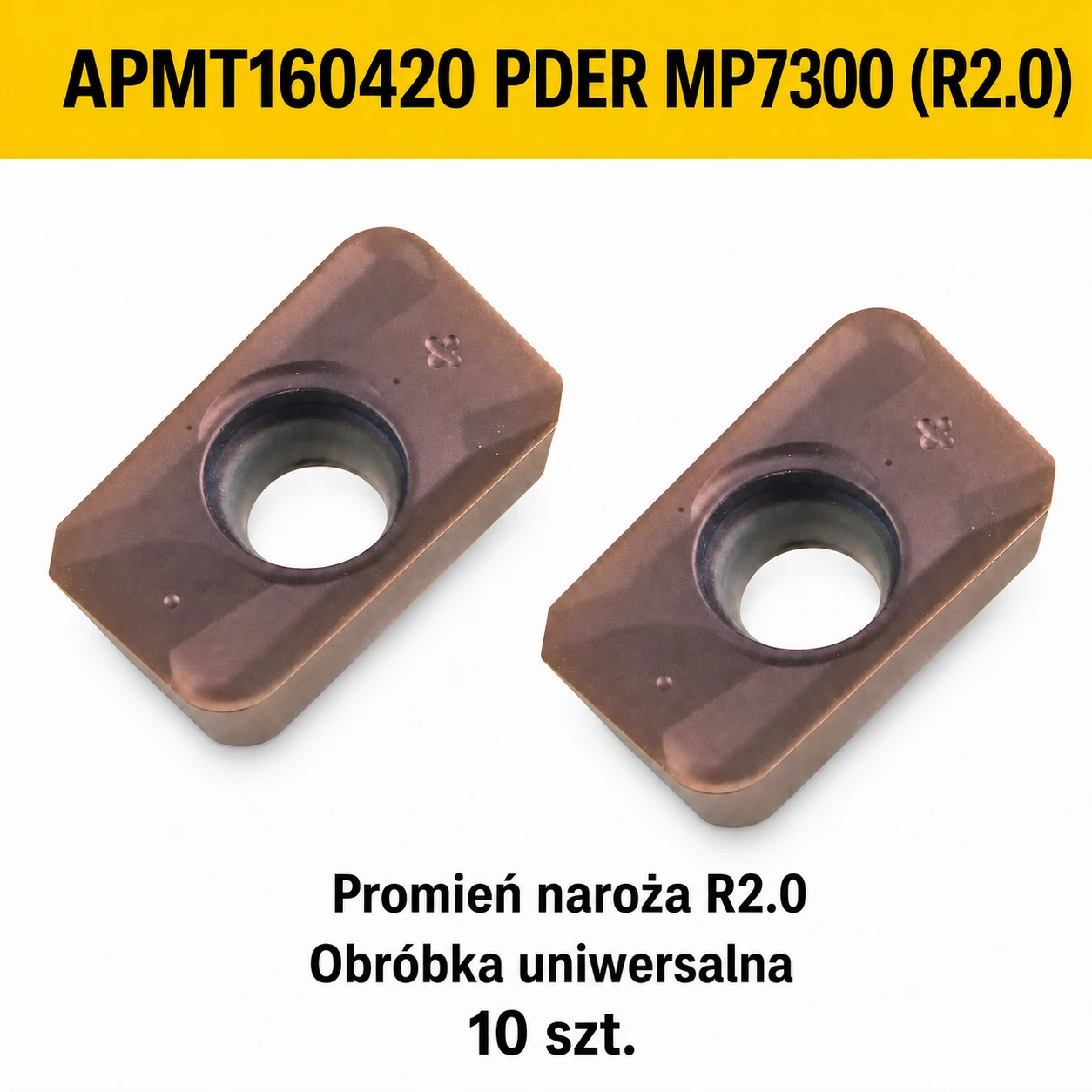

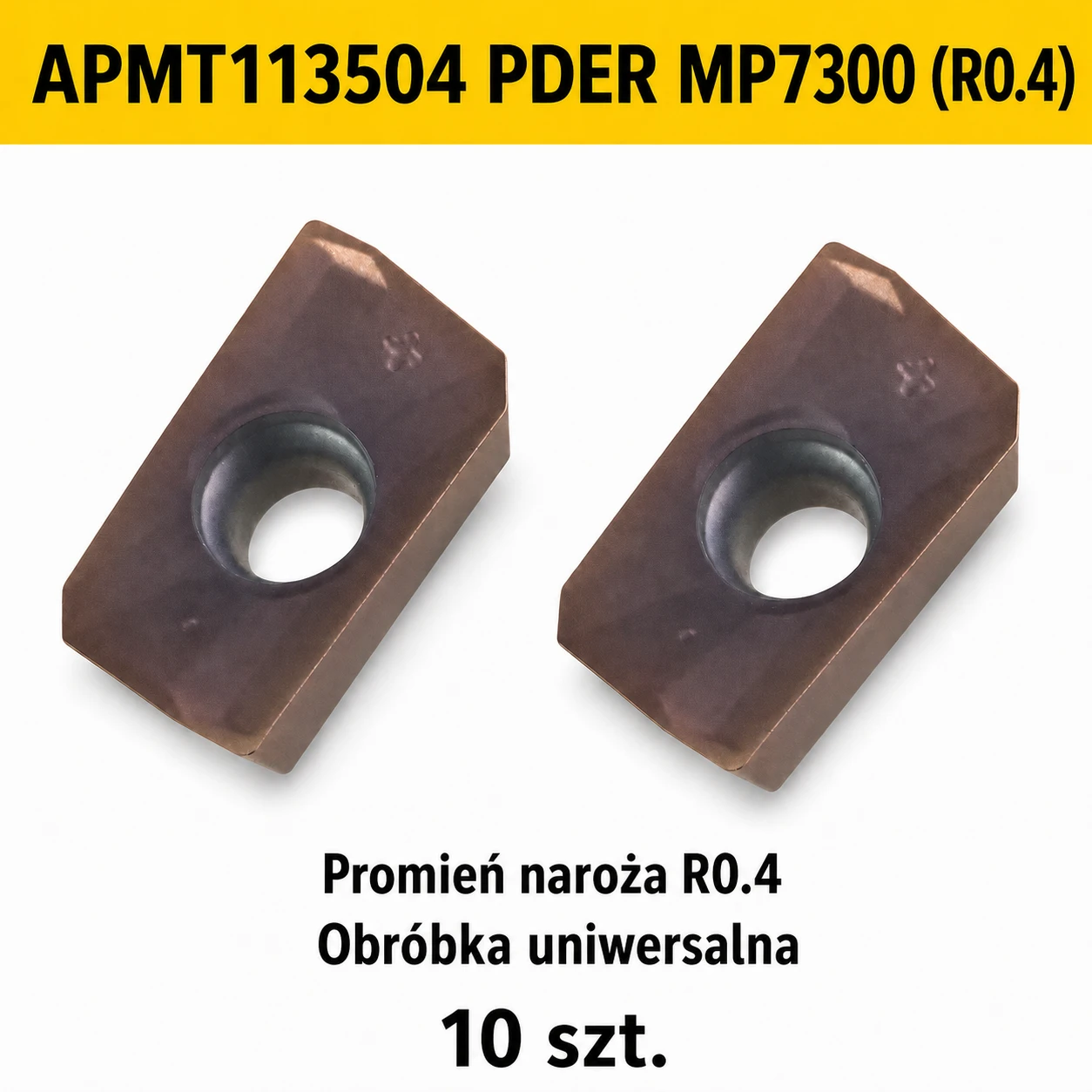

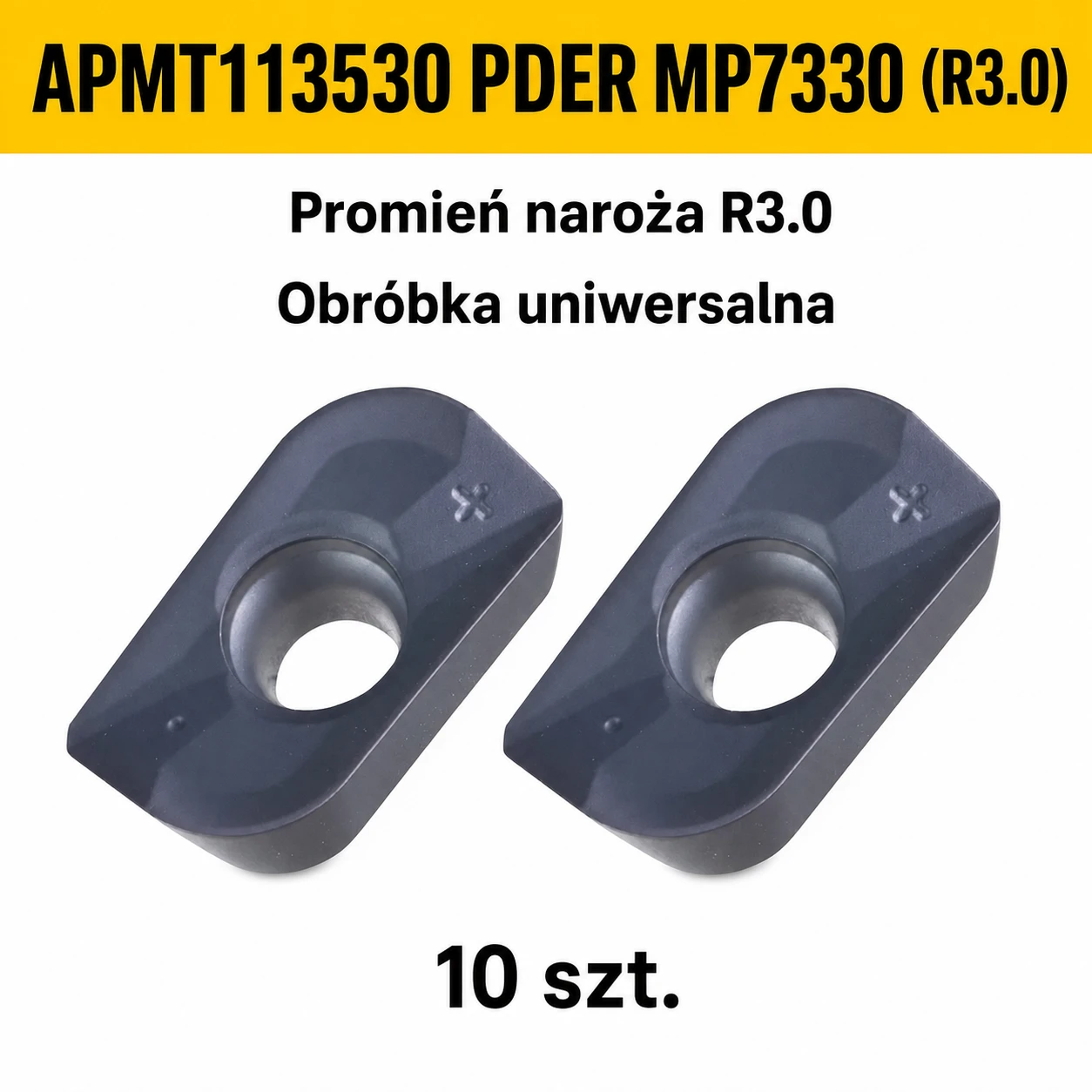

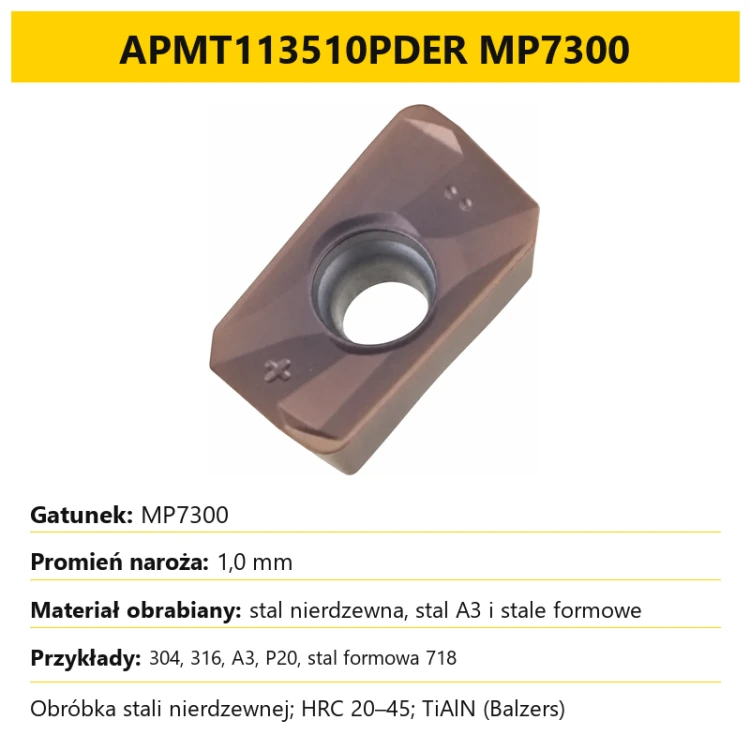

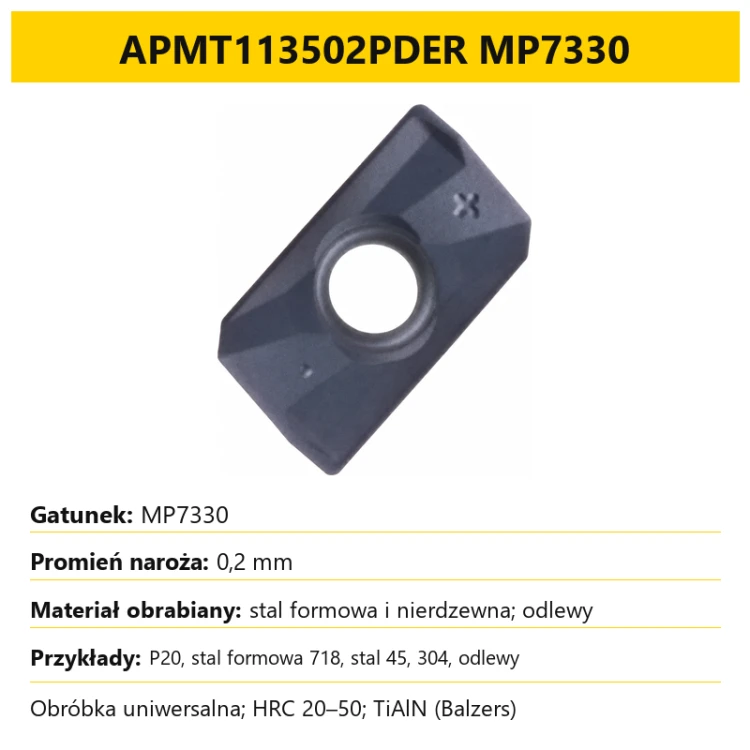

Corner-radius variants are offered in two versions. The insert colour shown corresponds to the selected version:
| Version | Colour | Application |
|---|---|---|

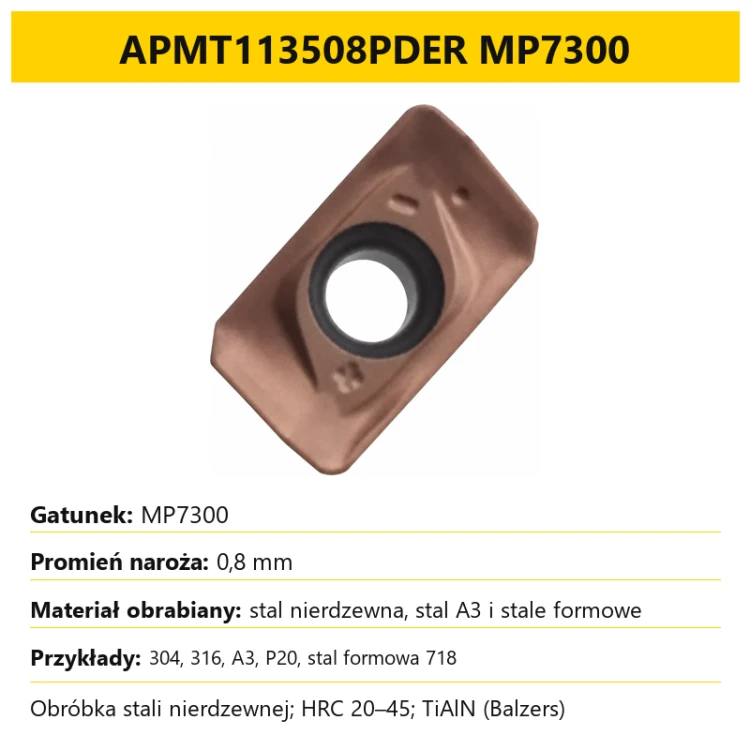

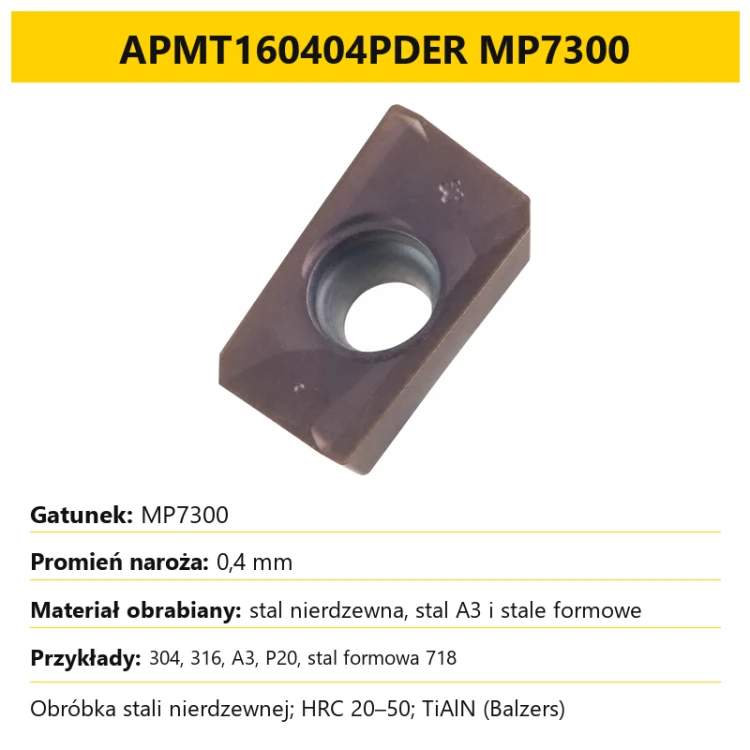

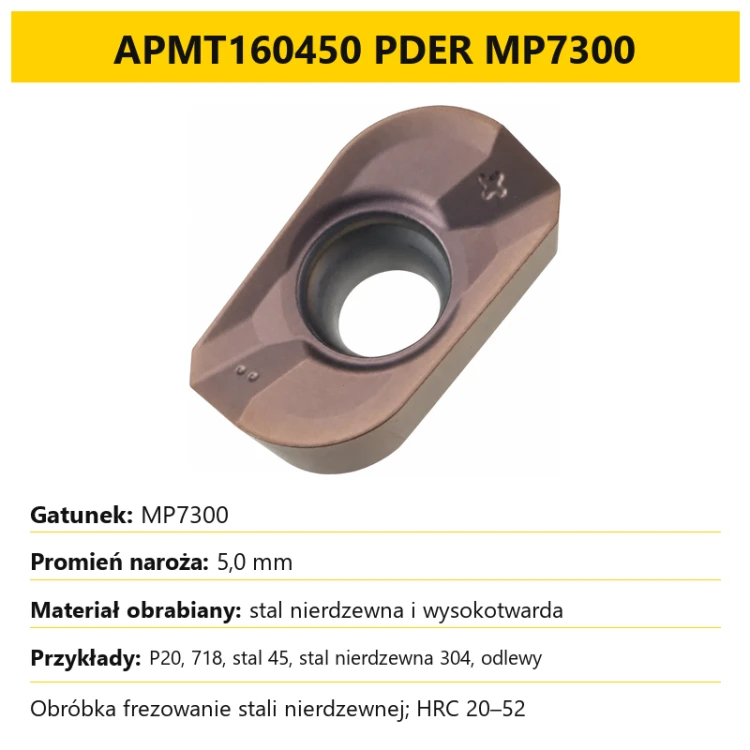

| For stainless steel | Brown | Stainless steel, e.g. 304 and 316, as well as structural, tool and mould steels, e.g. P20 and 718 |

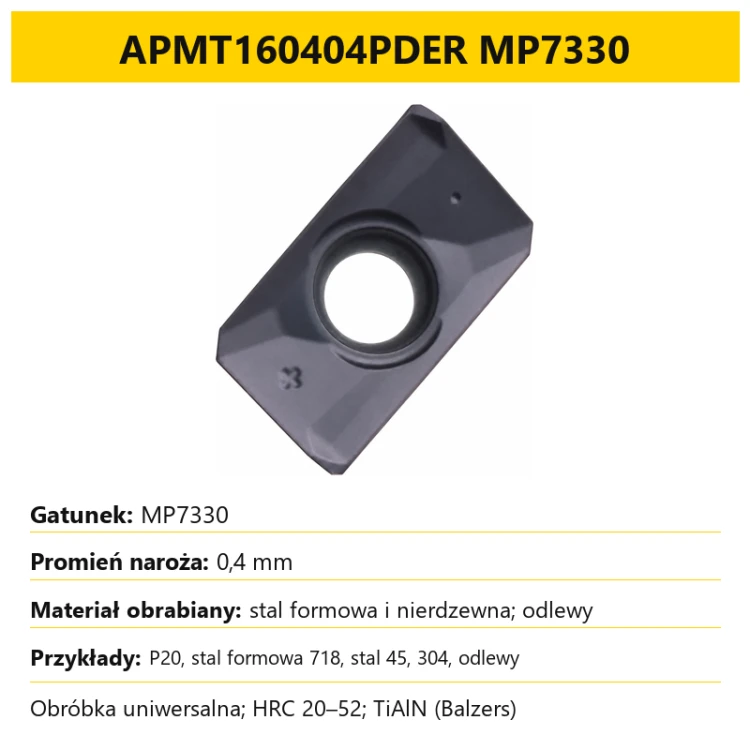

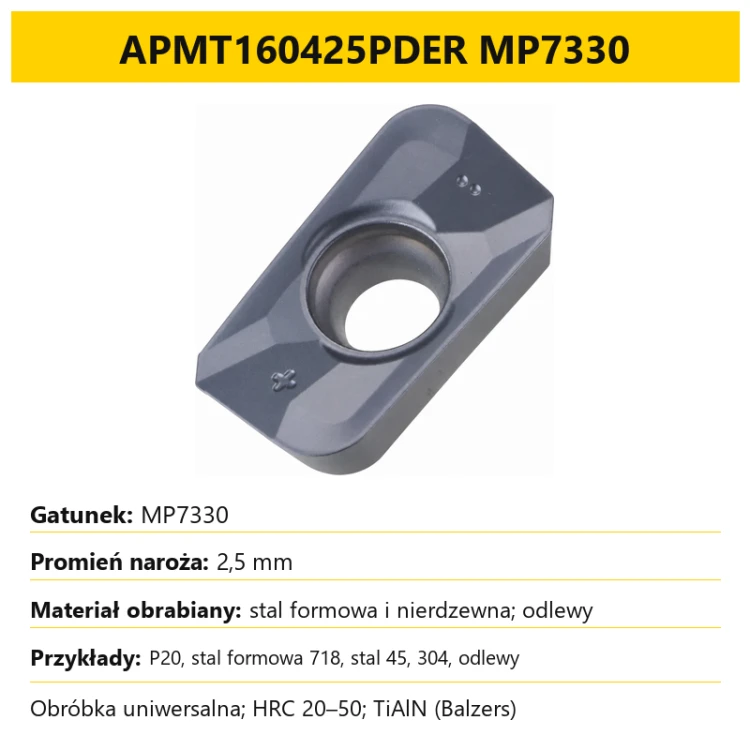

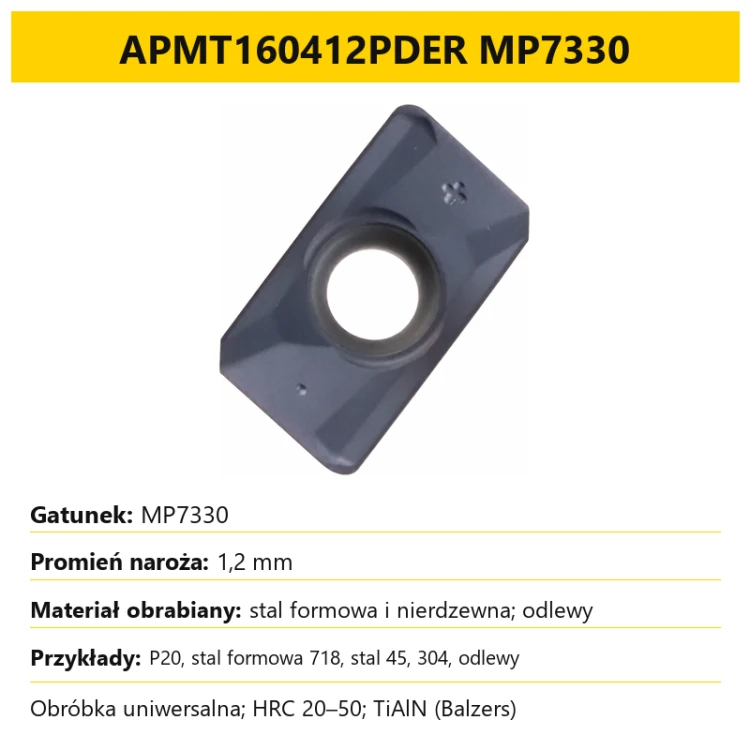

| General-purpose | Grey | General machining of structural and heat-treated steel, tool and mould steels, e.g. P20 and 718, and cast iron |
The grade designation (MP7300 or MP7330) is given in the variant name.

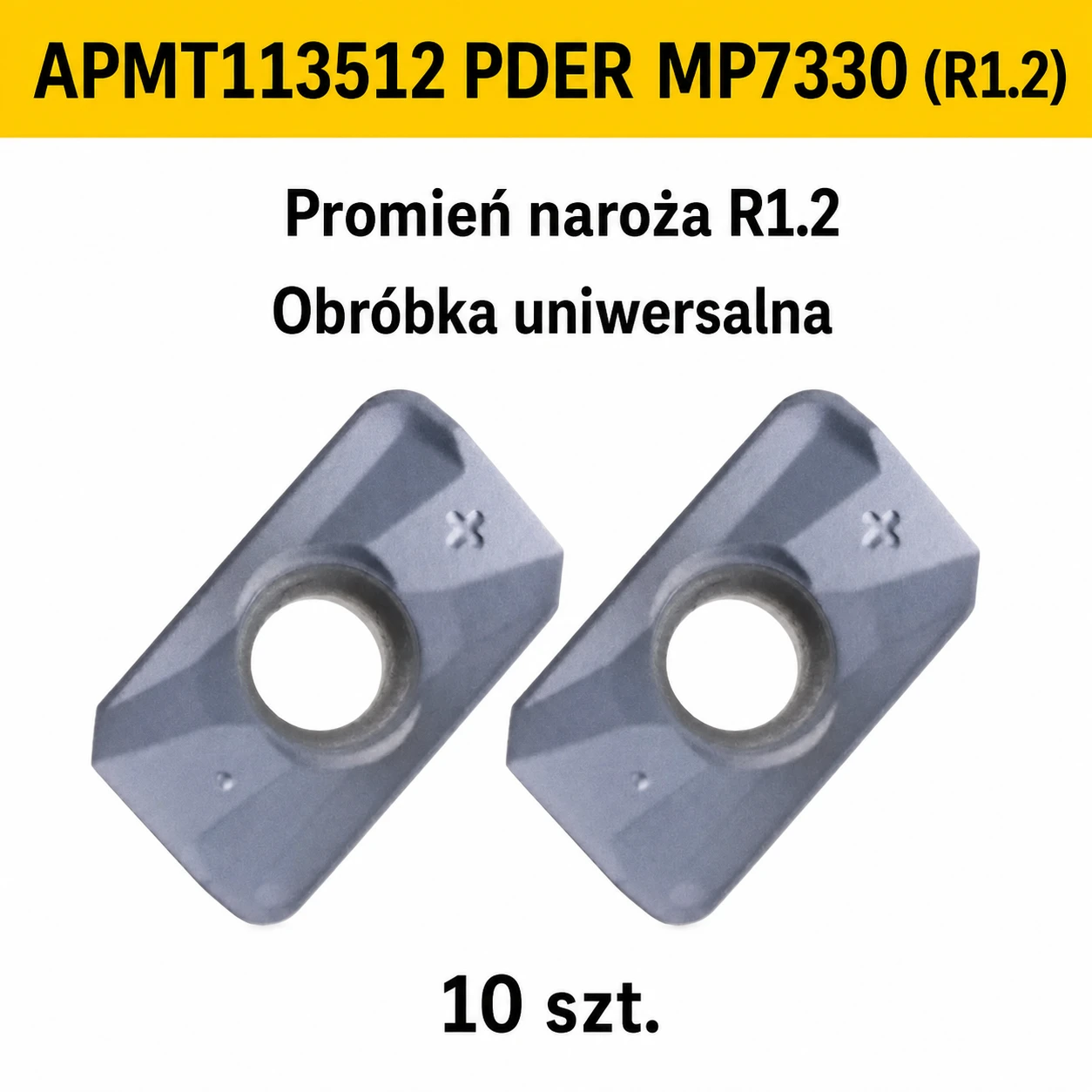

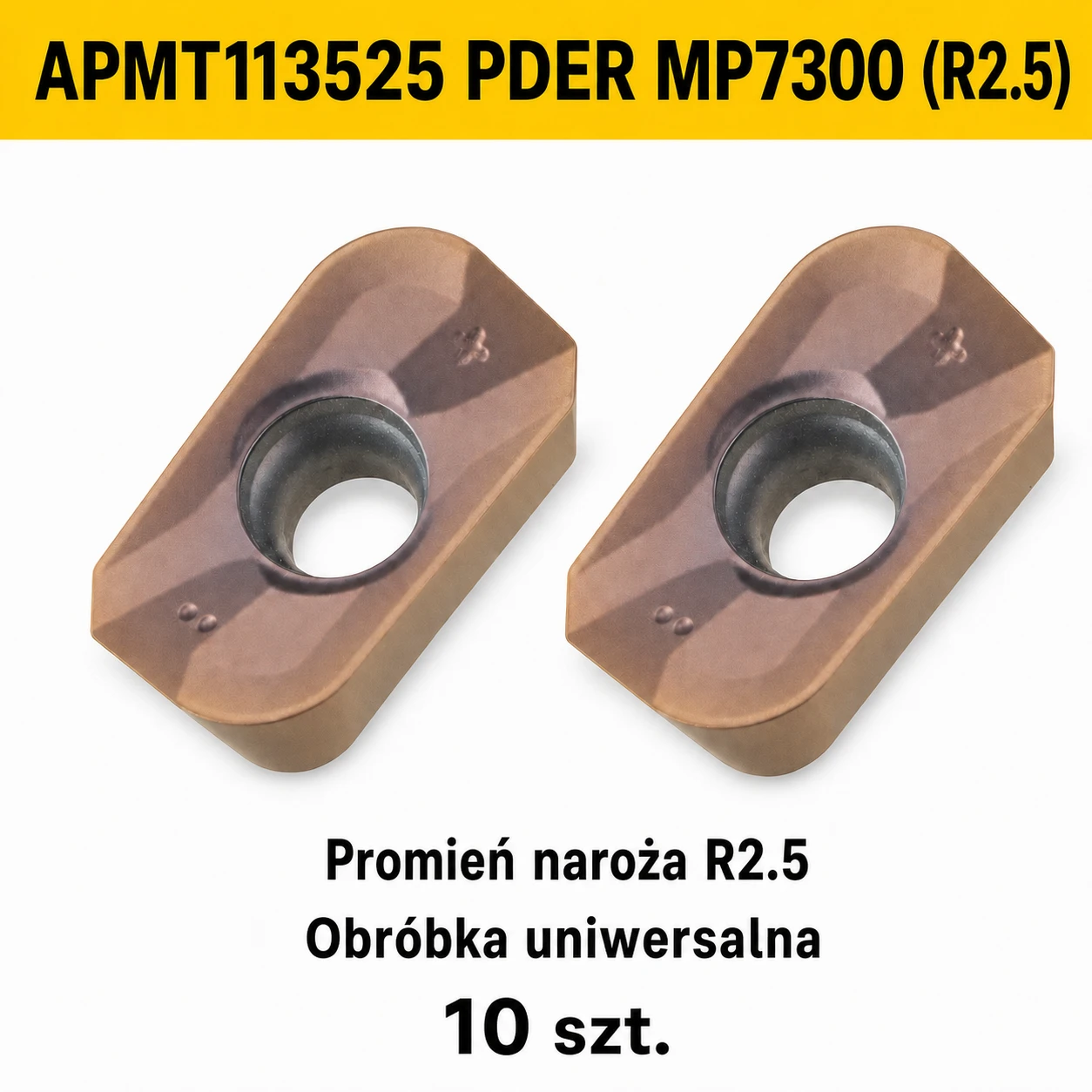

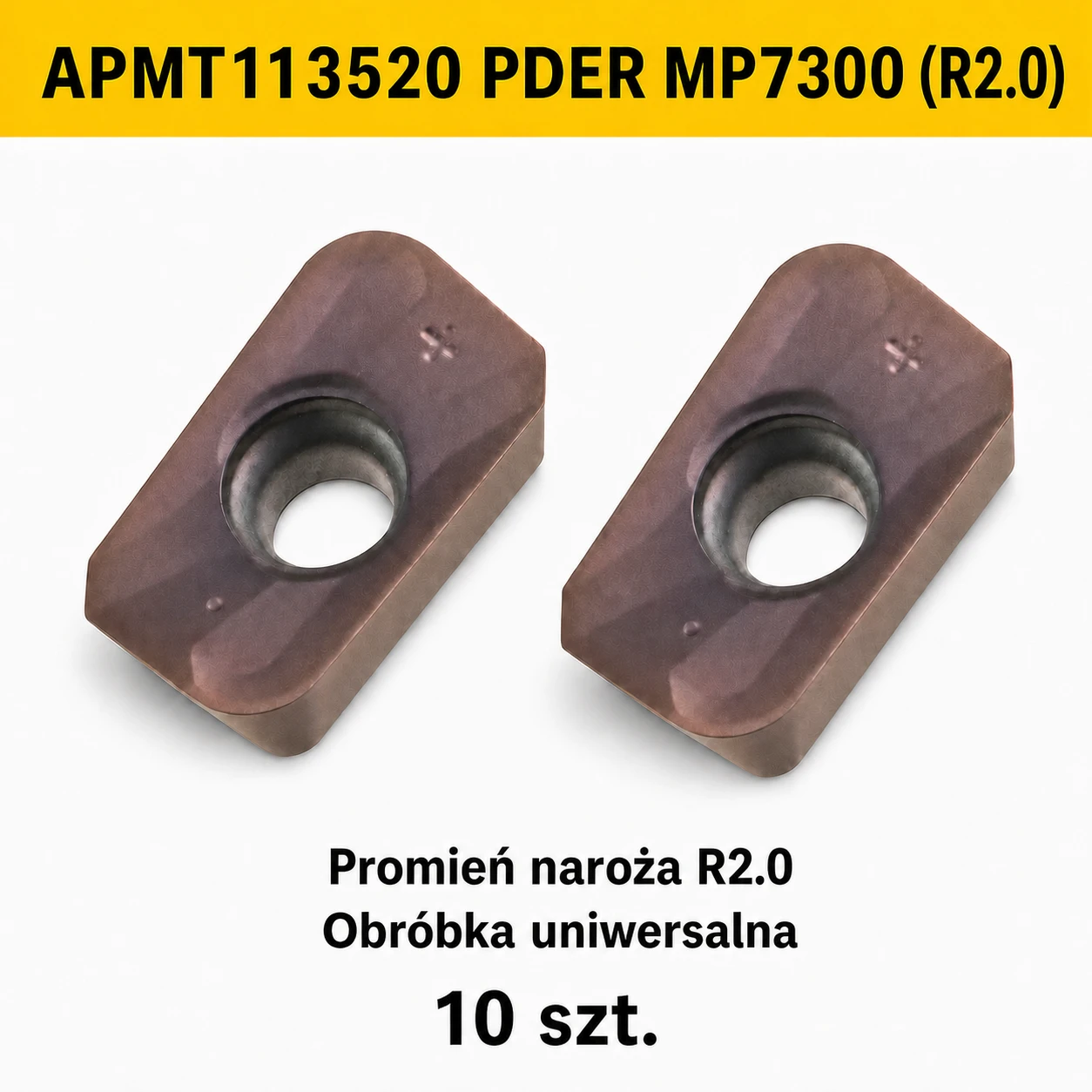

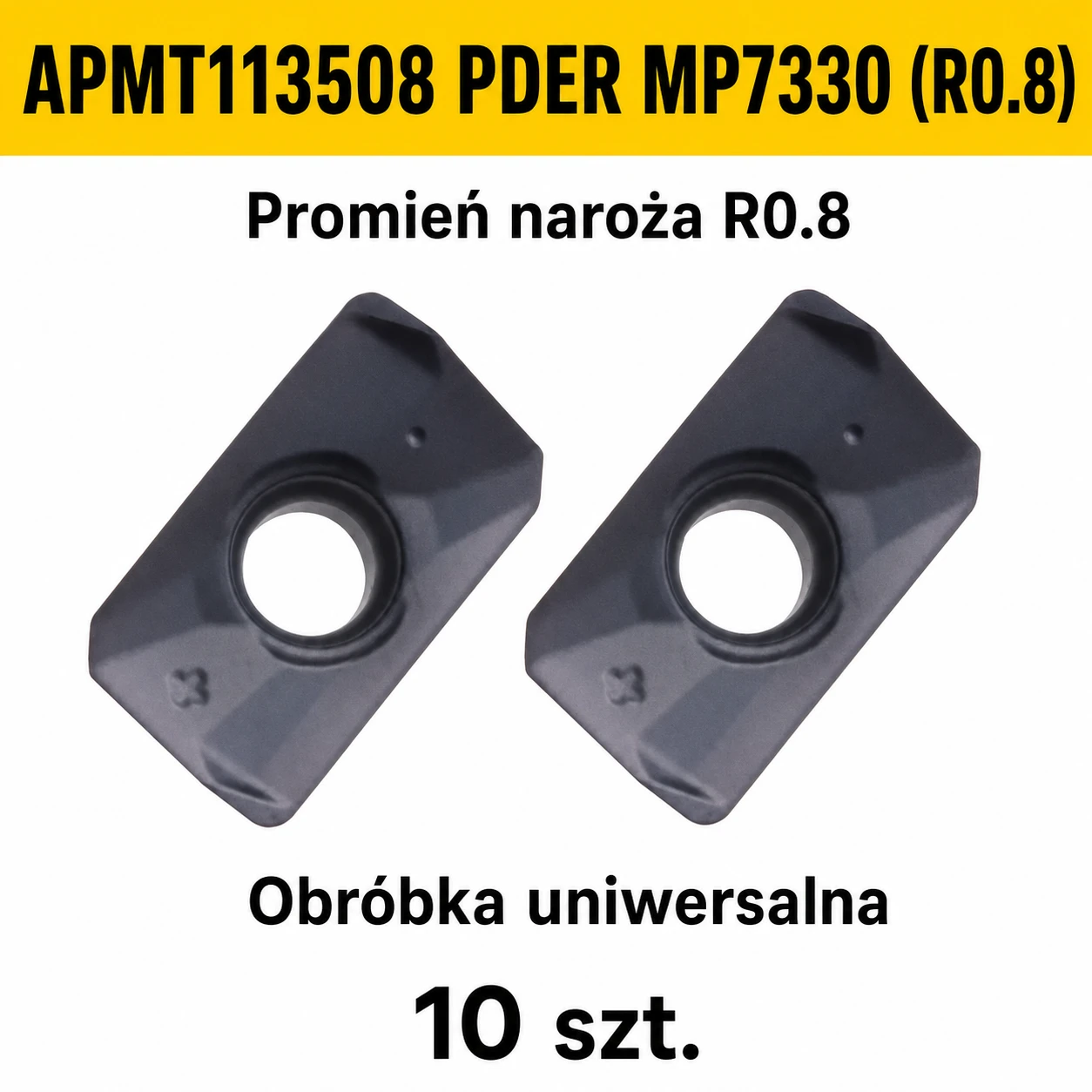

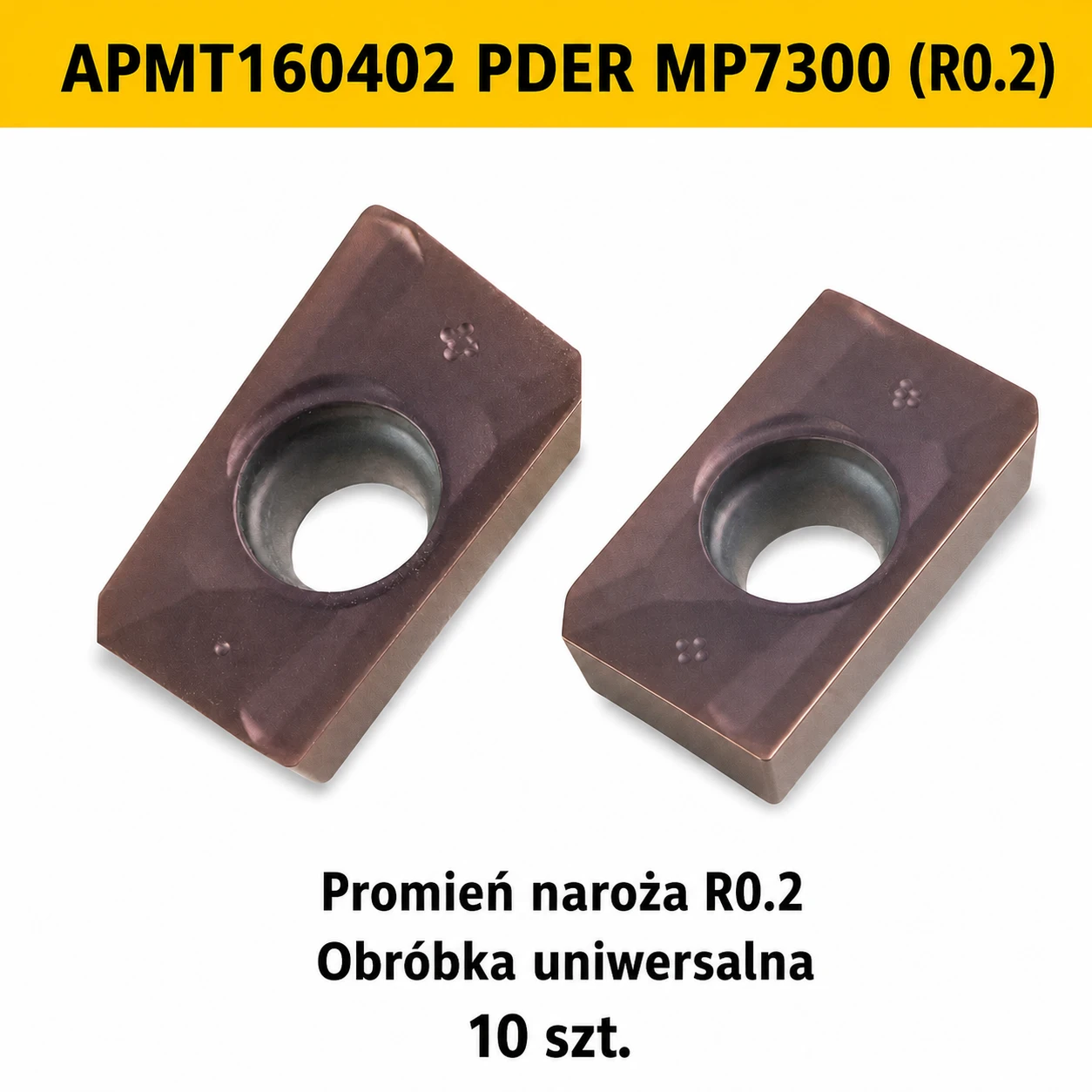

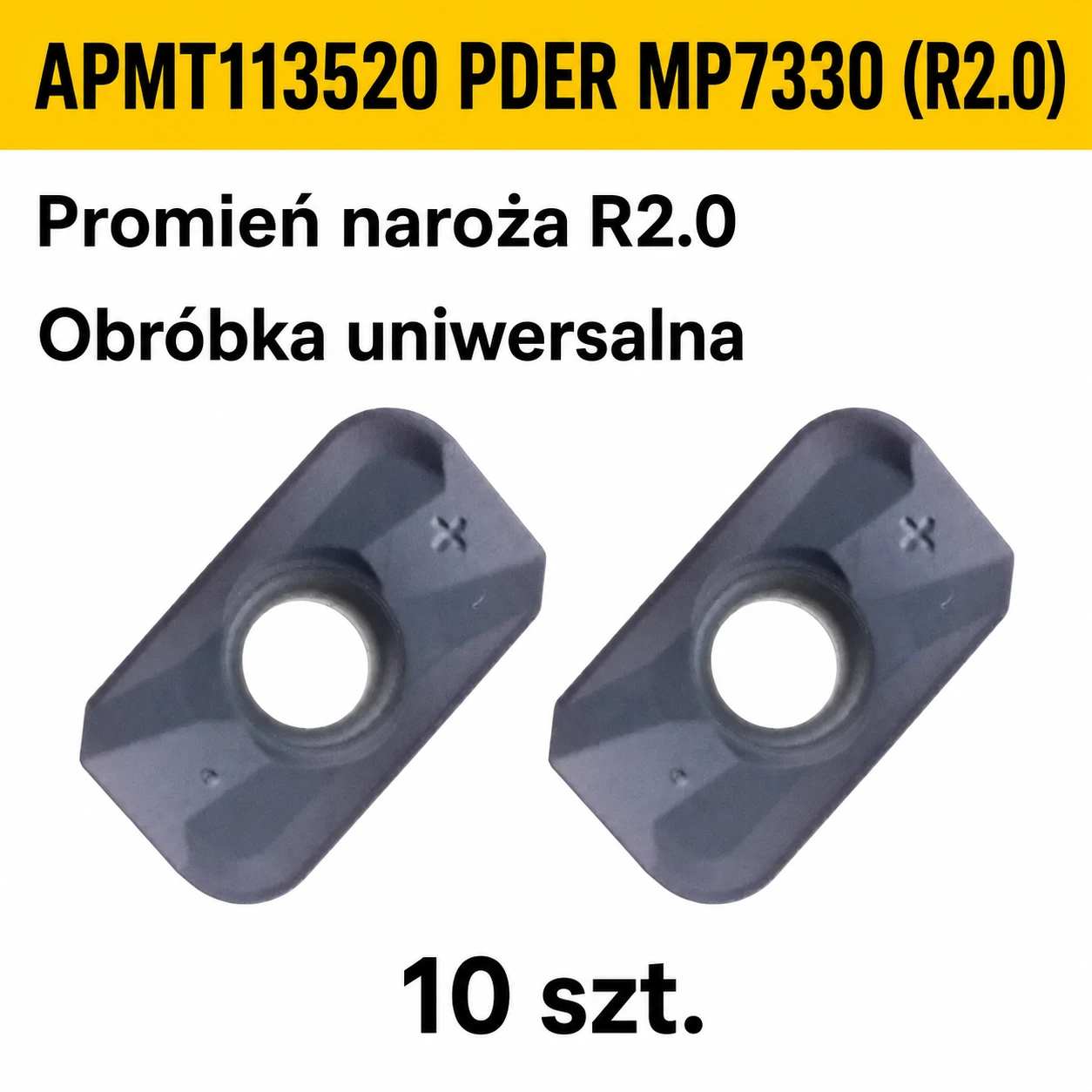

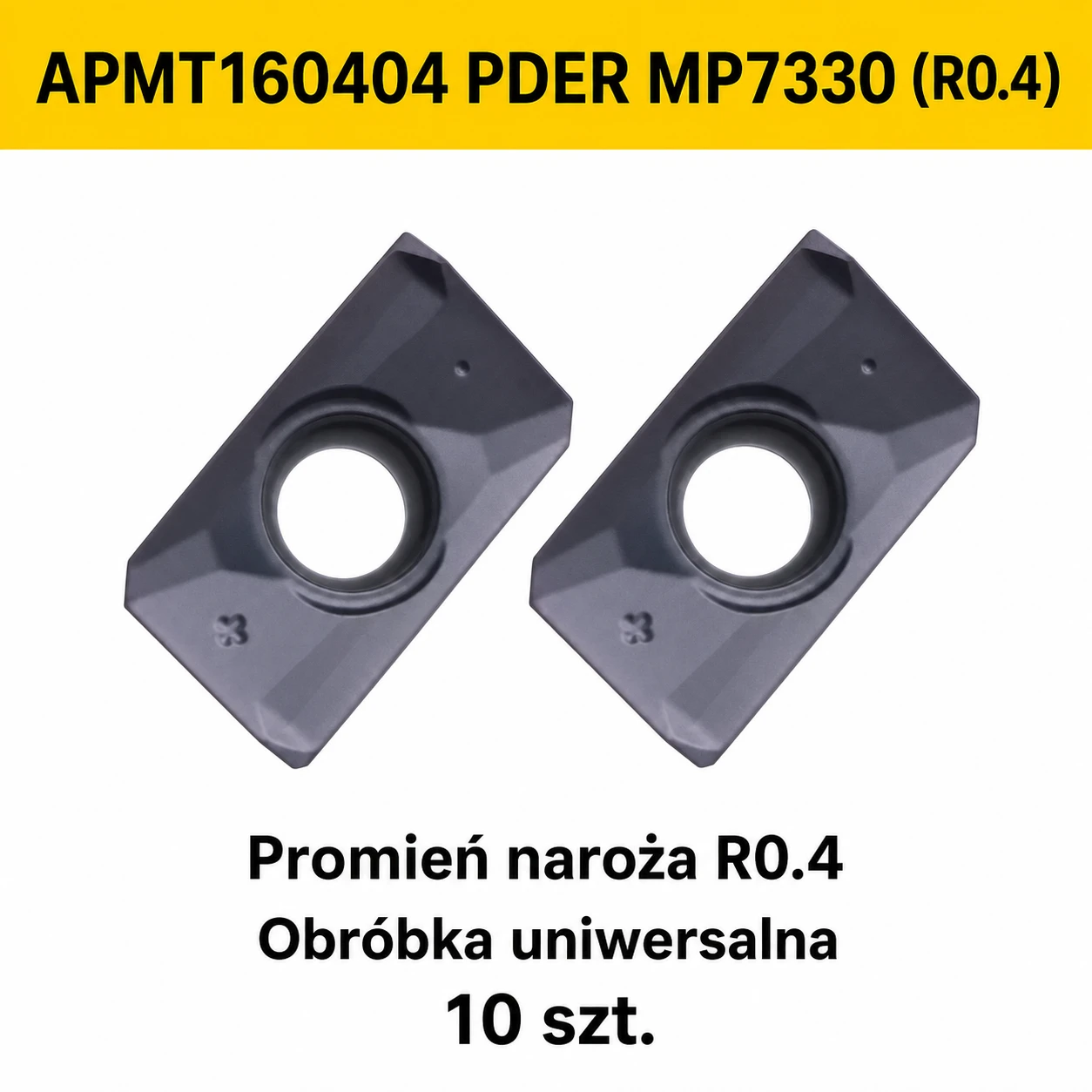

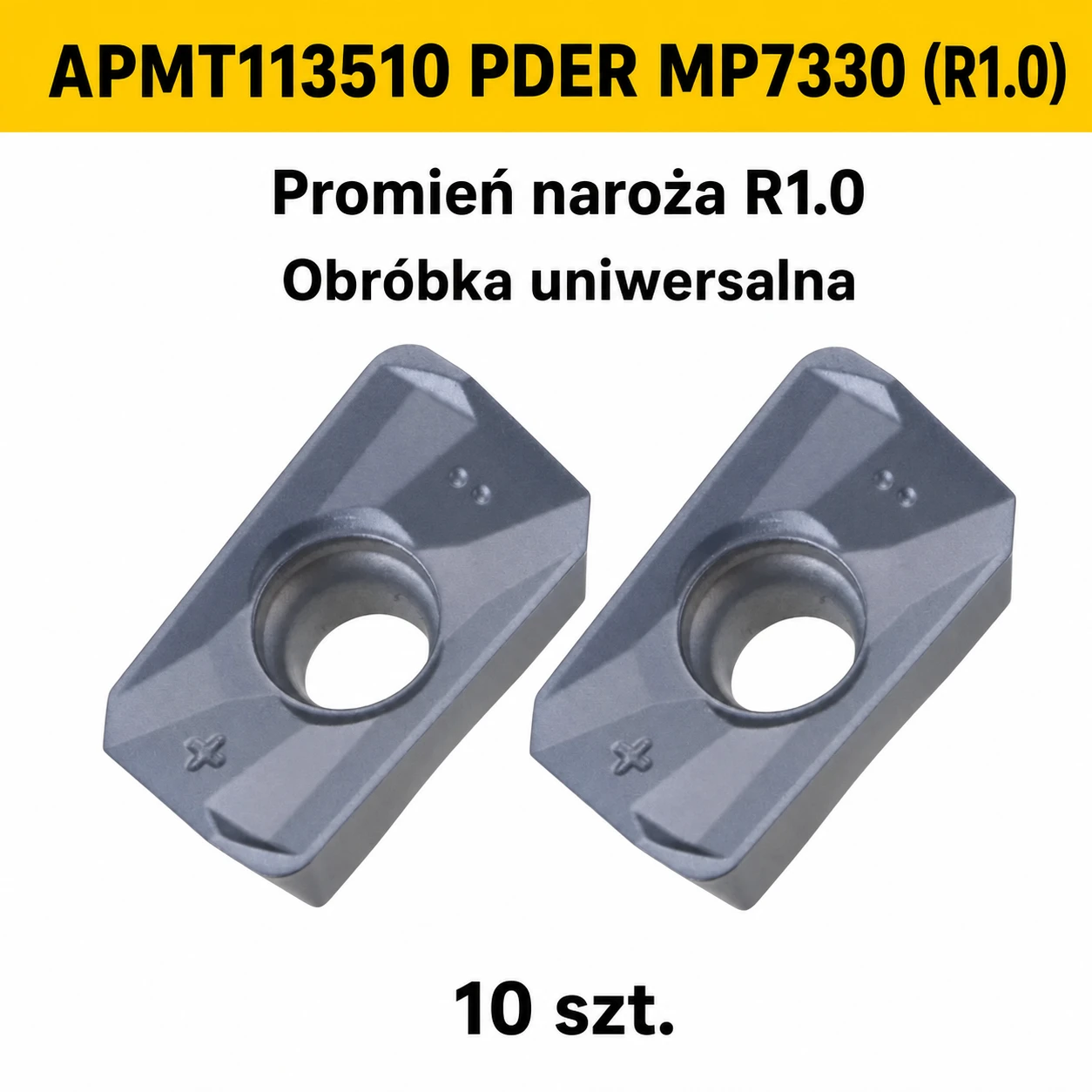

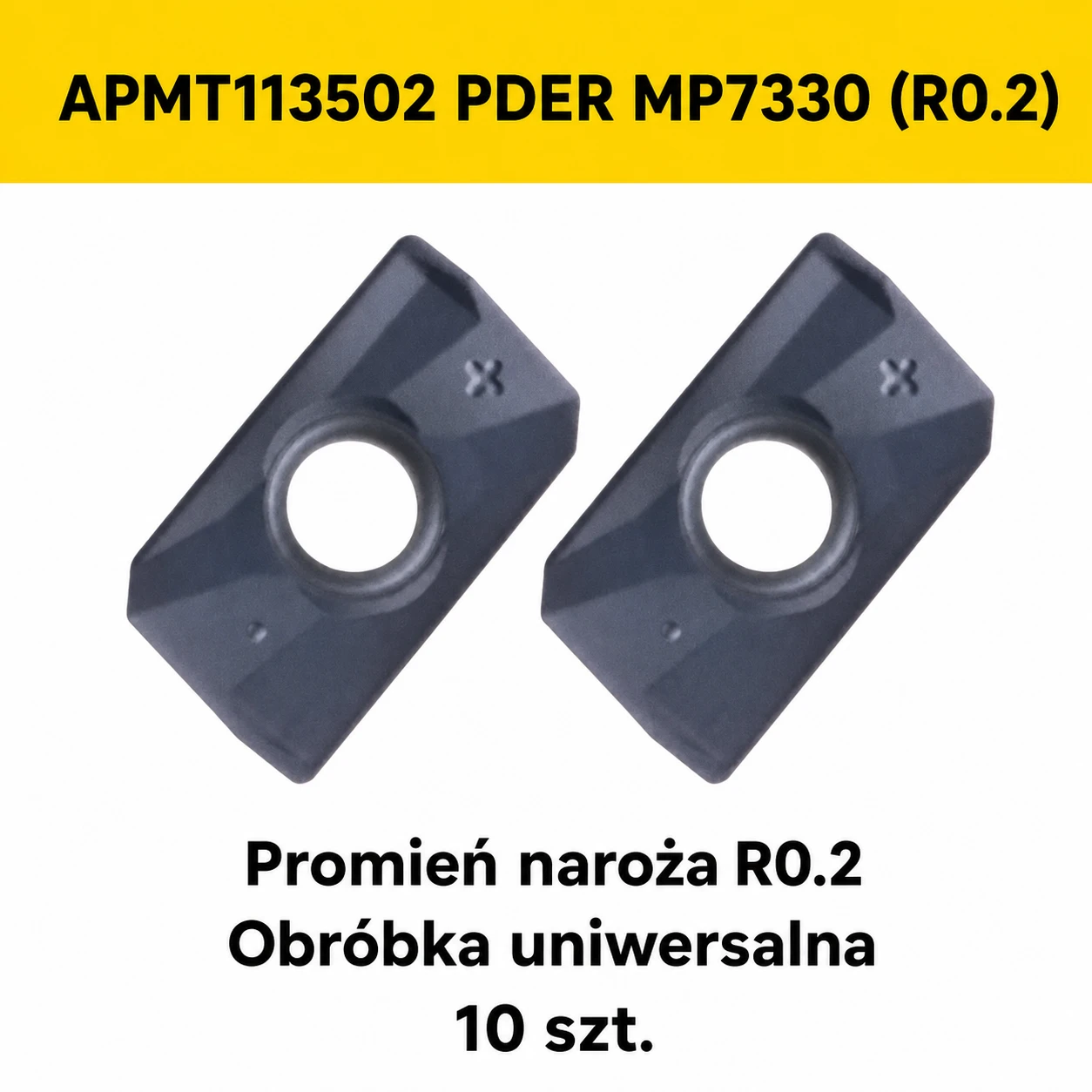

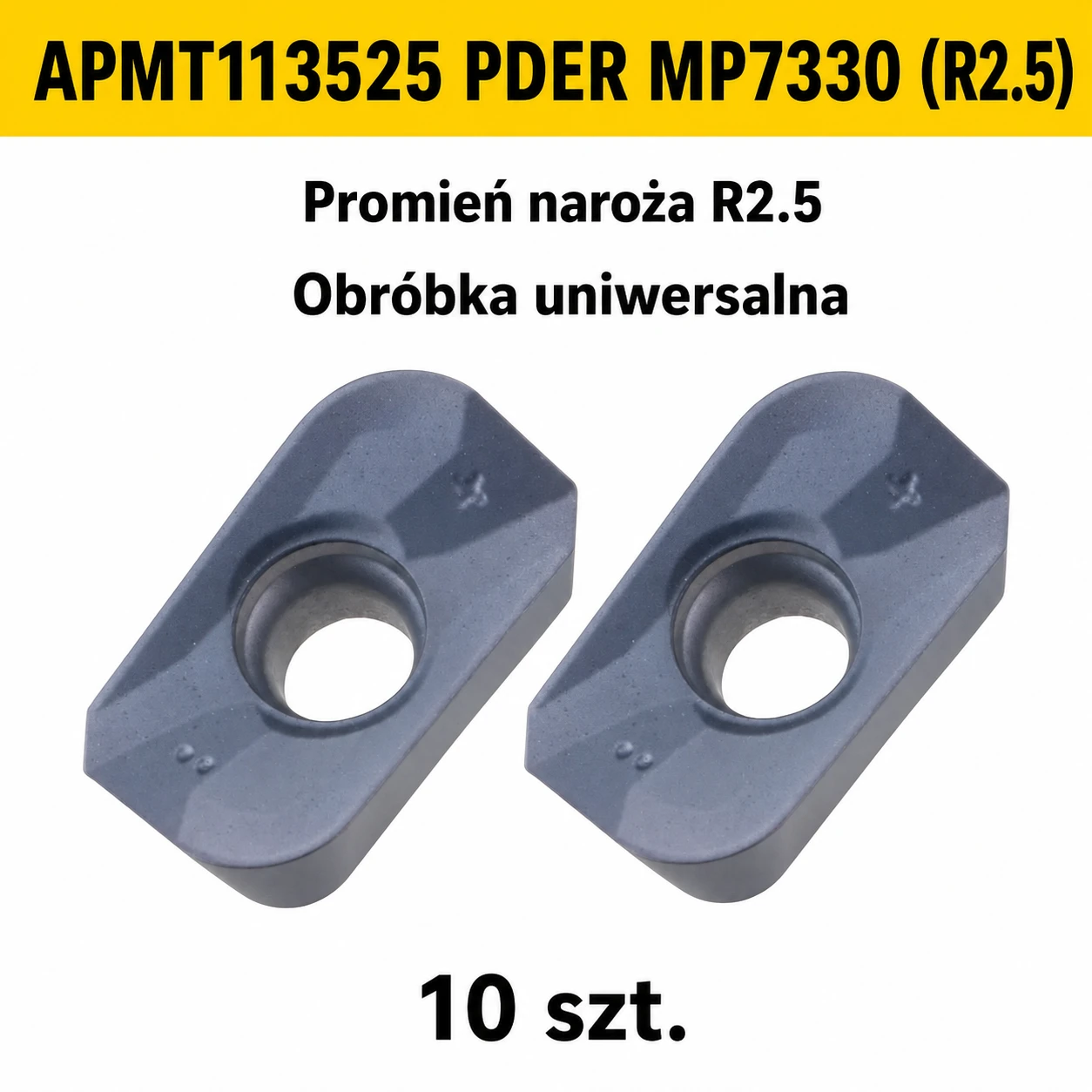

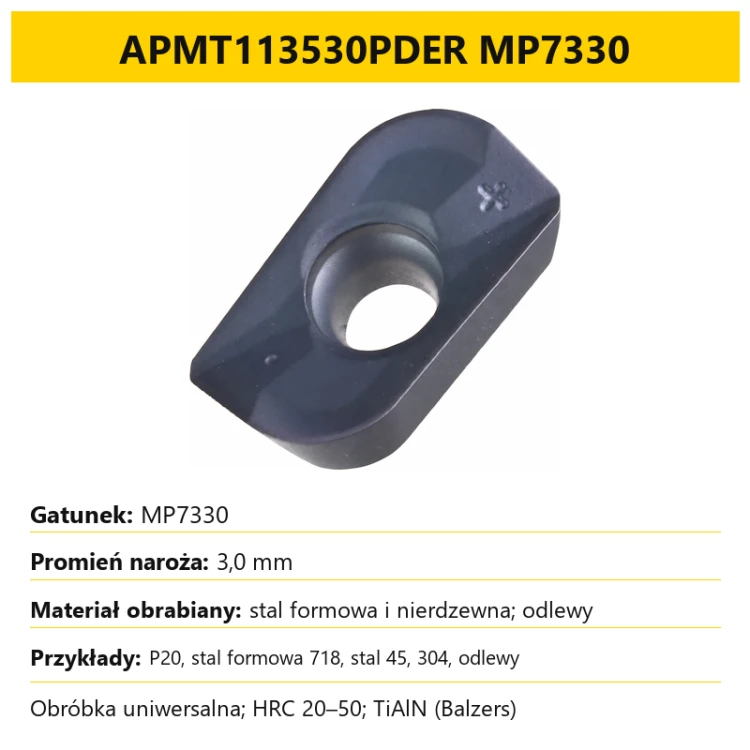

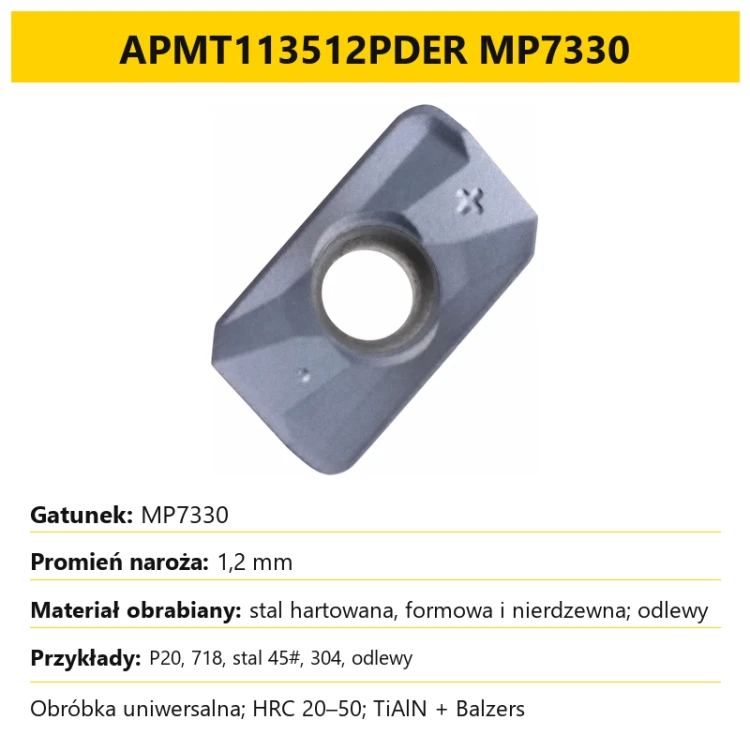

APMT 1135: R0.2, R0.4, R0.8, R1.0, R1.2, R1.6, R2.0, R2.5, R3.0.

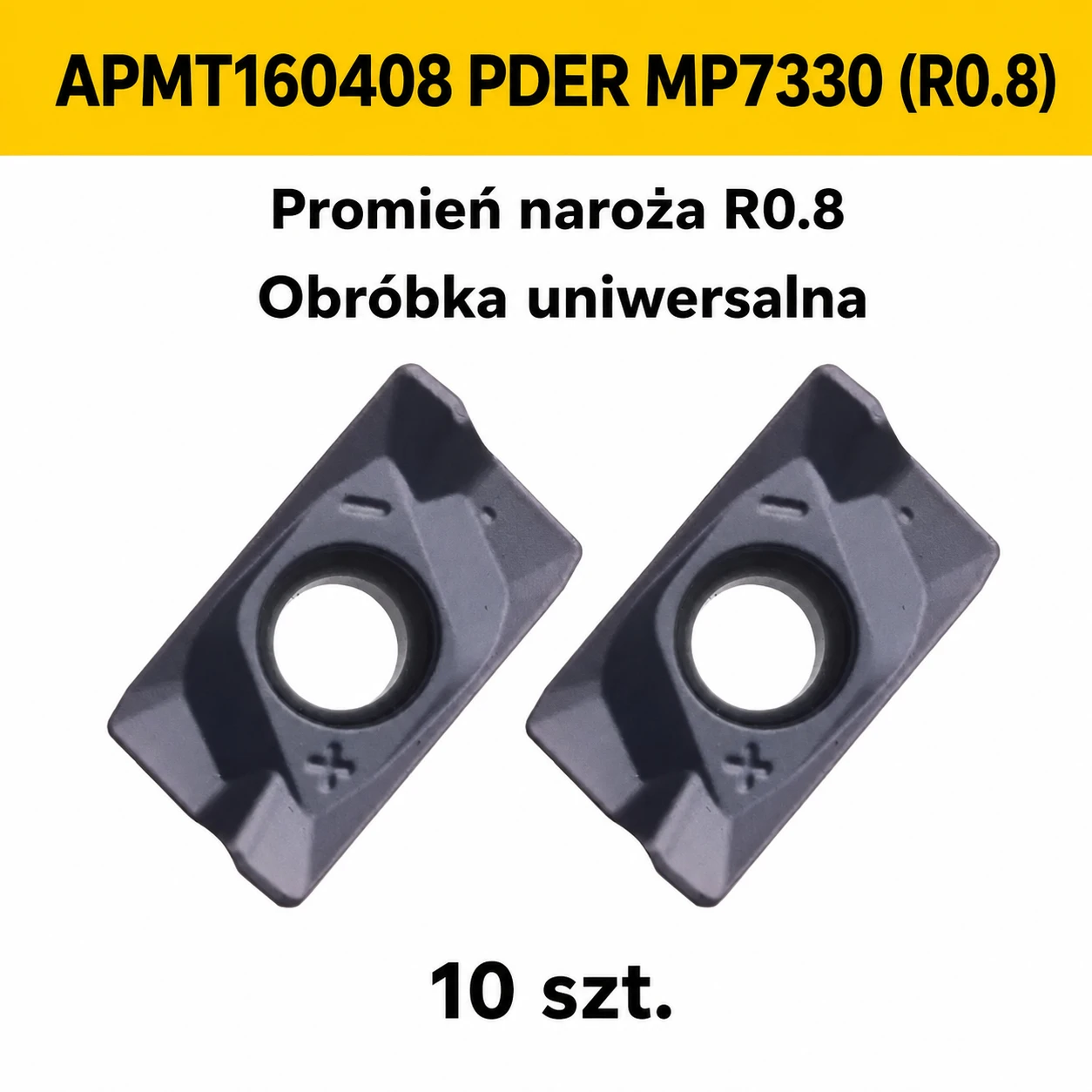

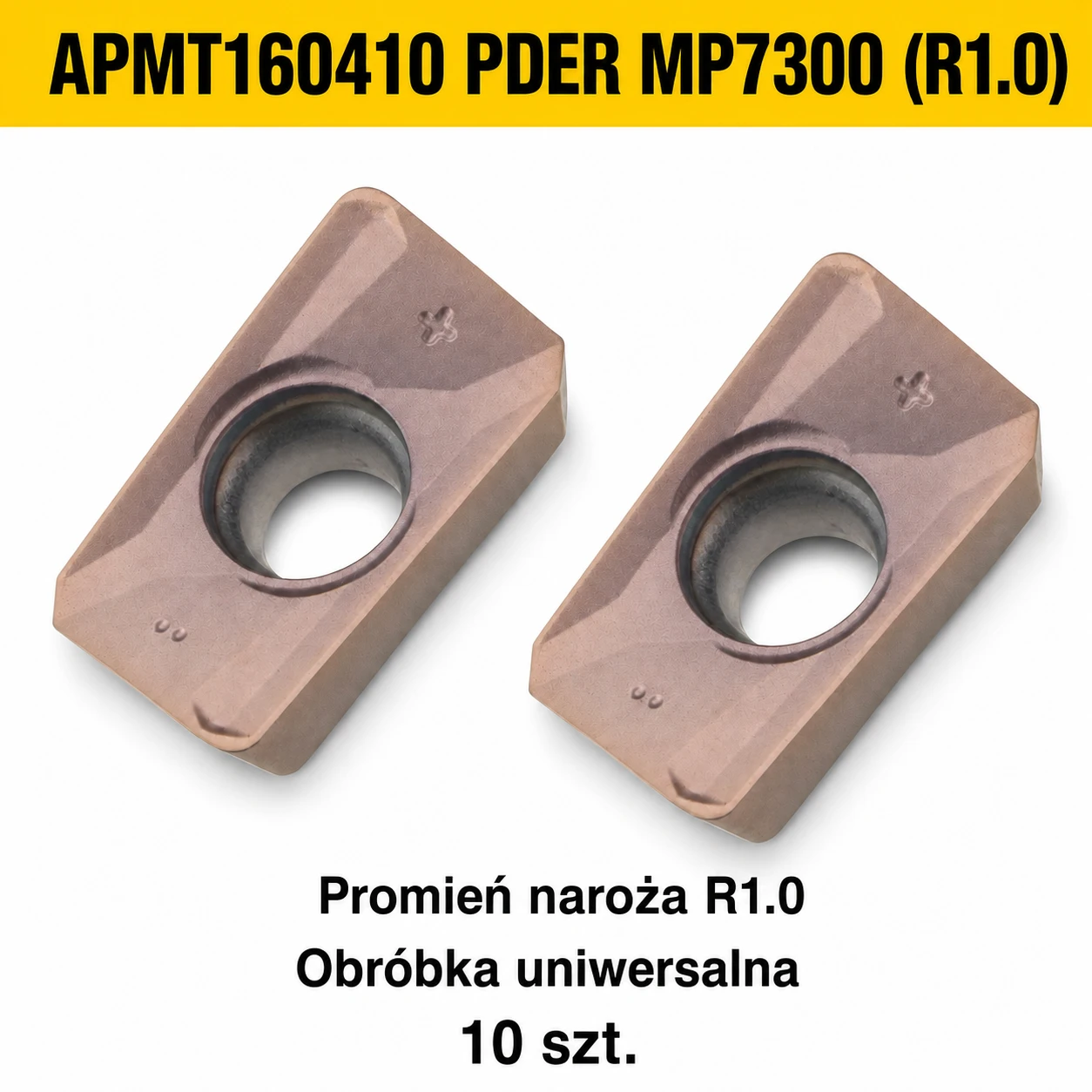

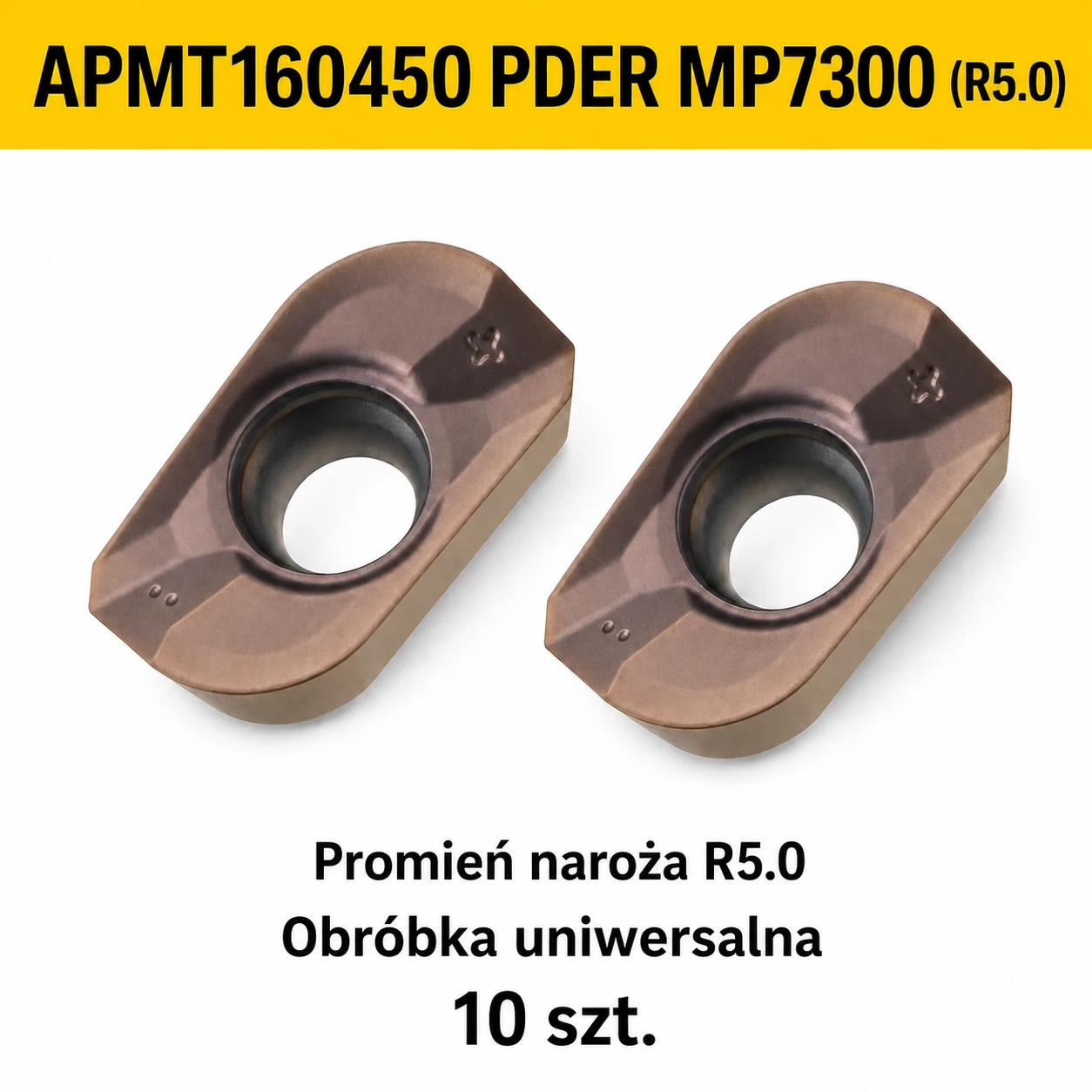

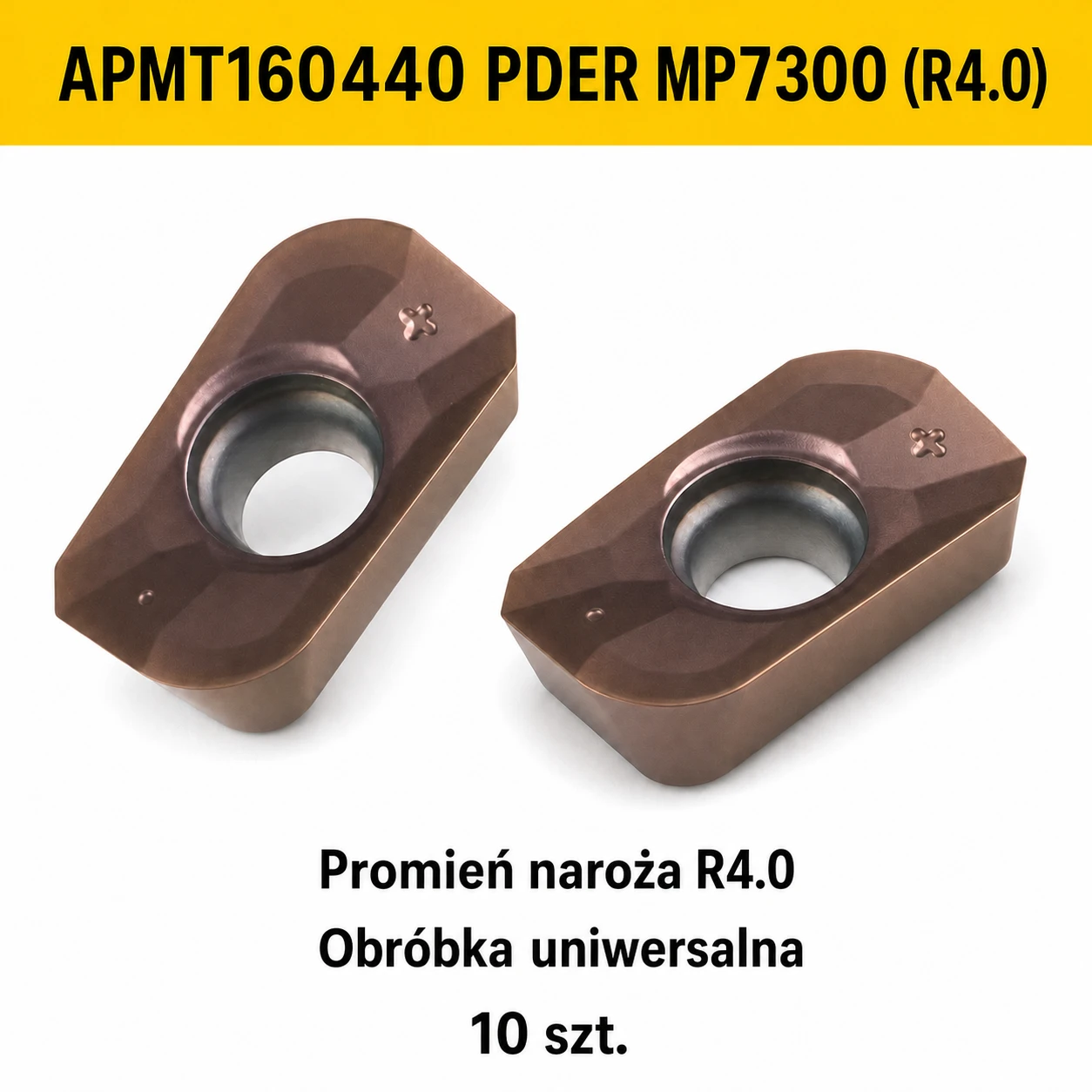

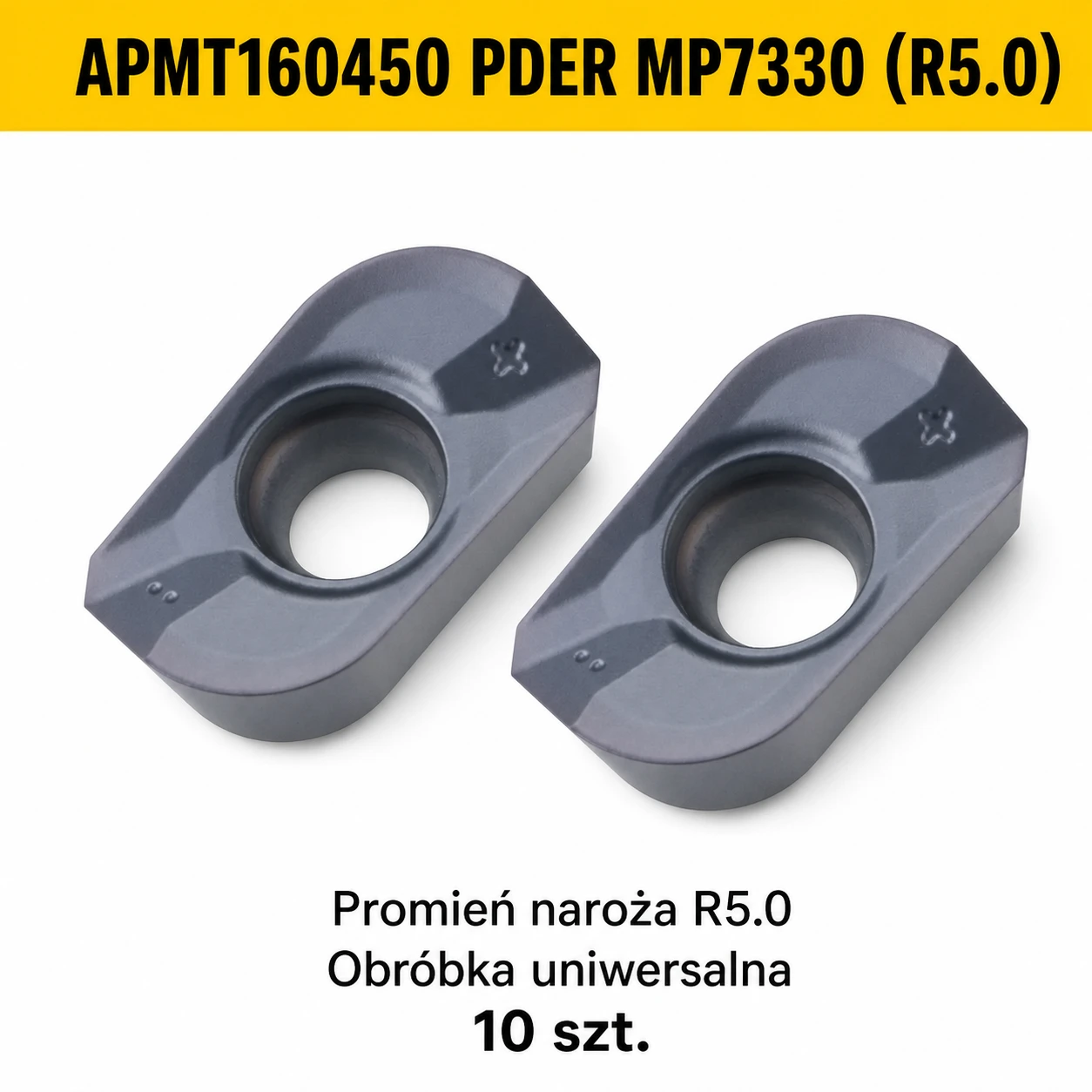

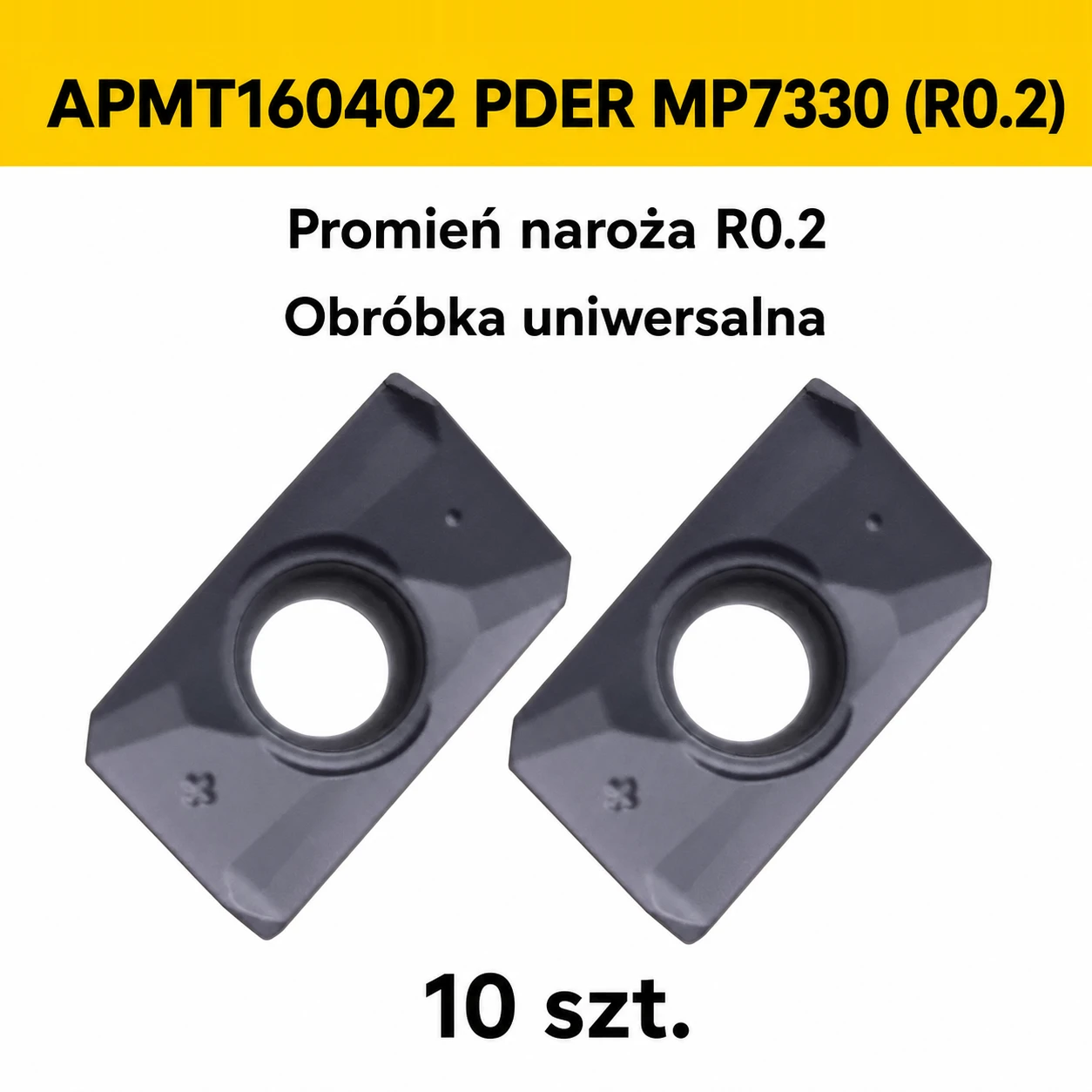

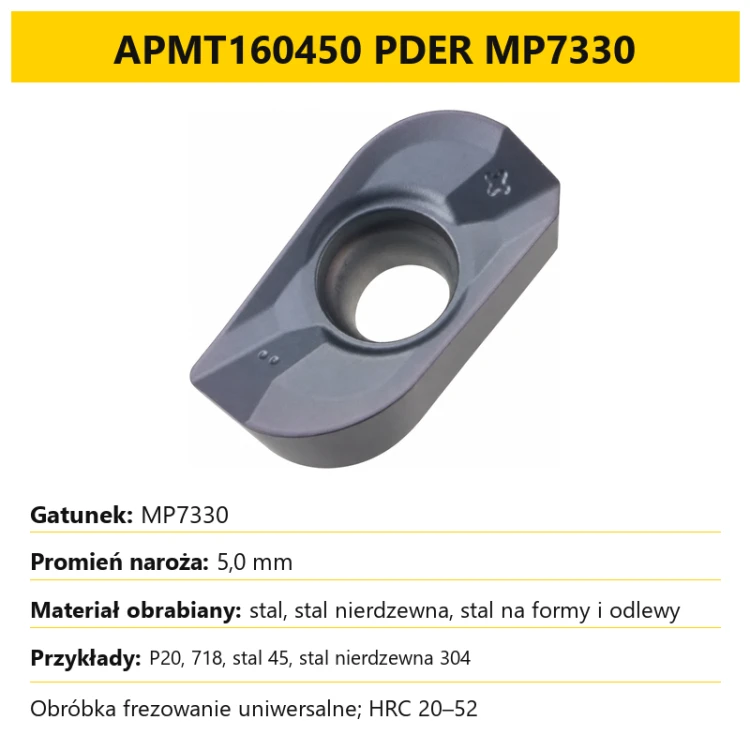

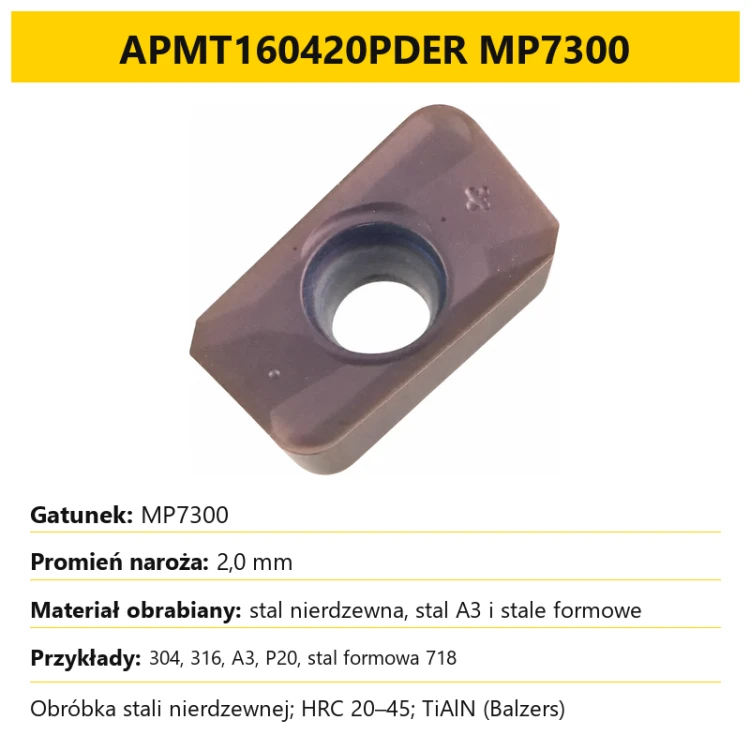

APMT 1604: R0.2, R0.4, R0.8, R1.0, R1.2, R1.6, R2.0, R2.5, R3.0, R4.0, R5.0.
Selecting the correct variant
- Read the complete designation of the insert or cutter pocket currently used.
- Select the same family and size: APMT/APKT and 1003/1135/1604.
- Select the grade for the workpiece material using the tables above.
- For corner-radius versions, select the required radius R and the version for stainless steel (brown) or general-purpose machining (grey).
- After changing the grade or geometry, start with the cutting conditions specified for your tool and adjust them to the machine rigidity and machining setup.
Specification and pack contents
- Replaceable inserts for milling heads and indexable cutters.
- Screw clamping in the tool pocket.
- Carbide versions and selected PCD versions.
- Pack contents: 10 inserts of the selected variant.
Frequently asked questions
Are 1135 and 1604 inserts interchangeable?
No. They are different sizes. Select the size specified for the cutter pocket.
How does the stainless-steel version differ from the general-purpose version?
The stainless-steel version is brown and intended primarily for stainless steel, e.g. 304 and 316; its applications also include structural and tool steels. The grey general-purpose version is for general machining of structural, heat-treated and tool steels and cast iron. The grade designation (MP7300 or MP7330) is given in the variant name.
Is the price for one insert?
No. The offer is for a pack containing 10 inserts of the selected variant.
Unsure which variant to select?
Provide the complete insert designation or a photograph of the pocket and the insert currently used. This helps check the match.
