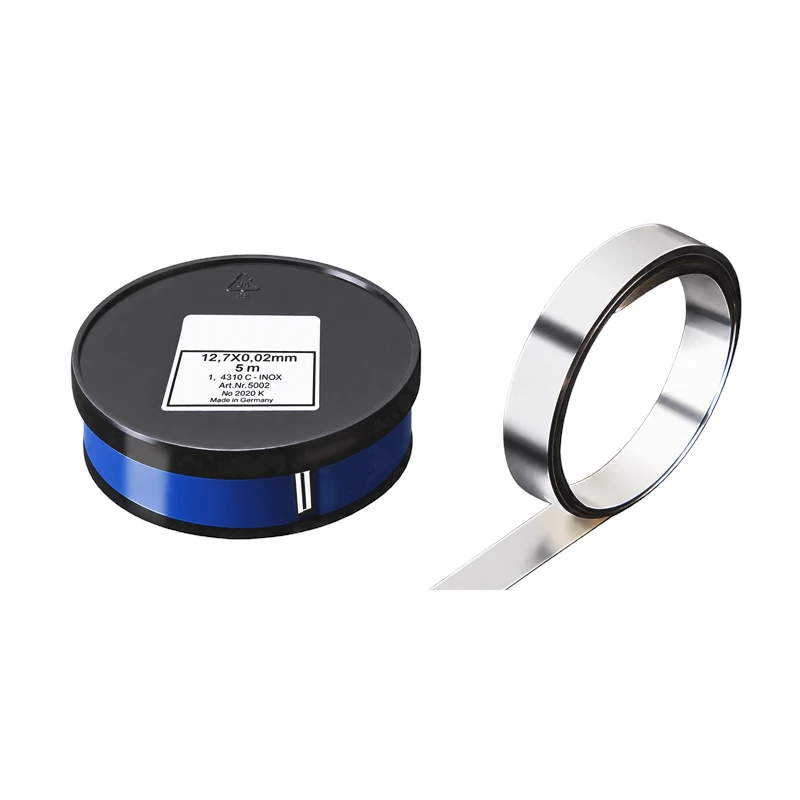

  • 12.7 mm feeler gauge strip - box and 1 roll

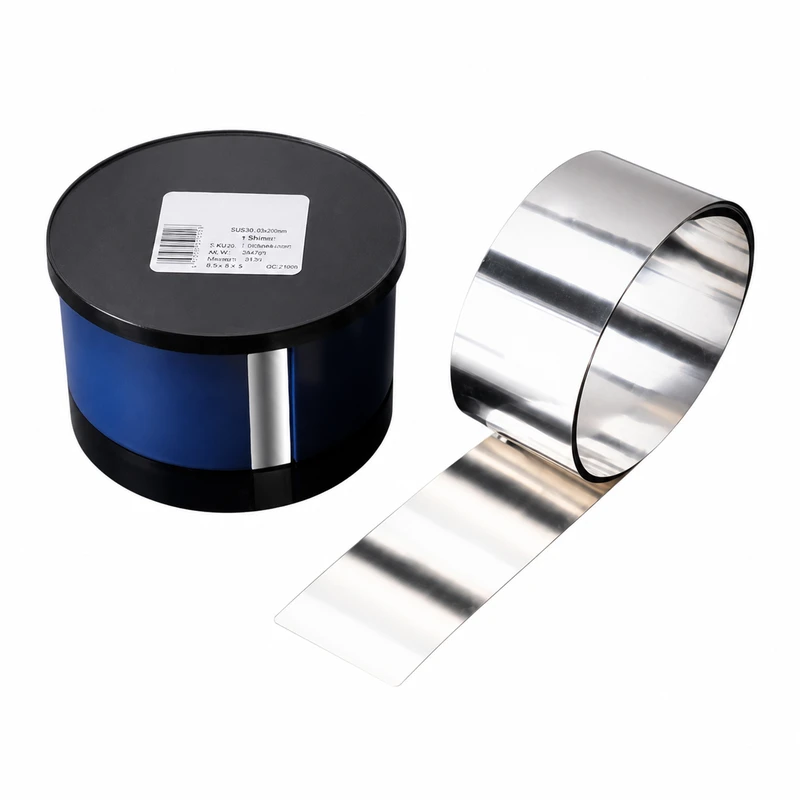

  • 50 mm feeler gauge strip - wide roll and box

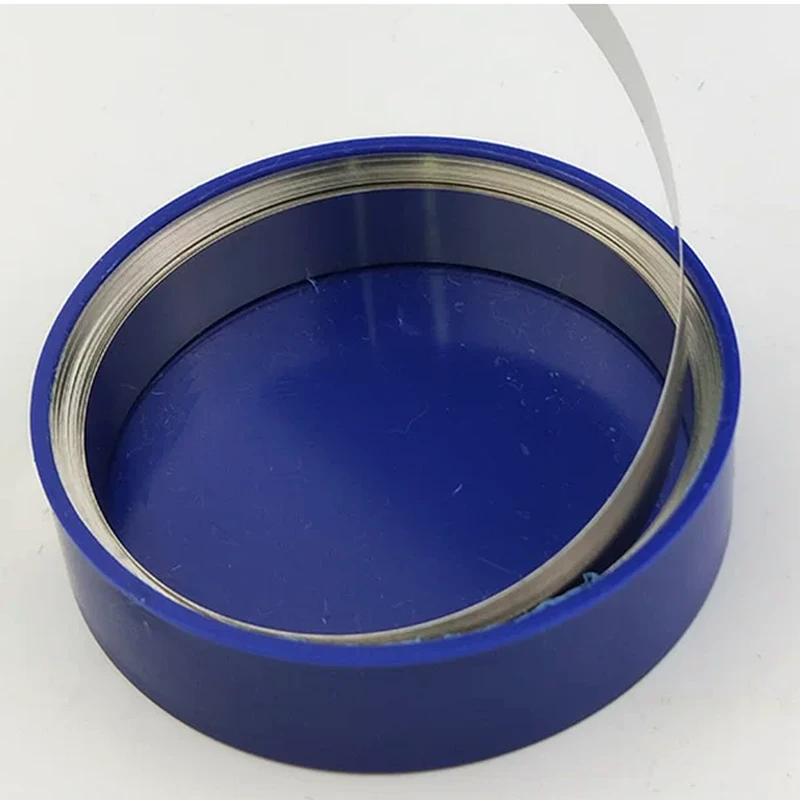

  • Feeler gauge strip in an open box - 1 roll
  • One 5 m roll - stainless steel 1.4310
  • Strip width and thickness ranges
  • How to read a variant: thickness, width and length
  • Feeler gauge strip thickness tolerances

Tape feeler gauge - reference tape, 12.7mm; from 0.005 to 1mm | 5 meters

Kortools
Main warehouse:
Select a variant to see available quantity pcs.
with VAT without VAT
Price €14.36

Shipping costs are not included in the price.

pcs.
Shipping time: 24 hours
Ask about the product

Select a product variant:

Individual variants may differ in price

Select 0.005 mm × 12.7 mm × 5 m 0.008 mm × 12.7 mm × 5 m 0.01 mm × 12.7 mm × 5 m 0.011 mm × 12.7 mm × 5 m 0.012 mm × 12.7 mm × 5 m 0.015 mm × 12.7 mm × 5 m 0.02 mm × 12.7 mm × 5 m 0.022 mm × 12.7 mm × 5 m 0.025 mm × 12.7 mm × 5 m 0.03 mm × 12.7 mm × 5 m 0.032 mm × 12.7 mm × 5 m 0.035 mm × 12.7 mm × 5 m 0.04 mm × 12.7 mm × 5 m 0.045 mm × 12.7 mm × 5 m 0.05 mm × 12.7 mm × 5 m 0.055 mm × 12.7 mm × 5 m 0.06 mm × 12.7 mm × 5 m 0.065 mm × 12.7 mm × 5 m 0.07 mm × 12.7 mm × 5 m 0.075 mm × 12.7 mm × 5 m 0.08 mm × 12.7 mm × 5 m 0.085 mm × 12.7 mm × 5 m 0.09 mm × 12.7 mm × 5 m 0.095 mm × 12.7 mm × 5 m 0.1 mm × 12.7 mm × 5 m 0.11 mm × 12.7 mm × 5 m 0.12 mm × 12.7 mm × 5 m 0.13 mm × 12.7 mm × 5 m 0.14 mm × 12.7 mm × 5 m 0.15 mm × 12.7 mm × 5 m 0.16 mm × 12.7 mm × 5 m 0.17 mm × 12.7 mm × 5 m 0.18 mm × 12.7 mm × 5 m 0.19 mm × 12.7 mm × 5 m 0.2 mm × 12.7 mm × 5 m 0.21 mm × 12.7 mm × 5 m 0.22 mm × 12.7 mm × 5 m 0.23 mm × 12.7 mm × 5 m 0.24 mm × 12.7 mm × 5 m 0.25 mm × 12.7 mm × 5 m 0.26 mm × 12.7 mm × 5 m 0.27 mm × 12.7 mm × 5 m 0.3 mm × 12.7 mm × 5 m 0.33 mm × 12.7 mm × 5 m 0.35 mm × 12.7 mm × 5 m 0.4 mm × 12.7 mm × 5 m 0.45 mm × 12.7 mm × 5 m 0.5 mm × 12.7 mm × 5 m 0.55 mm × 12.7 mm × 5 m 0.6 mm × 12.7 mm × 5 m 0.65 mm × 12.7 mm × 5 m 0.7 mm × 12.7 mm × 5 m 0.8 mm × 12.7 mm × 5 m 0.9 mm × 12.7 mm × 5 m 1 mm × 12.7 mm × 5 m 0.005 mm × 20 mm × 5 m 0.01 mm × 20 mm × 5 m 0.02 mm × 20 mm × 5 m 0.03 mm × 20 mm × 5 m 0.04 mm × 20 mm × 5 m 0.05 mm × 20 mm × 5 m 0.06 mm × 20 mm × 5 m 0.07 mm × 20 mm × 5 m 0.08 mm × 20 mm × 5 m 0.1 mm × 20 mm × 5 m 0.15 mm × 20 mm × 5 m 0.2 mm × 20 mm × 5 m 0.25 mm × 20 mm × 5 m 0.3 mm × 20 mm × 5 m 0.4 mm × 20 mm × 5 m 0.5 mm × 20 mm × 5 m 0.005 mm × 50 mm × 5 m 0.01 mm × 50 mm × 5 m 0.015 mm × 50 mm × 5 m 0.02 mm × 50 mm × 5 m 0.03 mm × 50 mm × 5 m 0.04 mm × 50 mm × 5 m 0.05 mm × 50 mm × 5 m 0.06 mm × 50 mm × 5 m 0.07 mm × 50 mm × 5 m 0.08 mm × 50 mm × 5 m 0.09 mm × 50 mm × 5 m 0.1 mm × 50 mm × 5 m 0.12 mm × 50 mm × 5 m 0.15 mm × 50 mm × 5 m 0.2 mm × 50 mm × 5 m 0.25 mm × 50 mm × 5 m 0.3 mm × 50 mm × 5 m 0.35 mm × 50 mm × 5 m 0.01 mm × 150 mm × 5 m 0.02 mm × 150 mm × 5 m 0.03 mm × 150 mm × 5 m 0.04 mm × 150 mm × 5 m 0.05 mm × 150 mm × 5 m 0.1 mm × 150 mm × 5 m 0.15 mm × 150 mm × 5 m 0.2 mm × 150 mm × 5 m 0.3 mm × 150 mm × 5 m 0.4 mm × 150 mm × 5 m 0.5 mm × 150 mm × 5 m 1 mm × 150 mm × 5 m
Click Available to show variants with 24h shipping


Opis produktu

Feeler gauge strip – 1.4310 stainless steel precision strip
Sales unit: 1 roll · length 5 m · widths 12.7 / 20 / 50 / 150 mm · thicknesses 0.005–1.00 mm

The feeler gauge strip is supplied on a roll for setting and checking clearances and for cutting shims to a thickness selected for the application. The product is a long strip of 1.4310 stainless steel held in a dispenser case. Every selector entry means one 5 m roll, not a set of several rolls.

Before adding to the basket: select the exact variant in the “thickness × width × 5 m” format. The price is for one selected roll.

1. What is feeler gauge strip on a roll?

Feeler gauge strip, also described as precision gauge strip or shim strip, is stock with a stated nominal thickness. Unlike a folding leaf feeler gauge, this product is supplied on a roll. A required length can therefore be unwound or a regulating element can be cut to the shape needed for the job.

  • form: feeler gauge / precision gauge strip in a roll and dispenser case,
  • steel grade: 1.4310 stainless steel,
  • sales unit: one roll,
  • length of every roll: 5 m,
  • variant format: thickness × width × length.

2. Applications

The strip is intended for work requiring stock with a controlled thickness. It can be used as a checking strip for setting clearances or as stock for cutting spacing and regulating shims. The exact use depends on the selected thickness, width and the shape prepared by the user.

ApplicationRole of the strip
Setting and checking clearancesSelecting a strip thickness corresponding to the clearance being checked or set.
Adjustment of equipment and toolingPlacing stock of a known thickness where a position correction is required.
Setting moulds and machinesPreparing a spacer of the selected dimension for adjustment work.
Spacing shimsCutting shims from the strip to the shape required in a particular assembly.

3. Technical parameters

The table below gives the parameters common to the product family. Thickness and width belong to a specific variant and must be read from its full name.

ParameterValue
Product typeFeeler gauge / precision gauge strip on a roll
Steel grade1.4310 stainless steel
Sales unit1 roll
Roll length5 m
Available widths12.7 mm; 20 mm; 50 mm; 150 mm
Overall thickness range of the family0.005–1.00 mm
PackagingRoll in a dispenser case
Variant naming formatThickness × width × 5 m

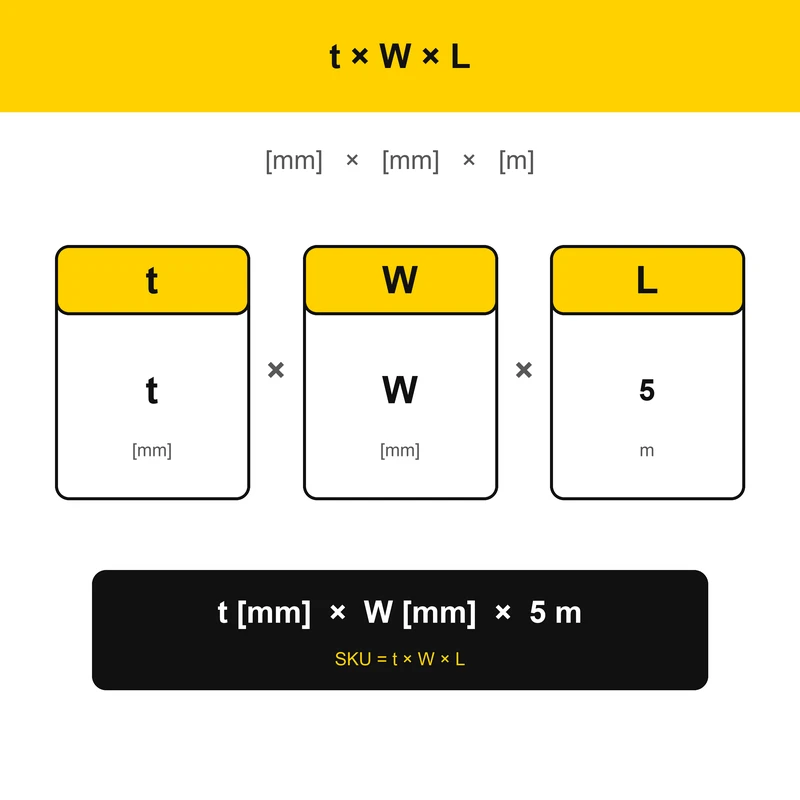

4. How to select the correct variant

First determine the required nominal thickness, then select the strip width and finally check the length. The length is fixed at 5 m in this listing. The full variant name contains all three values, helping distinguish rolls that otherwise have the same visual form.

StepSelectHow to read the variant name
1ThicknessThe first value, for example 0.10 mm, is the nominal strip thickness.
2WidthThe second value, for example 50 mm, is the strip width.
3LengthThe final value is 5 m and specifies the length of one roll.
4Sales unitA selected variant always means one roll, even though the same gallery image is used for several dimensions.

Example: “0.10 mm × 50 mm × 5 m” means one roll of strip 0.10 mm thick, 50 mm wide and 5 m long. The image is shared because the variants have the same visual form; the selected variant name defines the dimension being purchased.

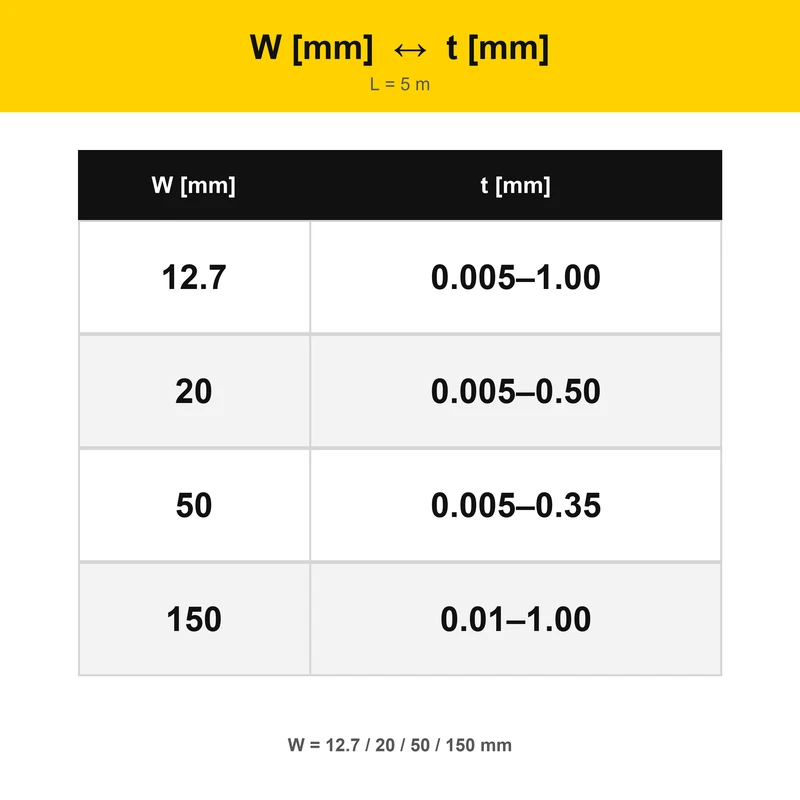

5. Widths and thickness ranges

The product family includes four strip widths. Each width has its own available thickness range. The table shows the limits for each width; exact intermediate values are selected directly in the variant selector.

Strip widthThickness range for this widthRoll length
12.7 mm0.005–1.00 mm5 m
20 mm0.005–0.50 mm5 m
50 mm0.005–0.35 mm5 m
150 mm0.01–1.00 mm5 m

Widths of 20 mm, 50 mm and 150 mm are part of the current product selector; they are not merely made-to-order information. Compare the first two values in the variant name – thickness and width – before purchasing.

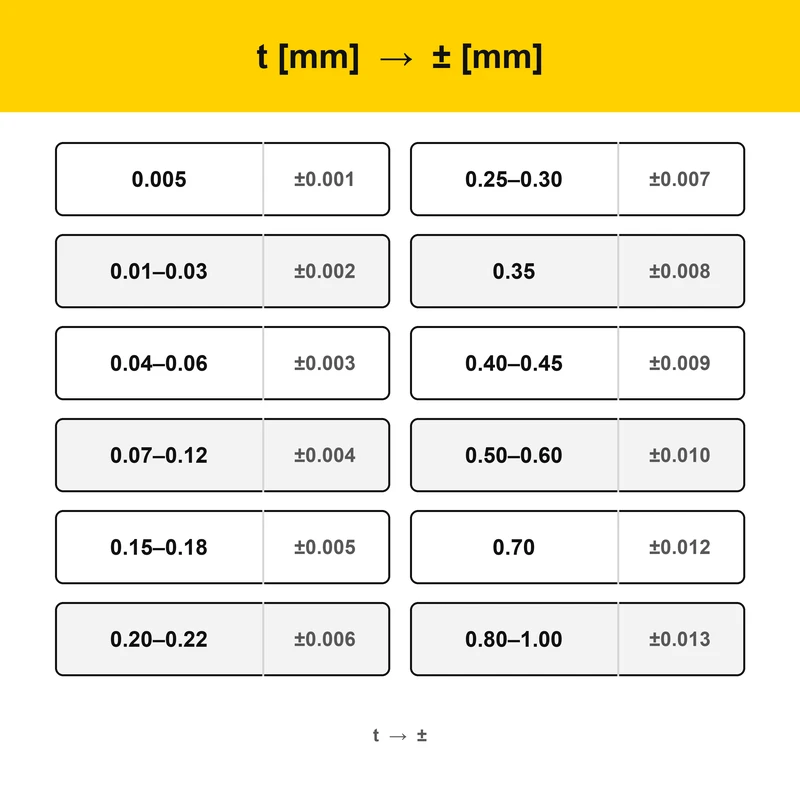

6. Thickness tolerance

Tolerance depends on the nominal strip thickness. All figures in the table are in millimetres. The table must not be extrapolated to thicknesses not explicitly covered by a row.

Nominal strip thicknessThickness tolerance
0.005 mm±0.001 mm
0.01–0.03 mm±0.002 mm
0.04–0.06 mm±0.003 mm
0.07–0.12 mm±0.004 mm
0.15–0.18 mm±0.005 mm
0.20–0.22 mm±0.006 mm
0.25–0.30 mm±0.007 mm
0.35 mm±0.008 mm
0.40–0.45 mm±0.009 mm
0.50–0.60 mm±0.010 mm
0.70 mm±0.012 mm
0.80–1.00 mm±0.013 mm

Example: the stated tolerance for a nominal thickness of 0.30 mm is ±0.007 mm. The nominal value remains part of the selected variant name, while the table gives the corresponding permissible deviation.

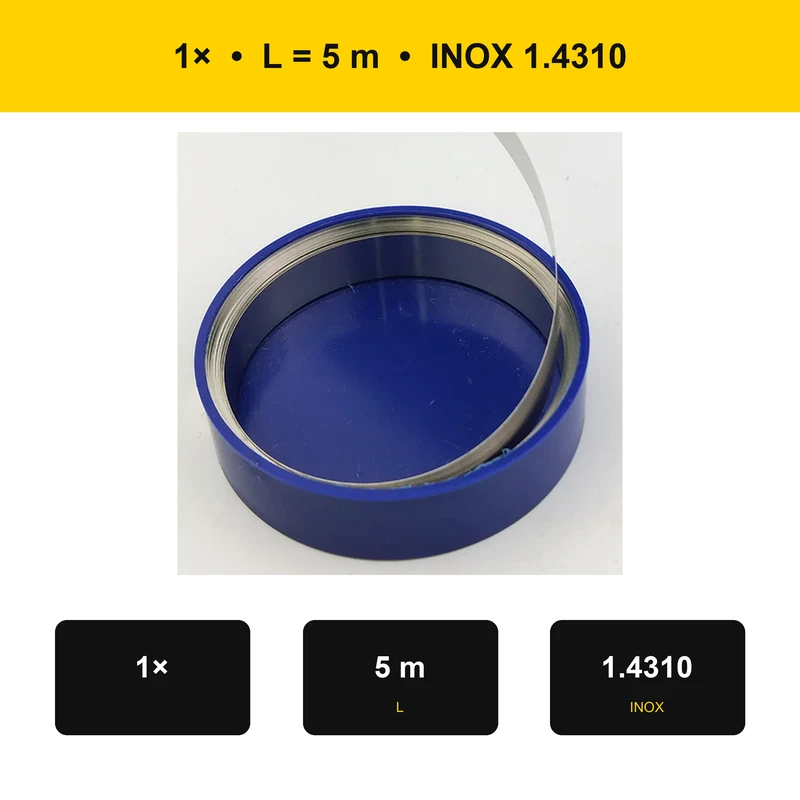

7. Sales unit and contents

The variant price is for one 5 m roll of strip. The roll is held in a dispenser case. The image assigned to the variants shows one roll, matching the actual sales unit. Selecting a different thickness or width does not increase the number of rolls supplied.

ItemContents of the selected variant
Feeler gauge strip1 roll, 5 m long
Steel grade1.4310 stainless steel
DimensionThickness and width shown in the selected variant name
CaseRoll dispenser case
QuantityOne roll – the image does not indicate a set of several rolls

8. Frequently asked questions

QuestionAnswer
Is the price for one roll or several rolls?The price is for one roll of the selected variant. Every roll is 5 m long.
Are the 20, 50 and 150 mm widths included in this listing?Yes. They are available in the selector together with 12.7 mm. Select the exact thickness and width combination.
Why do variants share one image?They differ mainly by numerical dimensions while the roll form remains the same. The full selected variant name defines the purchased dimension.
Does every width cover 0.005 to 1.00 mm?No. This is the range of the complete family. Width-specific ranges are listed in the table and exact values appear in the selector.
Is a calibration certificate included?The listing does not state that a calibration certificate, calibration or manufacturing standard is included.
What do the three values in a variant name mean?In order: nominal strip thickness, strip width and the 5 m roll length.

Before purchase, check the selected variant shown directly above the add-to-basket button. The dimensions in the variant name are binding for the roll being purchased.
