3-Flute Carbide Corner Radius End Mill for Aluminium| AL

Kortools

Availability:

Select a variant to see available quantity pcs.

€7.70

Shipping costs are not included in the price.

Quantity

pcs.

Shipping time: 24 hours

Ask about the product

Select a product variant:

Individual variants may differ in price

Size

Select

Ø1.0xR0.2x4Dx50L

Ø2.0xR0.2x4Dx50L

Ø2.0xR0.5x4Dx50L

Ø3.0xR0.2x4Dx50L

Ø3.0xR0.5x4Dx50L

Ø4.0xR0.5x4Dx50L

Ø5.0xR0.5x5Dx50L

Ø5.0xR0.5x6Dx50L

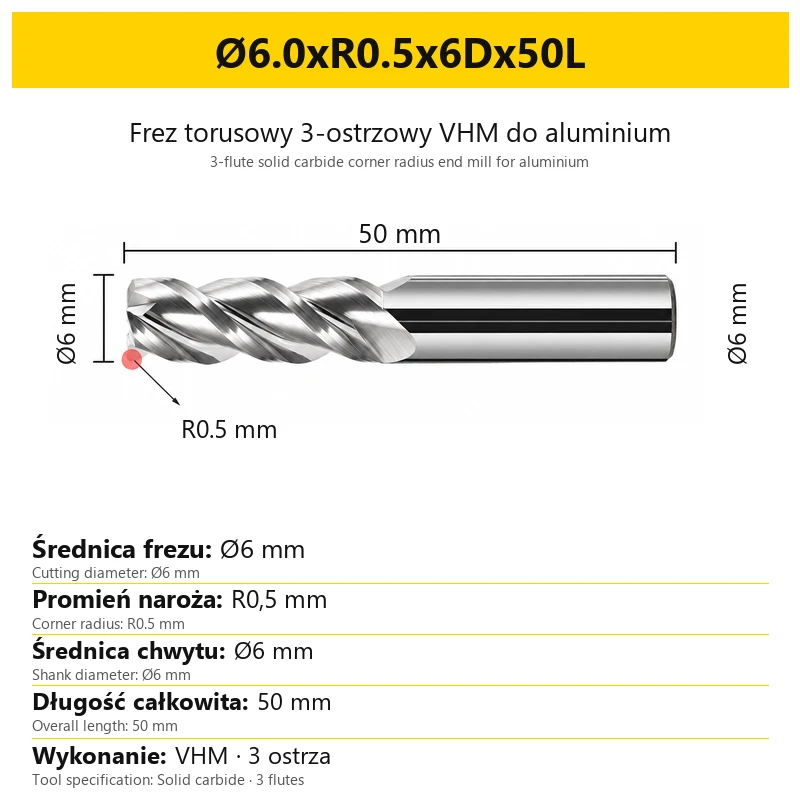

Ø6.0xR0.5x6Dx50L

Ø6.0xR1.0x6Dx50L

Ø8.0xR0.5x8Dx60L

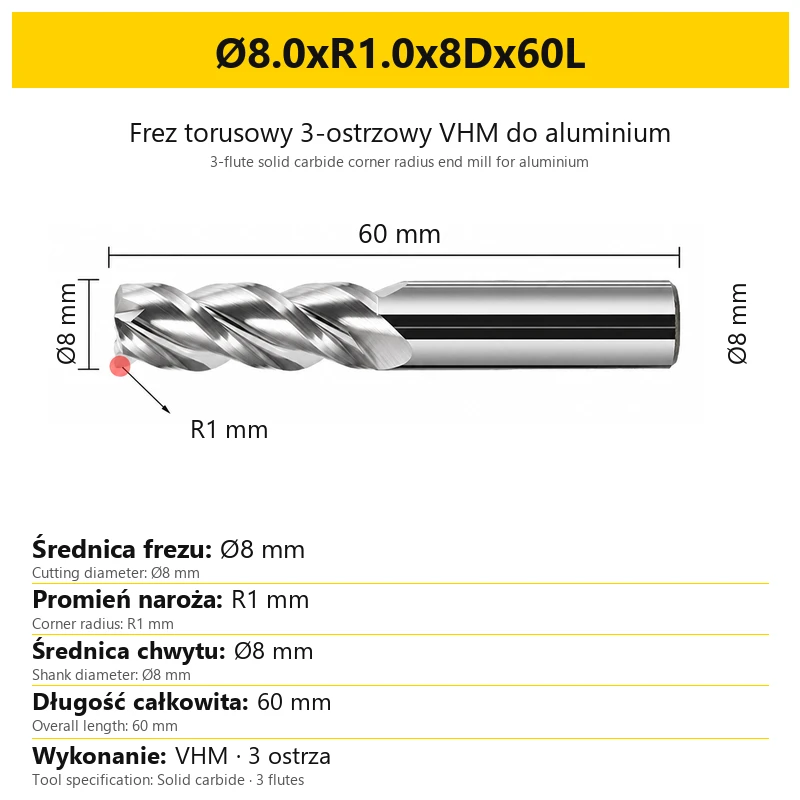

Ø8.0xR1.0x8Dx60L

Ø10xR0.5x10Dx75L

Ø10xR1.0x10Dx75L

Ø12xR0.5x12Dx75L

Ø12xR1.0x12Dx75L

Ø4.0xR0.5x4Dx75L

Ø6.0xR0.5x6Dx75L

Ø6.0xR1.0x6Dx75L

Ø8.0xR0.5x8Dx75L

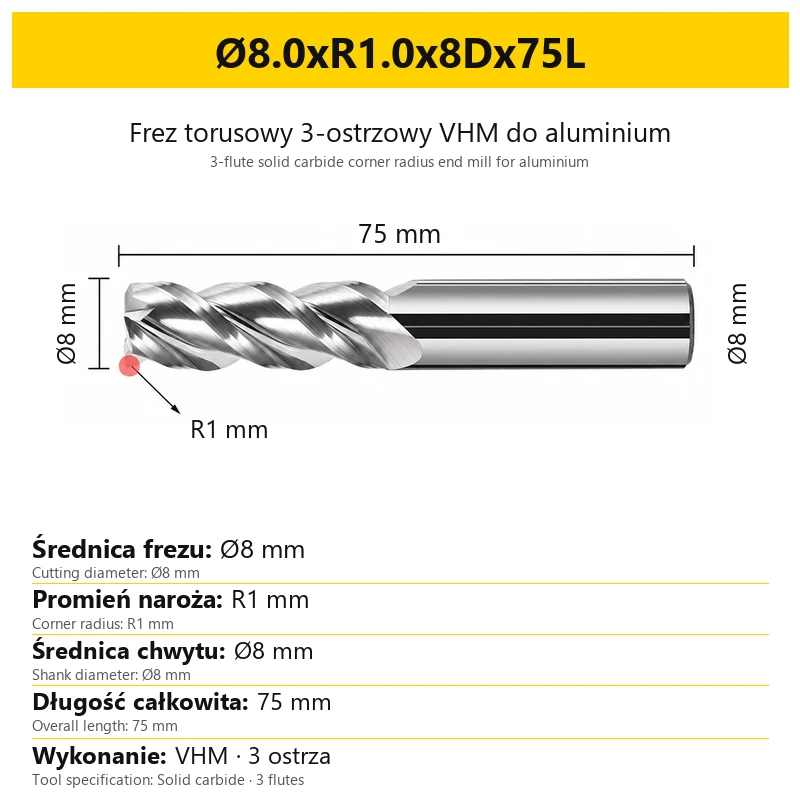

Ø8.0xR1.0x8Dx75L

Ø4.0xR0.5x4Dx100L

Ø4.0xR1.0x4Dx100L

Ø6.0xR0.5x6Dx100L

Ø6.0xR1.0x6Dx100L

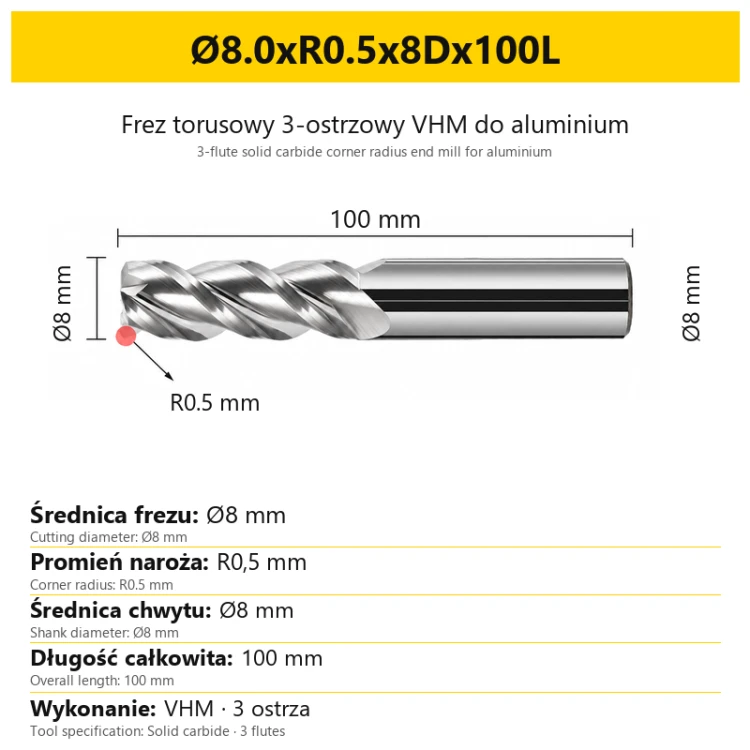

Ø8.0xR0.5x8Dx100L

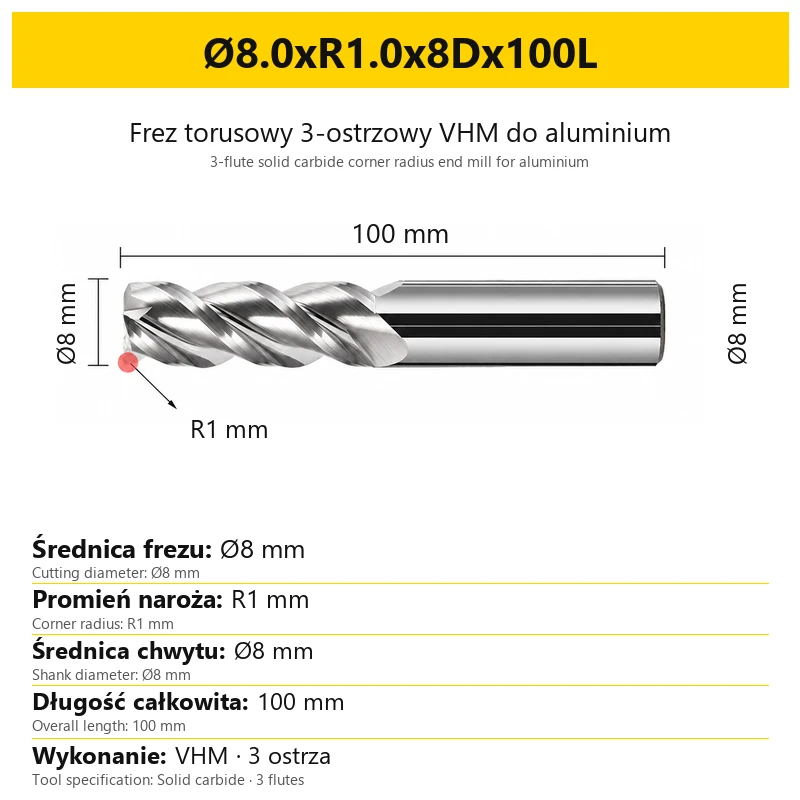

Ø8.0xR1.0x8Dx100L

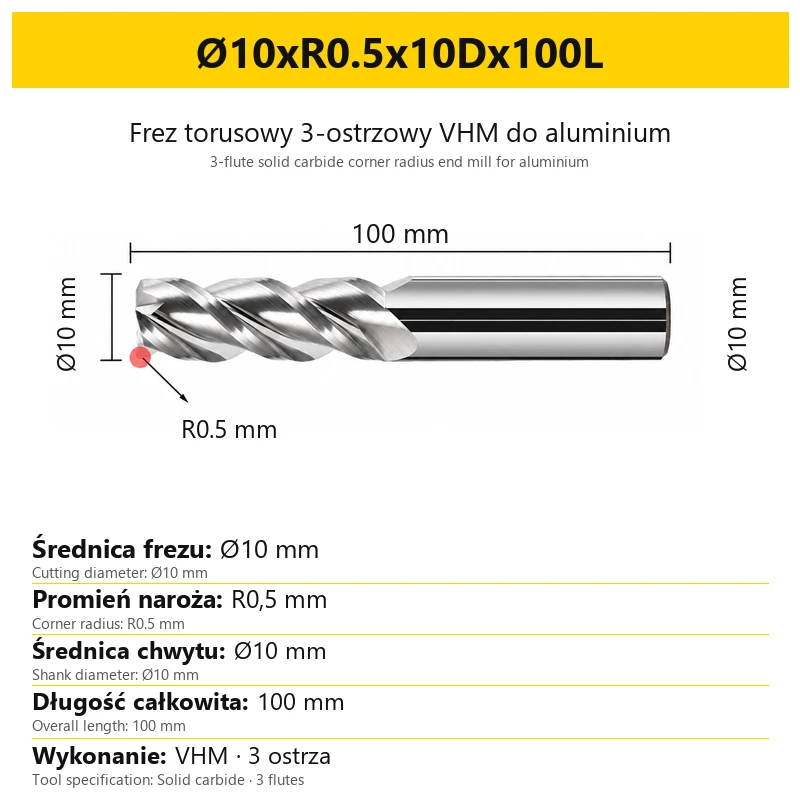

Ø10xR0.5x10Dx100L

Ø10xR1.0x10Dx100L

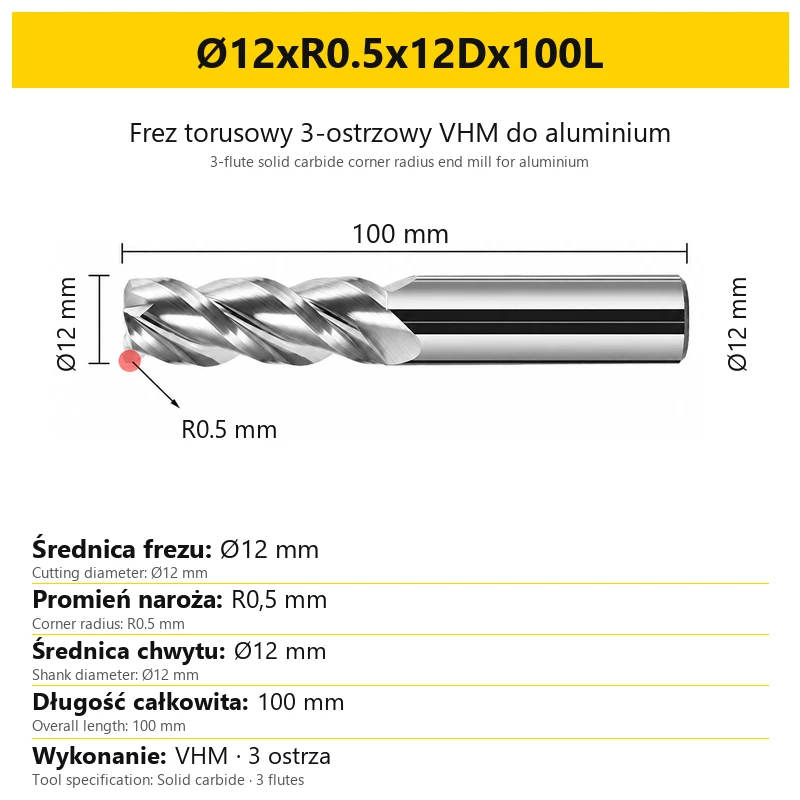

Ø12xR0.5x12Dx100L

Ø12xR1.0x12Dx100L

Ø4.0xR1x4Dx50L

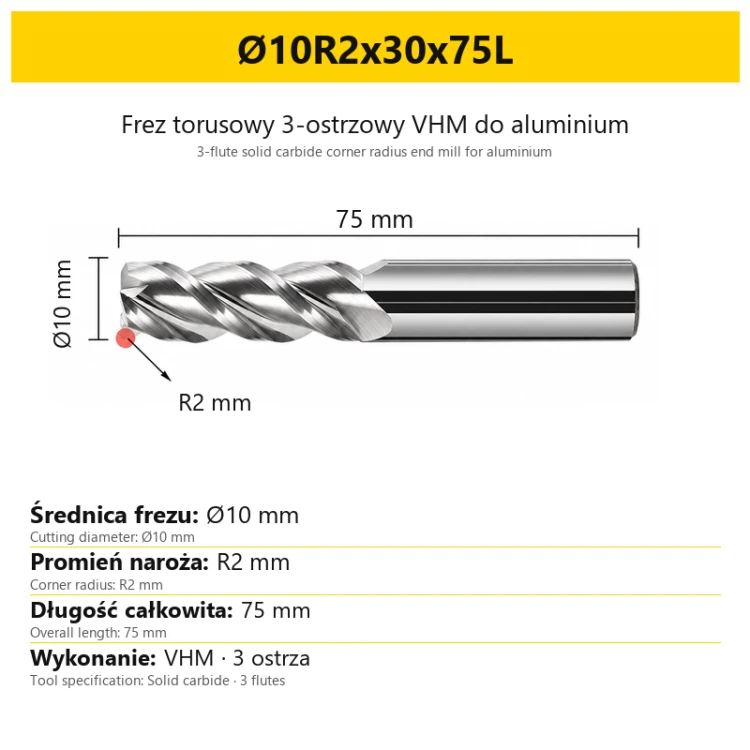

Ø10R2x30x75L

Ø6R0.5x6Dx150L

Ø6R1x6Dx150L

Ø8xR0.5x8Dx150L

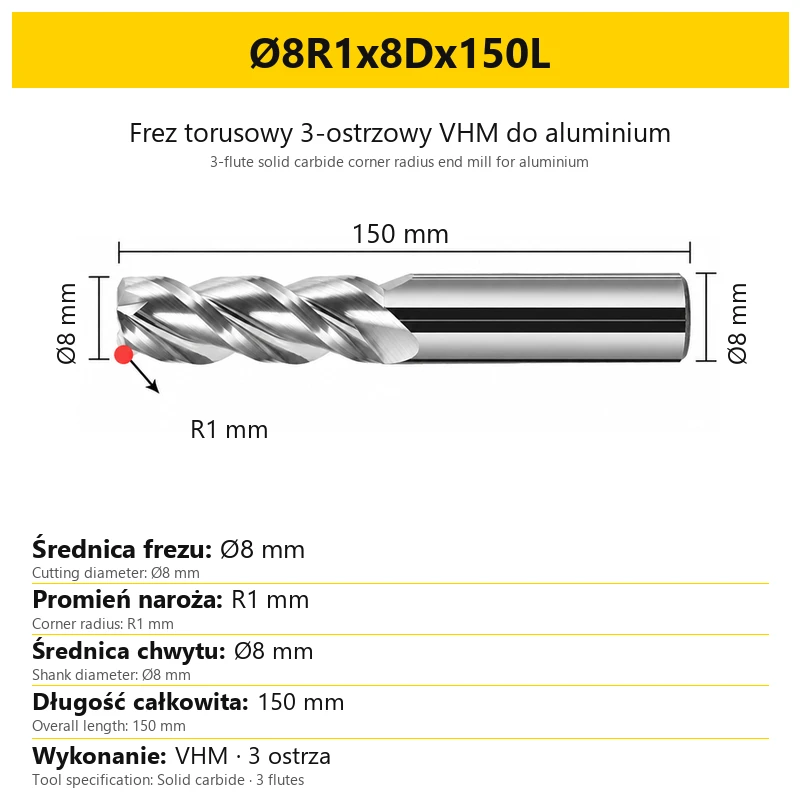

Ø8R1x8Dx150L

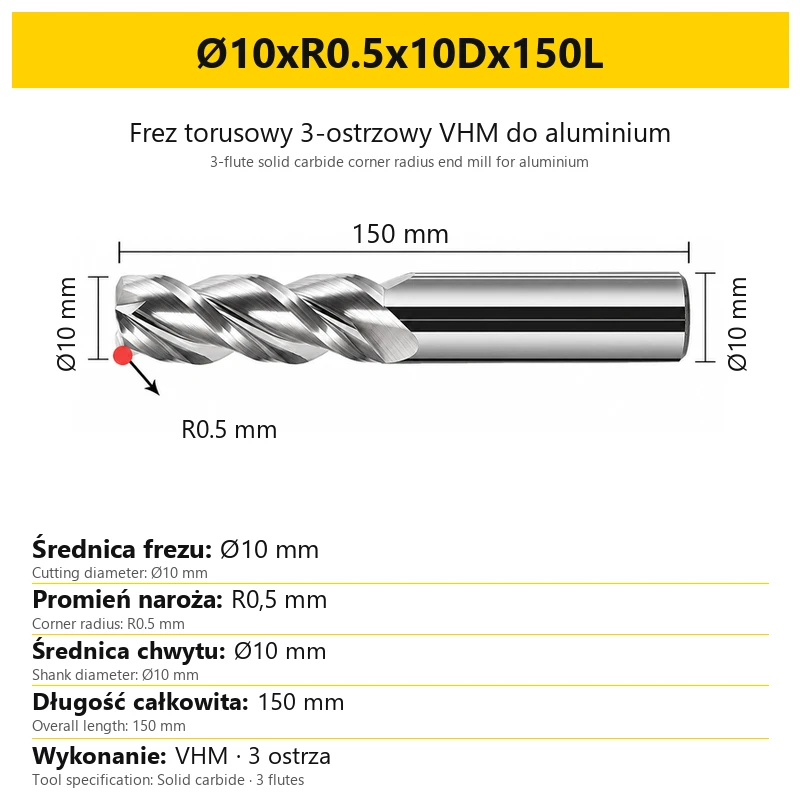

Ø10xR0.5x10Dx150L

Ø10xR1.0x10Dx150L

Ø12xR0.5x12Dx150L

Ø12xR1.0x12Dx150L

Click Available to show variants with 24h shipping

Product description

Solid carbide corner radius end mill for aluminium · 3 flutes

Corner radius R, 35° helix and polished flutes

A three-flute solid carbide corner radius end mill, intended primarily for machining aluminium alloys. It features corner radius R, a 35° helix and large, mirror-polished flutes. Cutting diameter, radius, shank diameter and overall length are selected for the individual variant.

1. Workpiece materials

Material	Application
Aluminium alloys	The primary application of this end mill. Select the cutting diameter and corner radius to suit the component.
Copper alloys	An additional material group suitable for this end mill.
Acrylic / PMMA	Suitable for machining acrylic.
Plastics	Machining plastics with consideration for the particular material and its properties.
Wood	An additional application in wood machining.

Application limits: this end mill is not recommended for steels, stainless steels, titanium and heat-resistant alloys, cast iron, graphite or CFRP composites.

2. Construction and technical specifications

Parameter	Value
Tool type	Corner radius end mill with corner radius R
Tool material	Solid carbide
Material structure	Micrograin; grain size 0.6 µm
Number of flutes	3
Helix angle	35°
Flutes	Large, mirror-polished
Cutting diameter	Ø1–12 mm, depending on the variant
Corner radius	R0.2–2 mm, depending on the variant
Overall length	50, 60, 75, 100 or 150 mm, depending on the variant

These ranges describe the end mill family. Available combinations of cutting diameter, radius, shank diameter and length are shown in the size selector and on the selected variant card.

3. Machining operations

Operation	Scope
Face milling	Machining flat surfaces.
Side milling	Machining the side surfaces of a component.
Slot milling	Machining slots with a suitable cutting diameter.
U-shaped grooves	Machining U-shaped grooves; select the corner radius to match the component geometry.
Hole machining	Milling holes using a suitable toolpath.

4. How to read the variant dimensions

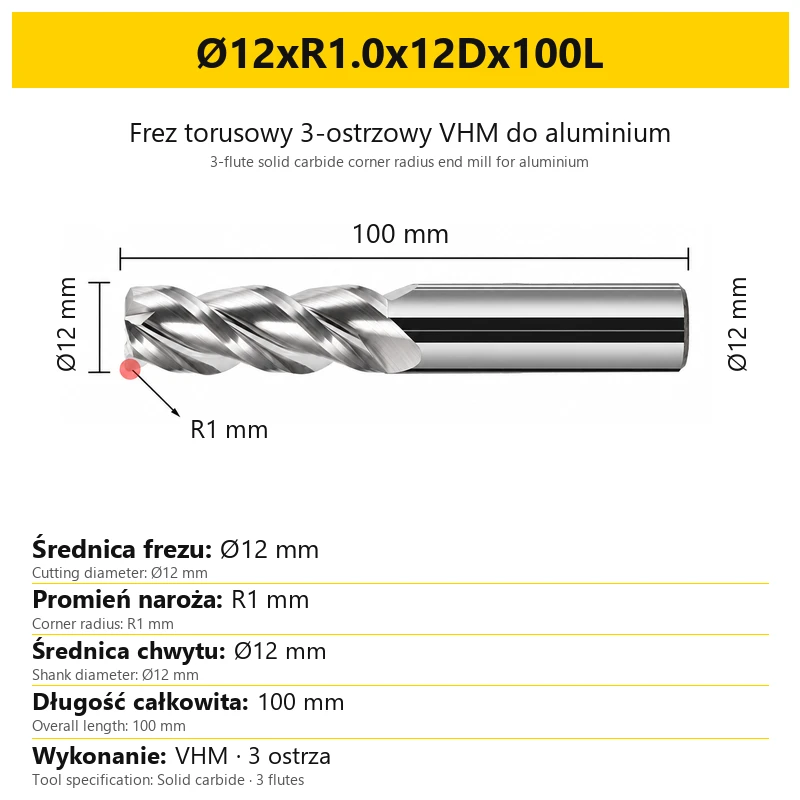

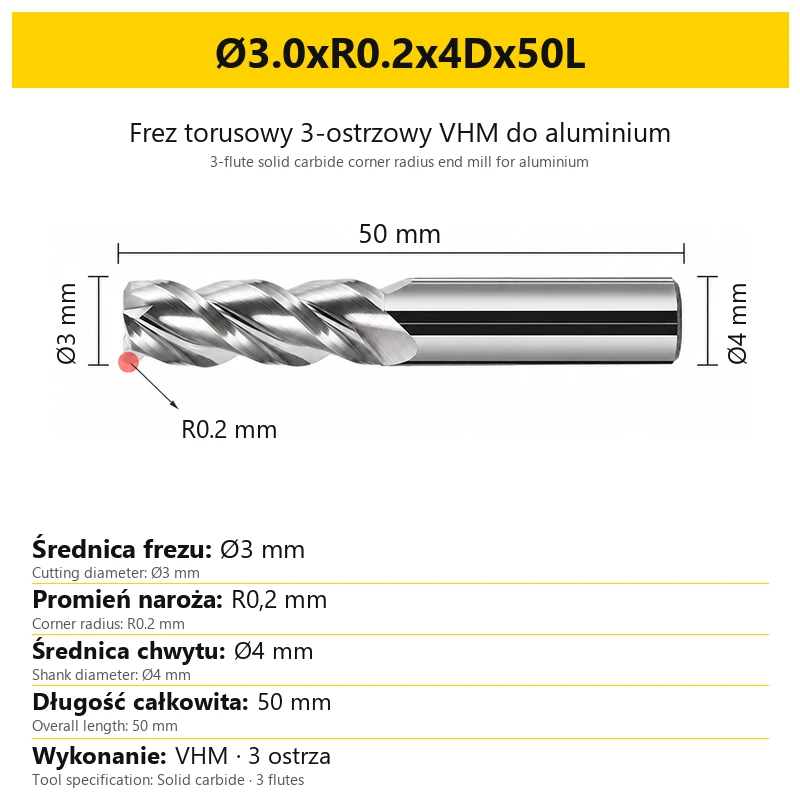

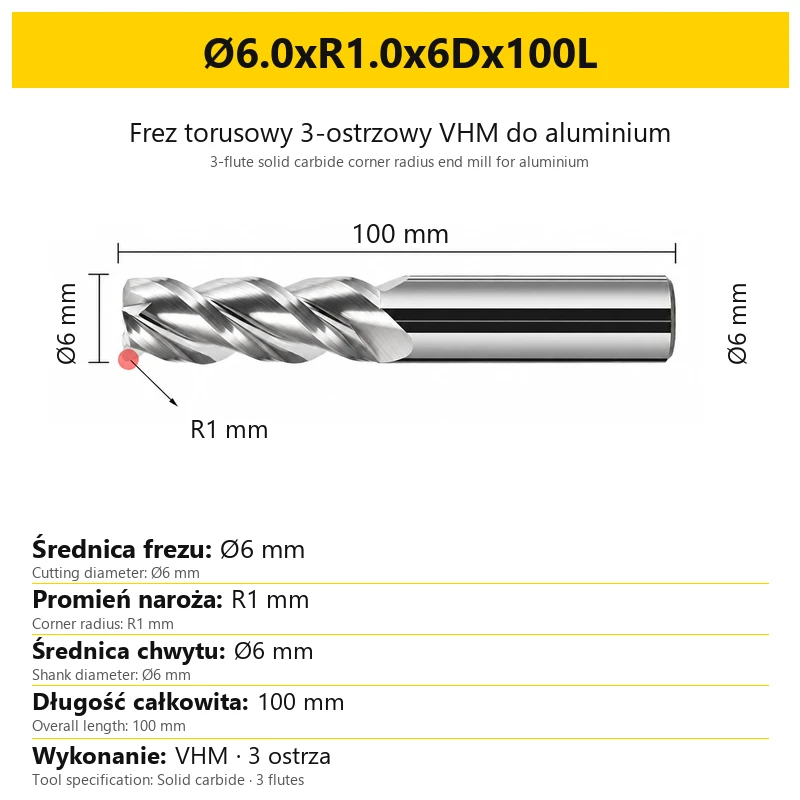

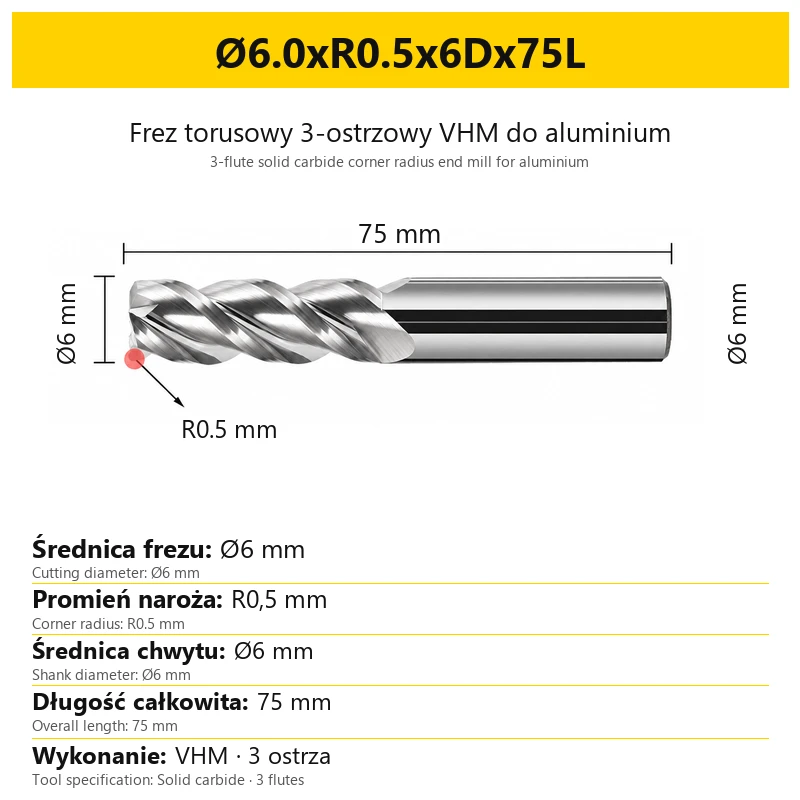

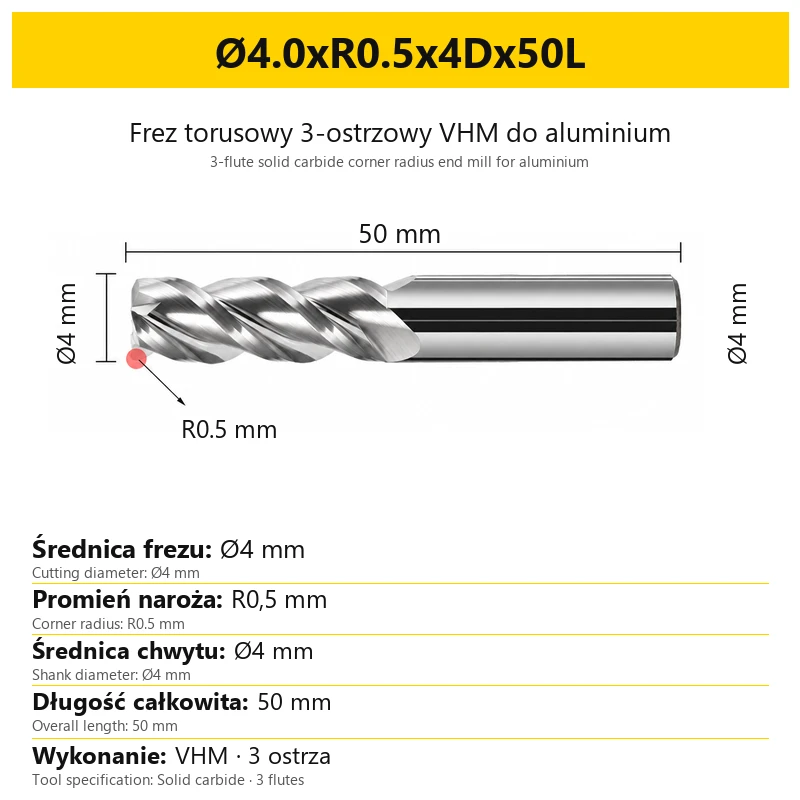

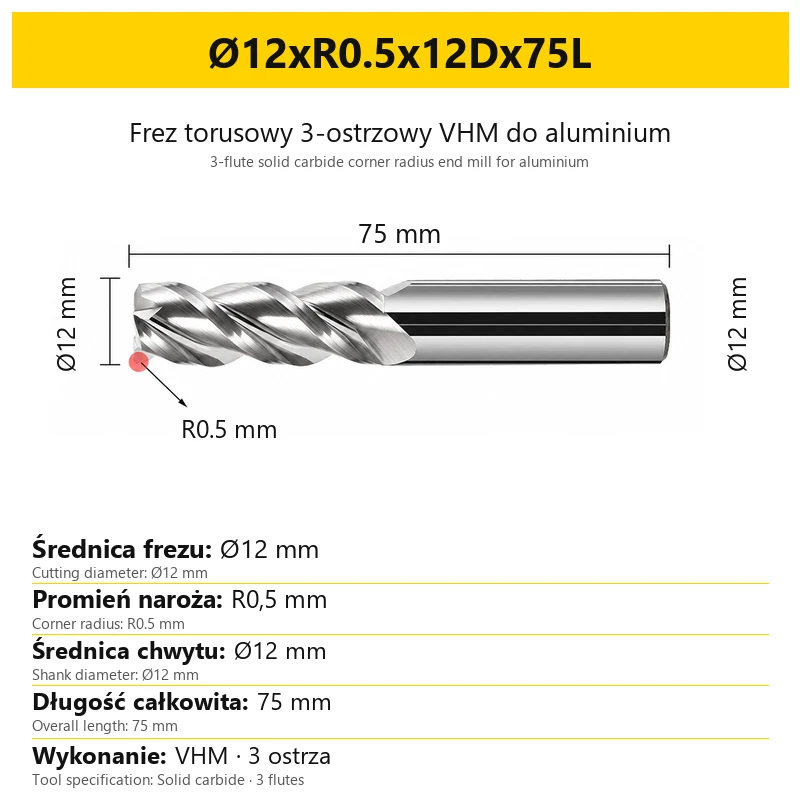

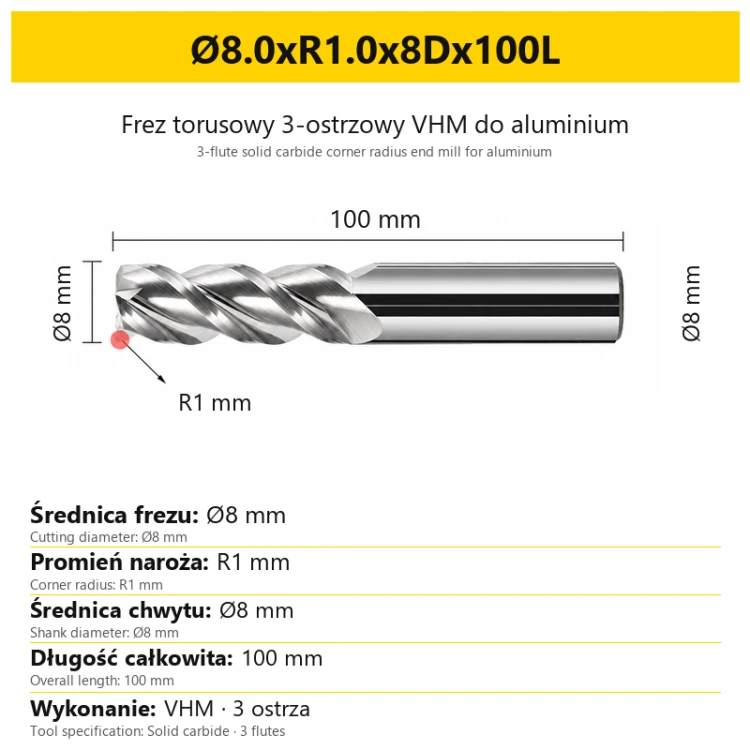

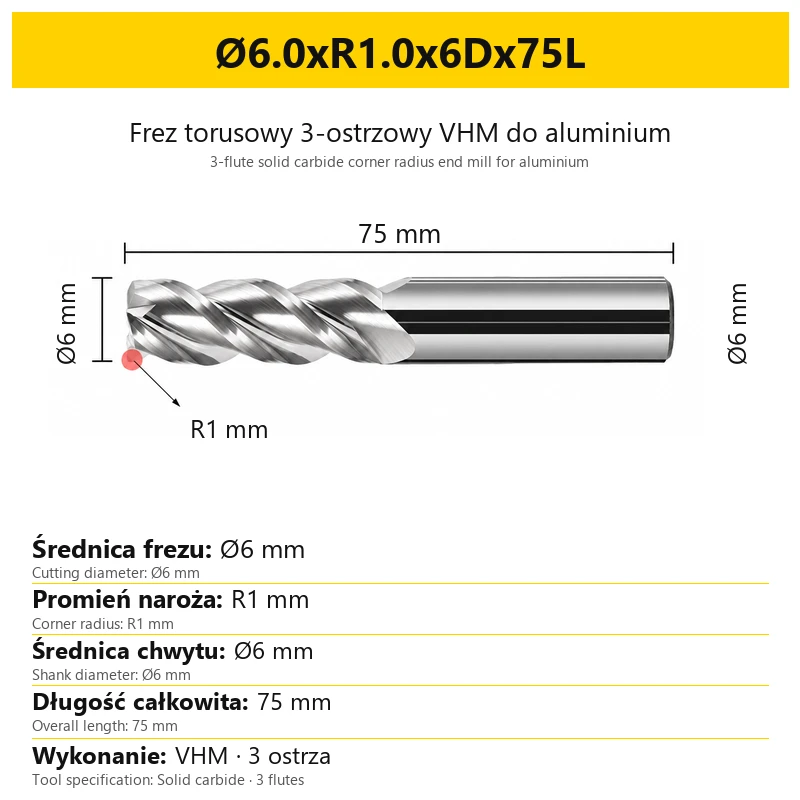

Example designation: Ø5.0xR0.5x6Dx50L. Each value describes a separate tool dimension. All linear dimensions are in millimetres.

Symbol	Meaning	Example
Ø	Cutting diameter	Ø5 mm
R	Corner radius of the cutting section	R0.5 mm
D	Shank diameter	Ø6 mm
L	Overall tool length	50 mm

A decimal point in the variant code and a decimal comma in the Polish text denote the same value: R0.5 corresponds to R0,5 mm. R identifies the corner radius, rather than half the cutting diameter.

Cutting diameter and shank diameter can differ. Select the holder to match the confirmed shank diameter of the individual variant.

5. Selecting the size

Diameter and radius: check the cutting dimensions and the required corner radius in the component.
Shank: compare its dimension with the holder. The Ø5 mm end mill with R0.5 mm corner radius and 50 mm overall length is available with a Ø5 or Ø6 mm shank.
Length: select the overall length and tool projection to provide access to the machining area.
Selected variant: compare the designation and the labelled dimensions on its card. Check the price and availability for the selected size.

Overall length L is not the cutting length. Photographs illustrate the tool; select the size from its designation and stated dimensions, rather than from the proportions of a photograph.

6. Machine and setup

Area	Guidance
Machine type	Machining centres, CNC milling machines and engraving machines with a suitable spindle and holder.
Tool projection	Keep the projection from the holder as short as the operation permits.
Speed and feed	Adjust the cutting parameters to the material, diameter and operating conditions. Reassess the settings when using a longer projection.

For metal machining, consider a cutting fluid suited to the workpiece material and the process. Select the machining conditions separately for metals, plastics and wood.

7. What is supplied

One piece means one end mill in the selected variant. Choose the size in the product selector. A photograph showing several tools illustrates the product family and does not indicate a set.

8. Frequently asked questions

What does radius R mean?

It is the corner radius of the cutting section. Select it to match the required component geometry.

Is this end mill suitable for copper alloys and acrylic?

Yes. In addition to its primary use in aluminium alloys, the application range includes copper alloys, acrylic, plastics and wood. Select the operating conditions for the particular material.
