4-Flute Carbide T-Slot End Mill DLC

Kortools

Availability:

Select a variant to see available quantity pcs.

€13.52

Shipping costs are not included in the price.

Quantity

pcs.

Shipping time: 24 hours

Ask about the product

Select a product variant:

Individual variants may differ in price

Size

Select

Ø3x0.5Hx50L DLC

Ø3x1Hx50L DLC

Ø3x1.5Hx50L DLC

Ø3x2Hx50L DLC

Ø3x2.5Hx50L DLC

Ø3x3Hx50L DLC

Ø4x0.5Hx50L DLC

Ø4x1Hx50L DLC

Ø4x1.5Hx50L DLC

Ø4x2Hx50L DLC

Ø4x2.5Hx50L DLC

Ø4x3Hx50L DLC

Ø6x0.5Hx50L DLC

Ø6x1Hx50L DLC

Ø6x1.5Hx50L DLC

Ø6x2Hx50L DLC

Ø6x2.5Hx50L DLC

Ø6x3Hx50L DLC

Ø8x0.5~8Hx60L DLC

Ø8x0.5Hx60L DLC

Ø8x1Hx60L DLC

Ø8x1.5Hx60L DLC

Ø8x2Hx60L DLC

Ø8x2.5Hx60L DLC

Ø8x3Hx60L DLC

Ø10x0.5~10Hx60L DLC

Ø10x0.5Hx60L DLC

Ø10x1Hx60L DLC

Ø10x1.5Hx60L DLC

Ø10x2Hx60L DLC

Ø10x2.5Hx60L DLC

Ø10x3Hx60L DLC

Ø12x0.5~12Hx60L DLC

Ø12x0.5Hx60L DLC

Ø12x1Hx60L DLC

Ø12x1.5Hx60L DLC

Ø12x2Hx60L DLC

Ø12x2.5Hx60L DLC

Ø12x3Hx60L DLC

Click Available to show variants with 24h shipping

Product description

4-flute solid carbide T-slot end mill with DLC coating

For T-slots and undercuts · cutting diameters Ø2–12 mm

A solid carbide cutter with a disc-shaped cutting head and a reduced neck, designed for machining T-slots and undercuts. The cutter has four flutes, identified by Z-4. DLC (Diamond-Like Carbon) coating is used for the applications listed below.

Select cutting diameter D and cutting thickness H, then check the shank, neck dimensions and overall length on the variant card. For a thickness-range option, specify one cutting thickness within the stated range.

1. Applications and workpiece materials

The cutter is intended for machining T-shaped slots and undercuts on CNC machines. The reduced neck provides clearance between the cutting head and the shank; consider both its diameter and length when matching the tool to the workpiece geometry.

Material group	Application range
Non-ferrous metals	Aluminium, copper and brass.
Non-metallic materials	PLEXI, PVC, POM and PE plastics, and plywood.

Select cutting conditions for the material, cutter diameter, cutting thickness and workholding. Spindle speed and feed rate depend on the specific application.

2. Construction and technical specifications

Parameter	Value or description
Tool type	Solid carbide, shank-type T-slot cutter
Tool material	VHM — solid carbide
Coating	DLC — Diamond-Like Carbon
Number of flutes	4 — designation Z-4
Cutting diameter D	Ø2–12 mm, depending on the variant
Cutting thickness H	Specified in the variant name; for a thickness range, select a specific H value
Overall length L	50 or 60 mm, depending on the variant
Shank and neck	Dimensions depend on the version and are shown on the selected variant card

Check the product selector for diameter, thickness and length combinations. Not every diameter is offered in every length.

3. Fixed-thickness and thickness-range DLC variants

Variant marking	Meaning
A single H value	The variant has the specific cutting thickness stated in its designation. Select it when that thickness matches the dimension required for the slot.
An H range with the ~ symbol	Select a specific cutting thickness within the stated range and enter it in the order notes. The range does not mean an adjustable-thickness tool or a set containing all thicknesses.
DLC suffix	Identifies the tool coating. This cutter family has 4 flutes. Read its dimensions from the designation and variant card.

Compare complete designations: cutters with the same diameter may differ in thickness, overall length or neck geometry.

4. How to read the cutter designation

Example: Ø4x0.5Hx50L DLC means cutting diameter D = 4 mm, cutting thickness H = 0.5 mm and overall length L = 50 mm. All dimensions on the cards are given in millimetres.

The value after Ø is the cutting head diameter. H is its axial thickness; L is the overall tool length. The DLC suffix identifies the coating.

The abbreviated designation does not include every dimension. Check the shank diameter and neck dimensions separately on the card. Decimal points in names and decimal commas on cards have the same meaning: 0.5 mm = 0,5 mm.

5. Dimensions on the variant card

Symbol and dimension	What to check
D — cutting diameter	Outside diameter of the disc-shaped cutting head. Match it to the slot geometry and access to the machining area.
H — cutting thickness	Axial thickness of the cutting head. For thickness-range variants, the card shows the range from which you select a specific thickness.
d — shank diameter	Diameter of the part held in the tool holder. Select the holder for this dimension; it may differ from cutting diameter D.
n — neck diameter	Diameter of the reduced neck behind the cutting head. Consider it when checking clearance between the tool and the workpiece.
l — neck length	Length of the section marked beside the reduced neck in the drawing. Read it together with the neck diameter.
L — overall length	Length of the complete tool. It is neither the cutting thickness nor the permissible cutting depth for one pass.

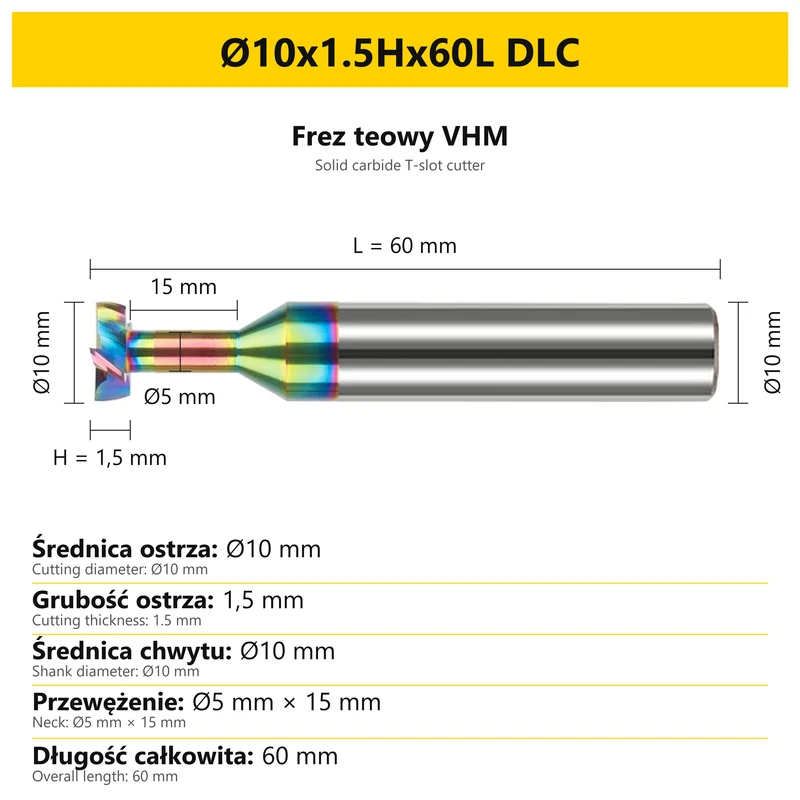

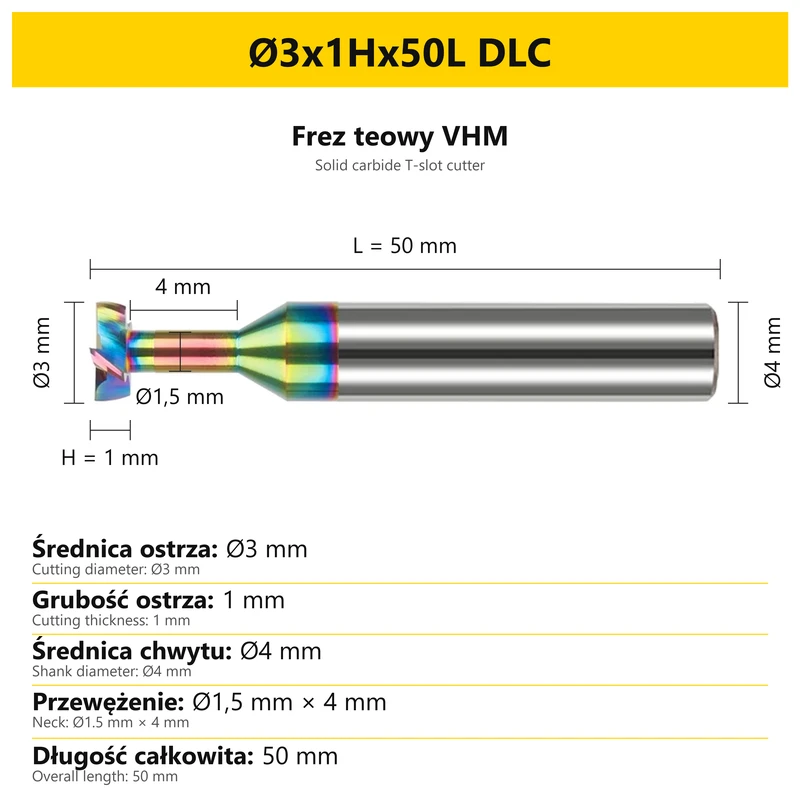

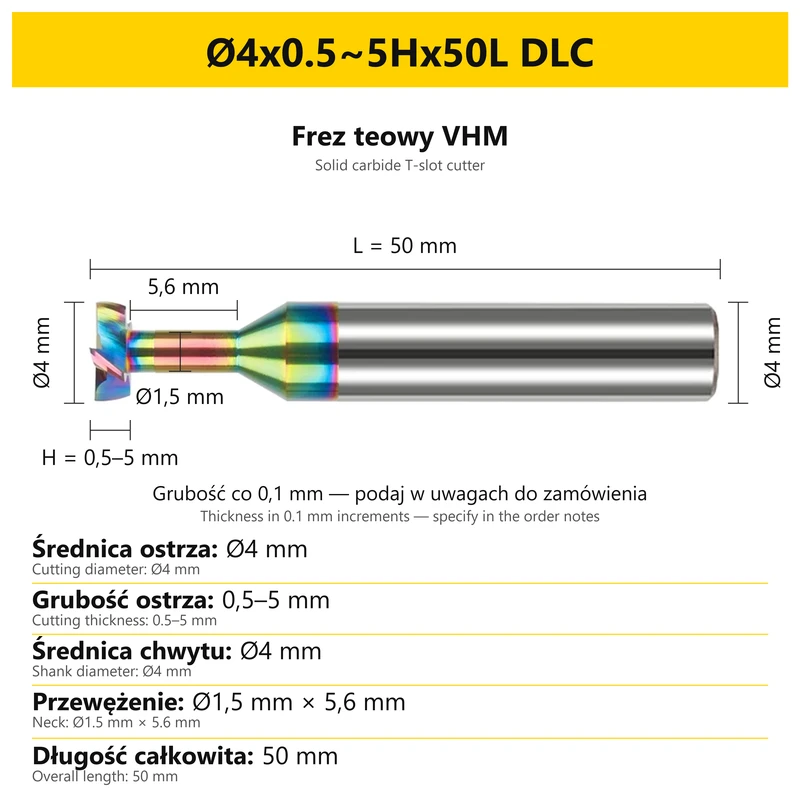

In the table below the photograph, the neck is described as diameter × length. Letter case matters: D and d, as well as l and L, identify different dimensions. Use the labelled values, as the cutter photograph is not a scale drawing.

6. How to order a cutting thickness within a range

Thickness-range example: Ø6x0.5~6Hx50L DLC. This means a cutting diameter of 6 mm, a choice of cutting thickness H from 0.5 to 6 mm, and an overall length of 50 mm.

Select the correct diameter and range. Check that the required thickness H is within the lower and upper limits of the selected variant.
Enter the specific thickness in the order notes. For the example above, write “Cutting thickness H = 1.3 mm”. When ordering different cutters, match each requested thickness to its corresponding variant.
Check all dimensions on the card. Also verify shank diameter, neck diameter and length, and overall length.

Thicknesses within the stated ranges can be specified in 0.1 mm increments. This is the selection increment when ordering, not a stated manufacturing tolerance. If the required dimension is absent from the selector or outside the listed range, contact us to check whether it can be ordered.

7. Selecting a variant for the workpiece and holder

Start with the slot geometry. Compare diameter D and thickness H with the workpiece drawing and the planned machining operation.
Check the space for the neck and shank. Read n and l from the specific variant card. Allow for clearance in the slot, around the workpiece and near the tool holder.
Match the holder to shank diameter d. The cutting head diameter alone does not determine the required collet or tool holder size.
Verify overall length L. Compare the values with the selected variant card before preparing the tool for use.

Use on CNC machines with a suitable spindle and holder. Consider the full outline of the cutting head, neck and shank, and tool access to the undercut.

8. Frequently asked questions

What does Z-4 mean in the product name?

Z-4 identifies four cutting flutes. DLC refers to the coating. Neither designation replaces dimensions D, H, d, n, l and L.

Does a thickness-range variant include a set of cutters?

No. The H range is used to select one specific cutting thickness. Specify the required value when ordering; the tool has that fixed, selected thickness.

Does the cutting diameter also specify the shank diameter?

Do not assume that the two are equal. Cutting diameter D and shank diameter d are separate dimensions. Check both values on the selected variant card.

Where can I find the complete dimensions of a cutter?

After selecting a variant, check its assigned card in the gallery. It shows cutting diameter and thickness, shank diameter, neck dimensions and overall length. For thickness-range cards, H is shown as a range.
