Carbide Drill 55HRC TiSiN 3D DrillNox
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Ask about the product
The administrator of personal data is Kortools. We process it to respond to your inquiry. More information regarding the processing of personal data can be found in privacy policy.
Select a product variant:
Individual variants may differ in price
Product code: 3BBE-4836E
Product description
DrillNox is a TiSiN-coated solid carbide twist drill for drilling steel, stainless steel and cast iron. The series includes different diameters, working lengths and overall lengths. Select the complete size designation to choose the required drill dimensions.
1. Applications
DrillNox drills are intended for drilling the following workpiece material groups:
| Workpiece material group | Operation |
|---|---|
| Steel | Drilling |
| Stainless steel | Drilling |
| Alloy steel | Drilling |
| Tool steel | Drilling |
| Cast iron | Drilling |
2. Construction
Tool material: solid carbide. Coating: TiSiN. The drill has a spiral working section and a cylindrical shank. The series specification gives a grain size of 0.6 µm.
The designations 55HRC and 3D identify this series. Select the size using the diameter, working length and overall length specified for the selected variant.
3. Technical specifications
| Parameter | Value |
|---|---|
| Series | DrillNox |
| Tool type | Twist drill |
| Tool construction | VHM — solid carbide |
| Coating | TiSiN |
| Series designation | 55HRC |
| Length designation | 3D |
| Shank type | Cylindrical |
| Grain size | 0.6 µm |
| Drill diameter | Ø0.5–20 mm |
| Working length | 8–55 mm, depending on size |
| Overall length | 30–100 mm, depending on size |
| Point angle | 120° for Ø ≤ 3 mm; 130° for Ø > 3 mm |
| Sales unit | 1 drill in the selected size |
4. Available dimensions
The ranges cover the complete DrillNox family. Each size has specific lengths; the ranges do not imply that dimensions can be combined freely.
| Dimension | Range / where to read it |
|---|---|
| Drill diameter | Ø0.5–20 mm; exact value in the size designation |
| Working length | 8–55 mm; the second number in the designation |
| Overall length | 30–100 mm; the final value ending in L |
| Shank diameter | Where specified in the code, read the value ending in D |
5. Understanding the size designation
Example designation: Ø6.0x25x50L. The numbers specify drill diameter, working length and overall length, in millimetres.
| Designation part | Meaning | Example value |
|---|---|---|
| Ø6.0 | Drill diameter | Ø6 mm |
| 25 | Working length | 25 mm |
| 50L | Overall length | 50 mm |
6. Point angle
The point angle depends on drill diameter. A Ø3 mm drill belongs to the 120° group.
| Drill diameter | Point angle | Range boundary |
|---|---|---|
| Ø ≤ 3 mm | 120° | Includes Ø3 mm |
| Ø > 3 mm | 130° | Diameters greater than Ø3 mm |
7. What your order includes
Your purchase includes 1 DrillNox TiSiN solid carbide drill in the selected size. The quantity added to the basket is the number of pieces of that size.

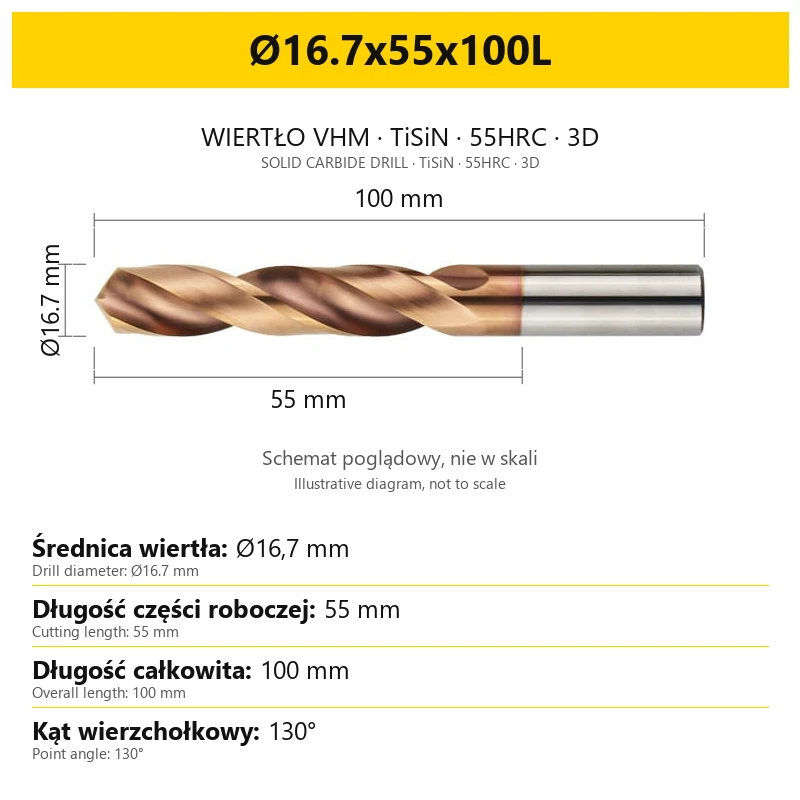

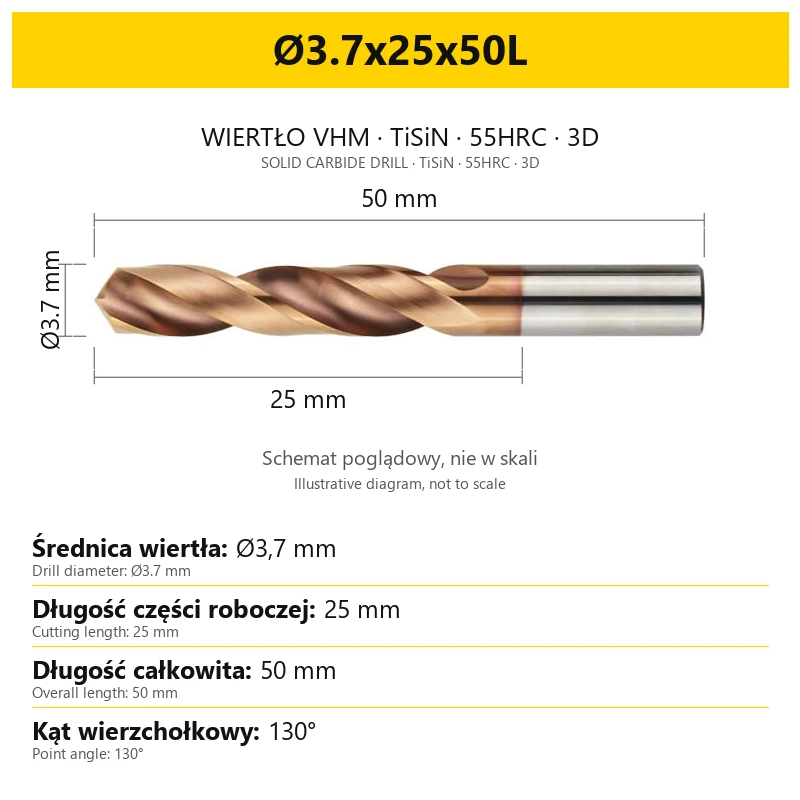

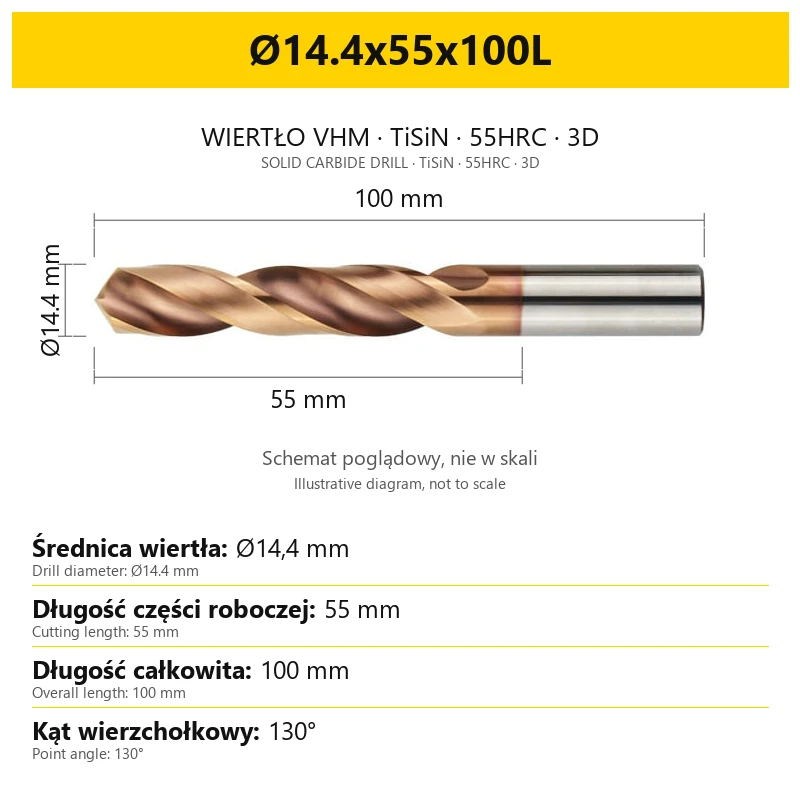

Dimension cards use an illustrative photograph and are not to scale. The dimensions of the selected size appear next to the dimension lines and in the fields below the photograph.
8. Frequently asked questions
Does 50L specify working length?
No. L specifies overall length. Working length is an earlier, separate number in the size designation.
Is working length the drilling depth?
Working length is a tool dimension. It does not by itself specify maximum drilling depth.
What point angle does a Ø3 mm drill have?
120°. The 130° angle applies to diameters greater than 3 mm.
Does the price cover a drill set?
The price covers one drill in the selected size.
