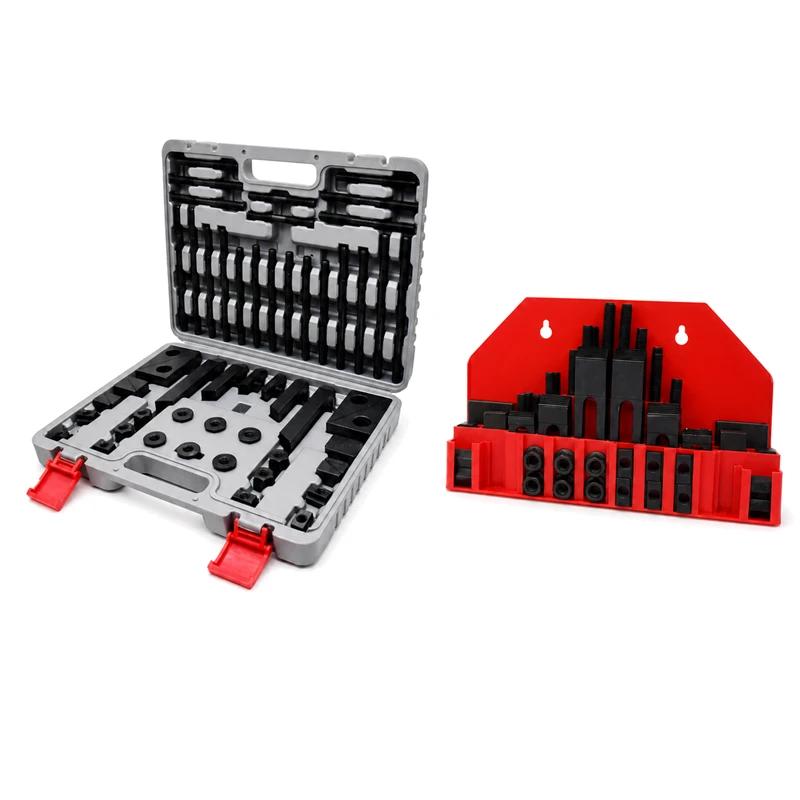

  • Gray case and red organizer, 58-piece clamping kit
  • Red organizer, 58-piece clamping kit
  • Grey case, 58-piece clamping kit
  • Blue tray, 58-piece clamping kit
  • Variant 8.8, M10, czerwony organizer
  • Variant 8.8, M12, czerwony organizer
  • Variant 8.8, M14, czerwony organizer
  • Variant 8.8, M16, czerwony organizer
  • Variant 12.9, M6, czerwona metalowa skrzynka
  • Variant 12.9, M8, czerwona metalowa skrzynka
  • Variant 12.9, M10, czerwona metalowa skrzynka
  • Variant 12.9, M12, czerwona metalowa skrzynka
  • Variant 12.9, M14, czerwona metalowa skrzynka
  • Variant 12.9, M16, czerwona metalowa skrzynka
  • Variant 12.9, M6, szara walizka
  • Variant 12.9, M8, szara walizka
  • Variant 12.9, M10, szara walizka
  • Variant 12.9, M12, szara walizka
  • Variant 12.9, M14, szara walizka
  • Variant 12.9, M16, szara walizka
  • Variant 12.9, M18, szara walizka
  • Variant 12.9, M20, szara walizka
  • Variant 8.8, M18, niebieska taca
  • Variant 8.8, M20, niebieska taca
  • Variant 12.9, M18, niebieska taca
  • Variant 12.9, M20, niebieska taca
  • Variant 12.9, M22, niebieska taca
  • Variant 12.9, M24, niebieska taca

58-piece clamping kit M6-M24, 8.8 or 12.9 - fast fulfilment

Kortools
Main warehouse:
Select a variant to see available quantity pcs.
with VAT without VAT
Price €117.88

Shipping costs are not included in the price.

pcs.
Shipping time: 6-10 business days
Ask about the product

Select a product variant:

Individual variants may differ in price

Select 8.8 | M10 | red organiser 8.8 | M12 | red organiser 8.8 | M14 | red organiser 8.8 | M16 | red organiser 12.9 | M6 | red metal case 12.9 | M8 | red metal case 12.9 | M10 | red metal case 12.9 | M12 | red metal case 12.9 | M14 | red metal case 12.9 | M16 | red metal case 12.9 | M6 | grey case 12.9 | M8 | grey case 12.9 | M10 | grey case 12.9 | M12 | grey case 12.9 | M14 | grey case 12.9 | M16 | grey case 12.9 | M18 | grey case 12.9 | M20 | grey case 8.8 | M18 | blue tray 8.8 | M20 | blue tray 12.9 | M18 | blue tray 12.9 | M20 | blue tray 12.9 | M22 | blue tray 12.9 | M24 | blue tray
Click Available to show variants with 24h shipping


Opis produktu

Fast fulfilment

Select the required set variant. The current price and fast fulfilment time are shown for the selected item.

Can you wait? The economy option with dispatch within 60 days is temporarily unavailable.

A complete clamping kit for machine tables

The CZ225 clamping kit is intended for building rigid workholding arrangements on milling machines, machining centres and other machines with compatible T-slots. It gives the operator a practical selection of clamps, step blocks, studs and nuts in one organised set.

One 58-piece kit supports many workholding layouts for workpieces of different heights. The components are organised in the packaging assigned to the selected variant, making it easier to check the set and prepare the next setup.

On this product page you select the M size marking and a variant marked 8.8 or 12.9. Each technical variant has its own gallery card, so the marking and packaging form can be checked before the item is added to the cart.

A complete set also reduces the need to assemble a clamping arrangement from unrelated components with mixed or unknown markings. The clamps, blocks, nuts and studs are presented as one purchasing configuration, which simplifies workstation preparation, component counting and correct storage after use. This is particularly useful when several operators share the same tooling.

The kit can be used when holding plates, bodies, blanks and fixtures, provided that the selected variant is compatible with the machine table and the planned arrangement. The selection of stud lengths and support steps helps position the clamp for different workpiece heights. The kit does not replace a properly designed workholding plan, but it provides an organised foundation for building one.

Contents of the 58-piece set

6 T-slot nuts
Base elements used with a compatible machine-table slot.
6 flange nuts
For tightening and stabilising the clamping arrangement.
4 coupling nuts
For joining threaded elements in selected configurations.
6 step clamps
Clamping elements supported by the matching step blocks.
12 step blocks
Six pairs for adjusting clamp support height.
24 threaded studs
Four pieces in each length: 75, 100, 125, 150, 175 and 200 mm.

Total: 58 elements. The family uses the same basic set composition. The size marking, class marking and packaging appearance depend on the exact variant selected.

8.8 or 12.9: what the difference means

Selection point8.8 marking12.9 marking
PositioningA sensible choice for regular workshop use.Premium variant with a higher class of threaded elements.
Best suited toUsers looking for a capable working set at a lower price.Users who deliberately require the higher class marking and a greater margin on the threaded elements.
Main distinction8.8 class assigned to the variant.12.9 class assigned to the variant, which is why this option costs more.

Important: the 8.8 or 12.9 marking refers to the class of the threaded elements assigned to the variant. It does not state one material class for all 58 parts. The capacity of the complete workholding arrangement also depends on the table, T-slots, geometry, component condition and correct tightening.

24 variants in a clear order

The list is grouped by packaging form and then ordered by increasing size. Each item has a dedicated bilingual PL and EN gallery card.

GroupVariant classAvailable size markings

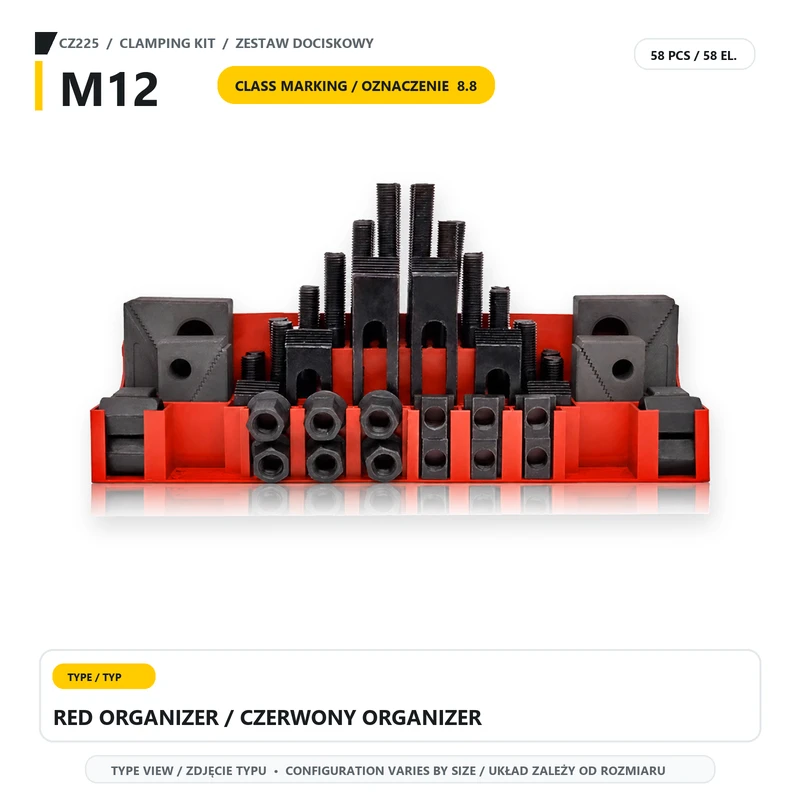

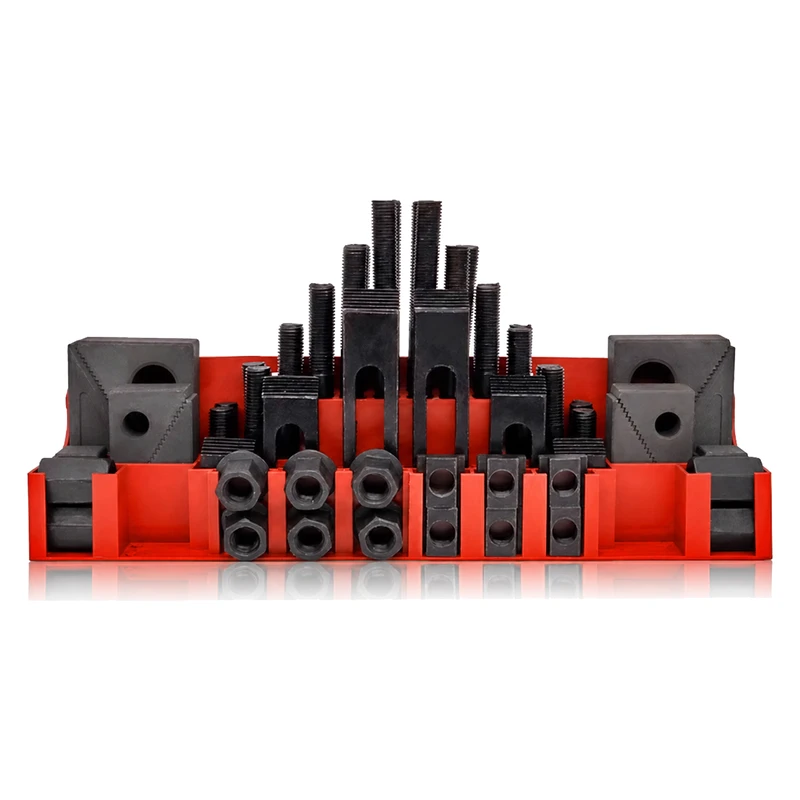

Red organiser8.8M10, M12, M14, M16

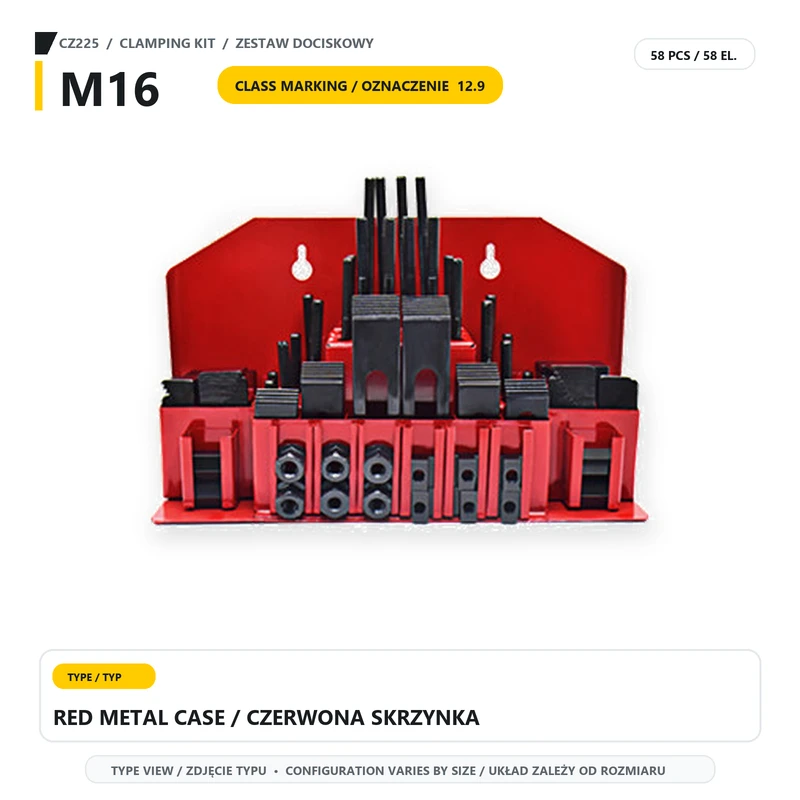

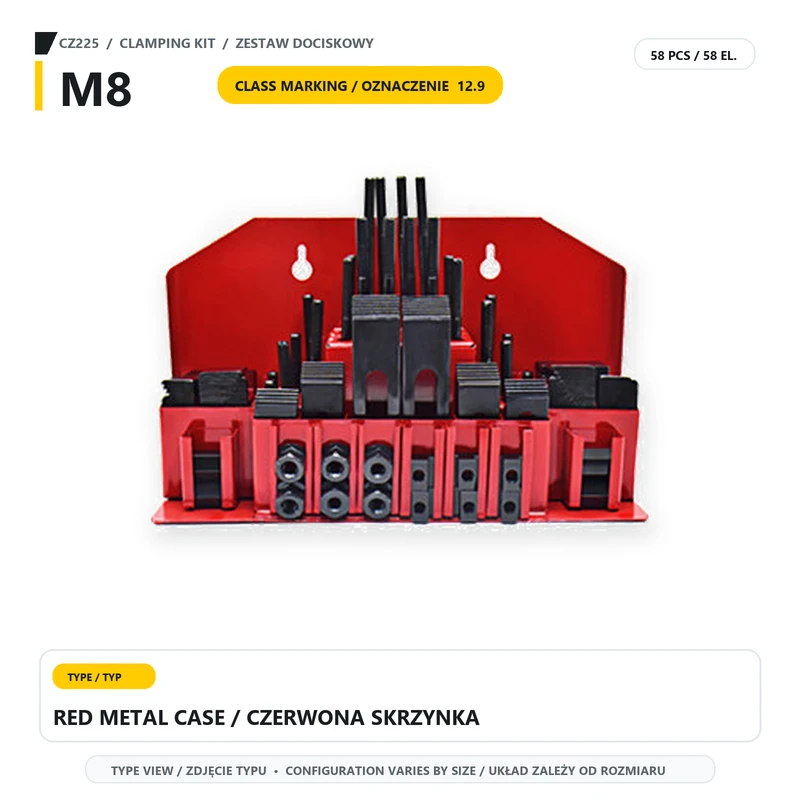

Red metal case12.9M6, M8, M10, M12, M14, M16

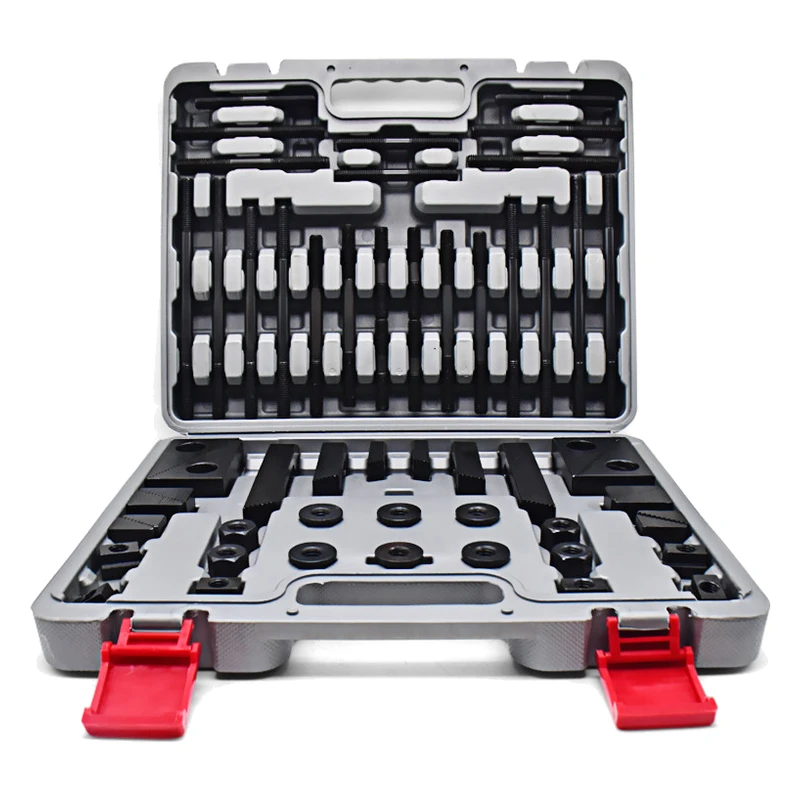

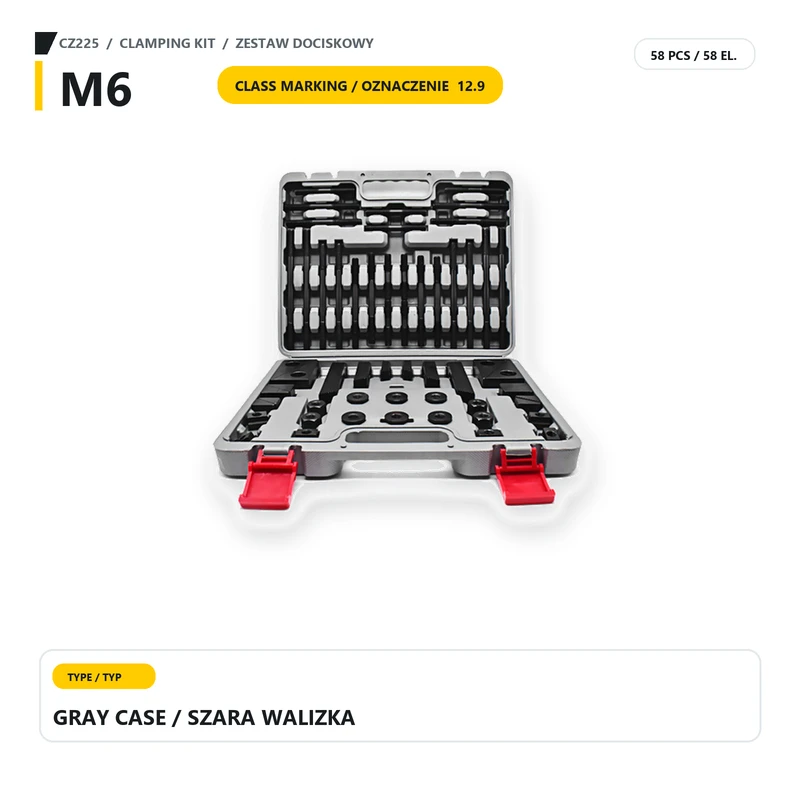

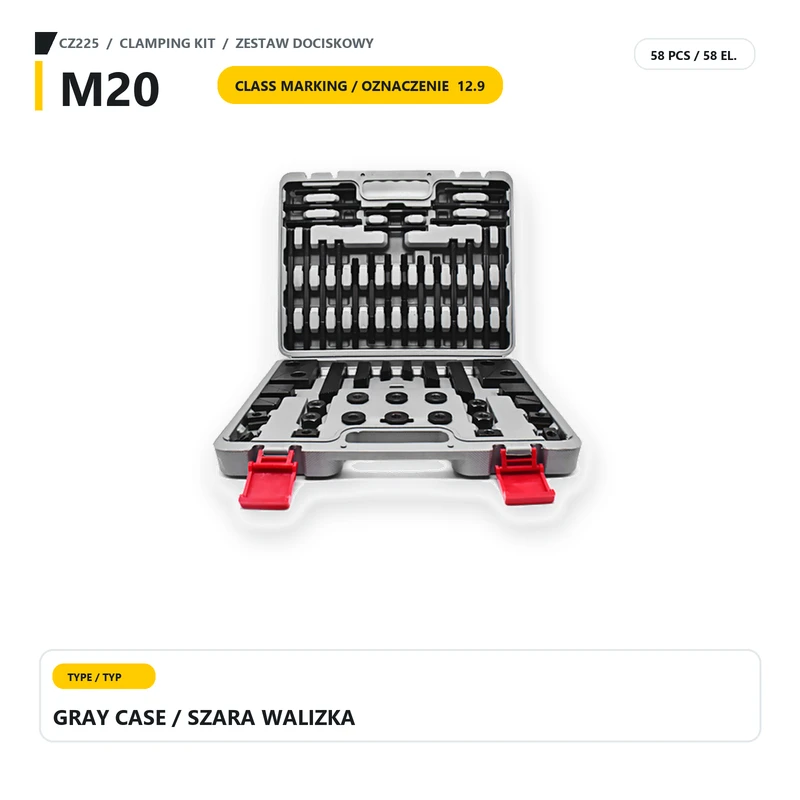

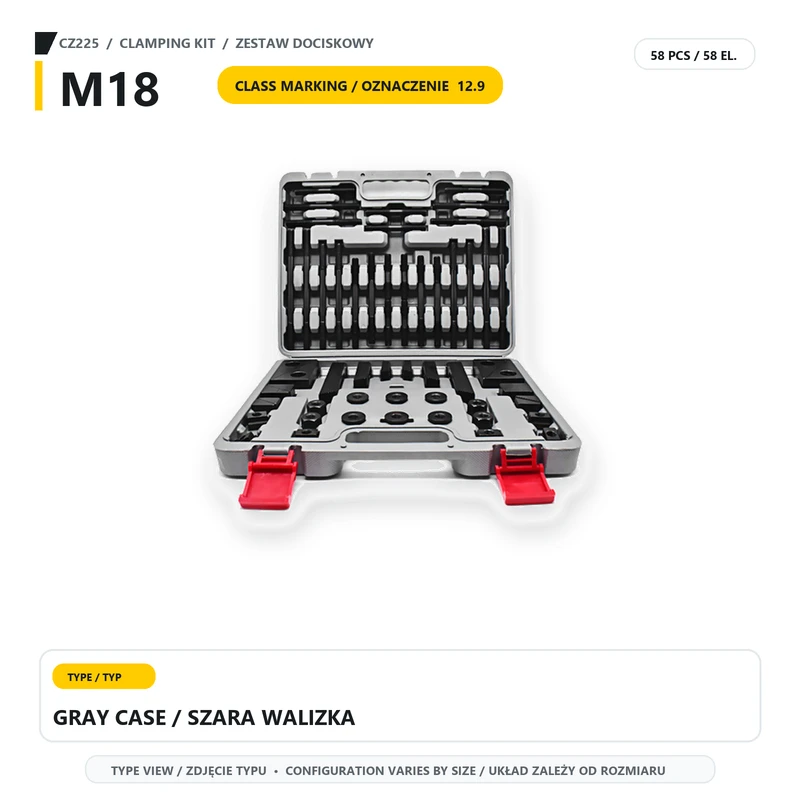

Grey case12.9M6, M8, M10, M12, M14, M16, M18, M20

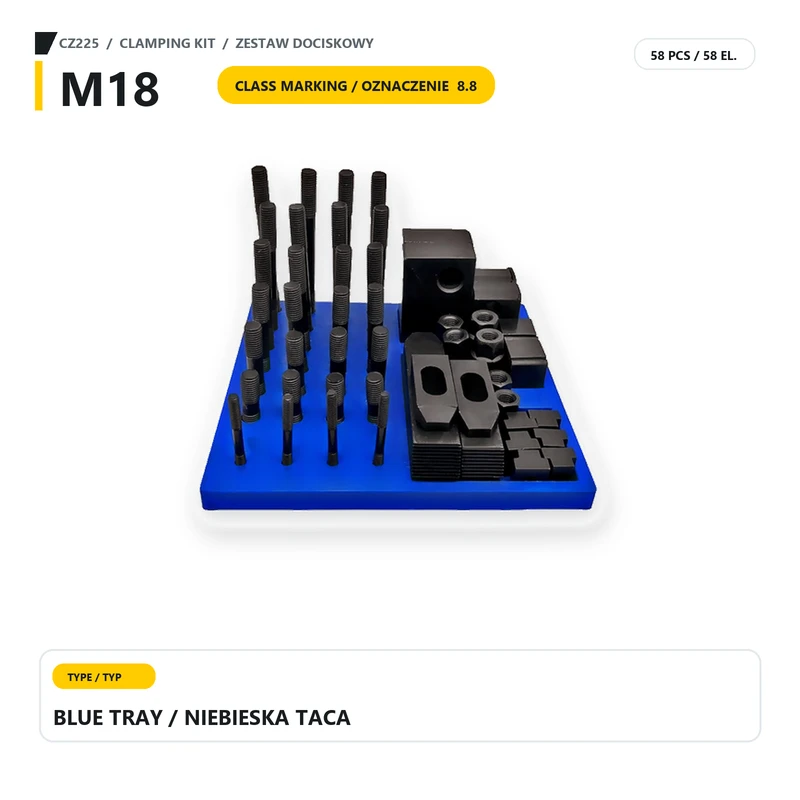

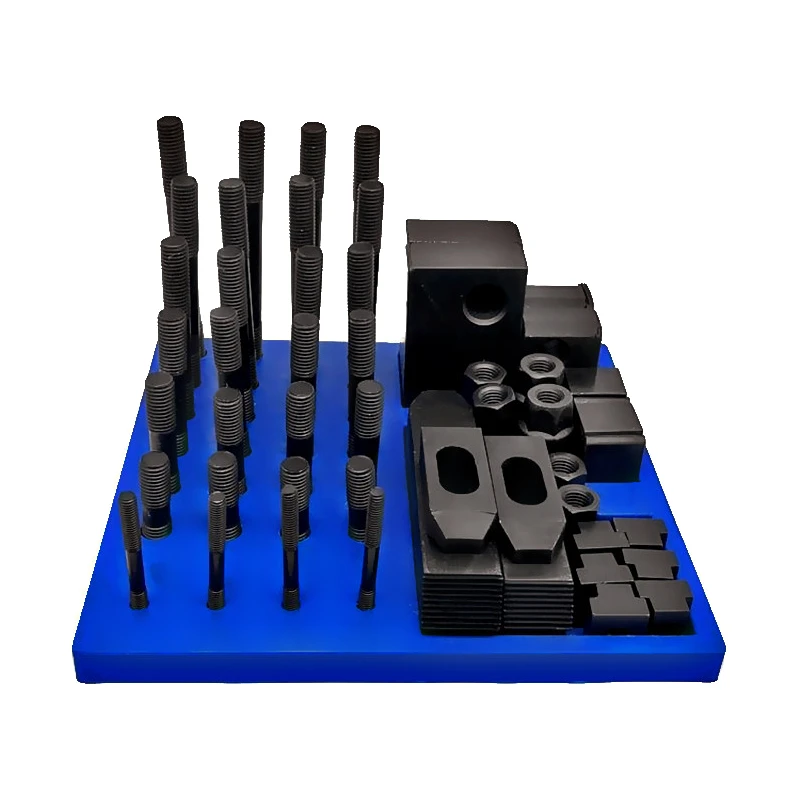

Blue tray8.8M18, M20
Blue tray12.9M18, M20, M22, M24

Treat the packaging form as part of the variant identification and check the gallery card assigned to the selection before ordering. Two source positions without a stated class marking are deliberately not offered on this page, keeping every available choice unambiguous.

Grouping by packaging is useful in day-to-day production. Similar sizes can be distinguished more quickly on a shelf, while the gallery card remains tied to the item selected in the shop. When several kits are ordered for different machines, the full variant name and packaging form also reduce mistakes during goods receipt and tool issue.

How to select the M marking

  1. Check the machine-table documentation. The variant marking must match the required threaded components and your workholding system.
  2. Measure existing components. When replacing a set, compare the thread, T-slot nut and slot geometry.
  3. Do not select by machine name alone. Machines from the same family may use different tables.
  4. Select class and packaging. Once the size is known, choose 8.8 or 12.9 and the visible set form.

If the size is uncertain: compare the existing T-slot nut and thread with the machine documentation before ordering. The M marking identifies the variant but does not replace a check of the slot geometry.

Fast fulfilment

This listing is for customers who need the set as soon as practical. The price depends on the selected variant and its current availability. The exact lead time is shown for the selected item.

If the purchase can be planned in advance, the economy option with dispatch within 60 days is temporarily unavailable. Once it returns, the same technical variant will be offered there at a lower price.

This listing contains only the 24 clearly ordered technical variants. The list does not repeat every set for two fulfilment times.

After a variant is selected, the product card shows the assigned price, lead time and matching gallery image. The cart retains the full size, class and packaging identification, making it easier to verify the exact configuration before payment and during goods receipt.

The fast listing keeps the same complete 58-piece composition described below. It changes neither the selected technical variant nor its packaging; it is a separate purchasing path created solely to keep the shorter fulfilment choice clear and easy to order.

Safe use

  • Inspect threads, clamps, blocks and nuts before every use.
  • Do not use components with cracks, permanent deformation, damaged threads or severe corrosion.
  • Support each clamp securely on a correctly positioned step block.
  • Select the number and placement of clamping points for the workpiece geometry, mass and machining operation.
  • After initial tightening, check workpiece position and the stability of the full arrangement.
  • Follow the machine instructions and the safety procedures used at the workplace.

No universal tightening torque is stated because the correct value depends on size, connection type, lubrication, thread condition and the complete workholding design.

Frequently asked questions

Does the price cover a complete set?
Yes. The selected price covers one 58-piece set in the exact configuration shown in the selectors.

Does 12.9 describe every component?
No. It is the class marking of the threaded elements assigned to the variant. The other parts perform different functions in the system.

Why does the 12.9 variant cost more?
You are selecting a higher class of threaded elements. It is the premium choice for users who require that higher specification.

Does the other listing represent a different quality level?
No. With the same size, class and packaging, the technical variant is the same. The difference is the price and fulfilment time. The economy option with dispatch within 60 days is temporarily unavailable.

Can I order without contacting the shop?
Yes. Select fulfilment and the set variant, then add the completed combination to the cart.

Does the image change with the variant?
Yes. Each of the 24 variants has its own clear gallery card showing size, class and packaging form.
