SRDPN external turning holder for RPMT inserts

Availability:

Select a variant to see available quantity pcs.

€11.45

Shipping costs are not included in the price.

Quantity

pcs.

Shipping time: 24 hours

Ask about the product

Click Available to show variants with 24h shipping

Product description

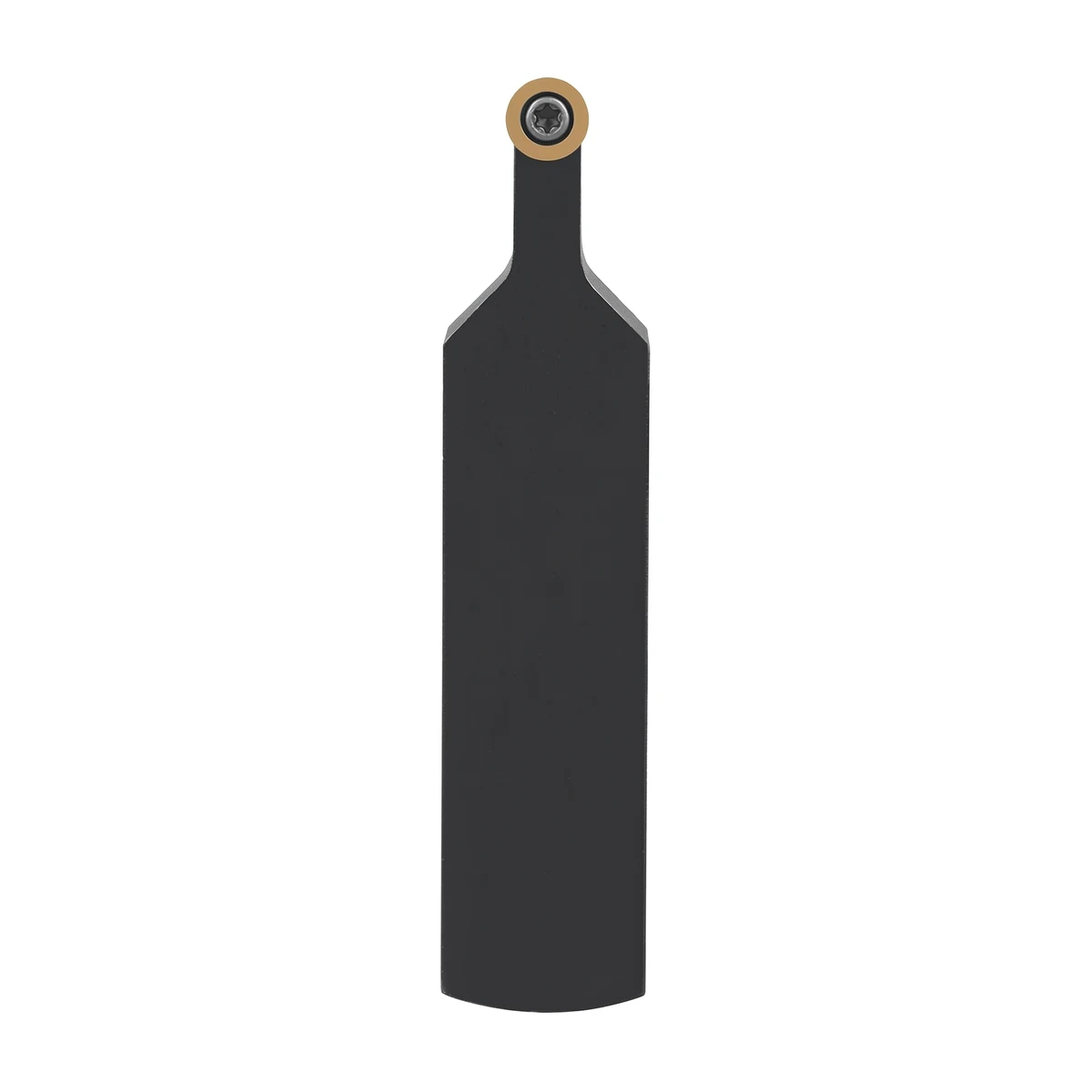

SRDPN external turning holder for RPMT inserts

SRDPN indexable holder for external turning, using RPMT inserts. Clamping: screw through the insert hole (s). The final letter R, L or N in the five-letter holder designation identifies its hand.

Shank size, holder length and insert seat size are separate parameters. Read the selected variant designation before choosing an insert; shank width alone does not determine compatibility.

Application

For machining external workpiece surfaces on a lathe. Select R or L according to the required tool orientation; N identifies the neutral design. Choose the insert geometry, cutting grade and machining parameters for the operation and workpiece material.

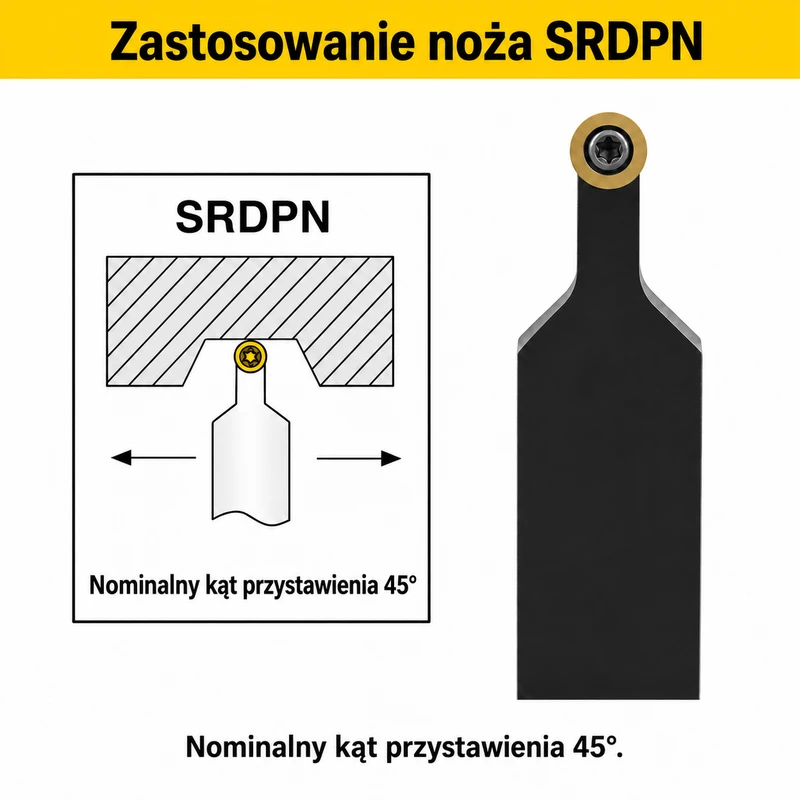

Entering angle of this design: 45°.

Specifications

Parameter	Value
Holder family	SRDPN
Insert family	RPMT
Clamping	Screw through the insert hole (S)
Hand	Neutral (N)
Cutting insert	Sold separately
Entering angle	45°
Insert clearance angle	11°

Insert seat and insert size

The holder code suffix identifies the insert seat size. The same shank size may be available with different insert sizes. Match both the insert family and its size.

Holder code suffix	Insert family and size
08	RPMT 08T2
10	RPMT 10T3
12	RPMT 1204

The size designation does not specify corner radius, grade or chipbreaker. Select these insert features separately while preserving compatibility with the seat geometry and dimensions.

Shank and holder length

Shank [mm]	Overall length [mm]	Code suffix	Insert	Hand
10 × 10	100	10	RPMT 10T3	N
12 × 12	100	10	RPMT 10T3	N
16 × 16	100	08	RPMT 08T2	N
16 × 16	100	10	RPMT 10T3	N
20 × 20	125	08	RPMT 08T2	N
20 × 20	125	10	RPMT 10T3	N
20 × 20	125	12	RPMT 1204	N
25 × 25	150	08	RPMT 08T2	N
25 × 25	150	10	RPMT 10T3	N
25 × 25	150	12	RPMT 1204	N
32 × 32	170	12	RPMT 1204	N

Select the current variant using the product selector. The shank must fit the lathe toolholding arrangement; check shank size and overall length separately.

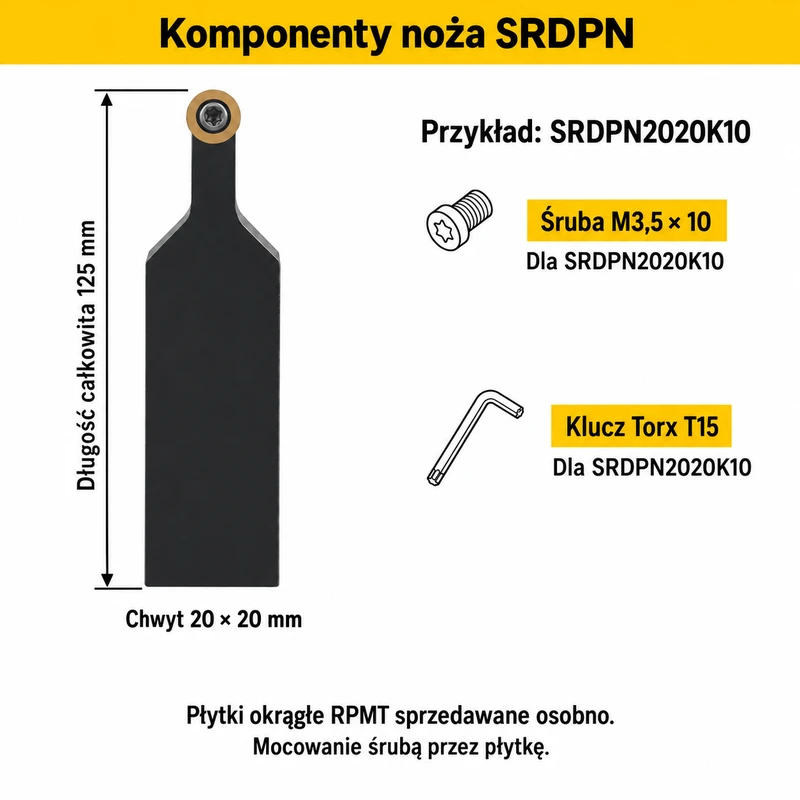

Clamping and parts

Insert clamping: Screw through the insert hole (S). The insert must seat in the selected holder design. Spare-part codes refer to the specific clamping system and insert seat size.

Code suffix	Screw	Key
10	M3.5×10	T15
12	M4×10	T15

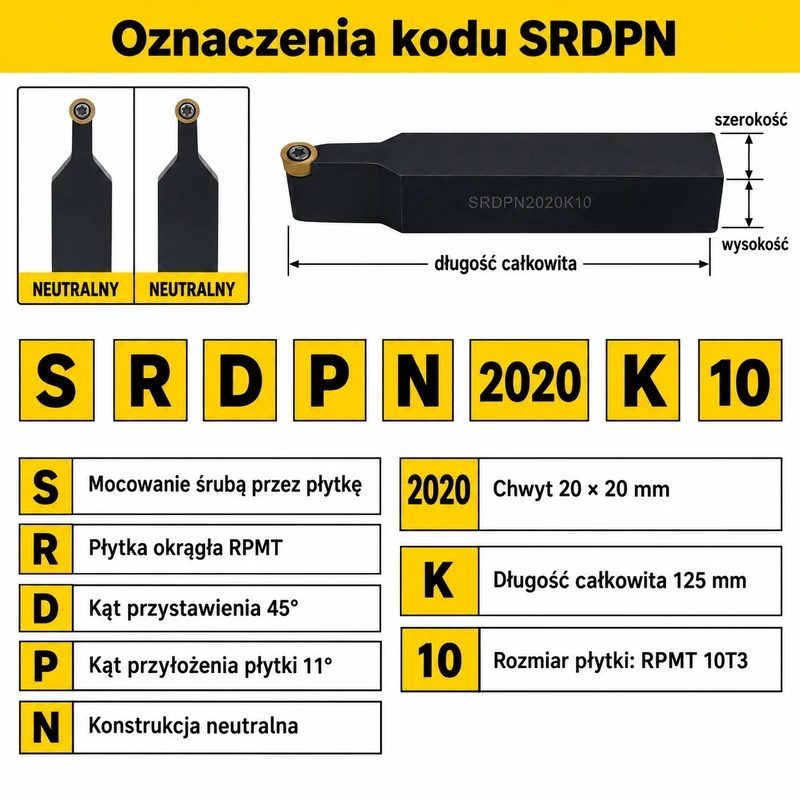

Reading the variant designation

Code element	Meaning
Letter designation	Holder family, geometry and clamping
R / L / N	Right-hand / left-hand / neutral
Two pairs of digits after the letters	Shank width and height [mm]
Letter following shank size	Holder length designation
Code suffix	Insert seat size

Tool selection

Check the insert family, seat size, shank, holder length and R/L/N design together. Choosing an insert grade for steel, cast iron, aluminium or another material does not change the required fit between insert and holder seat.
