WTQNL / WTQNR external turning holder for TNMG inserts

Availability:

Select a variant to see available quantity pcs.

€16.90

Shipping costs are not included in the price.

Quantity

pcs.

Shipping time: 24 hours

Ask about the product

Click Available to show variants with 24h shipping

Product description

WTQNL / WTQNR external turning holder for TNMG inserts

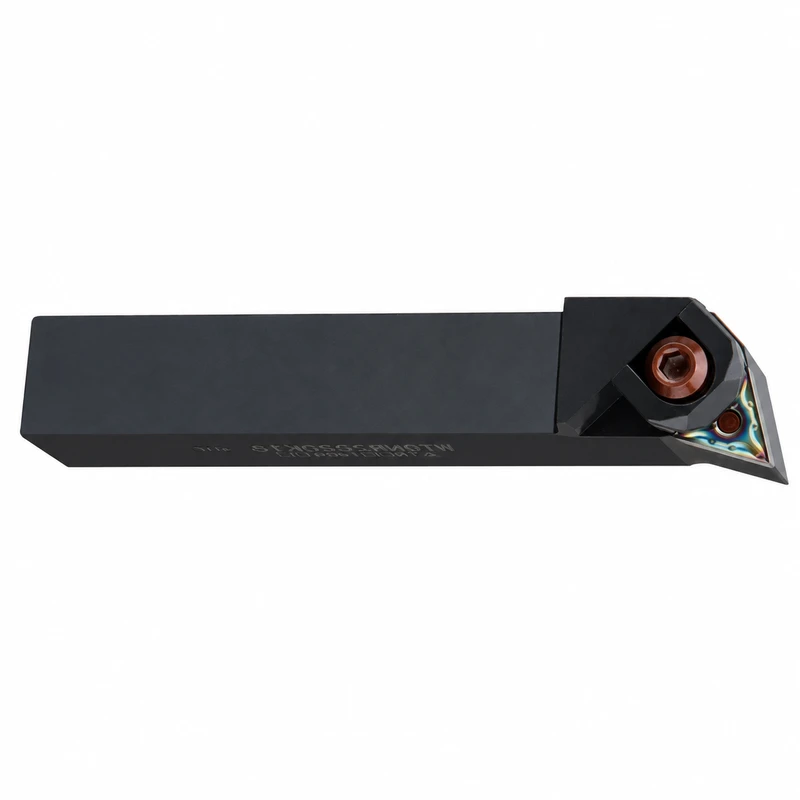

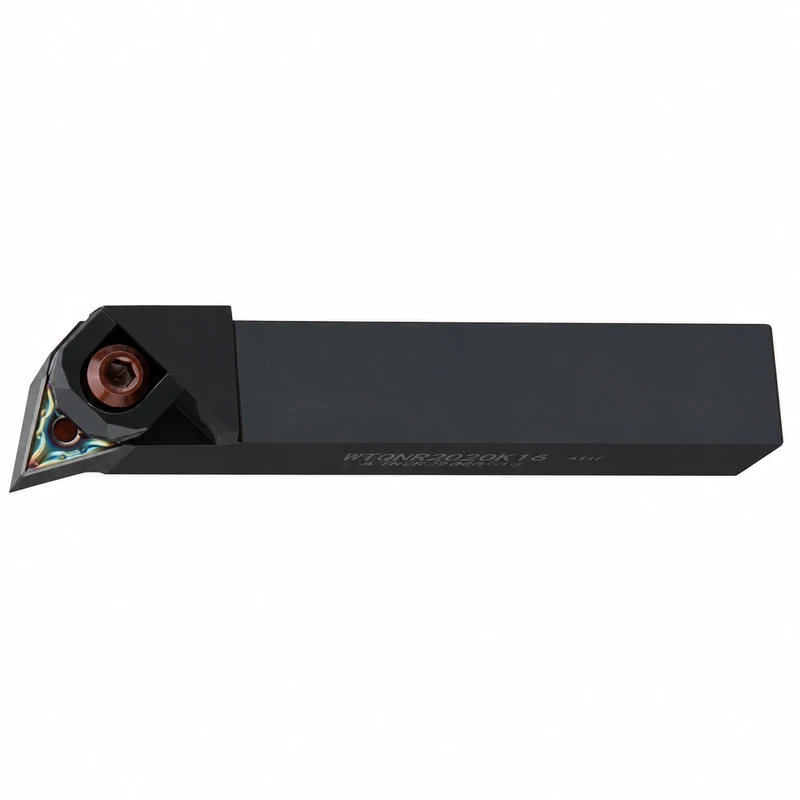

WTQNL / WTQNR indexable holder for external turning, using TNMG inserts. Clamping: top insert clamp. The final letter R, L or N in the five-letter holder designation identifies its hand.

Shank size, holder length and insert seat size are separate parameters. Read the selected variant designation before choosing an insert; shank width alone does not determine compatibility.

Application

For machining external workpiece surfaces on a lathe. Select R or L according to the required tool orientation; N identifies the neutral design. Choose the insert geometry, cutting grade and machining parameters for the operation and workpiece material.

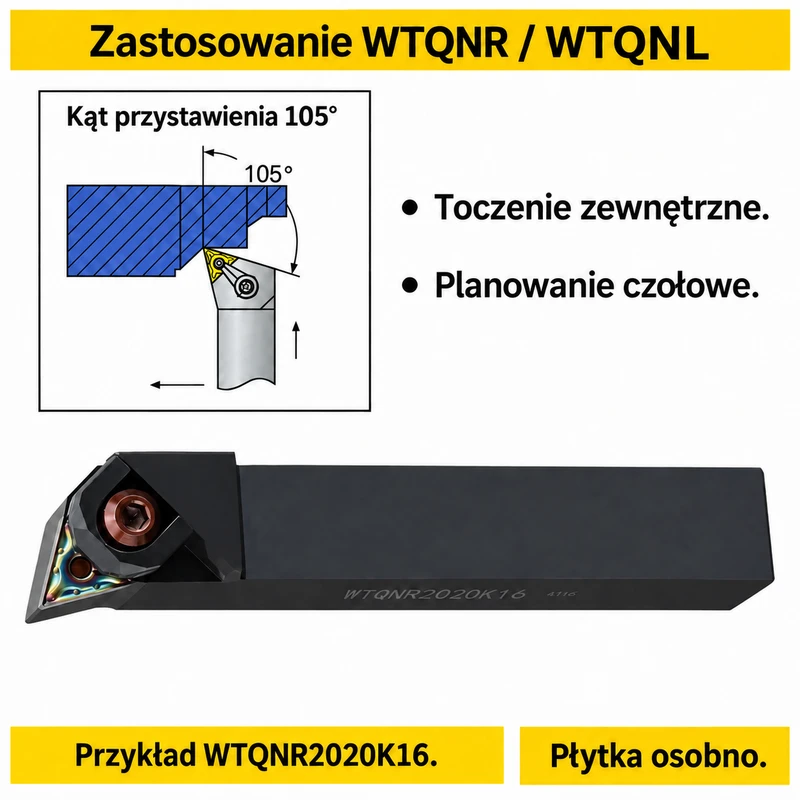

Entering angle of this design: 105°.

Specifications

Parameter	Value
Holder family	WTQNL / WTQNR
Insert family	TNMG
Clamping	Top insert clamp
Hand	Left-hand (L) / Right-hand (R)
Cutting insert	Sold separately
Entering angle	105°
Insert corner angle	60°
Insert clearance angle	0°

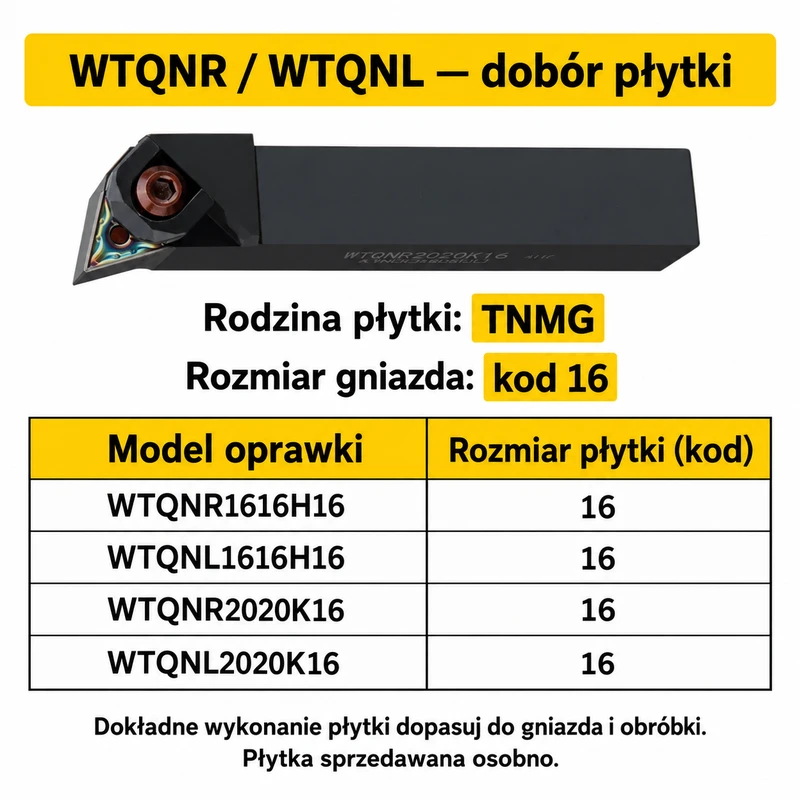

Insert seat and insert size

The holder code suffix identifies the insert seat size. The same shank size may be available with different insert sizes. Match both the insert family and its size.

Parameter	Value
Holder code suffix	16
Insert family and size	TNMG 16

The size designation does not specify corner radius, grade or chipbreaker. Select these insert features separately while preserving compatibility with the seat geometry and dimensions.

Shank and holder length

Shank [mm]	Overall length [mm]	Code suffix	Insert	Hand
16 × 16	100	16	TNMG 16	L / R
20 × 20	125	16	TNMG 16	L / R

Select the current variant using the product selector. The shank must fit the lathe toolholding arrangement; check shank size and overall length separately.

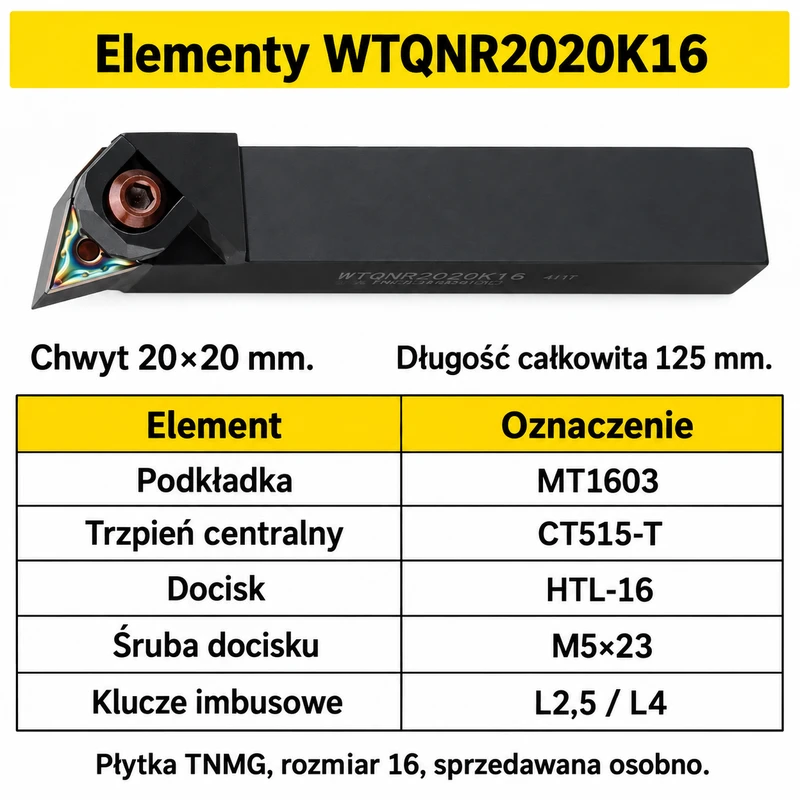

Clamping and parts

Insert clamping: Top insert clamp. The insert must seat in the selected holder design. Spare-part codes refer to the specific clamping system and insert seat size.

Seat size	Part	Designation
16	Insert seat shim	MT1603
16	Pin	CT515-T
16	Clamp	HTL-16
16	Screw	M5X23
16	Key	L2.5 / L4.0

Reading the variant designation

Code element	Meaning
Letter designation	Holder family, geometry and clamping
R / L / N	Right-hand / left-hand / neutral
Two pairs of digits after the letters	Shank width and height [mm]
Letter following shank size	Holder length designation
Code suffix	Insert seat size

Tool selection

Check the insert family, seat size, shank, holder length and R/L/N design together. Choosing an insert grade for steel, cast iron, aluminium or another material does not change the required fit between insert and holder seat.
