DIN69871 ER collet chuck SK30 SK40 SK50 ER11 ER16 ER20 ER25 ER32 ER40 ER50 G2.5
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Ask about the product
The administrator of personal data is Kortools. We process it to respond to your inquiry. More information regarding the processing of personal data can be found in privacy policy.
Select a product variant:
Individual variants may differ in price
Product code: C775-6545E
Product description
DIN69871 ER collet chuck SK30 ER SK40 ER SK50 ER G2.5
Body material: 20CrMnTi.
Hardness: HRC 56–58.
Balance grade: G2.5.
Before installing the collet or replacing the cutting tool, thoroughly clean the nut thread and the collet surface, then apply grease. Failure to clean and lubricate these surfaces may damage the nut thread.
The nut has a full-circle design, without an eccentric. It provides low noise and low air resistance and is suitable for high spindle speeds.

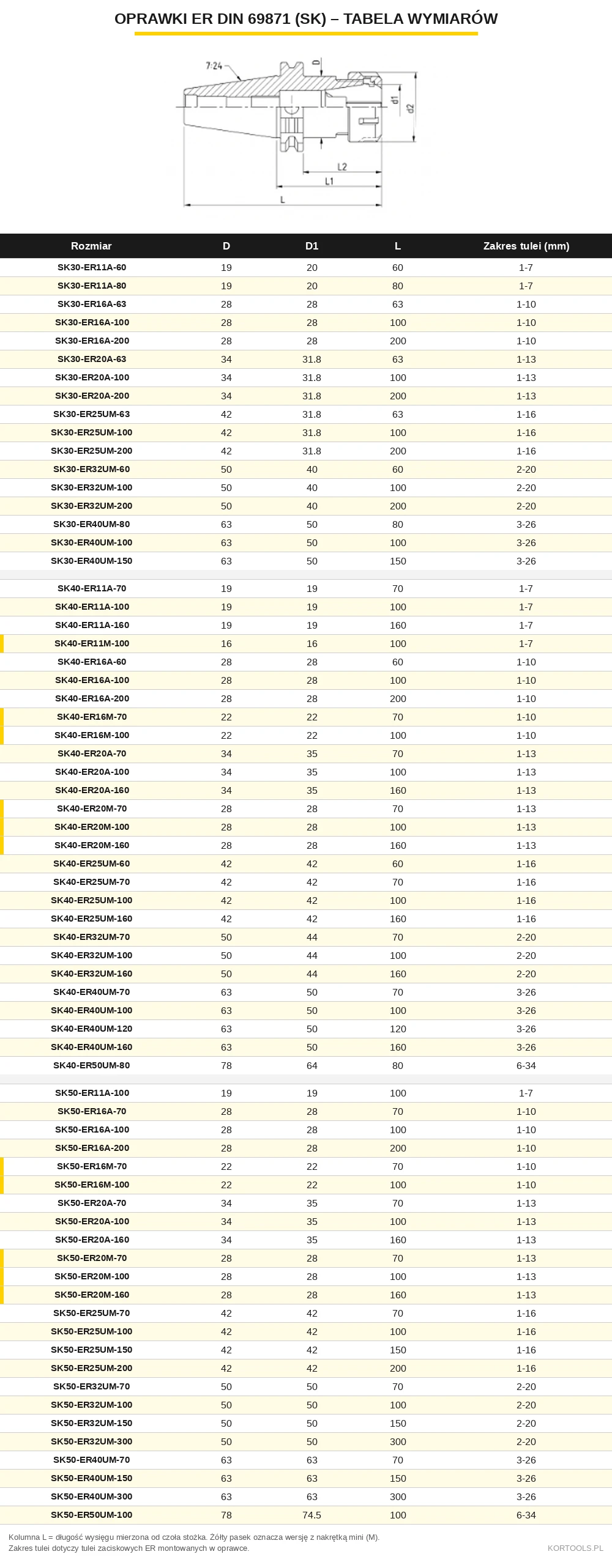

Read the complete designation of the selected variant. For example, SK40-ER32UM-100L contains the SK40 taper designation, ER32 collet-size designation, UM suffix and 100L length marking. A, M and UM are distinct parts of the available variant codes. Check the drawing for the exact variant before selecting dimensions not stated in its code.
Select a pull stud
For an SK/DIN 69871 holder compare DIN 69872 pull studs in the appropriate SK size.
Confirm the selection against the spindle requirements: head profile and angle, thread, length, bore and seal.
