Spiral Flute Fine Pitch Machine Tap HSSE-PM DIN 374 TiCN
Warehouse availability:
Main warehouse:
Select a variant to see available quantity
pcs.
€30.88
Price
€30.88
(
without VAT
)
The lowest price during 30 days prior to the reduction:
€30.88
The promotion runs until %s
Shipping costs are not included in the price.
€37.98
Price
€37.98
(
)
The lowest price during 30 days prior to the reduction:
€37.98
The promotion runs until %s
Shipping costs are not included in the price.
Ask about the product

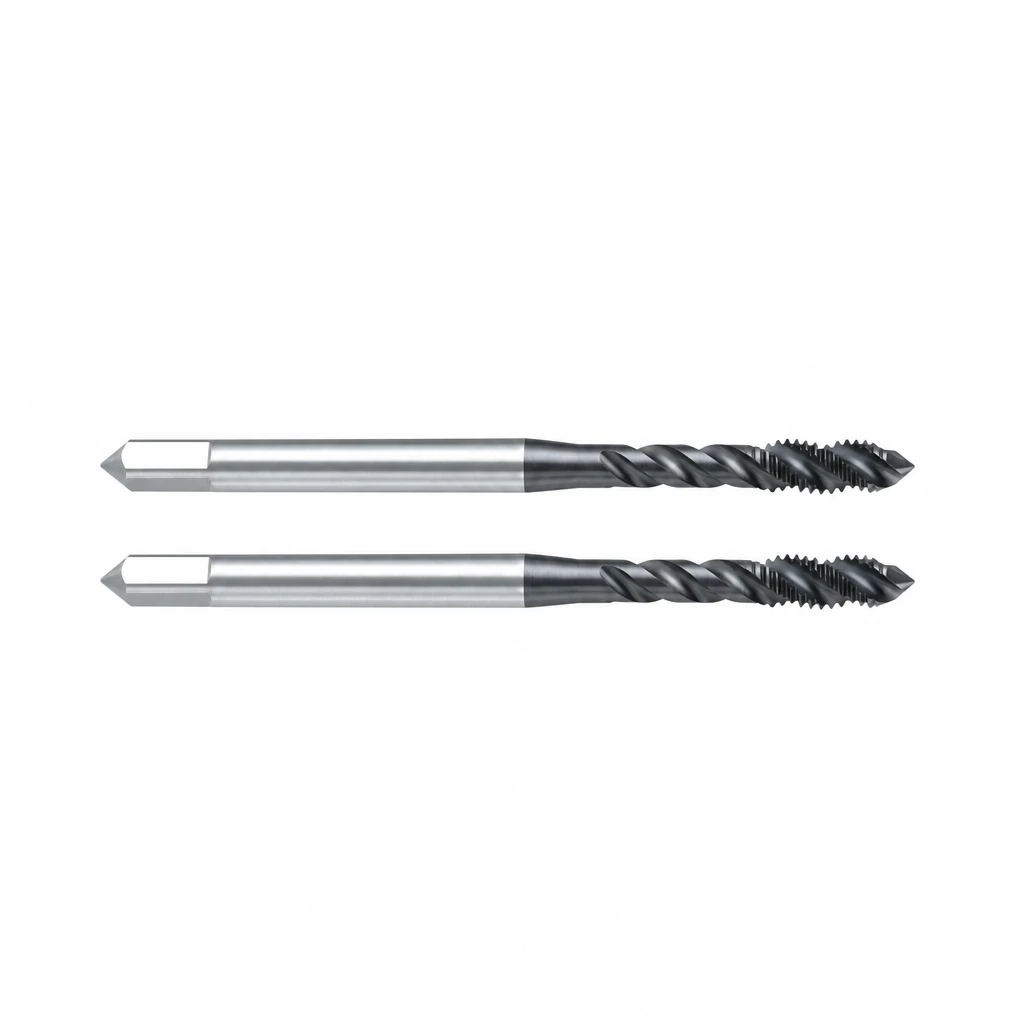

Spiral Flute Fine Pitch Machine Tap HSSE-PM DIN 374 TiCN
The administrator of personal data is Kortools. We process it to respond to your inquiry. More information regarding the processing of personal data can be found in privacy policy.
Select a product variant:
Individual variants may differ in price
Click Available to show variants with 24h shipping
Product code: GWS-TICN-DIN374
Opis produktu
Opis produktu
Gwintownik maszynowy skretny drobnozwojowy HSSE-PM DIN 374 TiCN - do naciania metrycznych gwintow DROBNOZWOJOWYCH (fine pitch, zmniejszony skok) w otworach nieprzelotowych (slepych). Uzwojenie spiralne R45 odprowadza wiory DO GORY, wiec nie zakleszczaja sie na dnie otworu. Material HSSE-PM (proszkowa stal szybkotnaca), powloka TiCN - wysoka odpornosc na zuzycie i dluga trwalosc. Klasa dokladnosci 6H.
Zastosowanie
- Gwinty drobnozwojowe M12-M24 (mniejszy skok niz standard - do cienkoscienych i precyzyjnych polaczen).
- Otwory nieprzelotowe (slepe) - uzwojenie spiralne wyrzuca wiory ku gorze.
- Stal, staliwo, zeliwo ciagliwe, stopy - CNC i maszyny konwencjonalne.

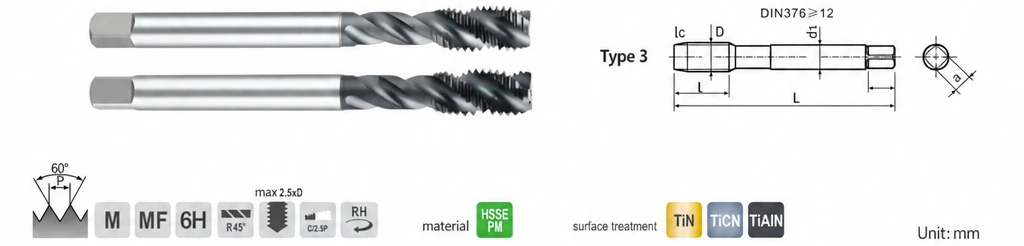

Specyfikacja
| Kod | Rozmiar | Skok P | Klasa | Dl. L | Dl. gwintu l | Chwyt d1 | Kwadrat a | Rowki | Wiertlo Ø | Faza |
|---|---|---|---|---|---|---|---|---|---|---|
| SC512102 | M12×1 | 1 | 6H | 100 | 15 | 9 | 7 | 3 | 11 | 2,5P |
| SC512103 | M12×1,25 | 1,25 | 6H | 100 | 21 | 9 | 7 | 3 | 10,8 | 2,5P |
| SC512104 | M12×1,5 | 1,5 | 6H | 100 | 21 | 9 | 7 | 3 | 10,5 | 2,5P |
| SC512106 | M14×1,5 | 1,5 | 6H | 100 | 20 | 11 | 9 | 3 | 12,5 | 2,5P |
| SC512108 | M16×1,5 | 1,5 | 6H | 100 | 20 | 12 | 9 | 3 | 14,5 | 2,5P |
| SC512110 | M18×1,5 | 1,5 | 6H | 110 | 25 | 14 | 11 | 4 | 16,5 | 2,5P |
| SC512112 | M20×1,5 | 1,5 | 6H | 125 | 25 | 16 | 12 | 4 | 18,5 | 2,5P |
| SC512114 | M22×1,5 | 1,5 | 6H | 125 | 25 | 18 | 14,5 | 4 | 20,5 | 2,5P |
| SC512116 | M24×1,5 | 1,5 | 6H | 140 | 24 | 18 | 14,5 | 4 | 22,5 | 2,5P |
Co oznaczaja kolumny
| Skok P | odleglosc miedzy zwojami gwintu [mm]; drobnozwojowy = mniejszy skok |
| Klasa | klasa dokladnosci gwintu (6H = standard) |
| Dl. L / gwintu l | dlugosc calkowita / dlugosc naciecia gwintu [mm] |
| Chwyt d1 / Kwadrat a | srednica chwytu / wymiar kwadratu napedowego [mm] |
| Rowki | liczba rowkow wiorowych |
| Wiertlo Ø | zalecana srednica otworu pod gwint [mm] |
| Faza | dlugosc czesci nacinajacej (stozek na czubku); 2,5P = 2,5x skok |
