SMT threading head with cooling for UID inserts | Folding cutter

Kortools

Availability:

Select a variant to see available quantity pcs.

€39.39

Shipping costs are not included in the price.

Quantity

pcs.

Shipping time: 24 hours

Ask about the product

Select a product variant:

Individual variants may differ in price

Size

Select

SMT15-16H11U-1C-40L-100L

SMT21-25K11U-2C-60L-125L

SMT23-25L11U-2C-70L-140L

SMT26-25M11U-3C-80L-150L

SMT26-25P11U-3C-110L-170L

SMT31-32P11U-4C-95L-170L

SMT36-32P16U-3C-95L-170L

SMT42-40R16U-4C-120L-200L

SMT42-40S16U-4C-160L-250L

Click Available to show variants with 24h shipping

Product description

SMT thread milling head with internal coolant

Indexable cutter for 11UID or 16UID inserts · metric 60° and imperial 55° threads · inserts sold separately

SMT indexable thread milling cutter, including for deep holes. The cylindrical-shank body has seats for replaceable UID inserts and internal coolant supply. Select the insert type, diameters and lengths for the tool version and the thread.

1. Applications and thread profile

Application	Information
Thread milling	Indexable tool with replaceable inserts for CNC thread machining.
Metric 60° threads	With a suitable UID insert with a 60° profile.
Imperial 55° threads — Whitworth/BSP	With a suitable UID insert with a 55° profile, selected for the specific thread.
Deep holes	Match working length, overall length and cutting-section diameter to the workpiece.
Medium-carbon, high-carbon and stainless steels	With a suitably selected cutting insert. Workpiece suitability depends on the insert, not the bare body.

The selected insert determines the thread profile and pitch range. The SMT body designation identifies its version and compatible insert size; it does not replace the complete thread designation or cutting insert designation.

2. Body and internal coolant

Component	Construction
Body alloy	42CrMo alloy steel.
Mounting	Cylindrical shank with diameter d specified for the selected version.
Cutting section	Seats for replaceable 11UID or 16UID inserts.
Coolant	Internal coolant supply through the body.
Coolant outlets	A separate outlet at each insert position.

Coolant reaches the cutting section through the body. The size card identifies the insert system. The 42CrMo designation applies to the body; the cutting insert is a separate component.

3. Meaning of the dimensions

Symbol	Parameter	Meaning
D	Cutting diameter	Cutting-section dimension on the selected size card, in millimetres.
d	Shank diameter	Diameter of the cylindrical section held in the toolholder, in millimetres.
l	Working length	Working section indicated above the tool on the dimension card.
L	Overall length	Length of the entire tool including the shank, in millimetres.
Number of cutting teeth	Cutting positions	The number shown on the card; it appears beside C in the body designation.

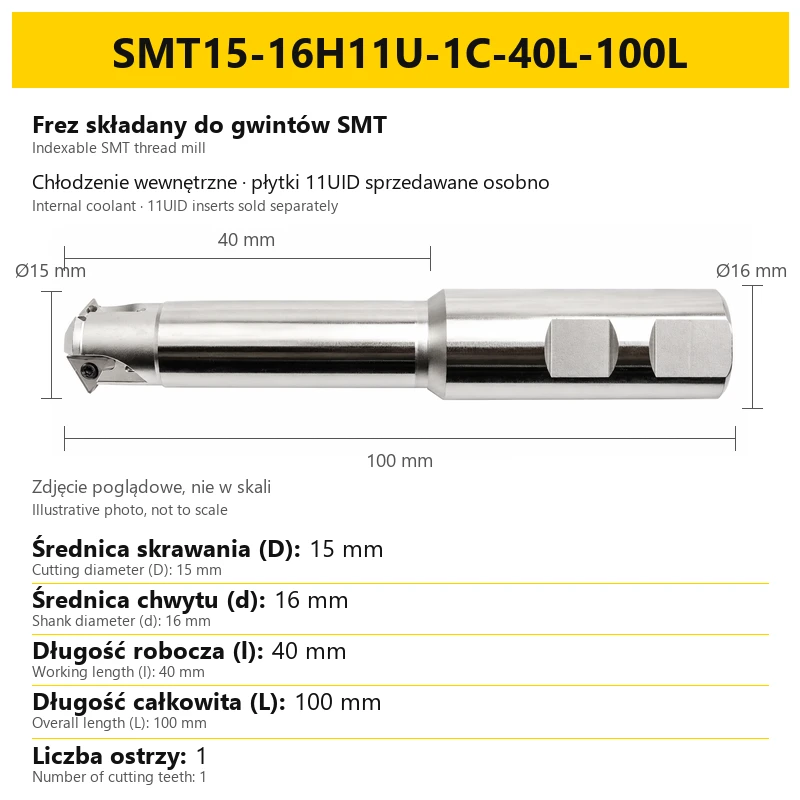

Working length l and overall length L describe different sections. Check both lengths and the shank diameter. The card photograph is illustrative and not to scale; use the labelled values for selection.

4. Dimensional versions

Family	D [mm]	d [mm]	l [mm]	L [mm]	Cutting teeth	Insert
SMT15	15	16	40	100	1	11UID
SMT21	21	25	60	125	2	11UID
SMT23	23	25	70	140	2	11UID
SMT26	26	25	80	150	3	11UID
SMT26	26	25	110	170	3	11UID
SMT31	31	32	95	170	4	11UID
SMT36	36	32	95	170	3	16UID
SMT42	42	40	120	200	4	16UID
SMT42	42	40	160	250	4	16UID

The table shows body dimensions. Versions with the same cutting diameter can have different working and overall lengths. Check the complete designation, price and availability in the size selector; the selected variant card shows its corresponding parameters.

5. Reading the SMT designation

SMT: Thread milling body family.

Number immediately after SMT: Cutting-section diameter identifying the version.

Shank designation: The next code segment includes the shank diameter; d is also shown on the card.

11U / 16U: Compatible insert size: 11UID or 16UID respectively.

Number beside C: Number of cutting teeth / cutting positions in the body.

Dimensions ending in L: The first is working length l; the final one is overall length L. Both values are stated in millimetres.

Read all parts of the designation together. Diameter alone does not distinguish bodies with different lengths, while 11U or 16U identifies insert size rather than thread profile. Select the required 55° or 60° profile when choosing the insert.

6. Selecting UID inserts

Insert / profile	Compatibility	Selection
11UID	Bodies designated 11U	Select the complete insert designation, thread profile and pitch range specified for that insert. Retention reference: L60M2.5×8 screw, T8 key.
16UID	Bodies designated 16U	Select the complete insert designation, thread profile and pitch range specified for that insert. Retention reference: L60M3.5×10 screw, T15 key.
60° profile	Metric threads	Select a suitable 60° UID insert in the size compatible with the body.
55° profile	Imperial Whitworth/BSP threads	Select a suitable 55° UID insert in the size compatible with the body.

Do not interchange 11UID and 16UID sizes based on similar appearance. Insert-to-body size compatibility and insert-profile and pitch compatibility with the thread are separate selection requirements. Inserts fitted in the photograph illustrate the construction and are sold separately. Screw and key designations identify retention; they do not indicate additional accessories included in the offer.

7. Contents and tool selection

Item offered: The selected SMT cutter body with a cylindrical shank.

Cutting inserts: Not included with the body; purchase separately.

Use the complete variant designation and its card when selecting a tool. Compare cutting diameter, shank diameter, both lengths, number of cutting teeth and insert system. These parameters distinguish versions illustrated with a similar photograph.

8. Selection questions

Are inserts included?

No. This offer is for the SMT body; UID inserts are purchased separately.

Does every body accept both 11UID and 16UID?

No. A body designated 11U is intended for 11UID, while 16U is intended for 16UID. The compatible size is shown on the card.

Can a body be used for 55° and 60° profiles?

Select an insert with the required profile in the compatible UID size. Final selection also depends on the complete thread designation and the insert pitch range.

How does working length differ from overall length?

Working length l identifies the indicated working section. Overall length L includes the complete tool and shank. Both dimensions are labelled on the card.

How is coolant supplied?

Through the body to separate outlets at the insert positions.
